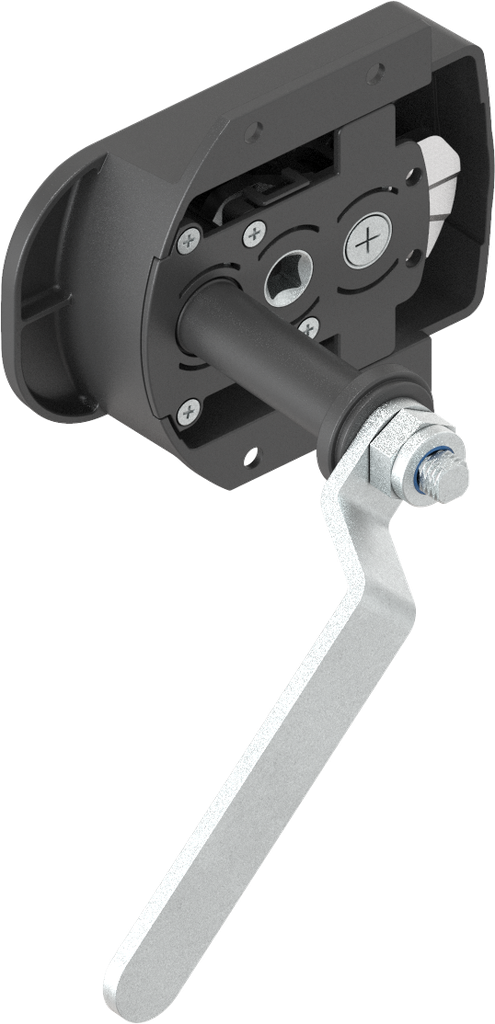

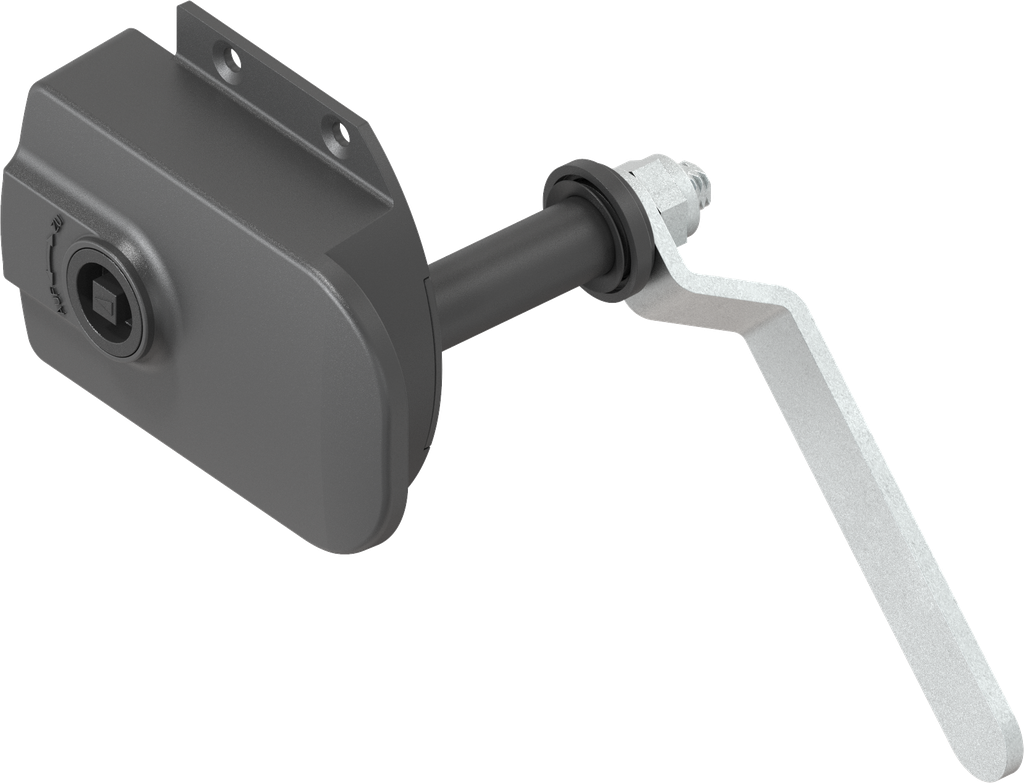

Prominent door lock square 7 with inside handle, Polyamide 66 GF 50 black
Prominent door lock square 7 with inside handle, Polyamide 66 GF 50 black

Prominent door lock square 7 with inside handle, Polyamide 66 GF 50 black; 1000-U943

https://www.emka.com/products/1000-u943 https://www.emka.com/web/image/product.template/205976/image_1920?unique=2380851

for Ts = 50 mm


    This combination does not exist.

    Inside the sealing Outside the sealing Left Right


    Product Benefits:

    • Prominent door lock for different door thicknesses Inside handle can be operated without restrictions Can be used without inside handle
    • Inside handle can be operated without restrictions
    • Can be used without inside handle

    Product information:

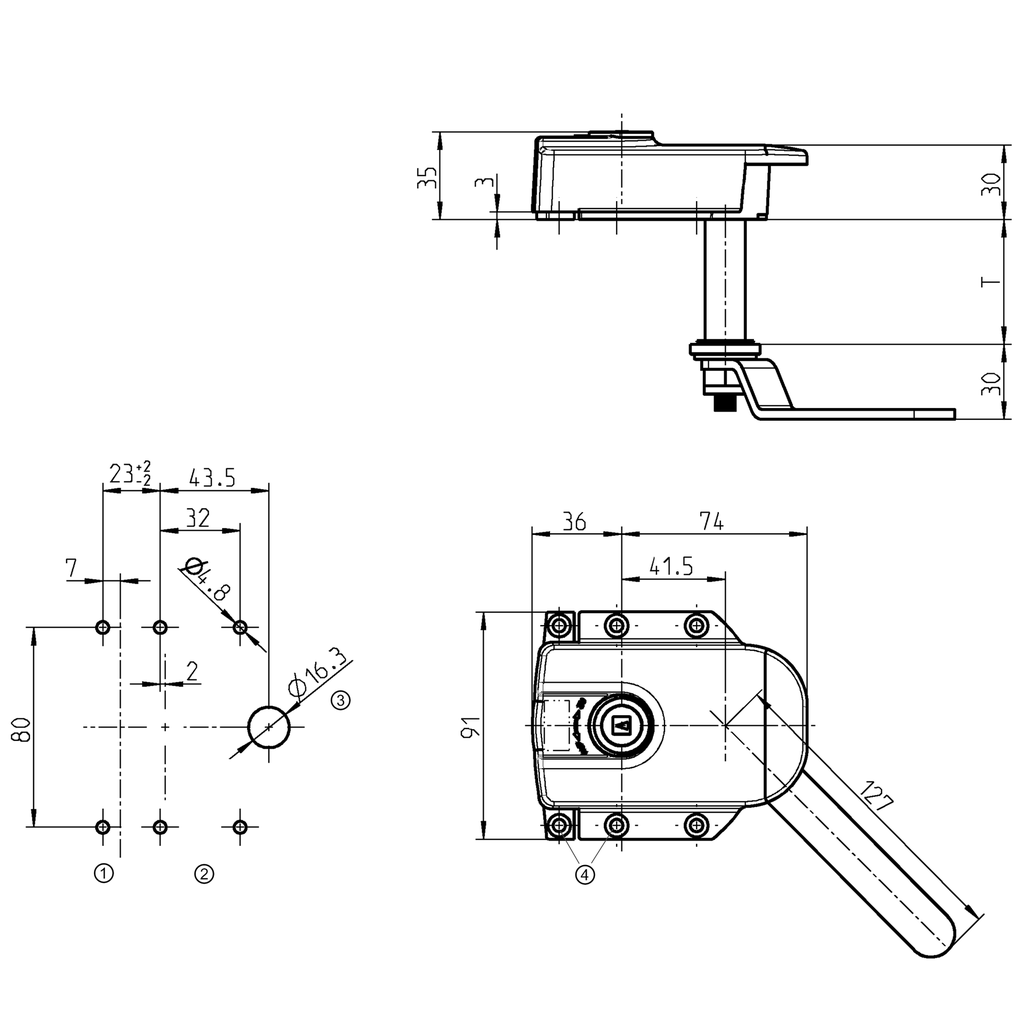

    A = Door lock with stepped cam B = Door lock with pressure relief 1 = Cut out front for catch 2 = Cut out front for housing 3 = Bore hole Ø 16 continuously 4 = Countersinking for rivet in housing and catch

    Internal Reference: 1000-U943
    Product Type: Other latch
    Program: 1000
    Catalog sheet: 8A-232
    Material of the module : Polyamide 66 GF 50
    Surface of the module: black
    Number of Possible Locking Points: 1 point
    Execution: A
    Fixing type of housing : rivetable
    Type of actuation: Square 7

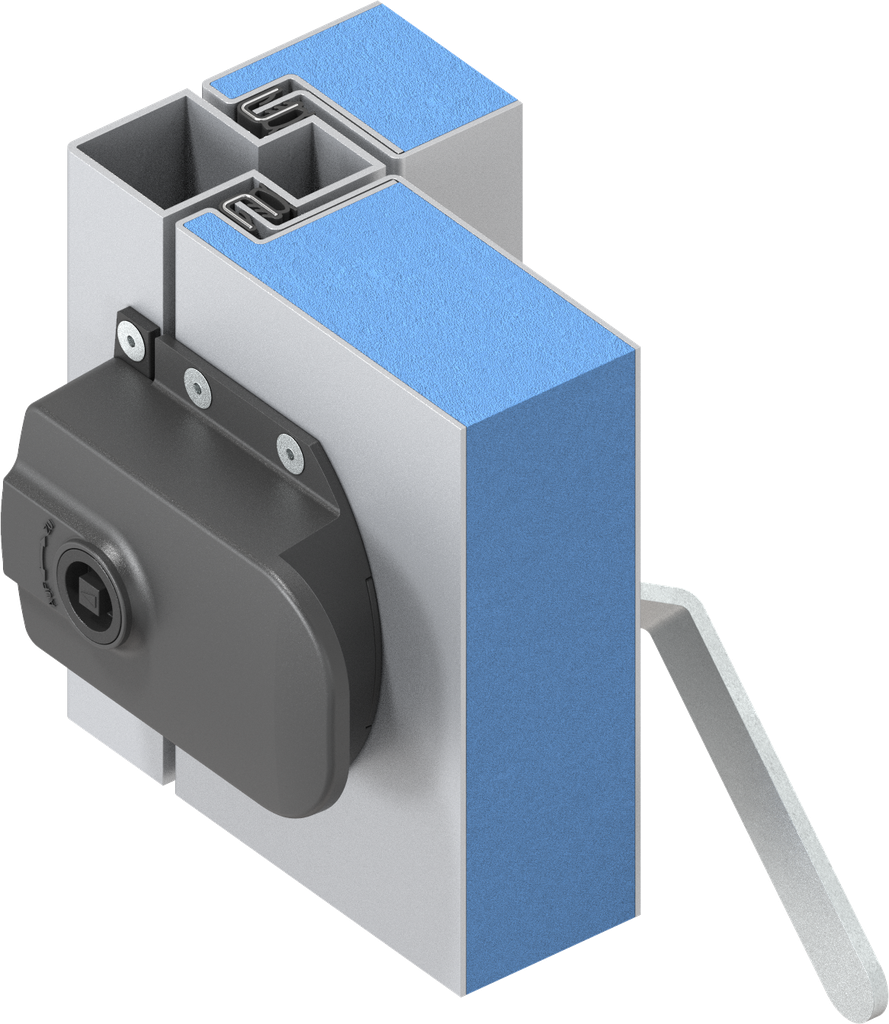

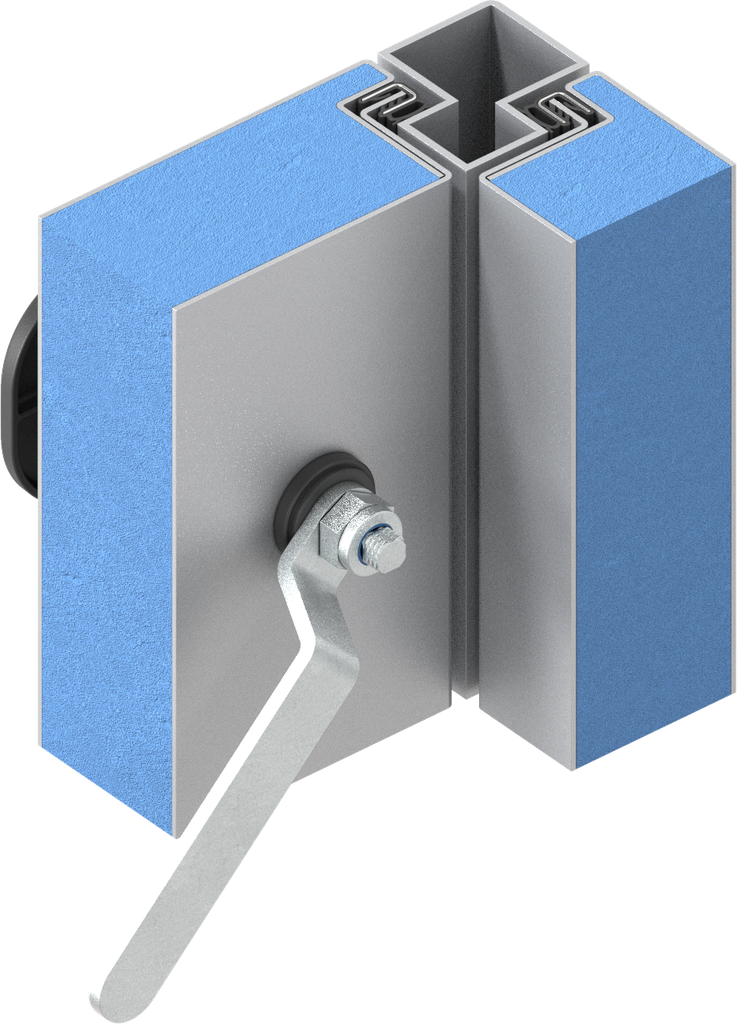

    Mounting Positions : Inside the sealing,Outside the sealing
    Suitable for door thickness from: 50 mm
    Suitable for door thicknesses up to: 50 mm
    Locking set: Insert
    Door Version : Left,Right
    Lock Type: Prominent door lock
    No Specifications
    View All Products
    Catch
    Here you can find the product data sheets and CAD files of this product
