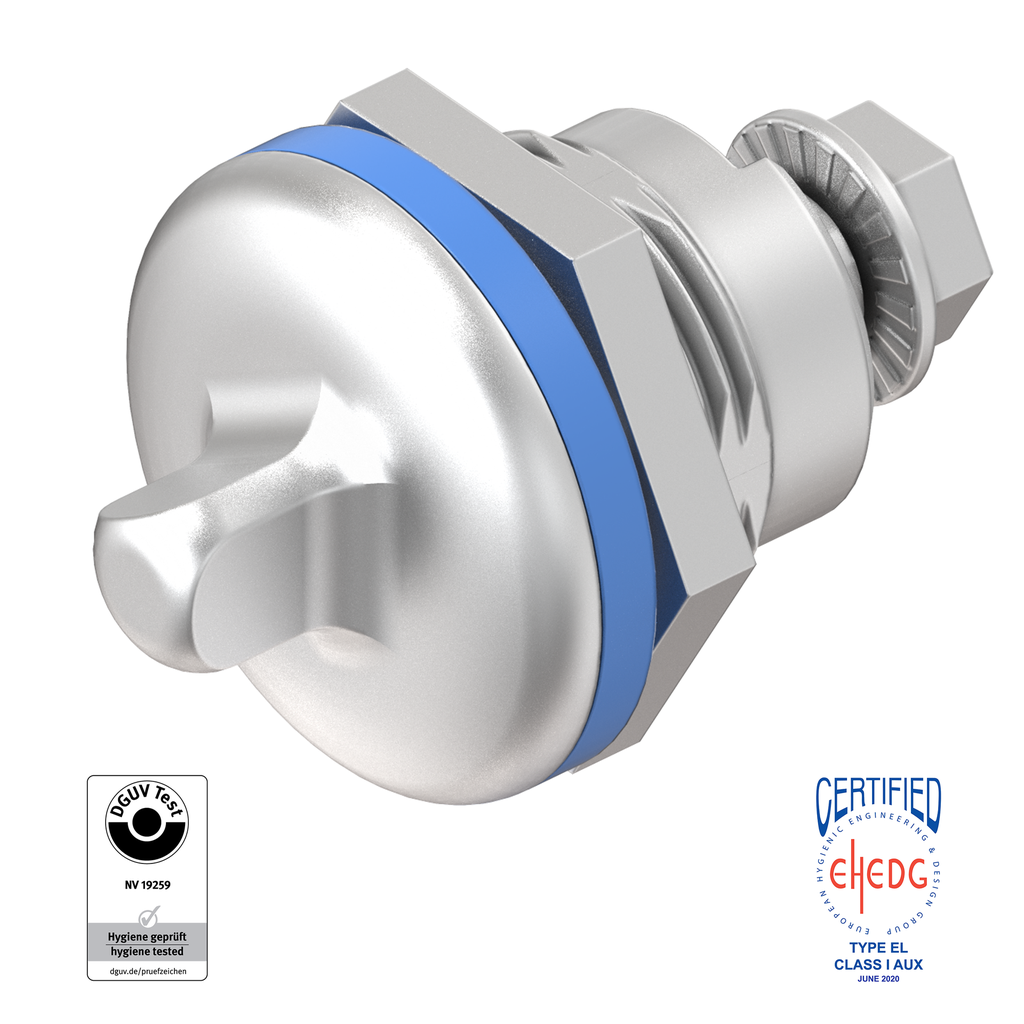

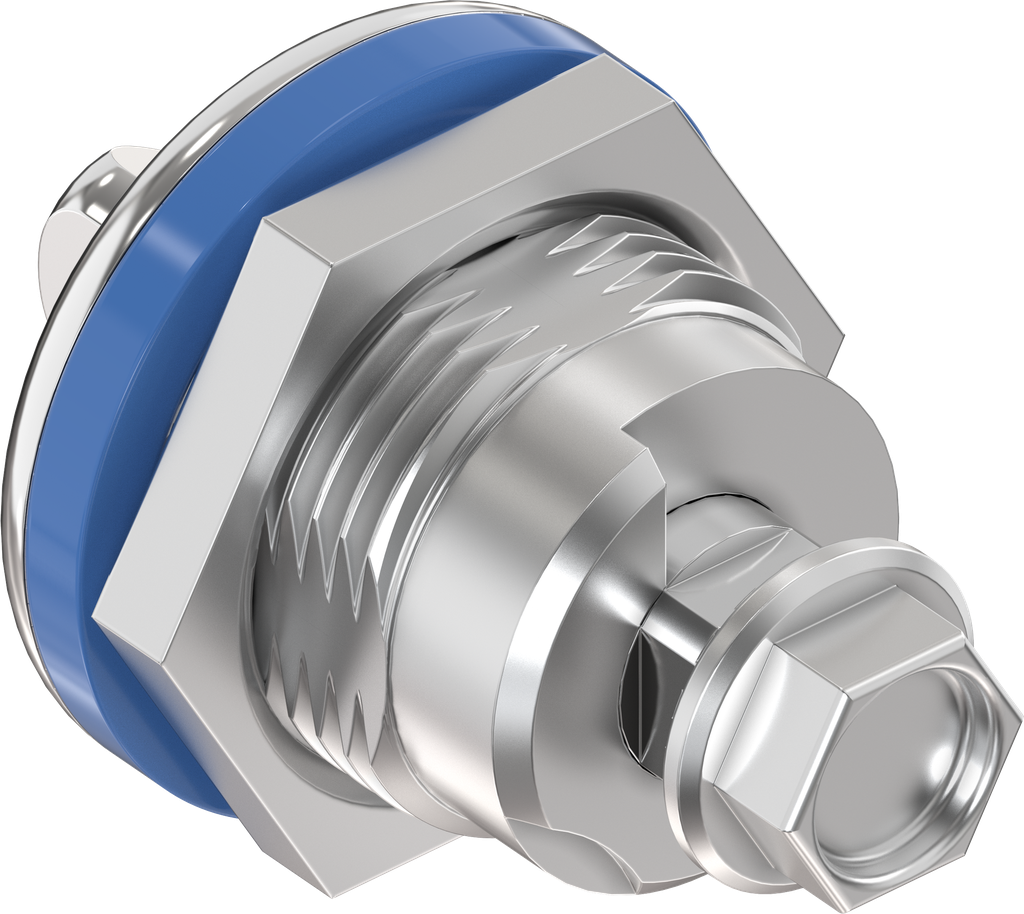

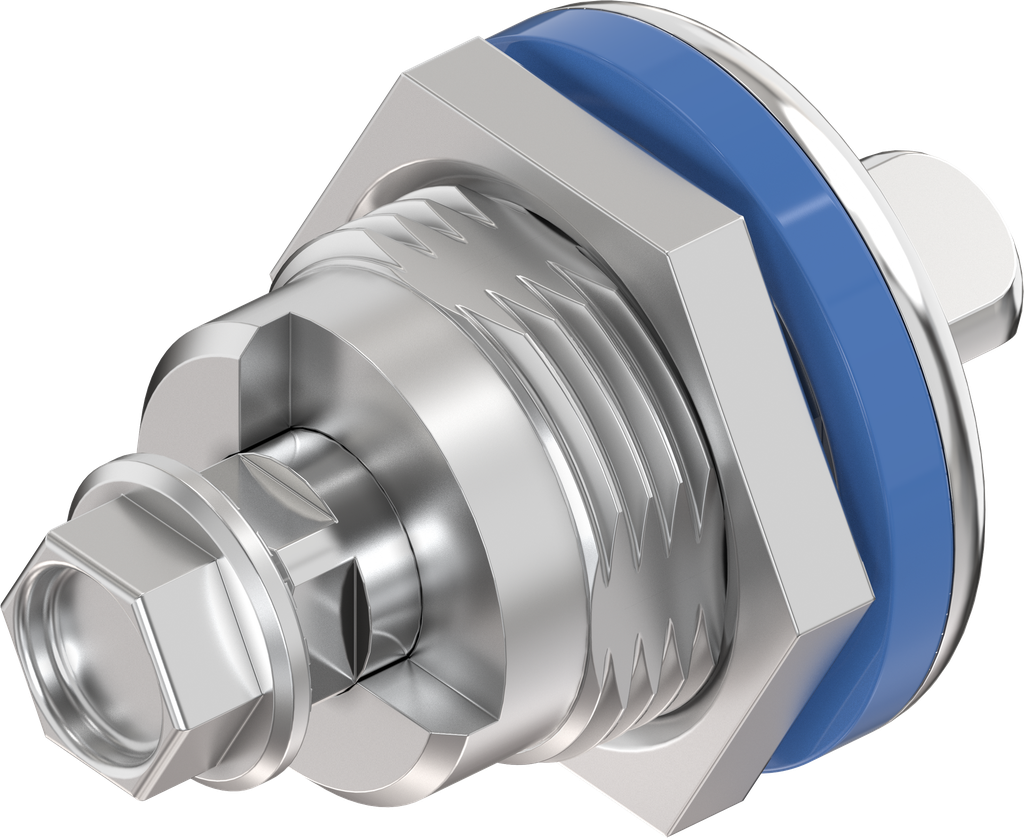

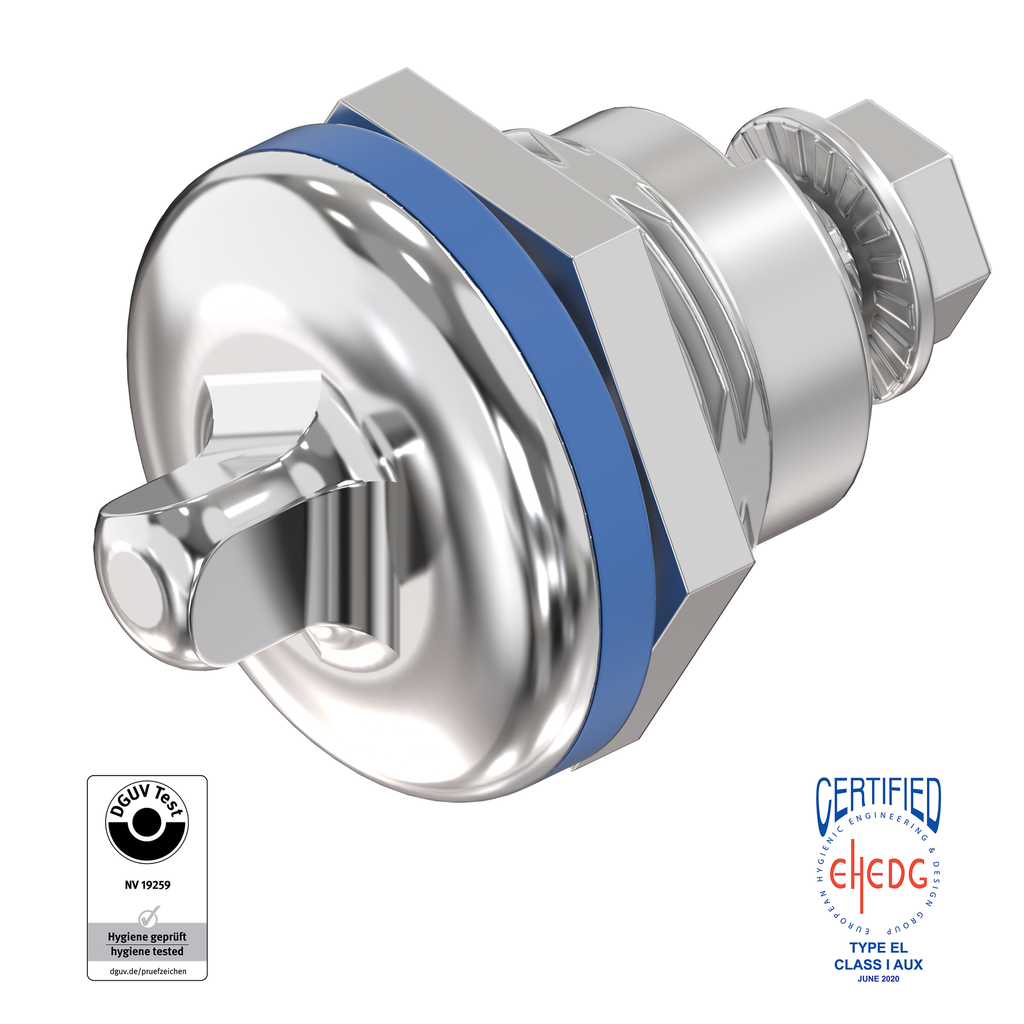

Quarter turn triangular 8 for hygienic area food, Stainless steel AISI 303; 1000-U941-01PF

https://www.emka.com/products/1000-u941-01pf https://www.emka.com/web/image/product.template/60412/image_1920?unique=c8cfad4

with stainless steel nut


    This combination does not exist.

    Inside the sealing DIN EN 1672-2 (hygiene) DIN EN 14159 (hygiene) Protection class IP 69K Left Right


    Product Benefits:

    Stainless steel quarter turn for hygienic areas with flat seal flush on the outside

    Product information:

    The quarter turns for hygienic areas meet the hygiene requirement acc. to DIN EN 1672-2, DIN EN 14159 and EHEDG Doc. 8. The gaskets meet the requirements of the FDA 21 CFR 177.2600 and VO 1935/2004.

    Internal Reference: 1000-U941-01PF
    Product Type: Quarter turn
    Program: 1000
    Catalog sheet: 1B-835
    Material of the module : Stainless steel AISI 303
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Fixing type of housing : nut fixing
    Type of actuation: Hygiene triangular 8
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round

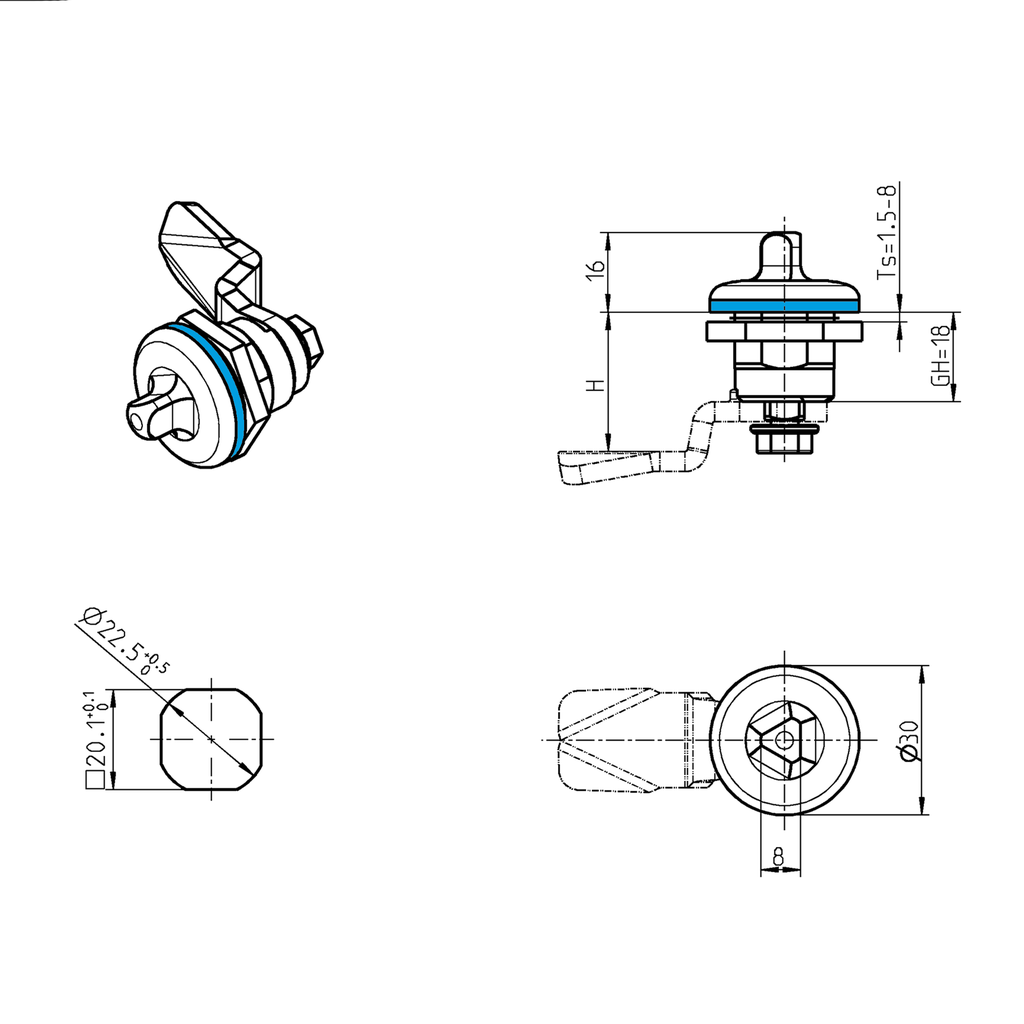

    GH Mass: 18 mm
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 8 mm
    Locking set: Insert
    Door Version : Left,Right

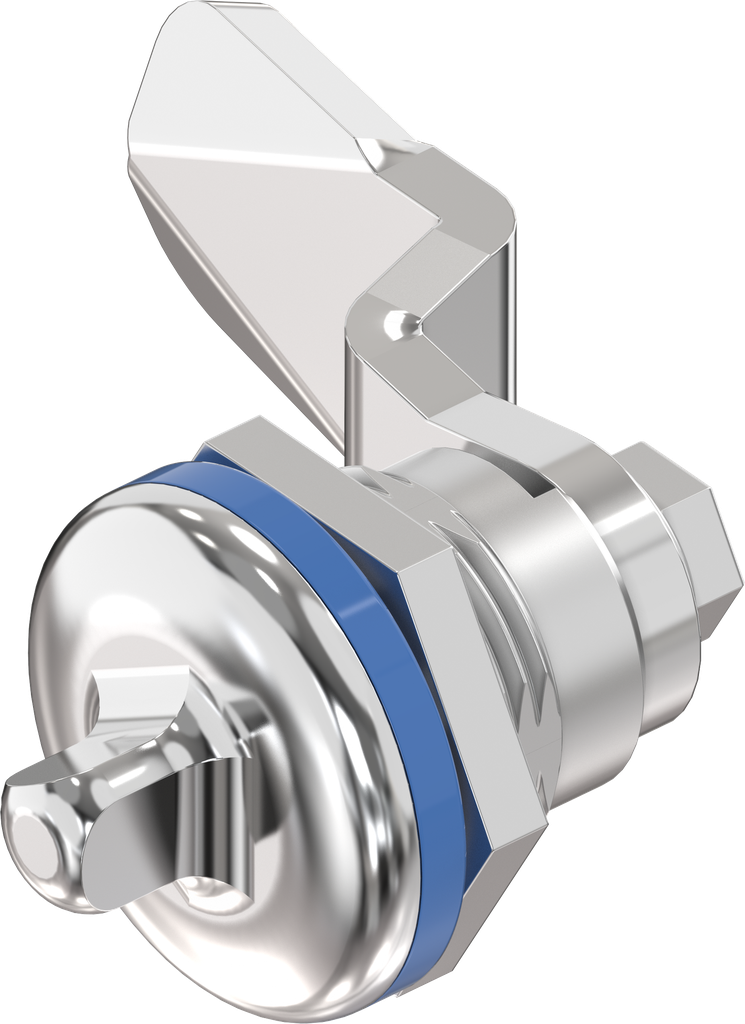

    Locking components: Cam
    Quarter turn types: Quarter turn with simple insert
