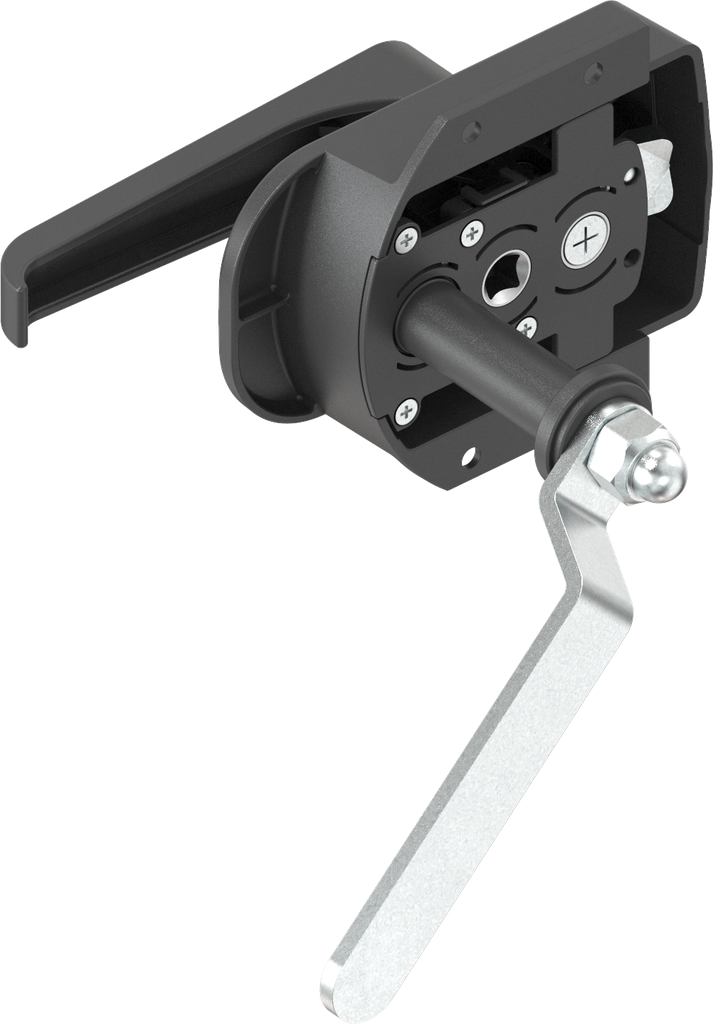

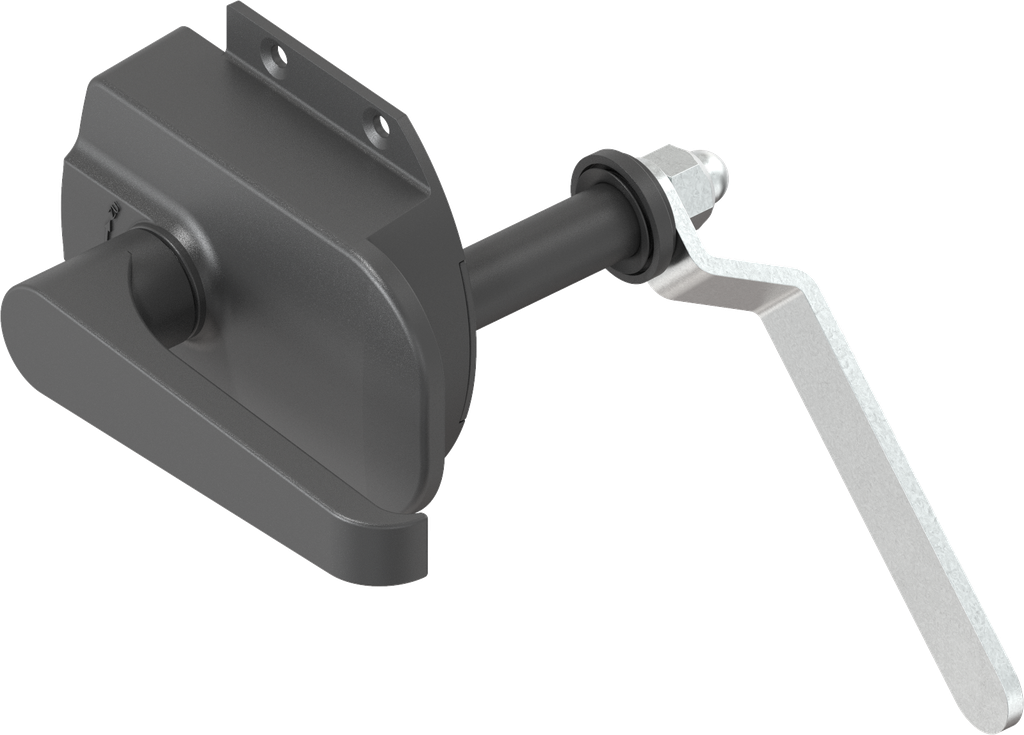

Prominent door lock with inside handle, Polyamide 66 GF 50 black
Prominent door lock with inside handle, Polyamide 66 GF 50 black

Prominent door lock with inside handle, Polyamide 66 GF 50 black; 1000-U938

https://www.emka.com/products/1000-u938 https://www.emka.com/web/image/product.template/205972/image_1920?unique=2380851

for Ts = 50 mm


    This combination does not exist.

    Inside the sealing Outside the sealing Left Right


    Product Benefits:

    • Prominent door lock for different door thicknesses
    • Inside handle can be operated without restrictions
    • Can be used without inside handle

    Product information:

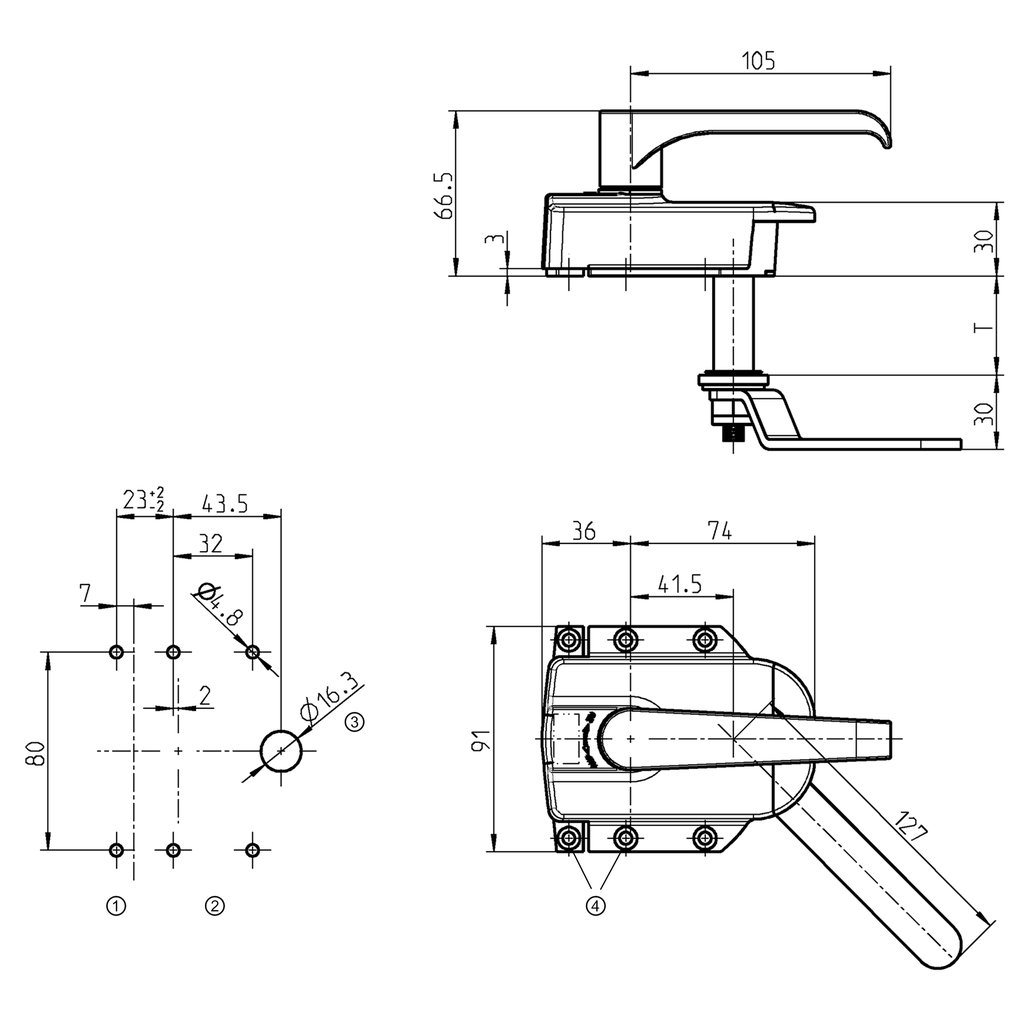

    1 = Cut out front for catch
    2 = Cut out front for housing
    3 = Bore hole Ø 16 continuously
    4 = Countersinking for rivet in housing and catch

    Internal Reference: 1000-U938
    Product Type: Other latch
    Program: 1000
    Catalog sheet: 8A-230
    Material of the module : Polyamide 66 GF 50
    Surface of the module: black
    Number of Possible Locking Points: 1 point
    Fixing type of housing : rivetable
    Mounting Positions : Inside the sealing,Outside the sealing
    Suitable for door thickness from: 50 mm
    Suitable for door thicknesses up to: 50 mm
    Locking set: No locking set, blind
    Door Version : Left,Right
    Lock Type: Prominent door lock
    No Specifications
    View All Products
    Catch
    Here you can find the product data sheets and CAD files of this product
