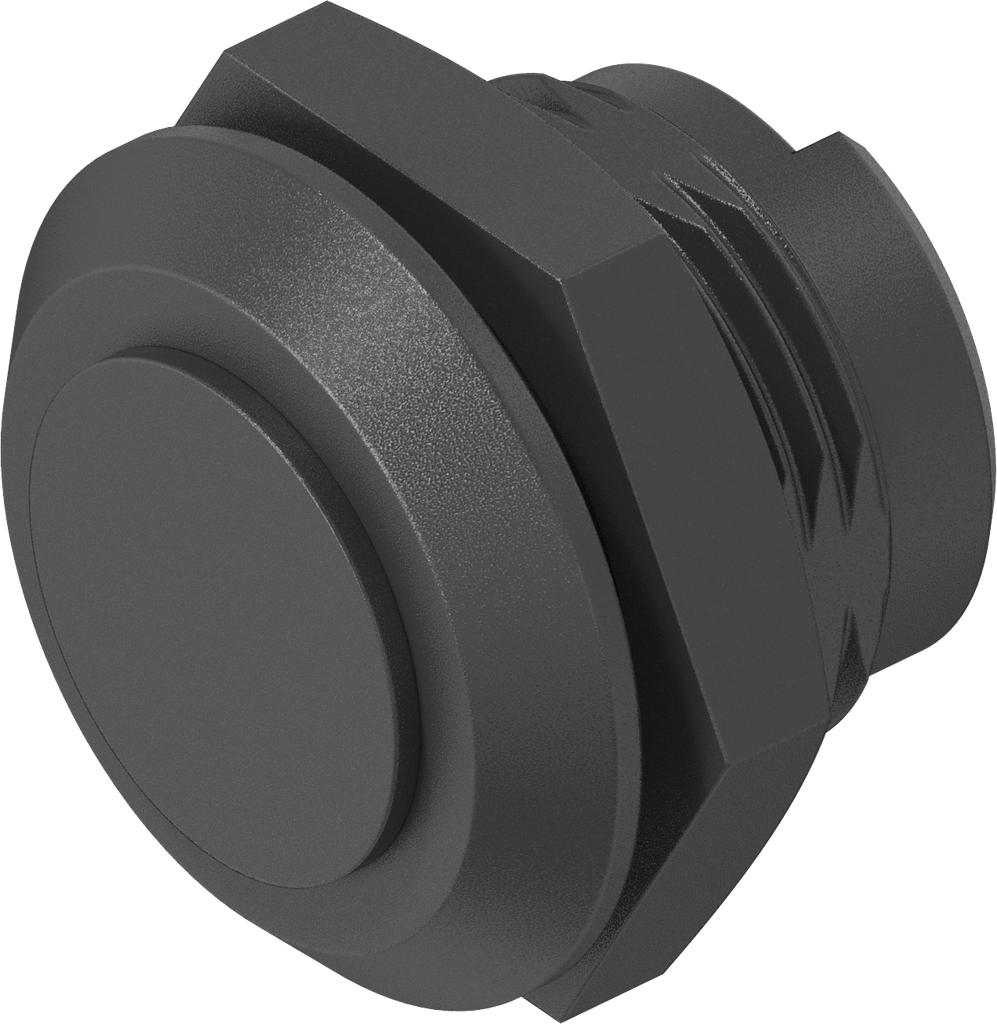

Blind plug, Polyamide GF black; 1000-U936

https://www.emka.com/products/1000-u936 https://www.emka.com/web/image/product.template/60409/image_1920?unique=c8cfad4

screw-on

    This combination does not exist.

    Protection class IP 50
    Contact Us

    Product Benefits:

    • Blind plug for unused cut outs
    • Blind plug, screw-on with flat seal for IP 65
    Internal Reference: 1000-U936
    Product Type: Housing
    Program: 1000
    Catalog sheet: 1B-940
    Material of the module : Polyamide GF
    Surface of the module: black
    Fixing type of housing : nut fixing
    Housing Head Shape: Round
    Housing Head Size: 28 x 4 mm
    GH Mass: 18 mm
    Suitable for door thickness from: 1.20 mm
    Suitable for door thicknesses up to: 7 mm
    Quarter turn types: Blind plug
    No Specifications
    View All Products
    O-ring and flat seal
    Here you can find the product data sheets and CAD files of this product
