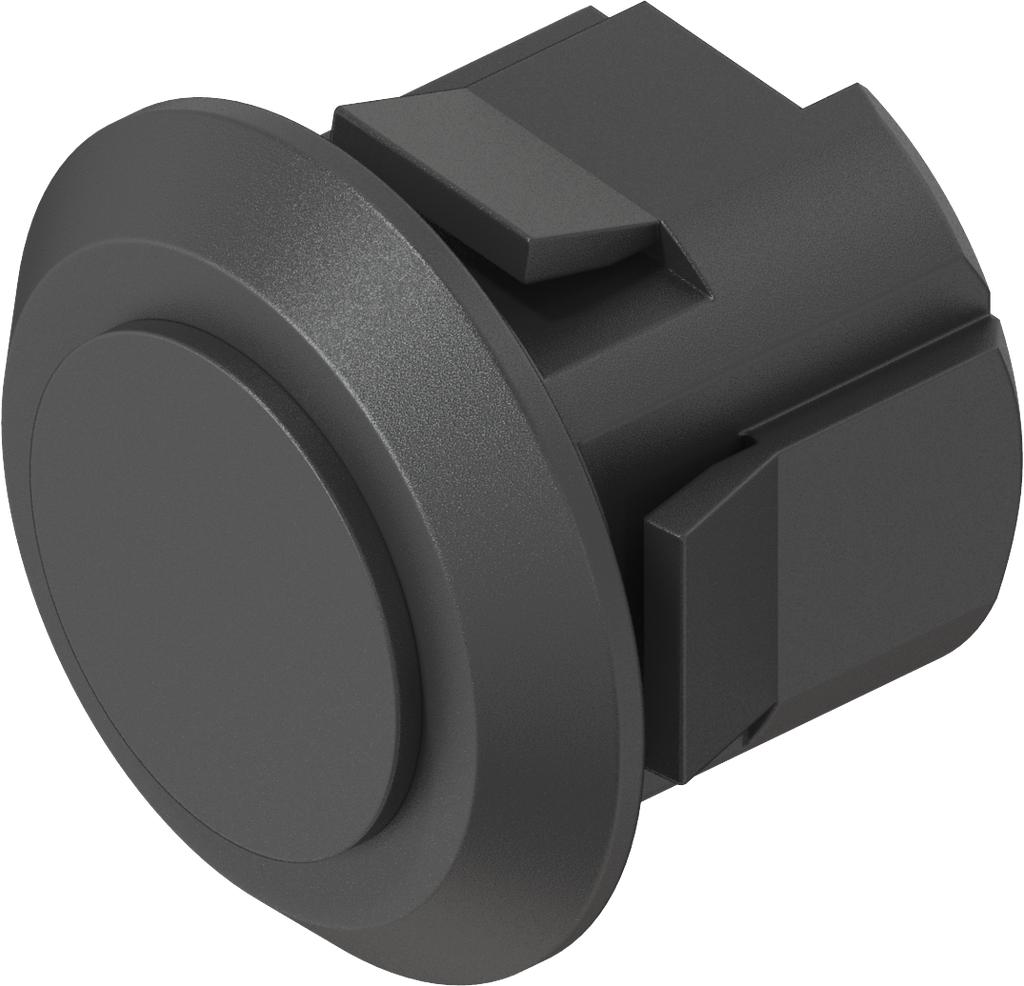

Blind plug, Polyamide black; 1000-U935

https://www.emka.com/products/1000-u935 https://www.emka.com/web/image/product.template/205971/image_1920?unique=c8cfad4

Clip-in fixing


    This combination does not exist.

    clip-in Protection class IP 50


    Product Benefits:

    • ^Blind plug for unused cut outs
    • Clip-in fixing for quick mounting
    Internal Reference: 1000-U935
    Product Type: Housing
    Program: 1000
    Catalog sheet: 1B-940
    Material of the module : Polyamide
    Surface of the module: black
    Fixing type of housing : clip-in

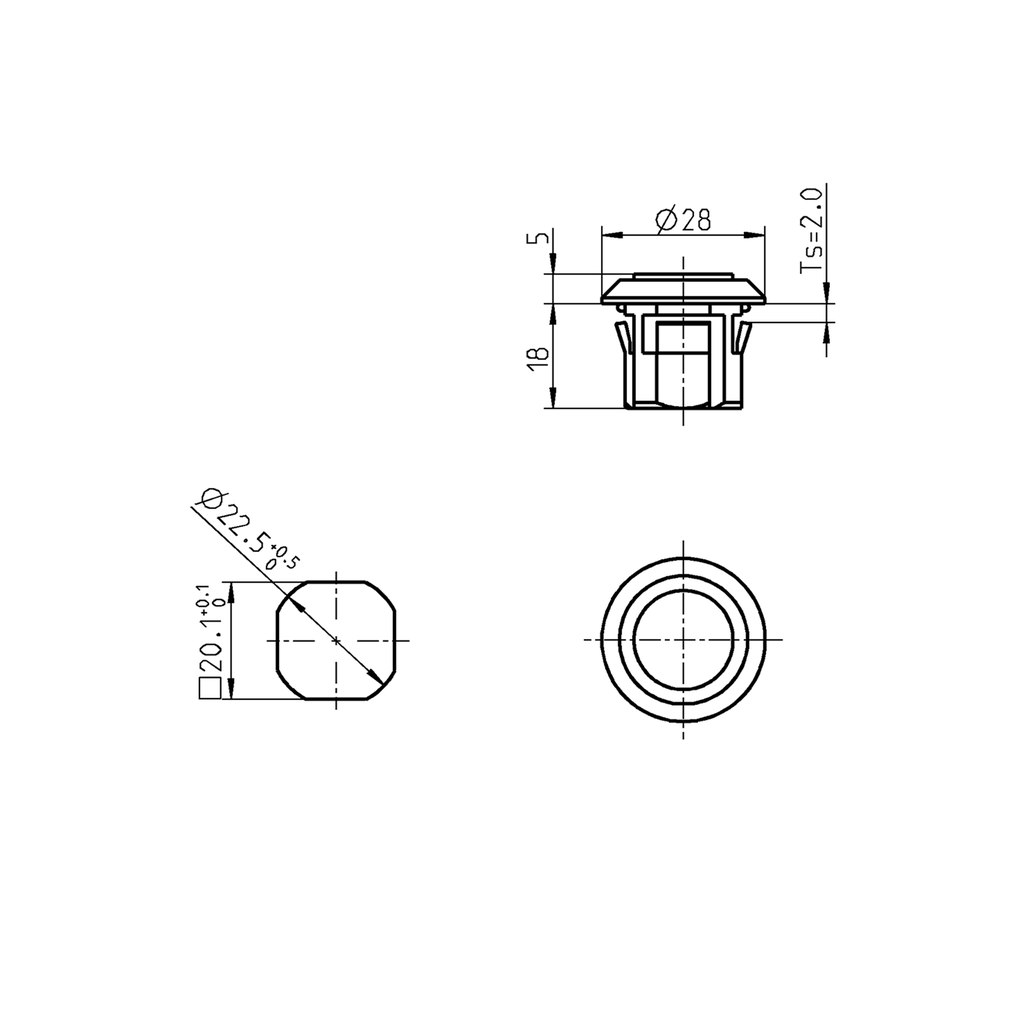

    Housing Head Shape: Round
    Housing Head Size: 28 x 4 mm
    GH Mass: 18 mm
    Suitable for door thickness from: 2 mm
    Suitable for door thicknesses up to: 2 mm
    Quarter turn types: Blind plug
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
