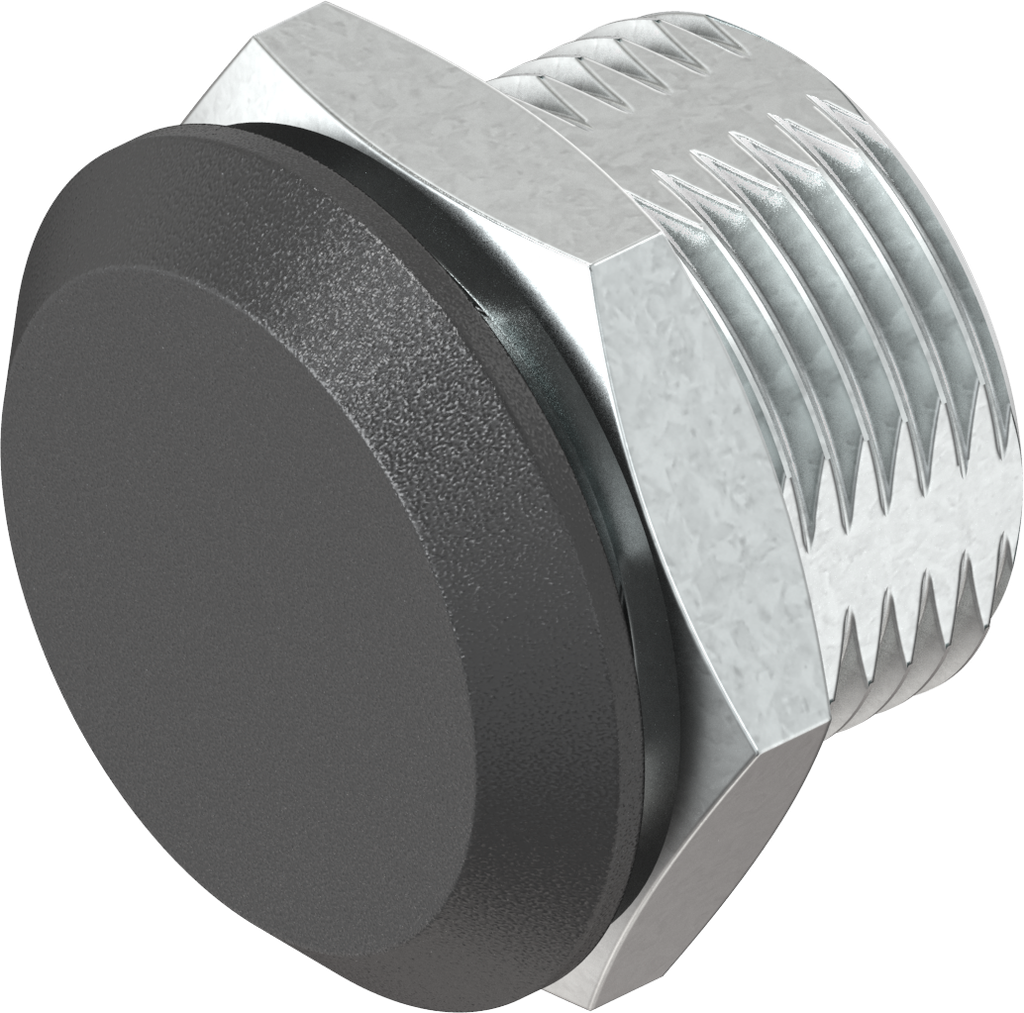

Blind plug, Zinc die black powder-coated; 1000-U933

https://www.emka.com/products/1000-u933 https://www.emka.com/web/image/product.template/205969/image_1920?unique=c8cfad4

screw-on


    This combination does not exist.

    Protection class IP 50


    Product Benefits:

    • Blind plug for unused cut outs
    • Blind plug, screw-on with flat seal for IP 65
    Internal Reference: 1000-U933
    Product Type: Housing
    Program: 1000
    Catalog sheet: 1B-940
    Material of the module : Zinc die
    Surface of the module: black powder-coated
    Fixing type of housing : nut fixing
    Housing Head Shape: Round
    Housing Head Size: 28 x 4 mm
    GH Mass: 18 mm
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 10 mm
    Quarter turn types: Blind plug
    No Specifications
    View All Products
    O-ring and flat seal

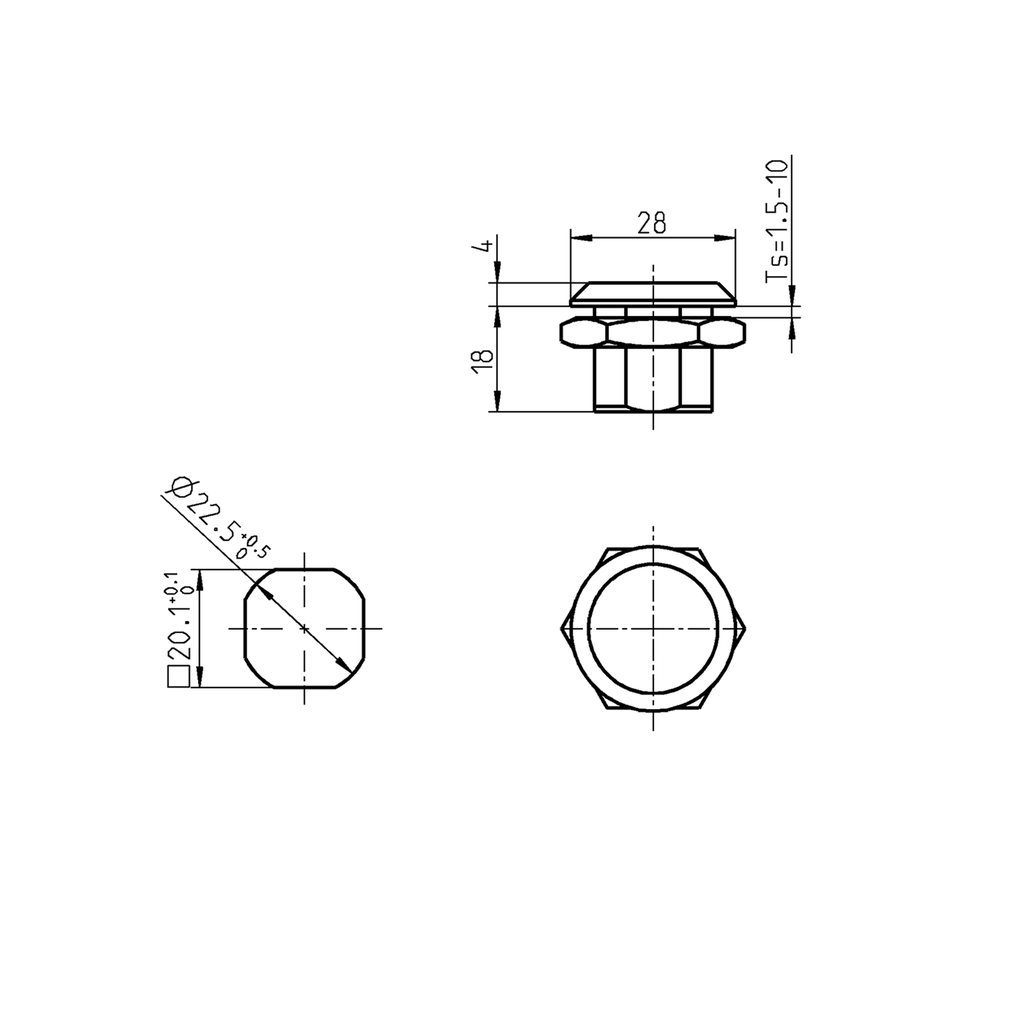

    Here you can find the product data sheets and CAD files of this product
