Insert part square 8, Zinc die zinc-plated
Insert part square 8, Zinc die zinc-plated
Insert part double bit 3, Zinc die zinc-plated
Insert part double bit 3, Zinc die zinc-plated

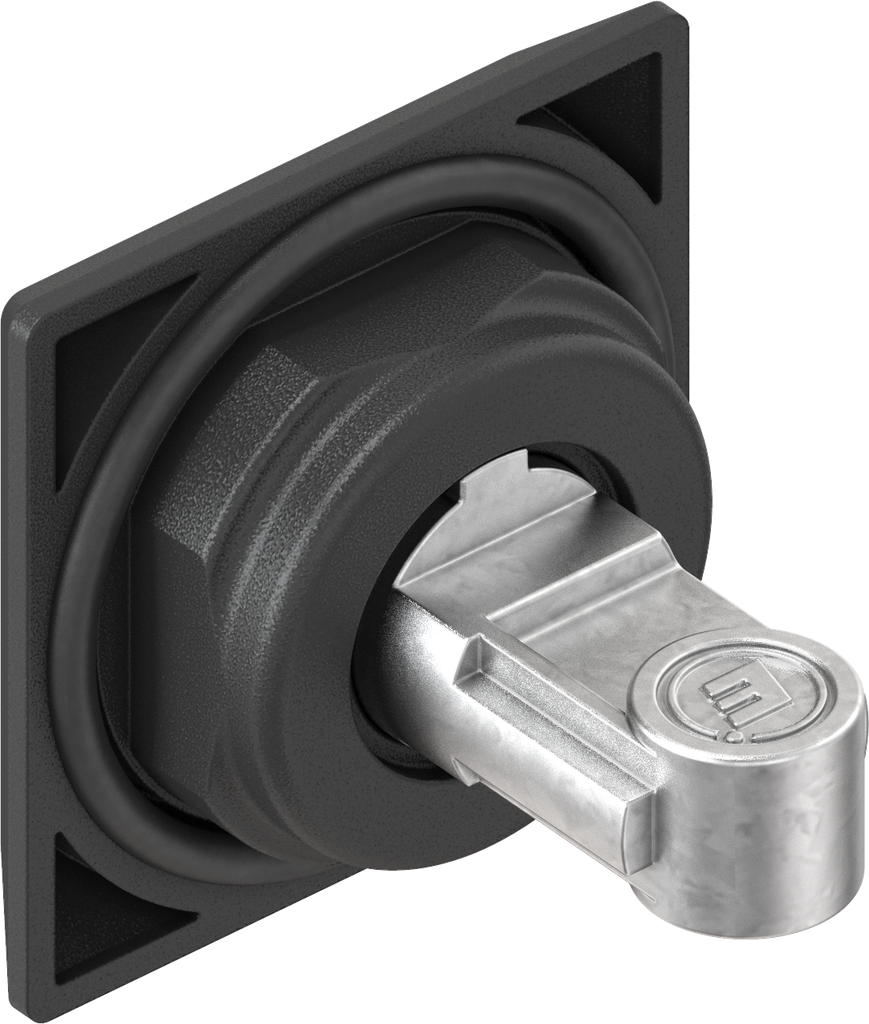

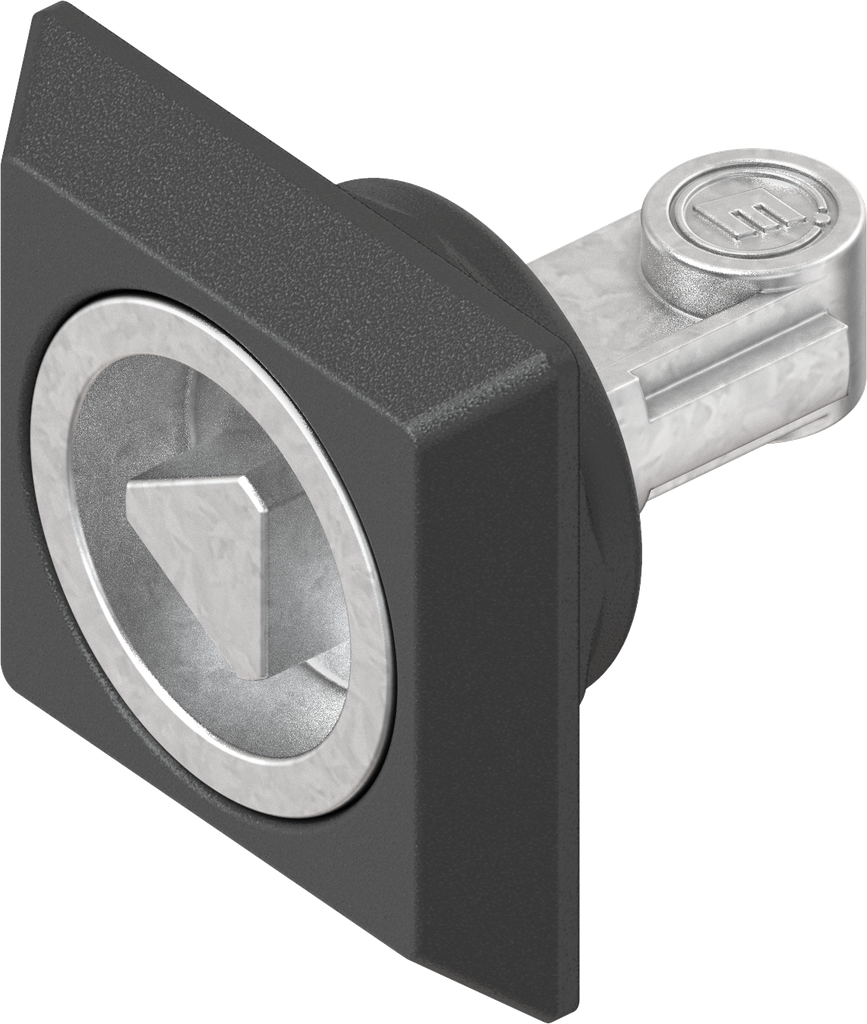

Insert part triangular 8, Zinc die zinc-plated; 1000-U904

https://www.emka.com/products/1000-u904 https://www.emka.com/web/image/product.template/205948/image_1920?unique=1dde554


    This combination does not exist.

    clamp-on / clip fix Inside the sealing Protection class IP 65 Left Right


    Product Benefits:

    • Cost savings due to assembly without tools within seconds
    • Smooth operation (no inner rotation due to design)
    • Snap-in cam with safety cap
    • Self-sealing design for highest protection requirements (design immanent)
    • Increased safeguarding against overwinding
    • Standard cut out
    • Patented

    Product information:

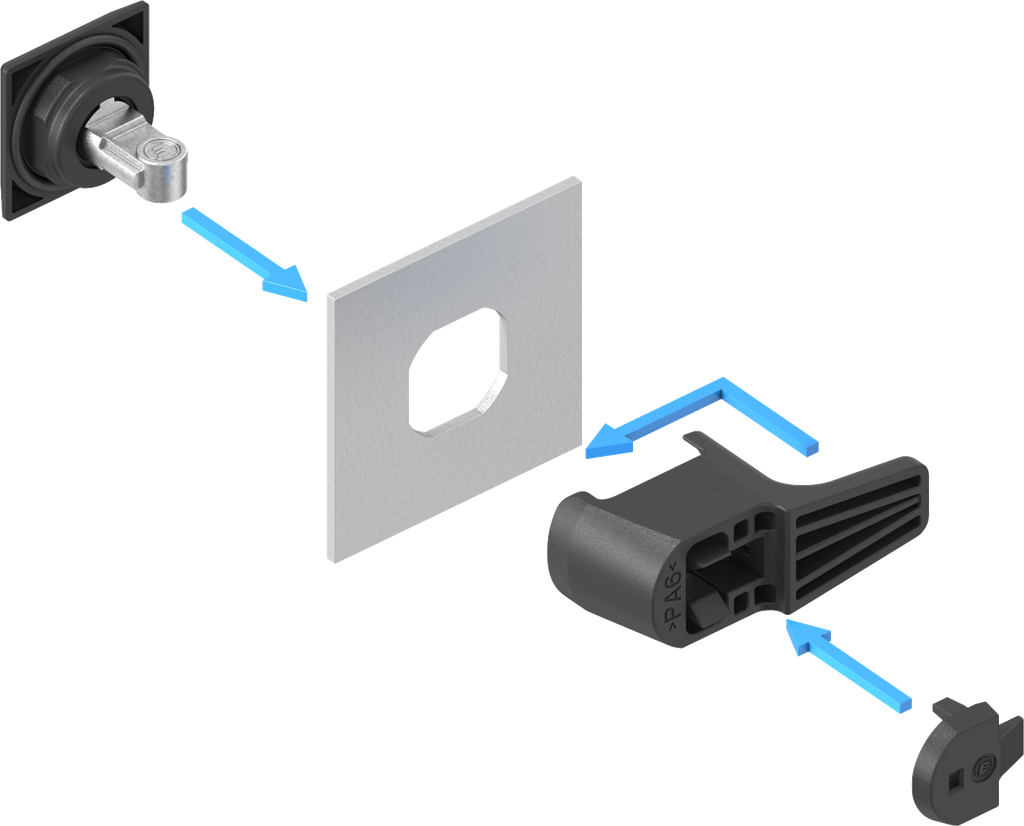

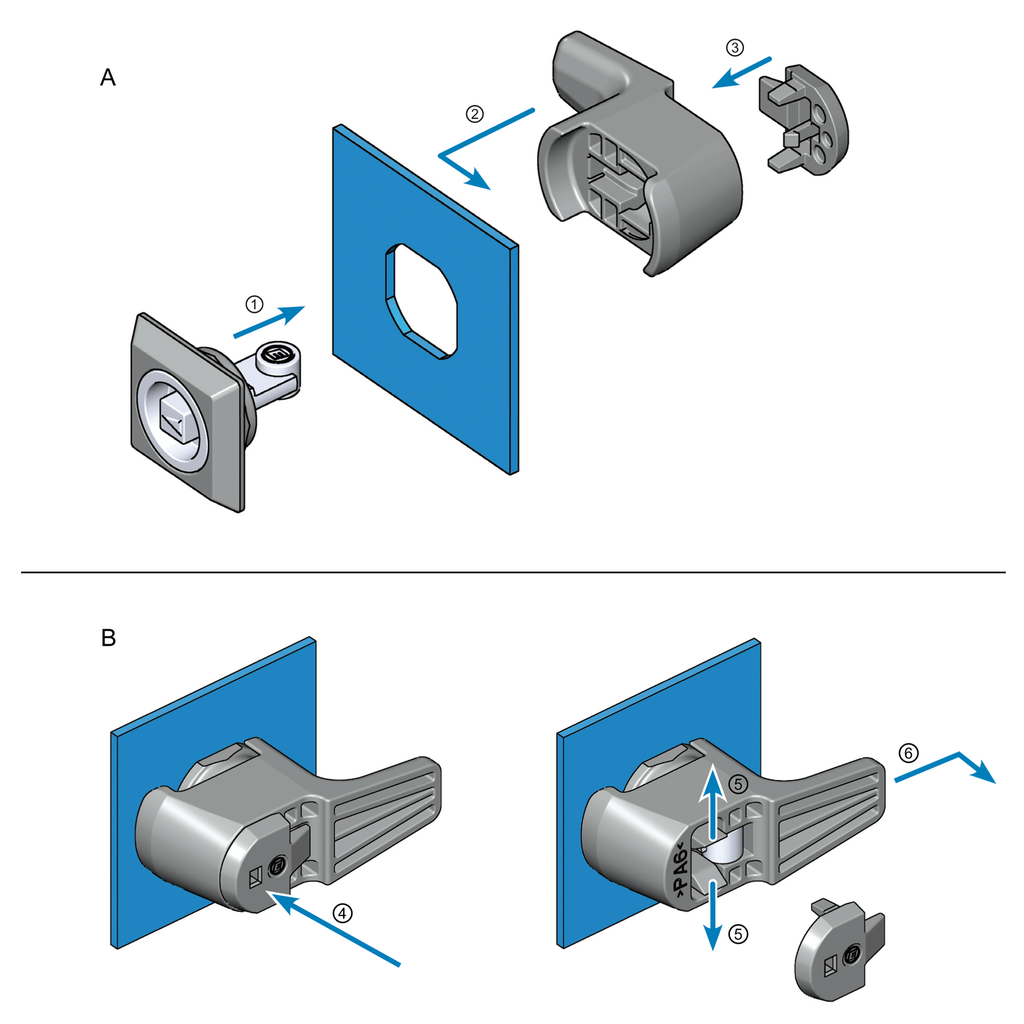

    A = Assembly: example right-hand version
    B = Disassembly

    Internal Reference: 1000-U904
    Product Type: Quarter turn
    Program: 1000
    Catalog sheet: 1B-170
    Material of the module : Zinc die
    Surface of the module: zinc-plated
    Number of Possible Locking Points: 1 point
    Article with property rights: Yes
    Fixing type of housing : clamp-on / clip fix
    Type of actuation: Triangular 8
    Mounting Positions : Inside the sealing

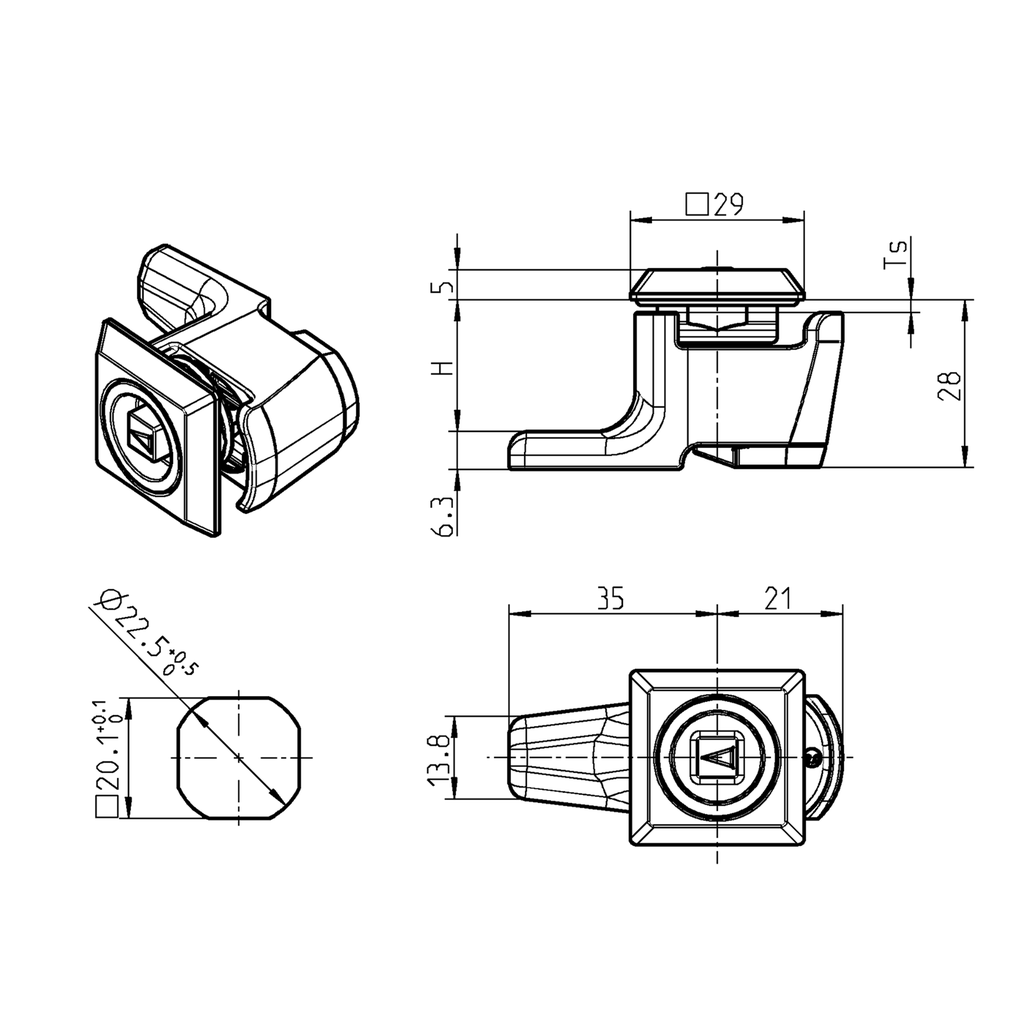

    Housing Head Shape: Square
    Housing Head Size: 29 x 5 mm
    Suitable for door thickness from: 1 mm
    Suitable for door thicknesses up to: 3 mm
    Locking set: Insert
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Quarter turn with simple insert,Quarter turn for assembly without tools
    No Specifications
    View All Products

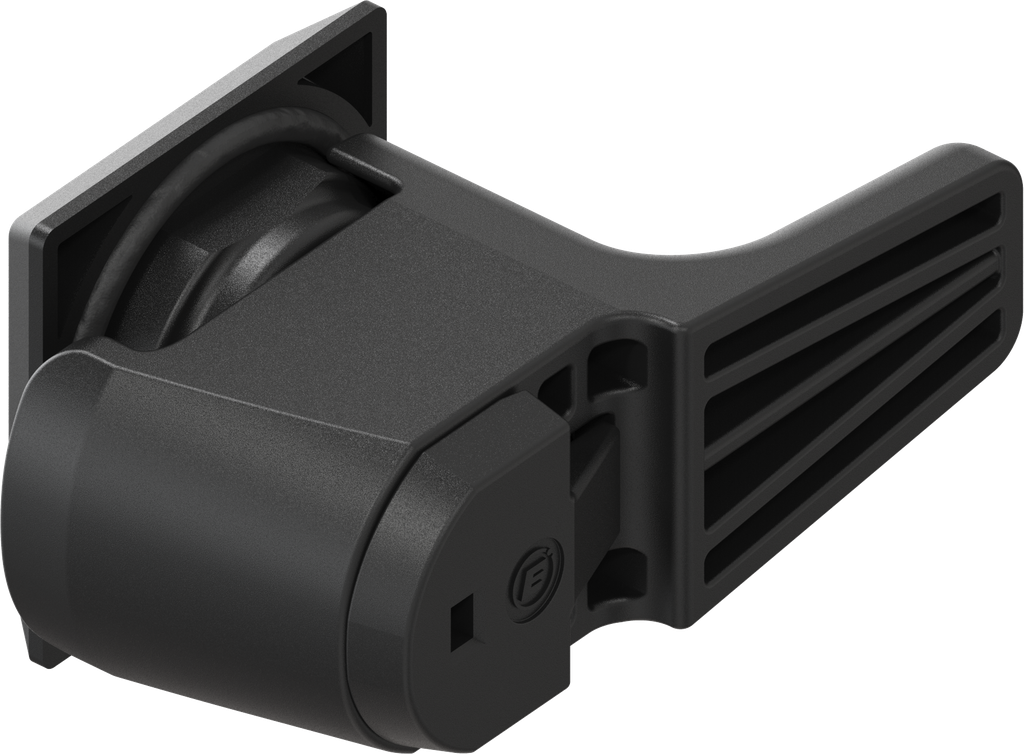

    Cam
    Keys
    Here you can find the product data sheets and CAD files of this product
