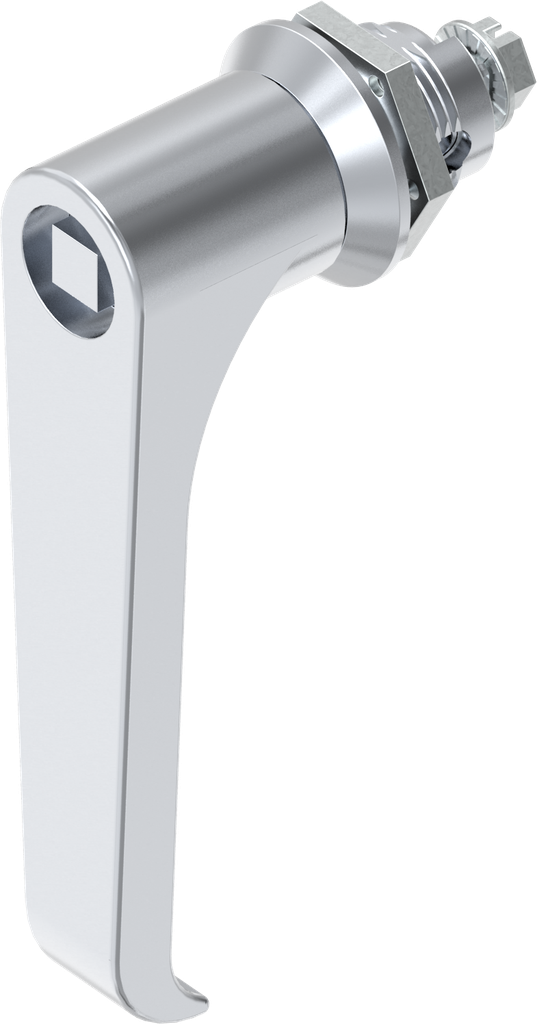

L-handle quarter turn square 8, Zinc die chrome-plated; 1000-U90

https://www.emka.com/products/1000-u90 https://www.emka.com/web/image/product.template/205361/image_1920?unique=2380851

with earthing nut


    This combination does not exist.

    Inside the sealing Grounding possible Left Right


    Product information:

    IP 65 on request! Insert with spring-loaded return (two-hand operation)

    Internal Reference: 1000-U90
    Product Type: Quarter turn
    Program: 1000
    Catalog sheet: 1B-620
    Material of the module : Zinc die
    Surface of the module: chrome-plated
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Fixing type of housing : nut fixing
    Type of actuation: Square 8
    Mounting Positions : Inside the sealing
    Grounding possible: Yes
    Housing Head Shape: Round
    Housing Head Size: 32 x 6 mm
    GH Mass: 18.0000 MILLIMETER
    Handle Art: L-handle
    Suitable for door thickness from: 1.20 mm
    Suitable for door thicknesses up to: 8 mm
    Locking set: Insert
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Quarter turn with simple insert,Quarter turn with handle
    No Specifications
    View All Products
    Cam
    Quarter turn accessories
    Assembly
    Rod control
    Keys
    Other latch

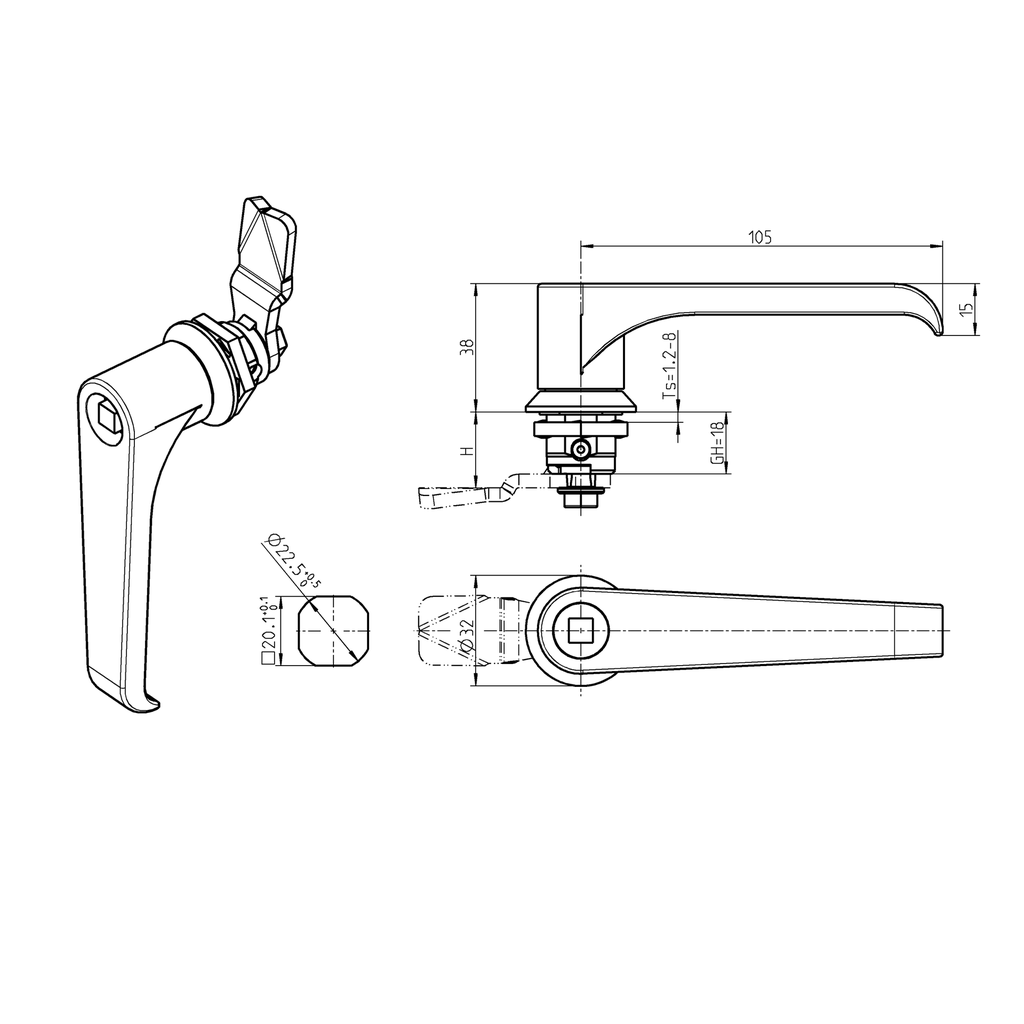

    Here you can find the product data sheets and CAD files of this product
