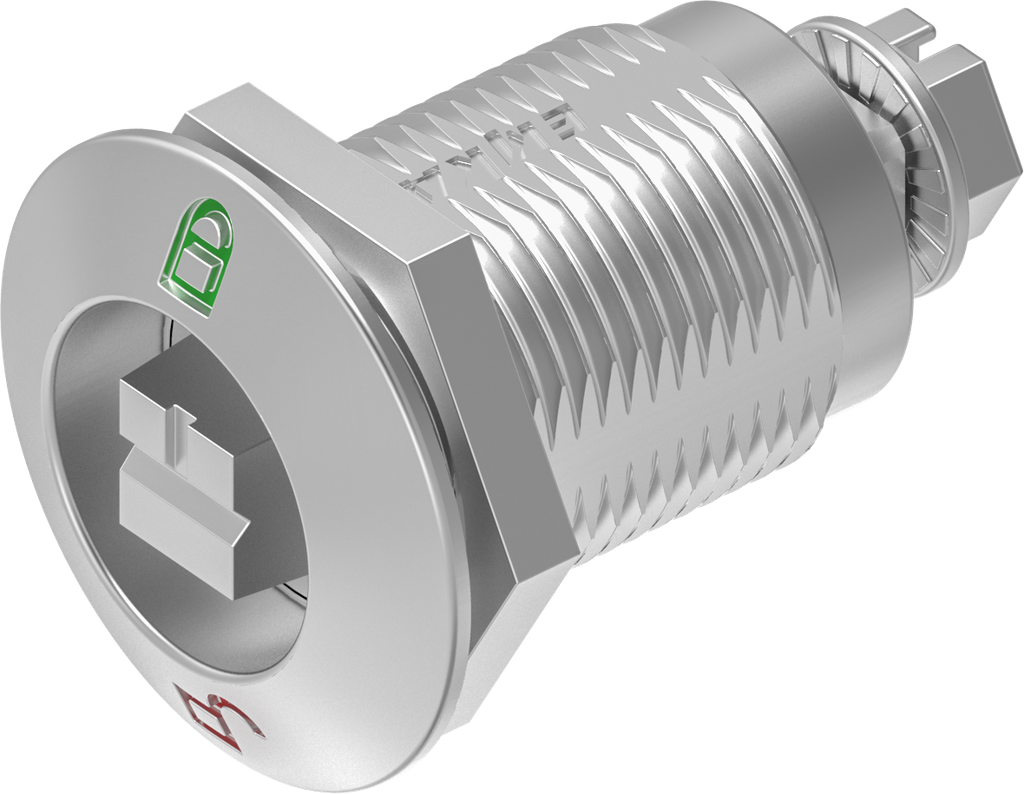

Compression latch railway version with red - green marking, Stainless steel AISI 316 polished; 1000-U890-REPH

https://www.emka.com/products/1000-u890-reph https://www.emka.com/web/image/product.template/205939/image_1920?unique=2380851

with stainless steel nut


    This combination does not exist.

    Inside the sealing Protection class IP 65 DIN EN 45545-3 class E60 (fire protection) DIN EN 61373 (shock and vibration testing) Right


    Product information:

    The compression latch is designed to be vibration-proof as such.
    Depending on the installation location and operational conditions specific checks are necessary and/or supplementary measures of fastening required.

    Internal Reference: 1000-U890-REPH
    Product Type: Quarter turn
    Program: 1000
    Material of the module : Stainless steel AISI 316
    Surface of the module: polished
    Number of Possible Locking Points: 1 point
    Fixing type of housing : nut fixing
    Type of actuation: Square 9 with marking, railway version
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round

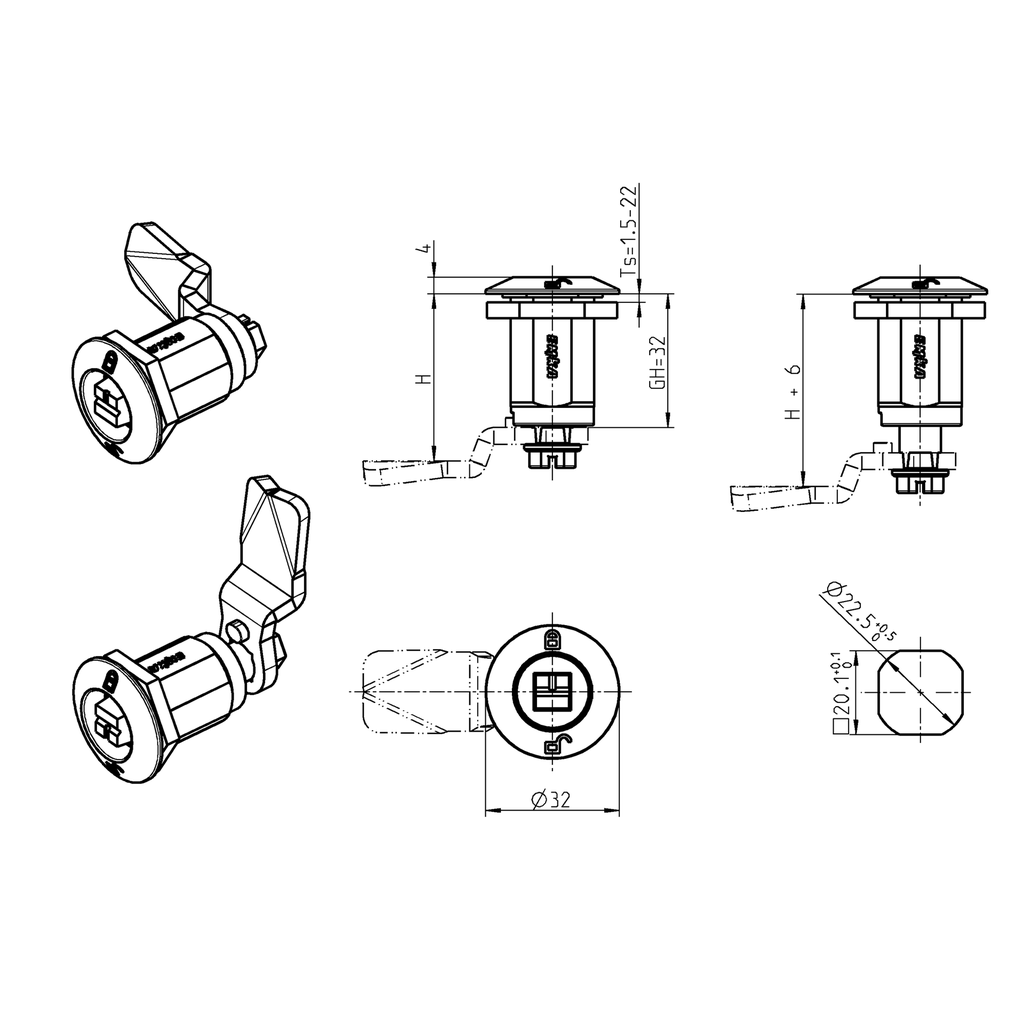

    Housing Head Size: 32 x 4 mm
    GH Mass: 32 mm
    Compression Value : 6 mm
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 22 mm
    Locking set: Insert
    Door Version : Right
    Locking components: Cam
    Quarter turn types: Compression latch with insert
