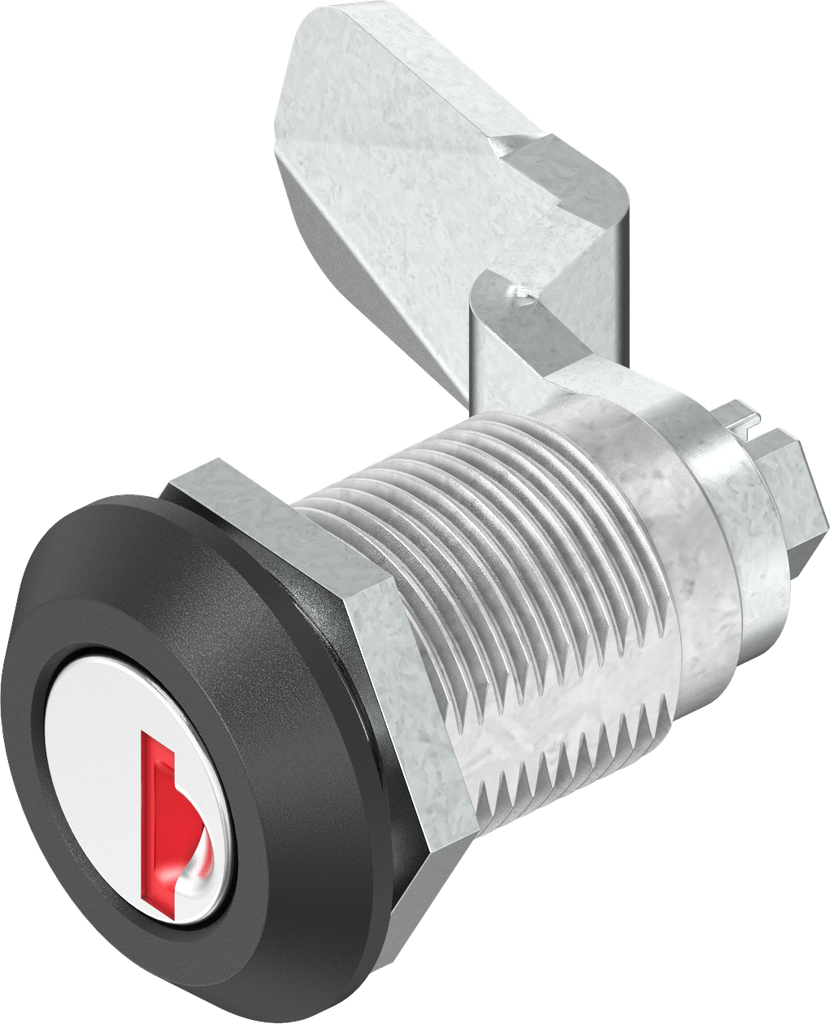

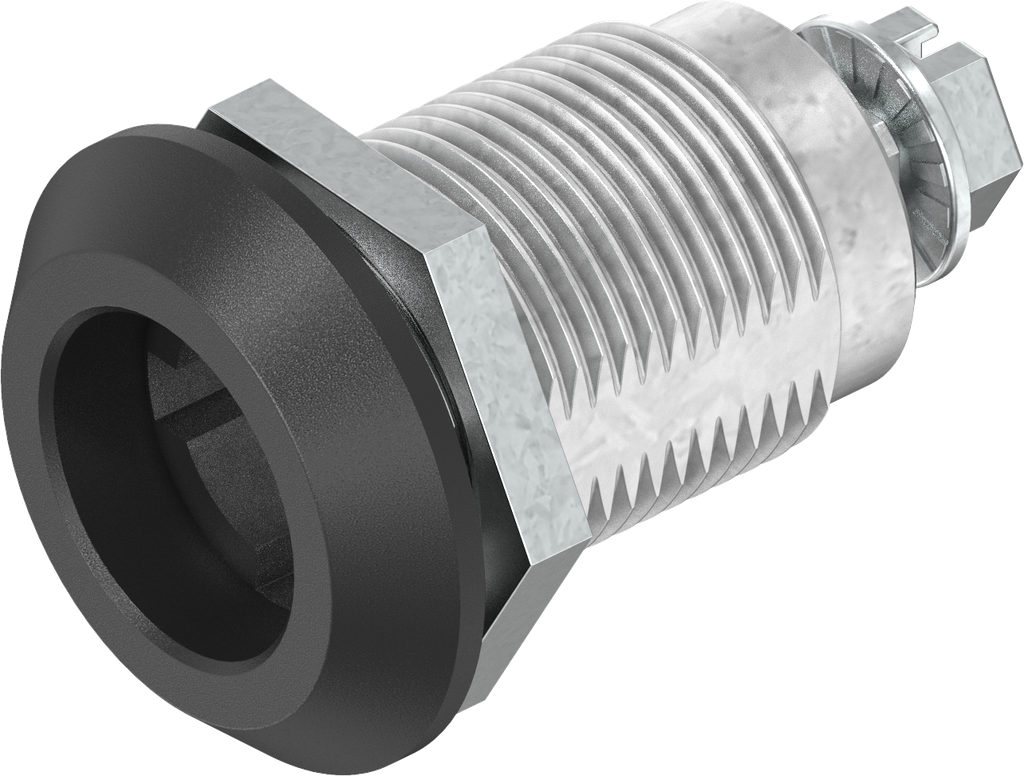

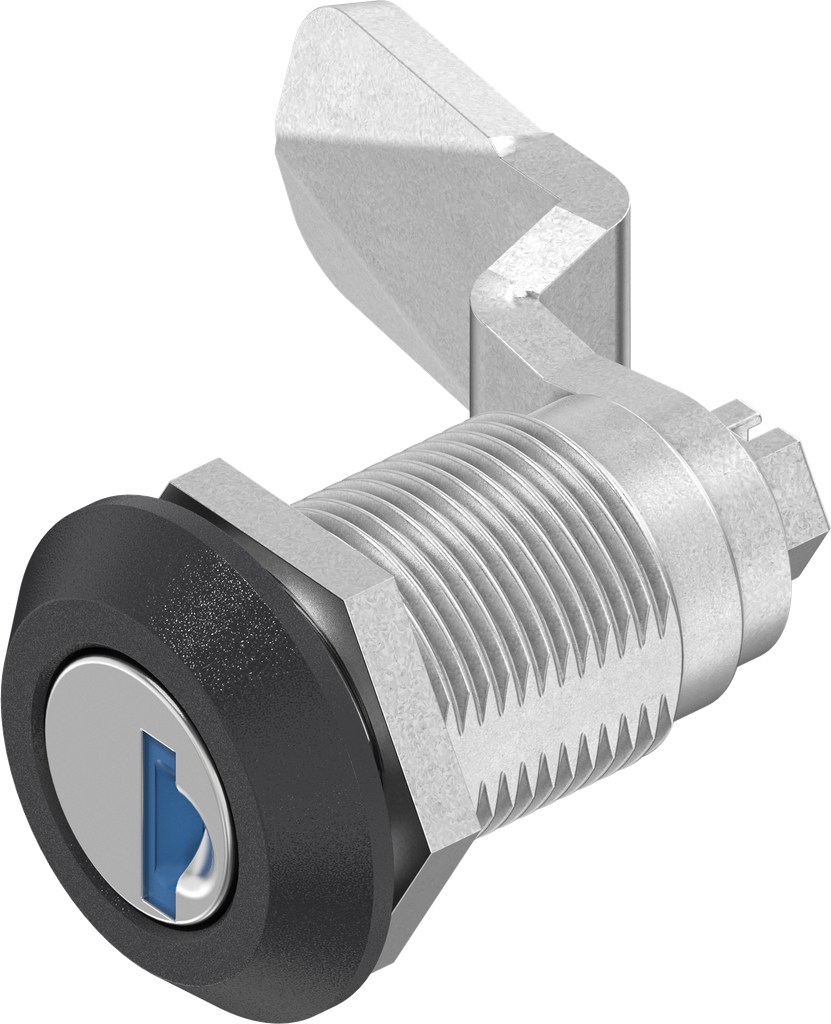

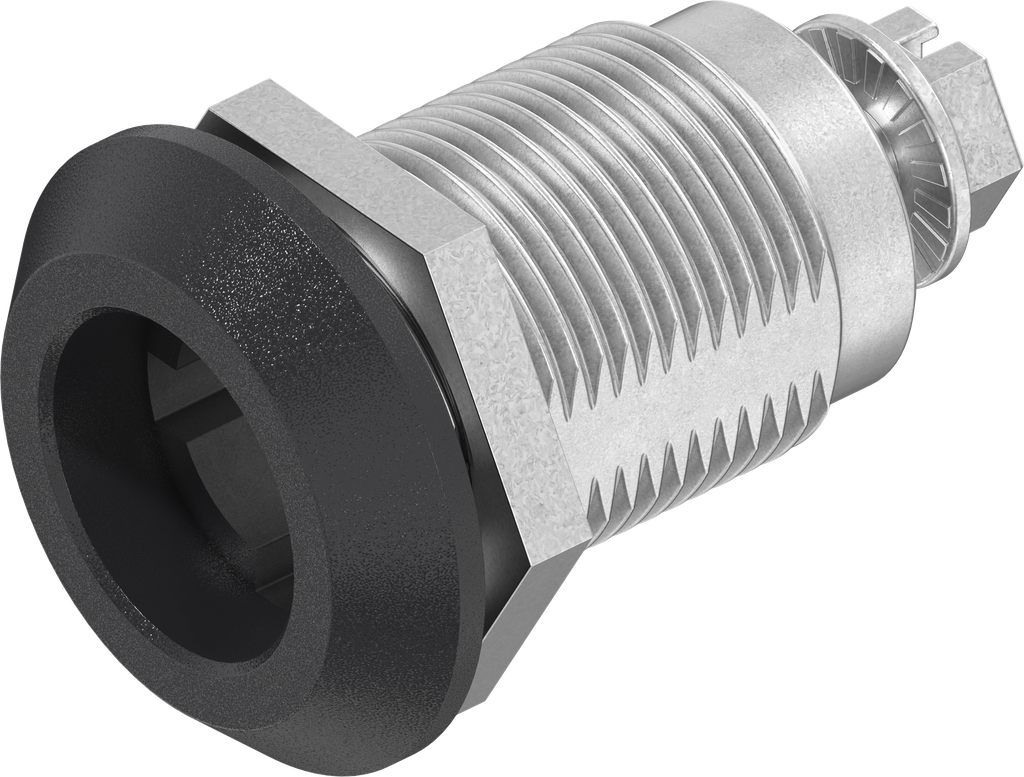

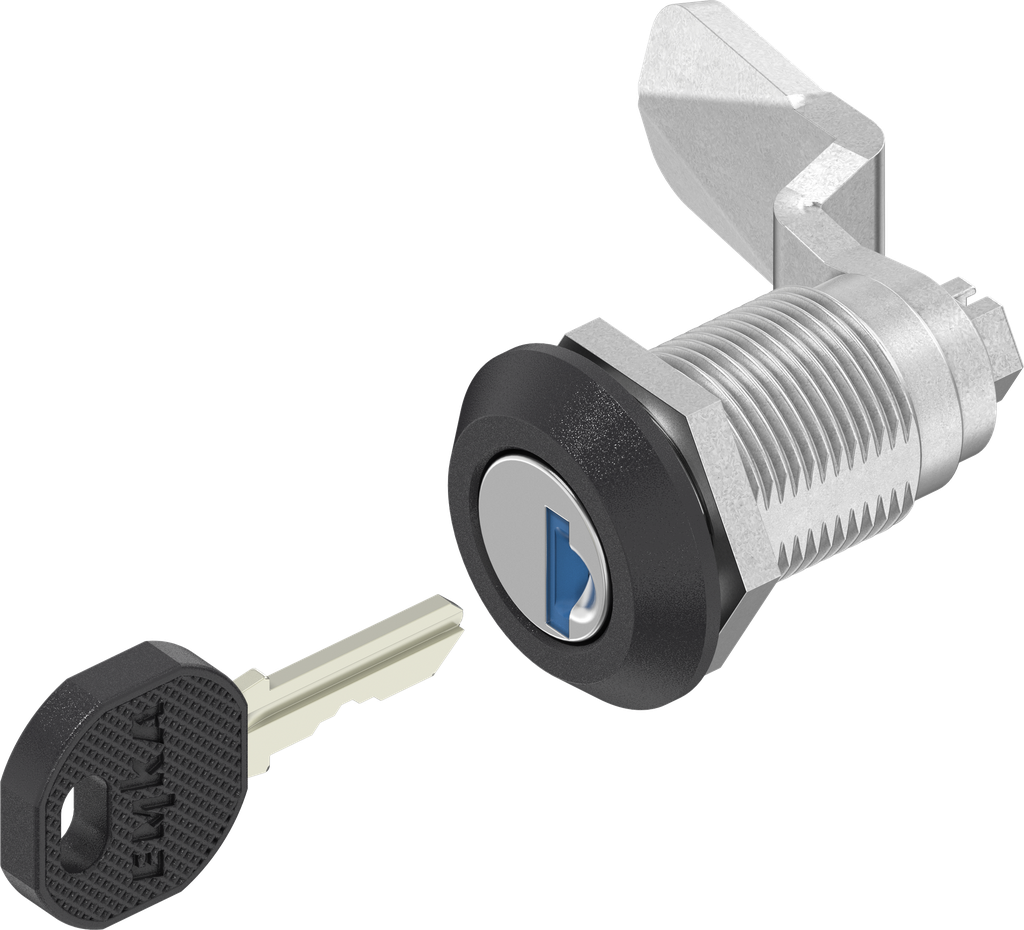

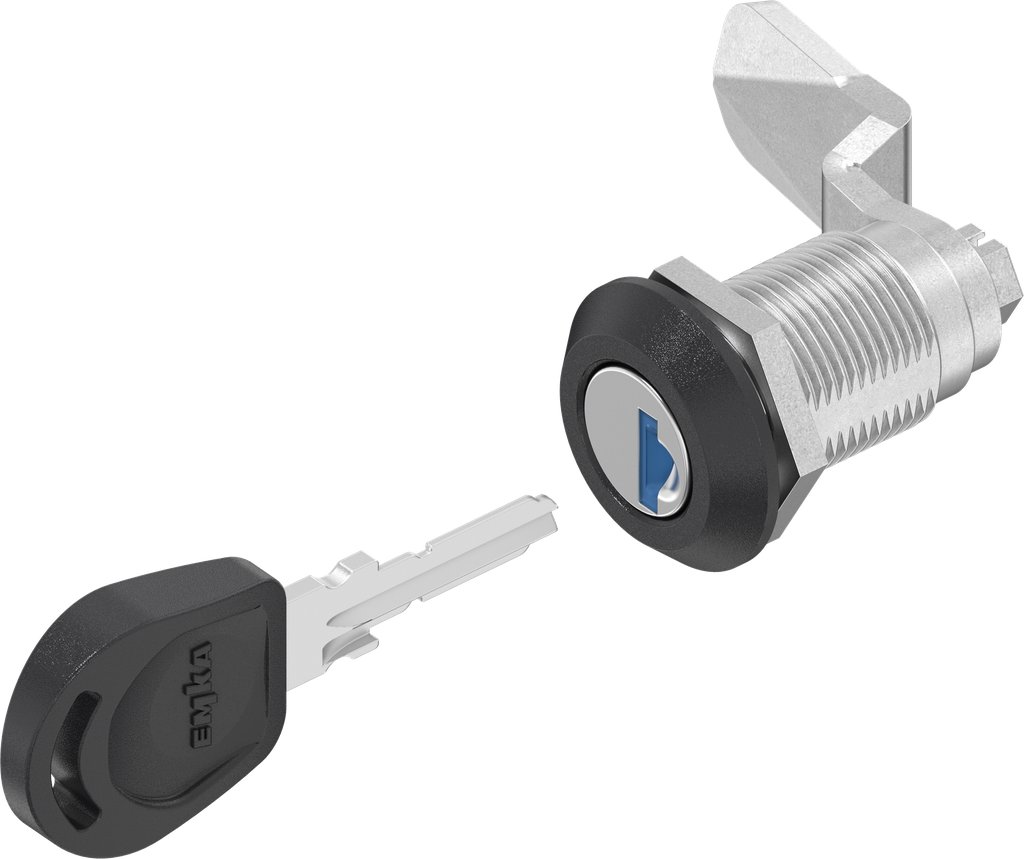

Quarter turn for clip-in cylinder (system 3), Zinc die black powder-coated; 1000-U875-03

https://www.emka.com/products/1000-u875-03 https://www.emka.com/web/image/product.template/70157/image_1920?unique=847edde

with nut


    This combination does not exist.

    Inside the sealing Protection class IP 65 Left Right


    Product information:

    As a supplementary measure for vibration-proof fastening the serrated washer 1000-103 can be used.

    Internal Reference: 1000-U875-03
    Product Type: Quarter turn
    Program: 1000
    Material of the module : Zinc die
    Surface of the module: black powder-coated
    Number of Possible Locking Points: 1 point
    Fixing type of housing : nut fixing
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round

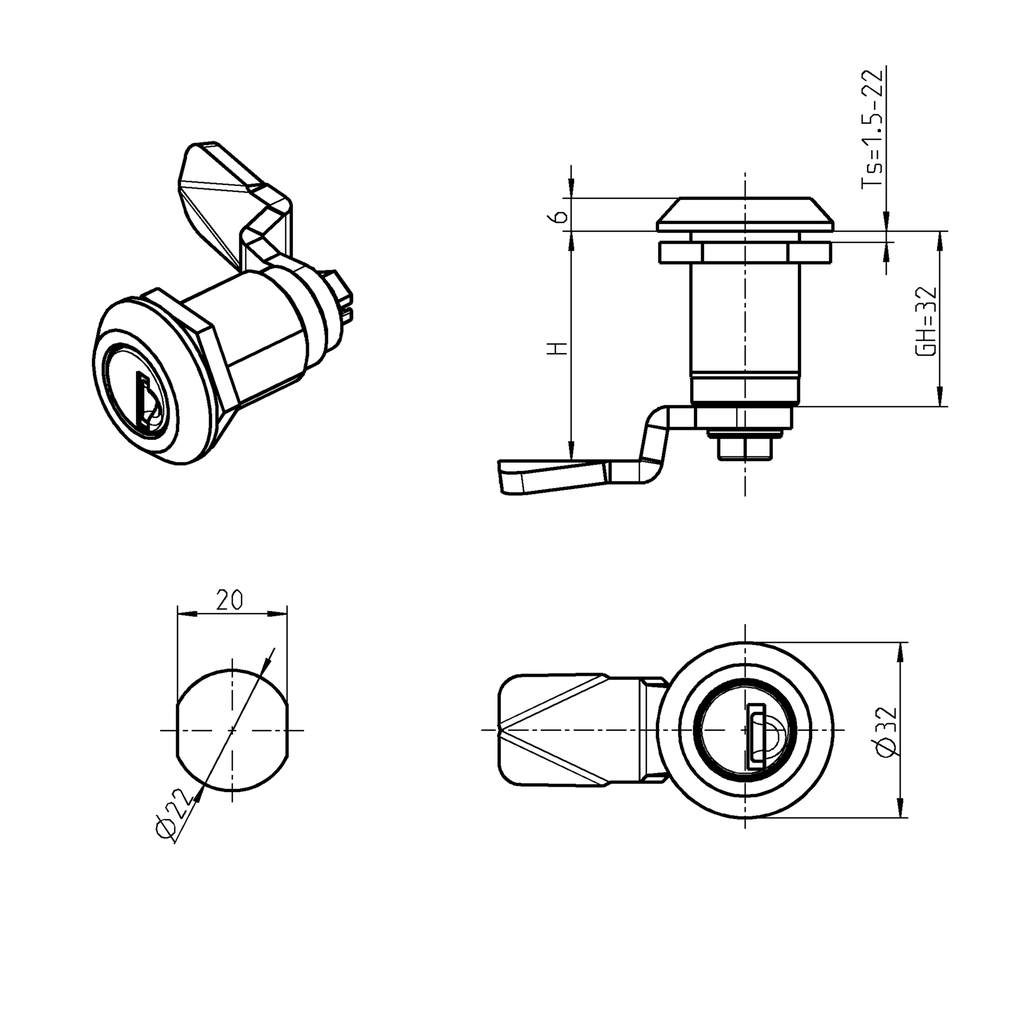

    Housing Head Size: 32 x 6 mm
    GH Mass: 32 mm
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 22 mm
    Round Cylinder Type: Clip-in cylinder system 3
    Locking set: Round cylinder
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Quarter turn with cylinder
    No Specifications
    View All Products
    Quarter turn accessories
    Cam
    Cylinder
    Here you can find the product data sheets and CAD files of this product
