Cylinder quarter turn, right hand version with 2 keys, Zinc die chrome-plated
Swinghandle "short" with RC2 for iLOQ profile half cylinder, Zinc die grey powder-coated RAL 7038

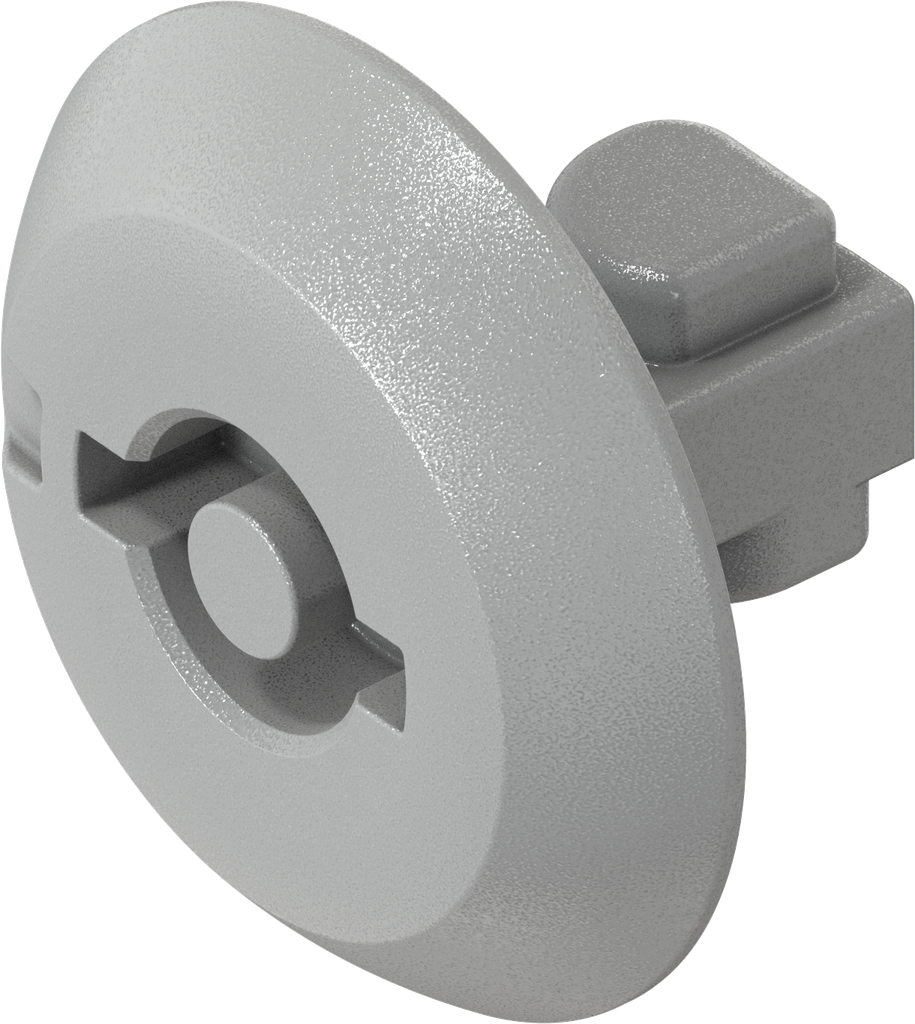

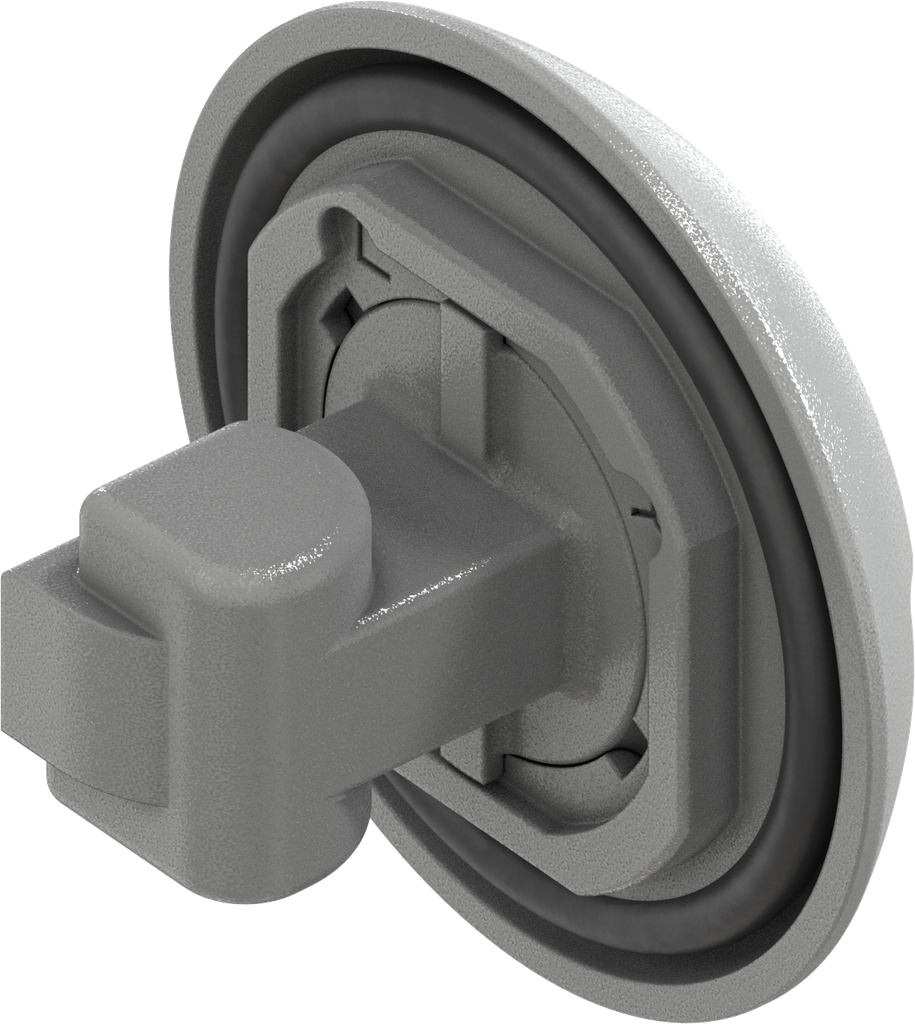

Insert part double bit 5 for assembly without tools, Polyamide GF dust grey; 1000-U873-BQ

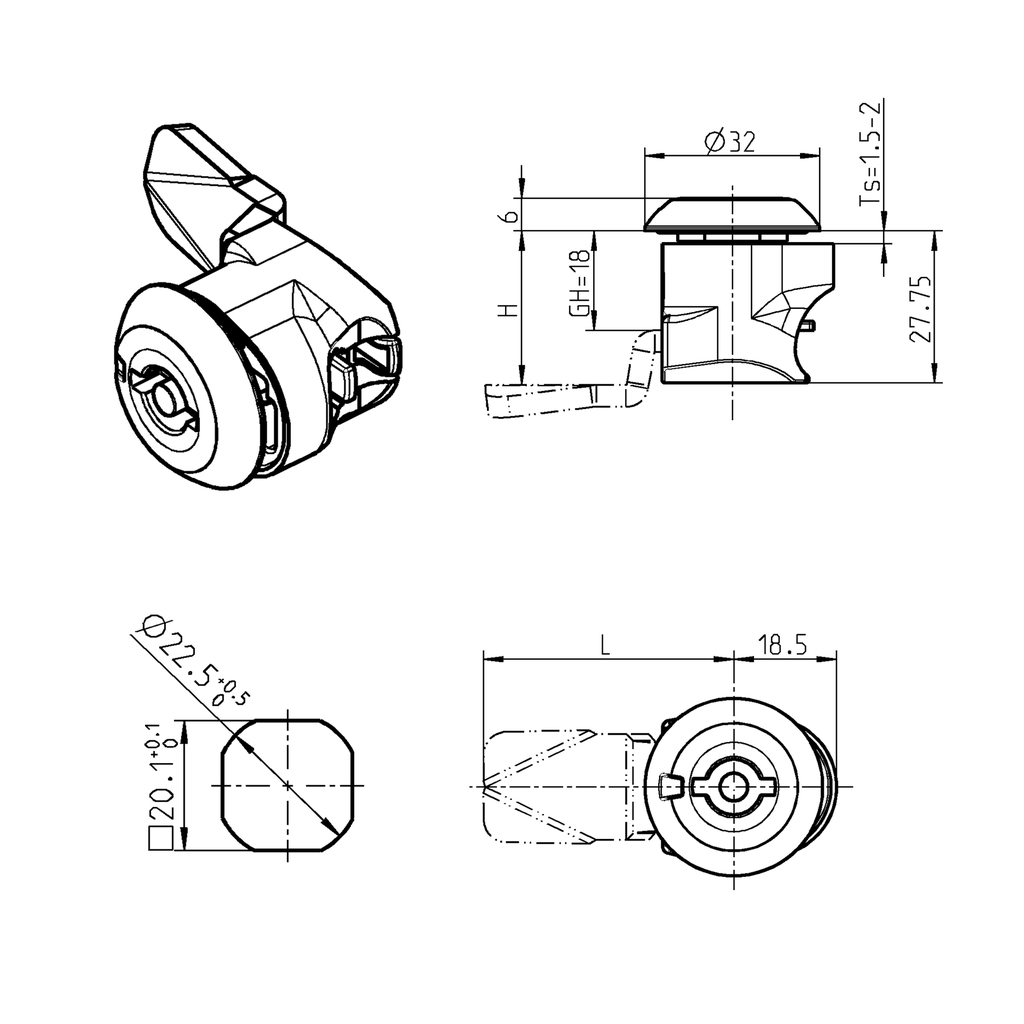

Length of housing (GH) = 18 mm
Product Benefits:
Cost savings due to assembly and disassembly without tools within seconds. Optionally available with polyamide or steel cam. Suitable for many standard cams. Closing force with cam of steel matches EMKA standard quarter turn of zinc die-cast. Smooth operation (no inner rotation due to design) Self-sealing design for highest protection requirements (design immanent) Increased safeguarding against overwinding Standard cut out PatentedProduct information:

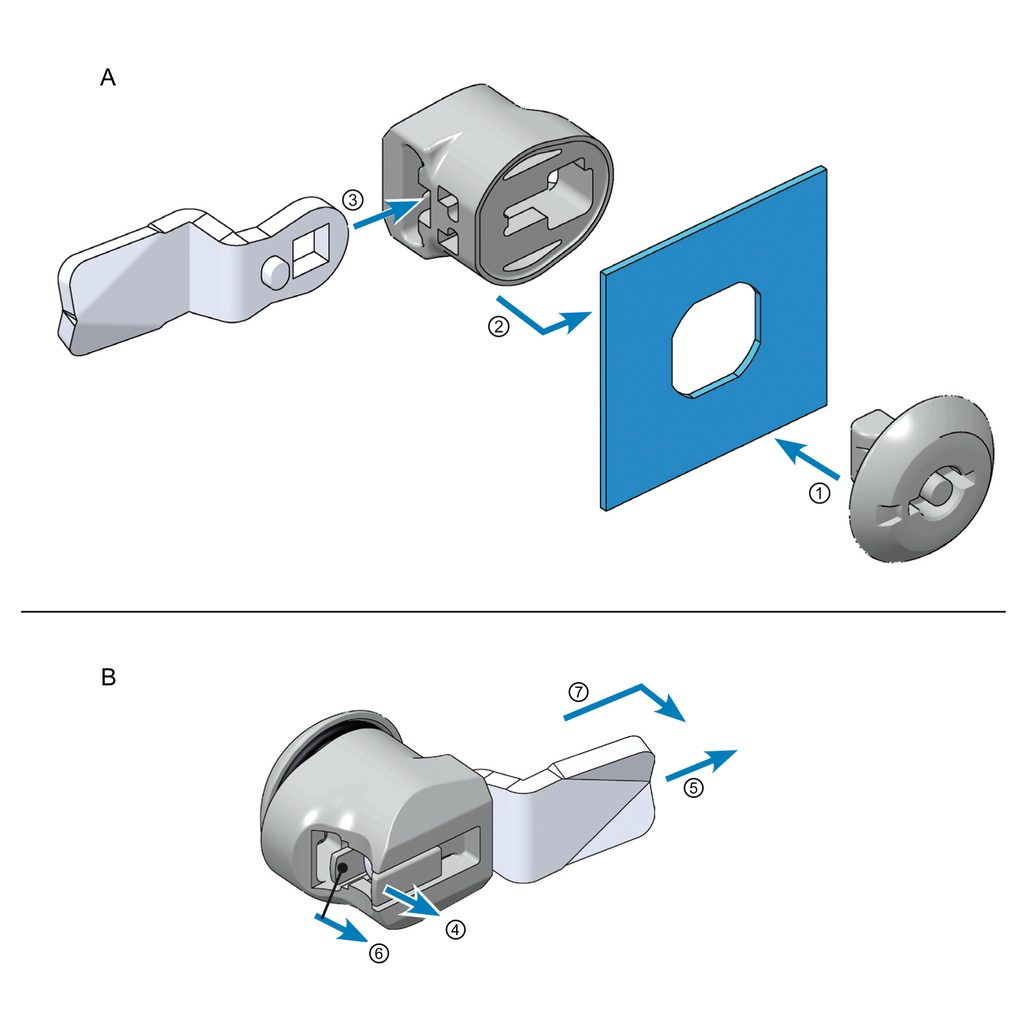

Door gauge incl. surface coating A = Assembly ① = Insert the insert part into the cut out ② = Place the click-in housing and shift it laterally ③ = Insert the cam into the click-in housing acoustic and visual verification of clicking in place of click-in housing B = Disassembly ④ = Lift locking arm of the cam ⑤ = Pull out the cam of the click-in housing ⑥ = Lift locking arm of the click-in housing ⑦ = Shift the click-in housing laterally and remove itAssembly instruction:
Assembly door stop on the right: Pre-assembled insert part is inserted into the cut out while insert is closed. Then fixed with click-in housing. Assembly door stop on the left: Pre-assembled insert part is inserted into the cut out while insert is open. Then fixed with click-in housing.
Internal Reference:
1000-U873-BQ
Standards:
Protection class IP 69K
Barcode:
1000-U00873-00000BQ
Product Type:
Insert
Program:
1000
Material of the module :
Polyamide GF
Surface of the module:
dust grey
Number of Possible Locking Points:
1 point
Article with property rights:
Yes
Insert for:
Insert for housing with quick mounting
Type of actuation:
Double bit 5
For GH measure:
18 mm
Locking set:
Insert
