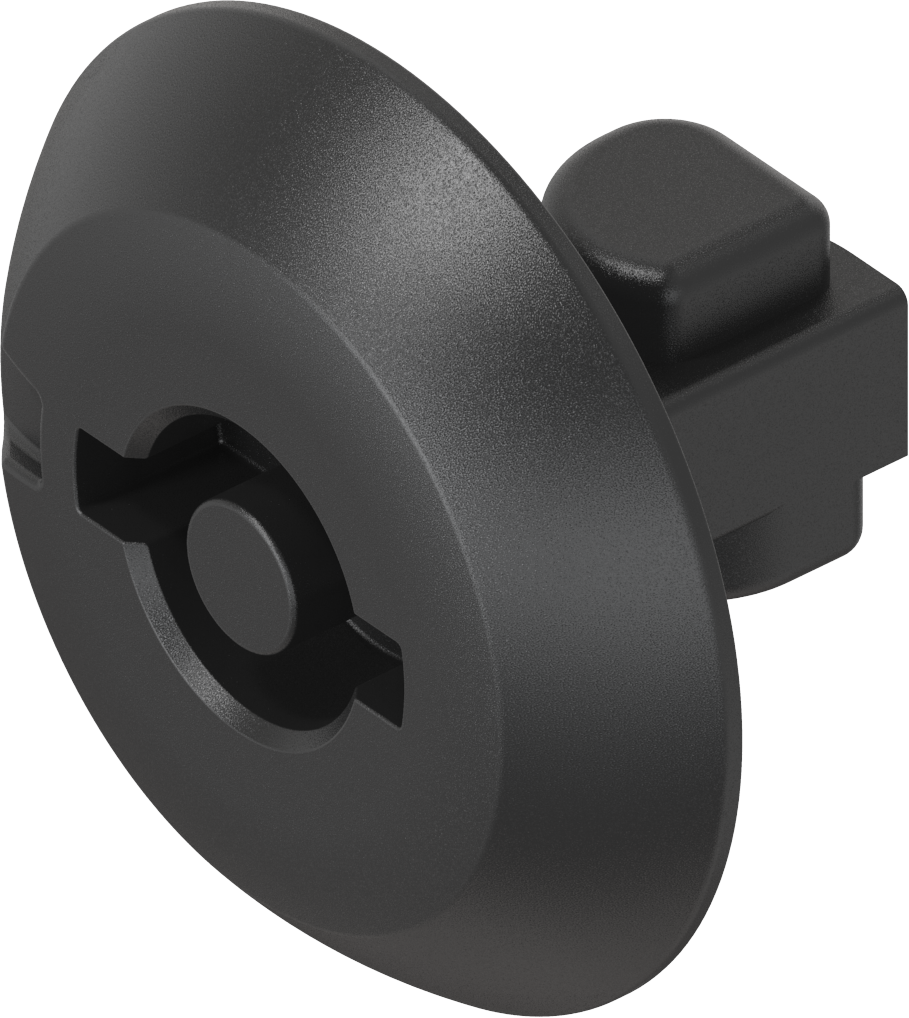

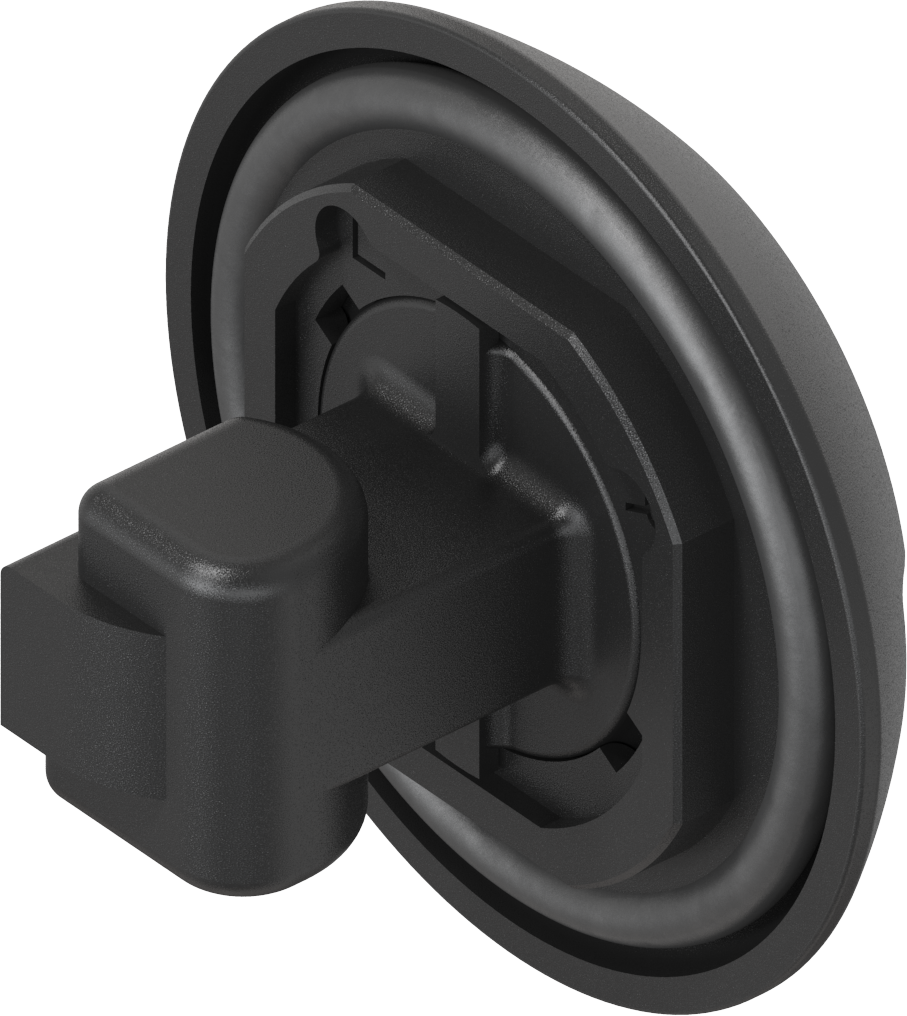

Insert part double bit 5 for assembly without tools, Polyamide GF black; 1000-U873

https://www.emka.com/products/1000-u873 https://www.emka.com/web/image/product.template/60393/image_1920?unique=2380851


    This combination does not exist.

    Protection class IP 69K


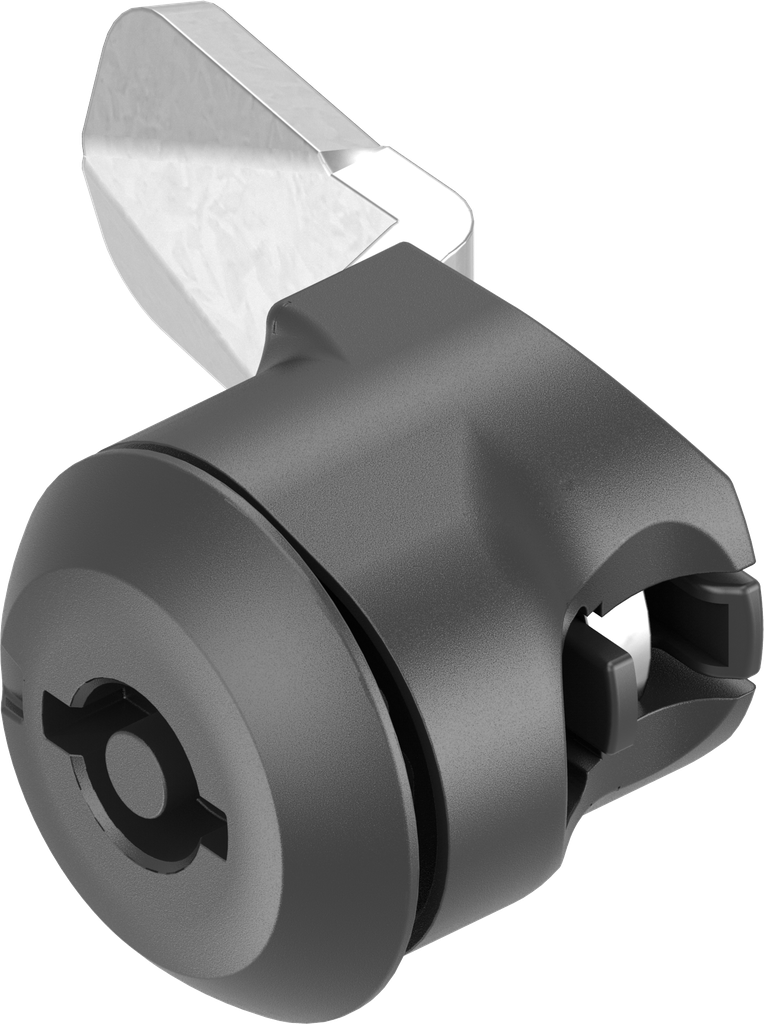

    Product Benefits:

    • Cost savings due to assembly and disassembly without tools within seconds
    • Optionally available with polyamide or steel cam
    • Suitable for many standard cams
    • Closing force with cam of steel matches EMKA standard quarter turn of zinc die-cast
    • Smooth operation (no inner rotation due to design)
    • Self-sealing design for highest protection requirements (design immanent)
    • Increased safeguarding against overwinding
    • Standard cut out
    • Patented

    Product information:

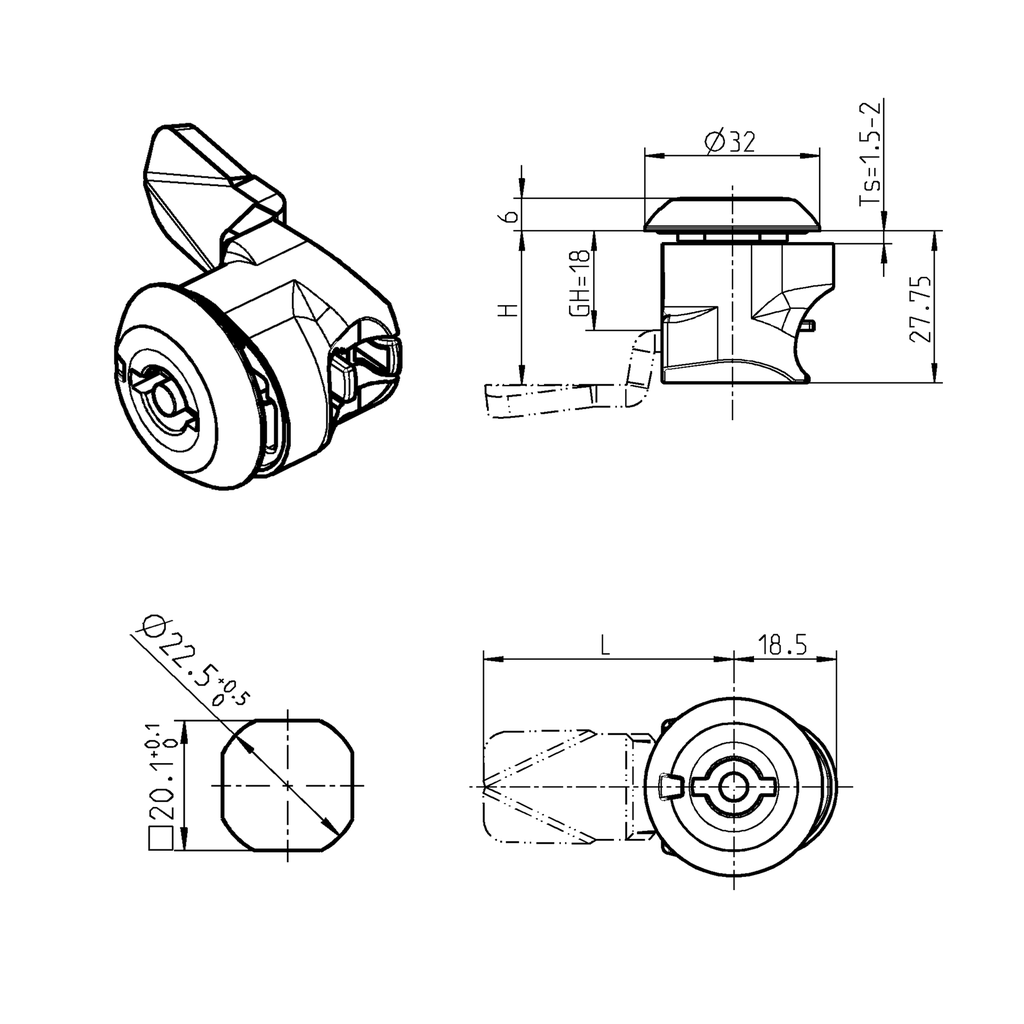

    Door gauge incl. surface coating

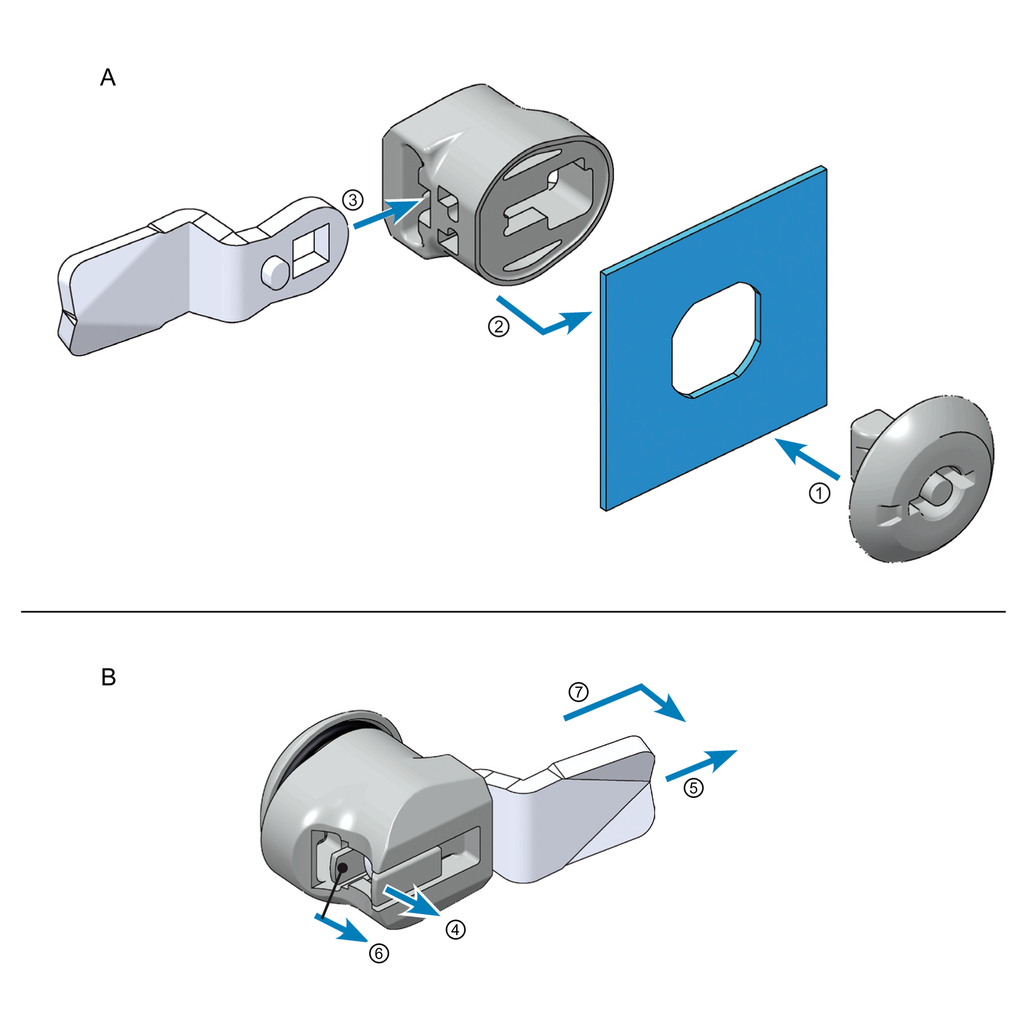

    A = Assembly
    ① = Put in the insert part into the cut out
    ② = Place the click-in housing and shift it laterally
    ③ = Put in the cam into the click-in housing, acoustic and visual verification of clicking in place of click-in housing

    B = Disassembly
    ④ = Lift locking arm of the cam
    ⑤ = Pull out the cam of the click-in housing
    ⑥ = Lift locking arm of the click-in housing
    ⑦ = Shift the click-in housing laterally and remove it

    Assembly instruction:

    • Assembly door stop on the right:
      Pre-assembled insert part is inserted into the cut out while insert is closed. Then fixed with click-in housing.
    • Assembly door stop on the left:
      Pre-assembled insert part is inserted into the cut out while insert is open. Then fixed with click-in housing.
    Internal Reference: 1000-U873
    Product Type: Insert
    Program: 1000
    Catalog sheet: 1B-180
    Material of the module : Polyamide GF
    Surface of the module: black
    Number of Possible Locking Points: 1 point
    Article with property rights: Yes
    Insert for: Insert for housing with quick mounting
    Type of actuation: Double bit 5
    For GH measure: 18 mm
    Locking set: Insert
