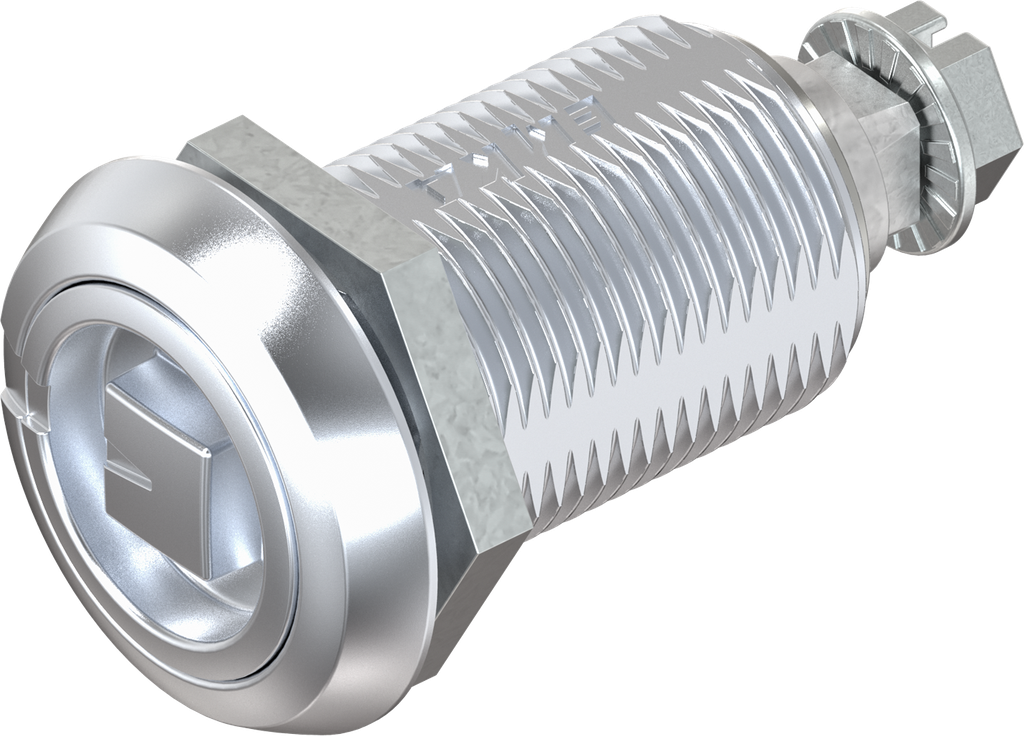

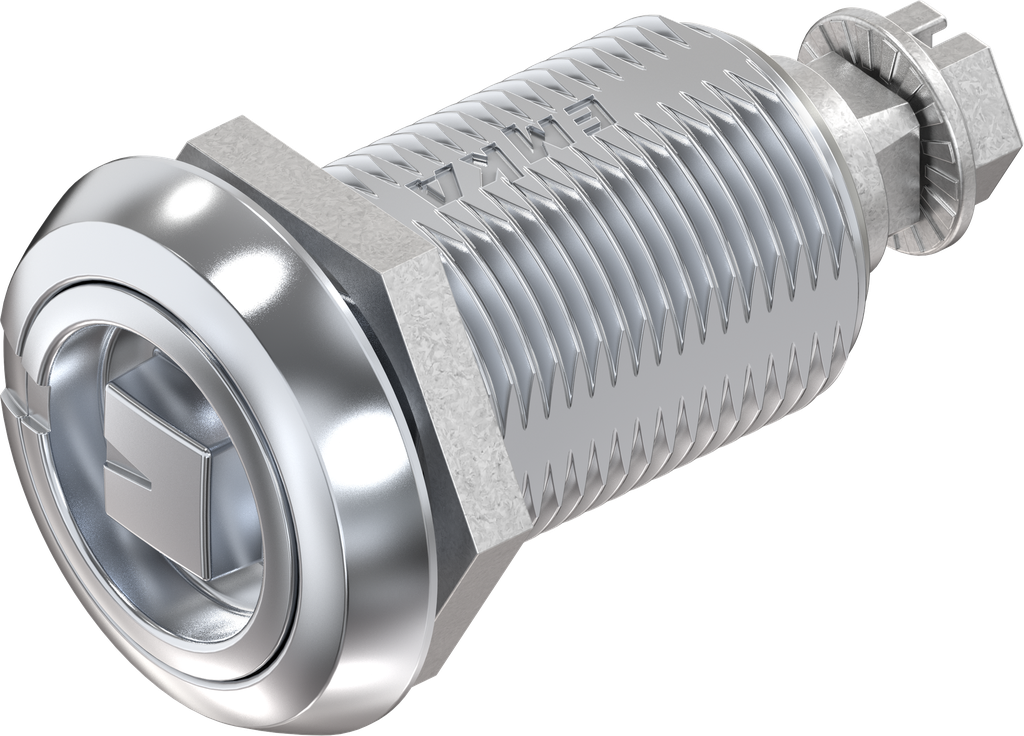

Compression latch railway version with optical opening indicator, Zinc die chrome-plated; 1000-U848-IA

https://www.emka.com/products/1000-u848-ia https://www.emka.com/web/image/product.template/60377/image_1920?unique=2380851

with nut


    This combination does not exist.

    Inside the sealing Foamed seal Protection class IP 65 DIN EN 61373 (shock and vibration testing) Left Right


    Product information:

    The compression latch is designed to be vibration-proof as such. Depending on the installation location and operational conditions, specific checks are necessary and/or supplementary measures of fastening required.

    Internal Reference: 1000-U848-IA
    Product Type: Quarter turn
    Program: 1000
    Material of the module : Zinc die
    Surface of the module: chrome-plated
    Number of Possible Locking Points: 1 point
    Article with property rights: Yes
    Fixing type of housing : nut fixing
    Type of actuation: Square 9 with marking, railway version
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round
    Housing Head Size: 32 x 6 mm
    Foamed gasket: Yes
    GH Mass: 39.0000 MILLIMETER
    Compression Value : 6 mm
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 28 mm
    Locking set: Insert
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Compression latch with insert
    No Specifications
