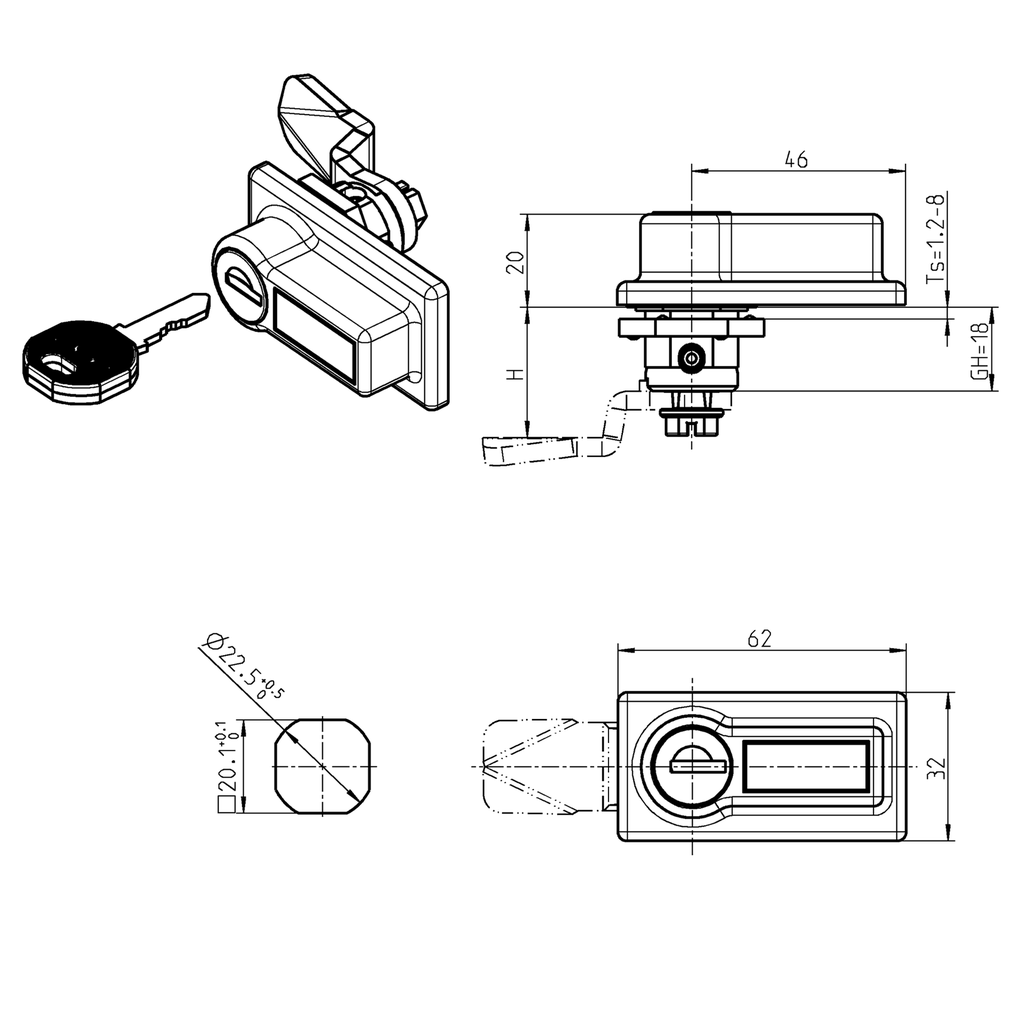

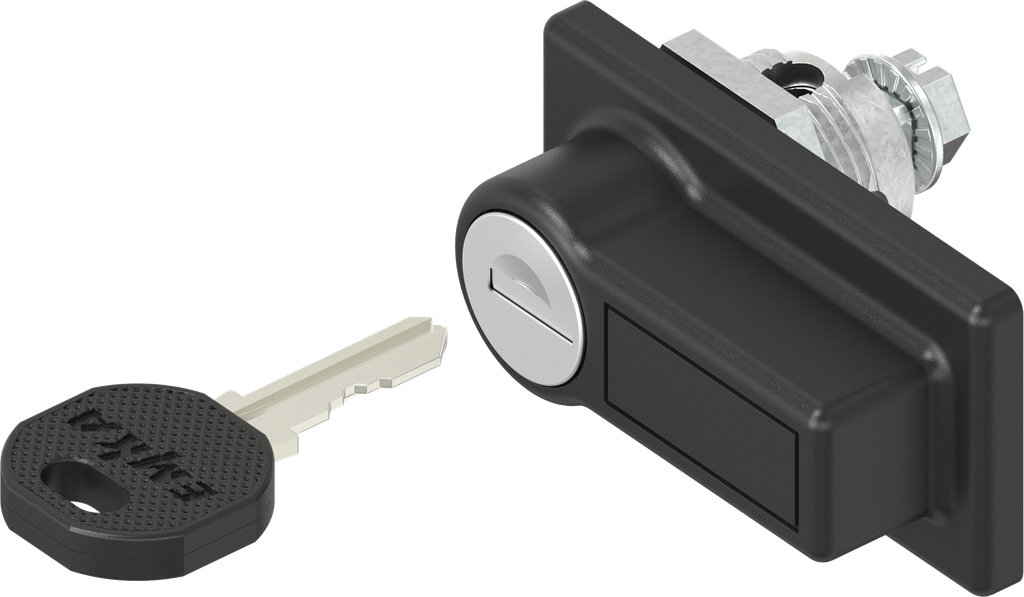

Panel handle quarter turn, keyed EK 333, Zinc die and polyamide black; 1000-U844

https://www.emka.com/products/1000-u844 https://www.emka.com/web/image/product.template/60372/image_1920?unique=2380851

with earthing nut


    This combination does not exist.

    Inside the sealing Grounding possible Protection class IP 65 Left Right


    Internal Reference: 1000-U844
    Product Type: Quarter turn
    Program: 1000
    Catalog sheet: 1B-520
    Material of the module : Zinc die and polyamide
    Surface of the module: black
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Fixing type of housing : nut fixing
    Mounting Positions : Inside the sealing
    Grounding possible: Yes
    Housing Head Shape: Round
    GH Mass: 18 mm
    Handle Art: Panel handle
    Suitable for door thickness from: 1.20 mm
    Suitable for door thicknesses up to: 8 mm
    Round Cylinder Type: EMKA EK, keyed EK 333
    Locking set: Round cylinder
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Quarter turn with handle,Quarter turn with cylinder
