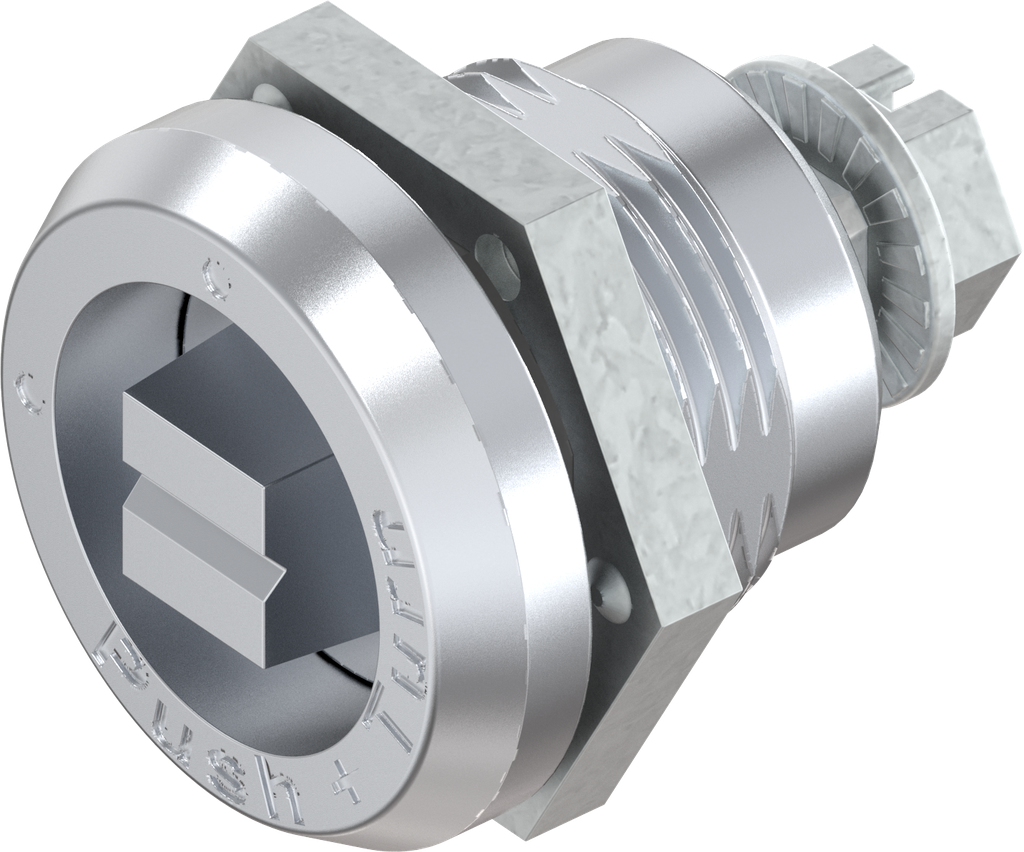

Safety quarter turn railway version, Zinc die chrome-plated; 1000-U817-23IA

https://www.emka.com/products/1000-u817-23ia https://www.emka.com/web/image/product.template/205884/image_1920?unique=2380851

with earthing nut


    This combination does not exist.

    Inside the sealing Grounding possible Protection class IP 65 DIN EN 61373 (shock and vibration testing) Left Right


    Product information:

    The safety quarter turn is of a vibration-proof design.
    Depending on the installation location and operational conditions, specific checks are necessary and/or supplementary measures of fastening required.

    Push insert back and turn.

    Internal Reference: 1000-U817-23IA
    Product Type: Quarter turn
    Program: 1000
    Catalog sheet: 1B-330
    Material of the module : Zinc die
    Surface of the module: chrome-plated
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Article with property rights: Yes
    Fixing type of housing : nut fixing
    Type of actuation: Square 9 with V-slot, railway version
    Mounting Positions : Inside the sealing
    Grounding possible: Yes
    Housing Head Shape: Round

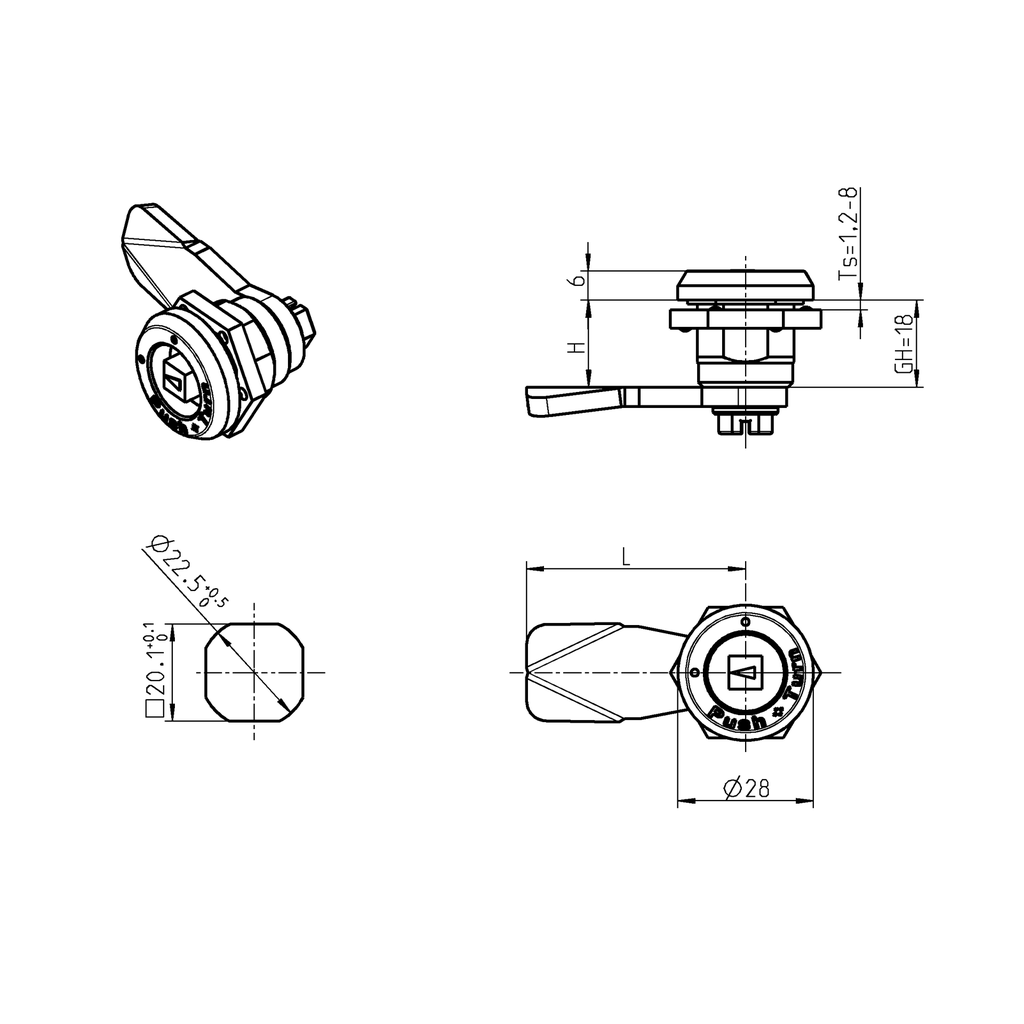

    Housing Head Size: 28 x 6 mm
    GH Mass: 18 mm
    Suitable for door thickness from: 1.20 mm
    Suitable for door thicknesses up to: 8 mm
    Locking set: Insert
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Safety quarter turn
