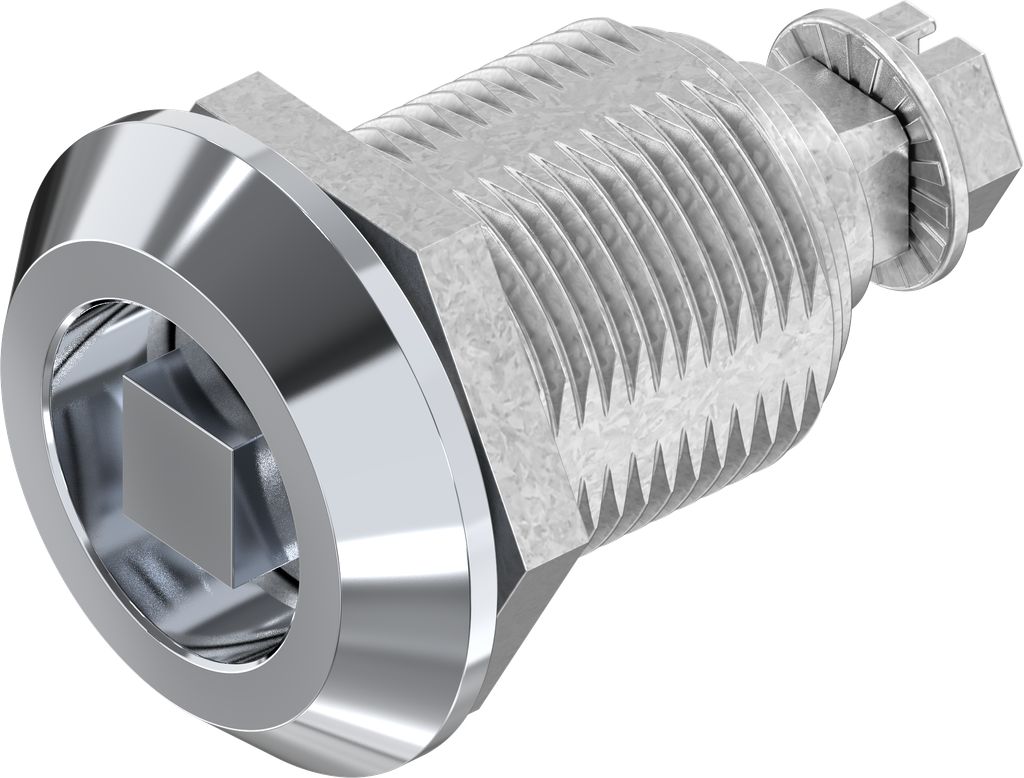

Compression latch, square 8, Zinc die chrome-plated; 1000-U755-IA
with nut
No stock item, please ask for availability
Internal Reference:
1000-U755-IA
Standards:
Protection class IP 65, DIN EN 61373 (shock and vibration testing)
Barcode:
1000-U00755-00000ia
Product Type:
Quarter turn
Program:
1000
Material of the module :
Zinc die
Surface of the module:
chrome-plated
Number of Possible Locking Points:
1 point
Fixing type of housing :
nut fixing
Type of actuation:
Square 8
Mounting Positions :
Inside the sealing
Housing Head Shape:
Round

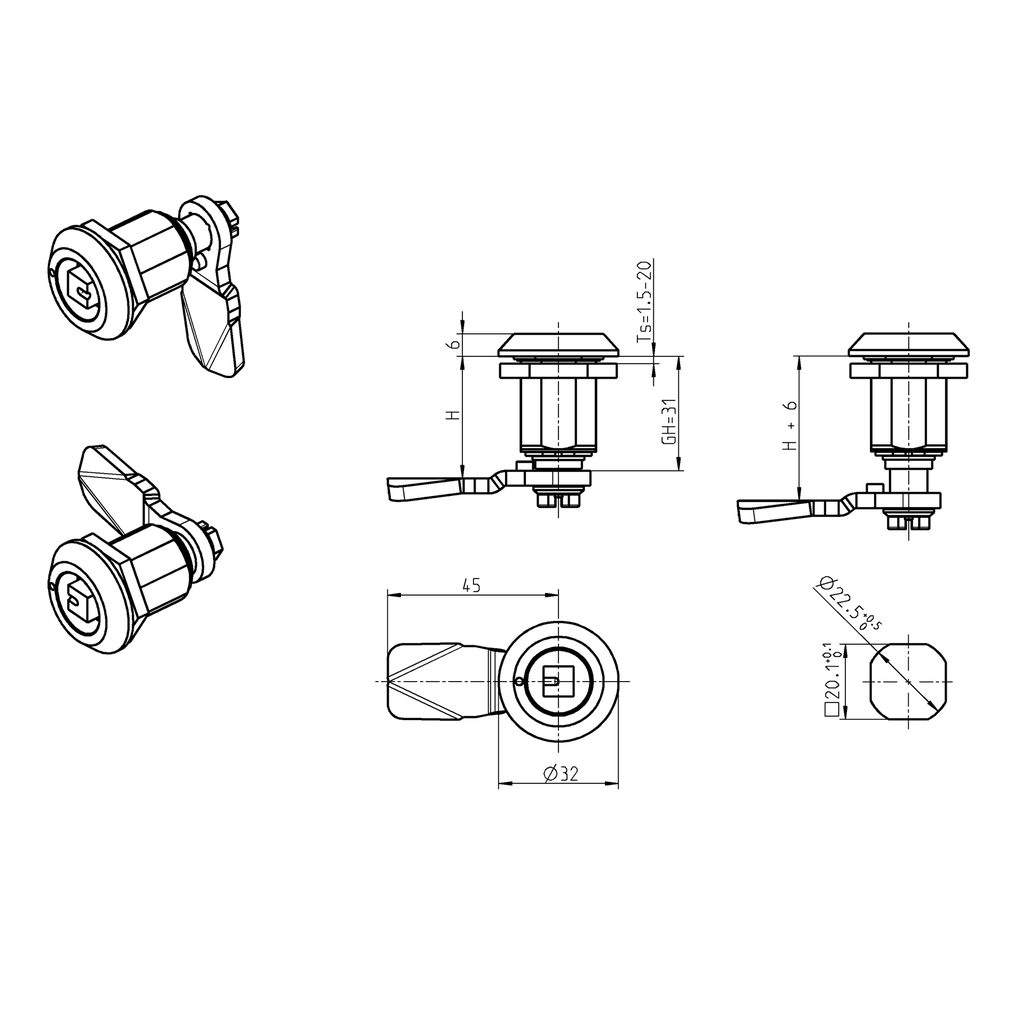

Housing Head Size:
32 x 6 mm
Foamed gasket:
Yes
GH Mass:
31 mm
Compression Value :
6 mm
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
20 mm
Locking set:
Insert
Door Version :
Left,Right
Locking components:
Cam
Quarter turn types:
Compression latch with insert
