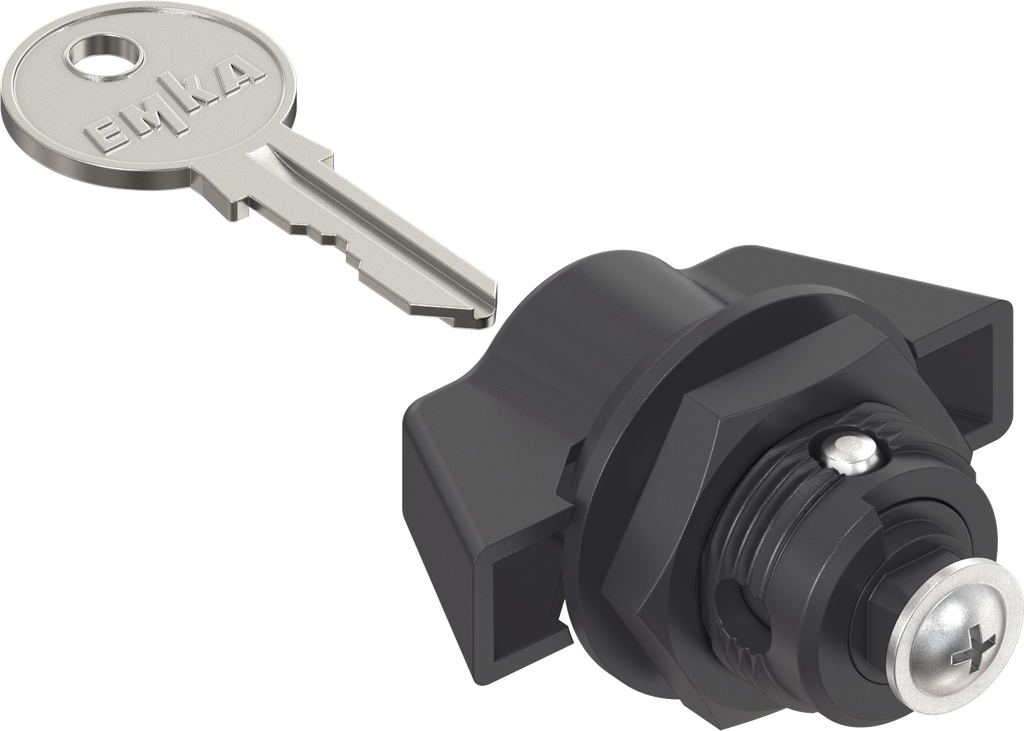

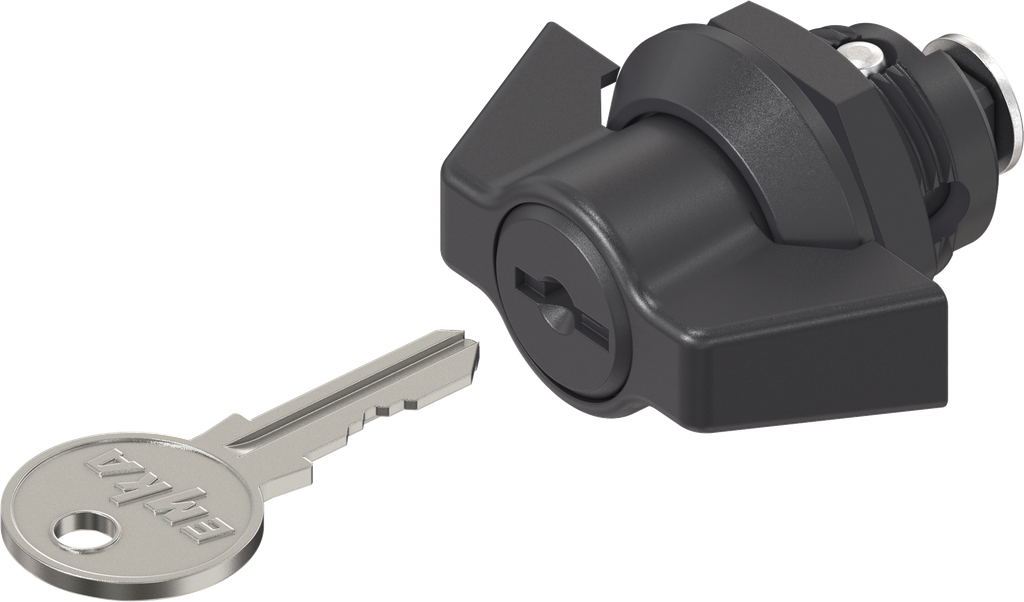

Wing knob quarter turn, keyed different, Polyamide black; 1000-U753

https://www.emka.com/products/1000-u753 https://www.emka.com/web/image/product.template/60292/image_1920?unique=2380851

with nut


    This combination does not exist.

    Inside the sealing Protection class IP 40 Left Right


    Product information:

    Key removable in both positions.

    Internal Reference: 1000-U753
    Product Type: Quarter turn
    Program: 1000
    Catalog sheet: 1B-540
    Material of the module : Polyamide
    Surface of the module: black
    Number of Possible Locking Points: 1 point
    Fixing type of housing : nut fixing
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round

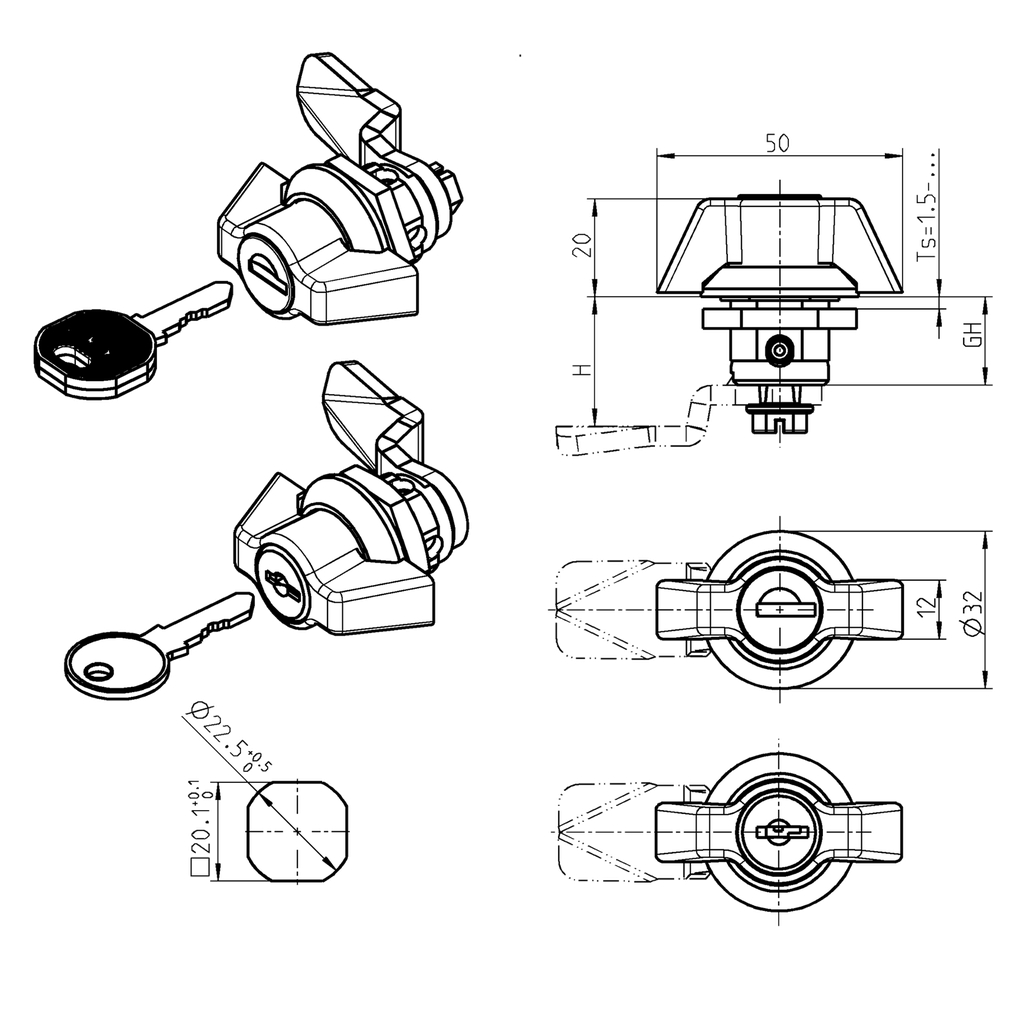

    Housing Head Size: 32 x 6 mm
    GH Mass: 18 mm
    Handle Art: Wing knob
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 8 mm
    Round Cylinder Type: EMKA EK, differently keyed
    Locking set: Round cylinder
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Quarter turn with handle,Quarter turn with cylinder
