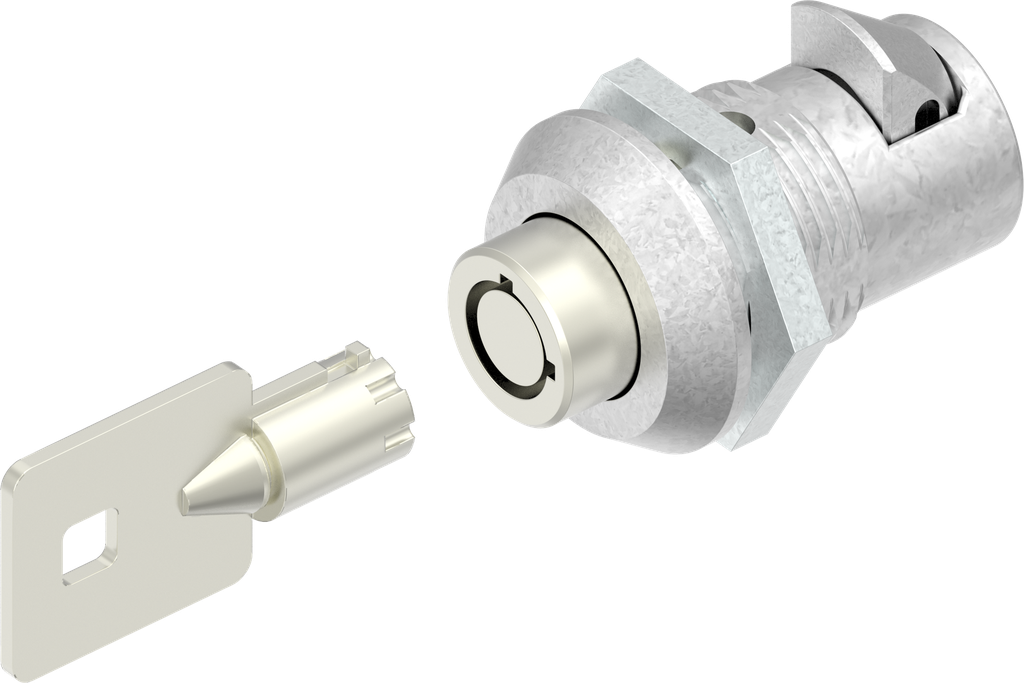

Radial pin-push cylinder, keyed different, Zinc die chrome-plated; 1000-U743

https://www.emka.com/products/1000-u743 https://www.emka.com/web/image/product.template/60285/image_1920?unique=0463bdd

with nut


    This combination does not exist.

    Inside the sealing Protection class IP 40 Left Right


    Product information:

    Application:
    Computer housing
    German Railroad Company

    Function:

    By turning the key 90° the push button is unlocked and can be operated.
    The key is removable in both positions.

    Internal Reference: 1000-U743
    Product Type: Quarter turn
    Program: 1000
    Catalog sheet: 1B-380
    Material of the module : Zinc die
    Surface of the module: chrome-plated
    Number of Possible Locking Points: 1 point
    Fixing type of housing : nut fixing
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round
    Housing Head Size: 28 x 6 mm
    GH Mass: 31 mm
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 8 mm
    Radial Pin Cylinder: Differently keyed
    Locking set: Radial cylinder
    snap function: Yes
    Door Version : Left,Right
    Quarter turn types: Quarter turn with cylinder
