Housing, left version, Polyamide GF black
Housing, left version, Polyamide GF black
Radial pin-push cylinder, keyed different, Zinc die chrome-plated
Radial pin-push cylinder, keyed different, Zinc die chrome-plated

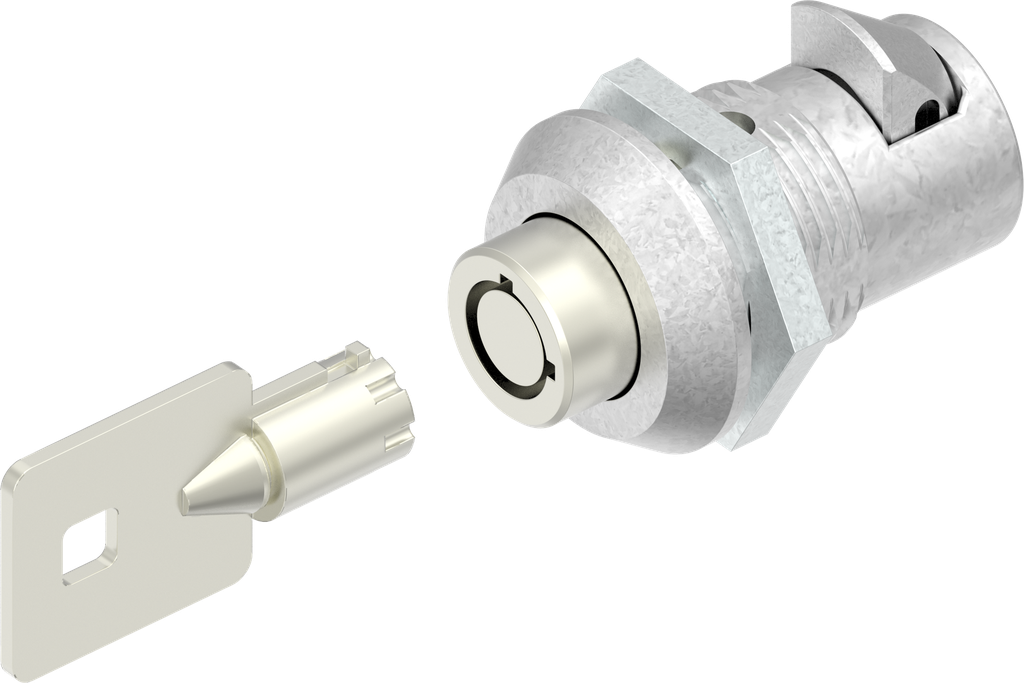

Radial pin-push cylinder, keyed 20001, Zinc die chrome-plated; 1000-U742

https://www.emka.com/products/1000-u742 https://www.emka.com/web/image/product.template/60284/image_1920?unique=fa9bdce

with nut


    This combination does not exist.

    Inside the sealing Protection class IP 40 Left Right


    Function:

    By turning the key 90° the push button is unlocked and can be operated.
    The key is removable in both positions.

    Internal Reference: 1000-U742
    Product Type: Quarter turn
    Program: 1000
    Catalog sheet: 1B-380
    Material of the module : Zinc die
    Surface of the module: chrome-plated
    Number of Possible Locking Points: 1 point
    Fixing type of housing : nut fixing
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round

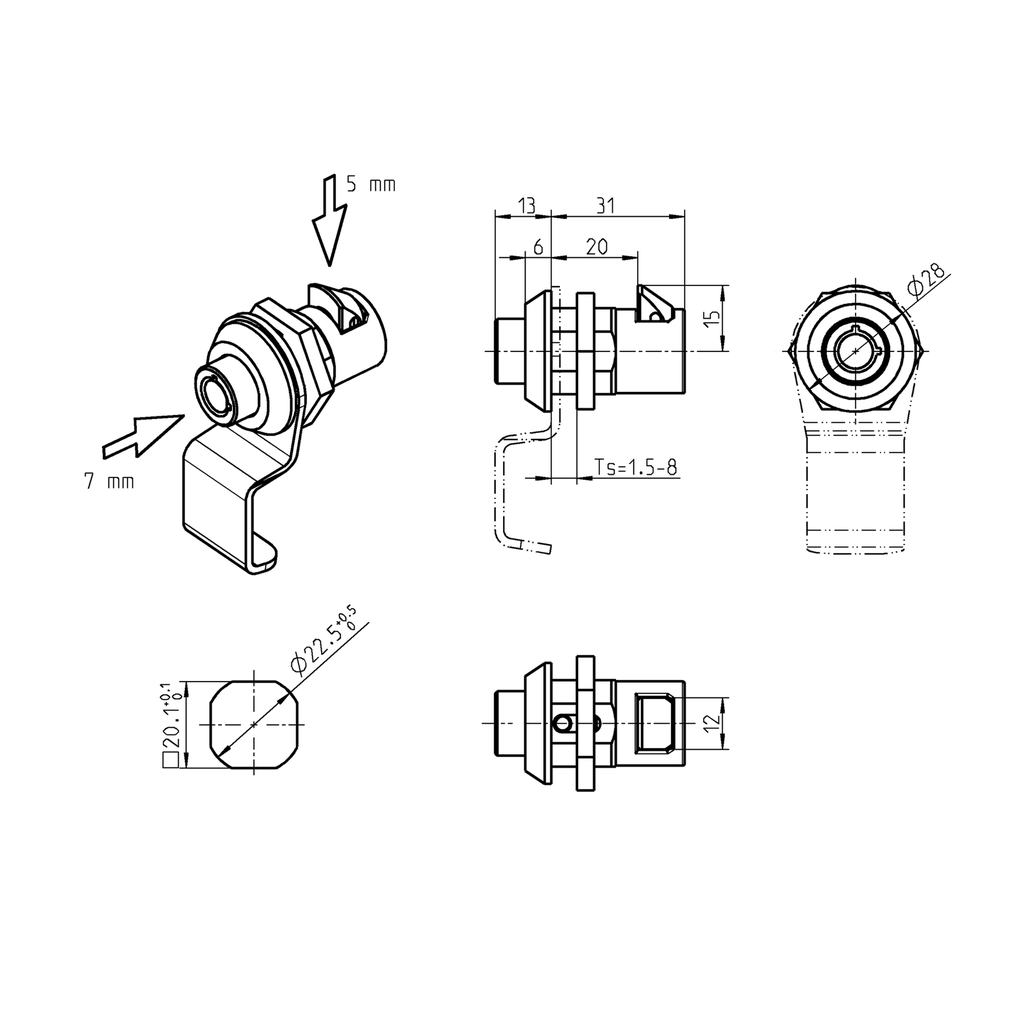

    Housing Head Size: 28 x 6 mm
    GH Mass: 31 mm
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 8 mm
    Radial Pin Cylinder: Keyed alike 20001
    Locking set: Radial cylinder
    snap function: Yes
    Door Version : Left,Right
    Quarter turn types: Quarter turn with cylinder
