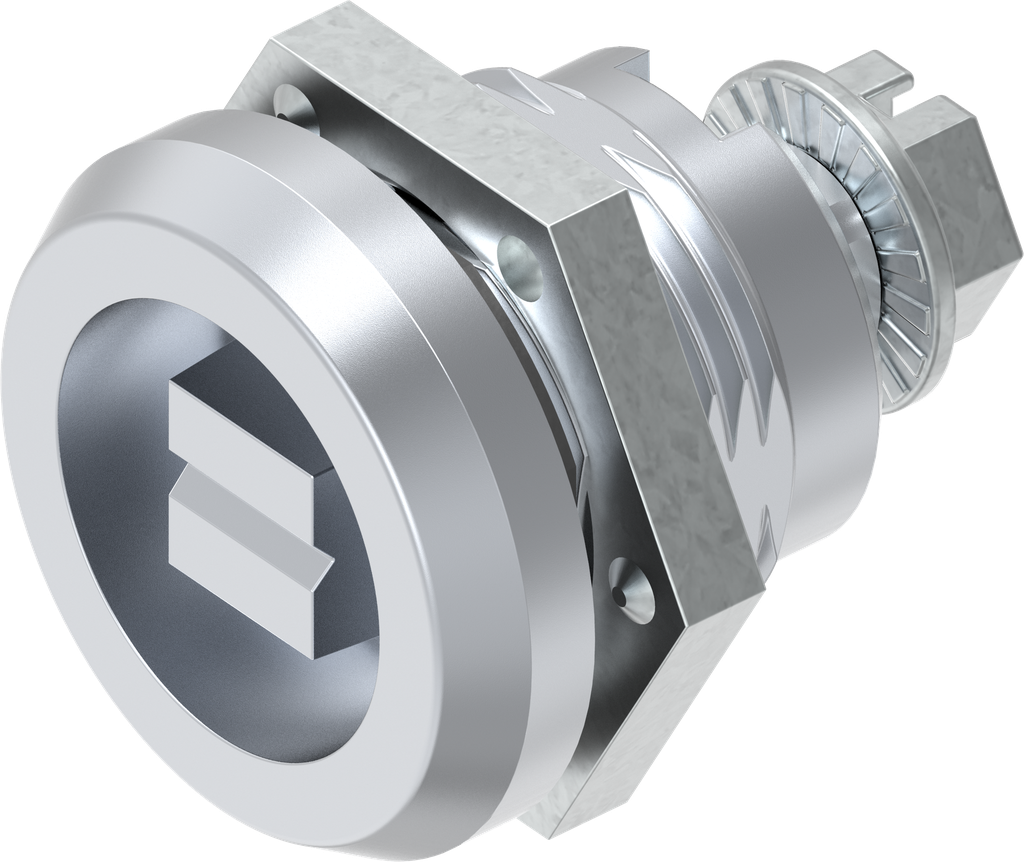

Safety quarter turn railway version, Brass and stainless steel chrome-plated; 1000-U733-01

https://www.emka.com/products/1000-u733-01 https://www.emka.com/web/image/product.template/205818/image_1920?unique=0463bdd

with earthing nut


    This combination does not exist.

    Inside the sealing Grounding possible Protection class IP 65


    Product information:

    The safety quarter turn is of a vibration-proof design.
    Depending on the installation location and operational conditions specific checks are necessary and/or supplementary measures of fastening required.

    Function:

    Push cam back using insert

    Cam snaps into place

    Assembly instruction:

    Only available with pre-assembled cam.

    Internal Reference: 1000-U733-01
    Product Type: Quarter turn
    Program: 1000
    Catalog sheet: 1B-320
    Material of the module : Brass and stainless steel
    Surface of the module: chrome-plated
    Number of Possible Locking Points: 1 point
    Fixing type of housing : nut fixing
    Type of actuation: Square 9 with V-slot, railway version
    Mounting Positions : Inside the sealing
    Grounding possible: Yes

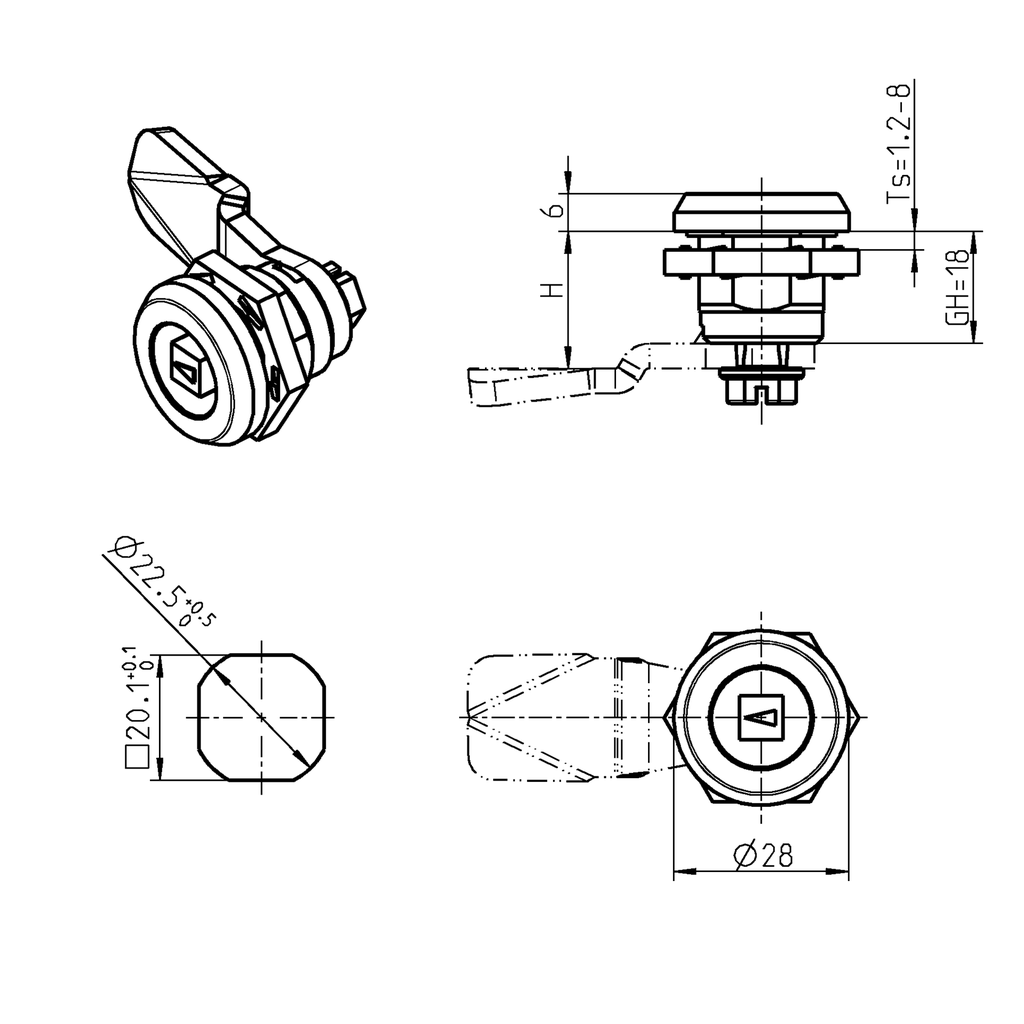

    Housing Head Shape: Round
    Housing Head Size: 28 x 6 mm
    GH Mass: 18 mm
    Suitable for door thickness from: 1.20 mm
    Suitable for door thicknesses up to: 8 mm
    Locking set: Insert
    Locking components: Cam
    Quarter turn types: Safety quarter turn
