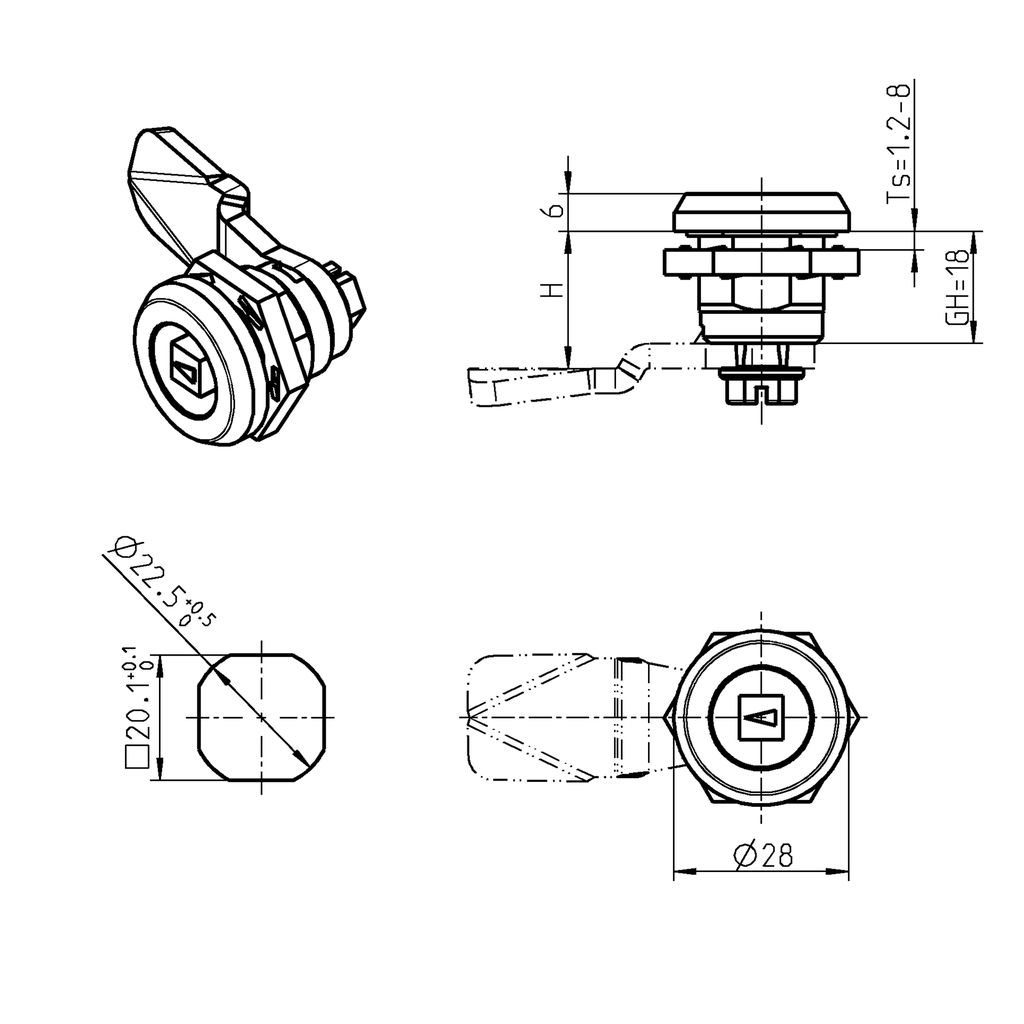

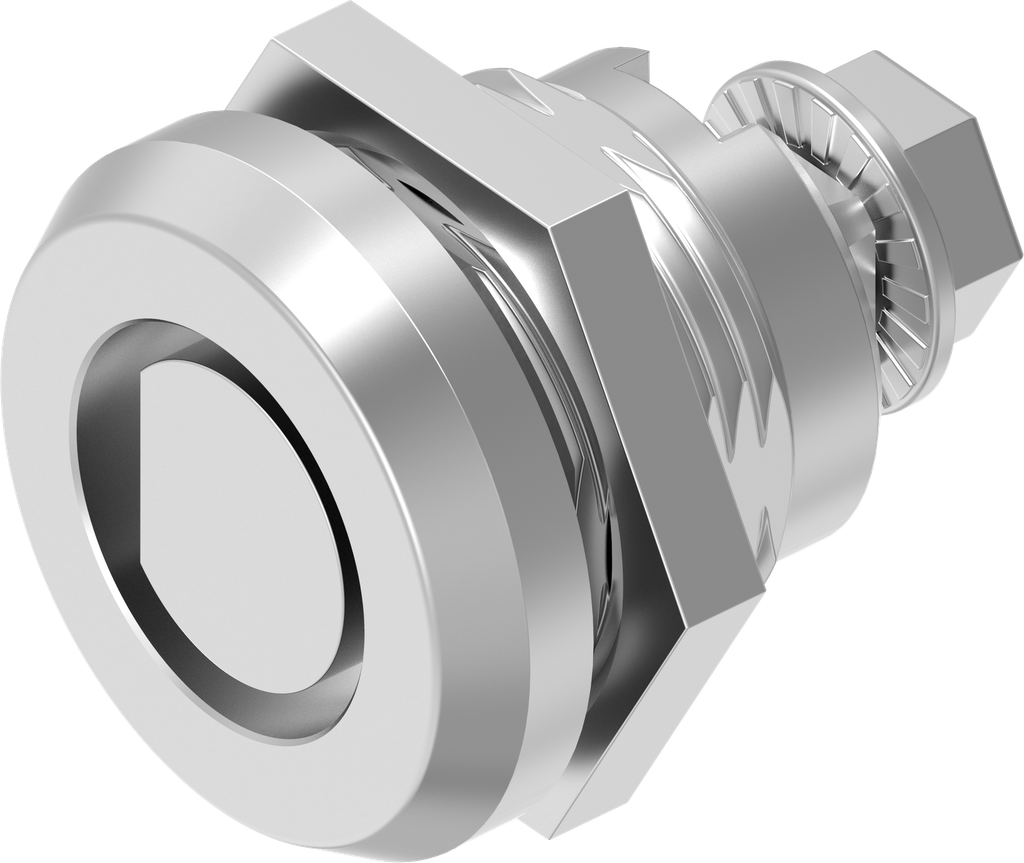

Safety quarter turn Eastern Europe Ø 13 half-round, Stainless steel AISI 303; 1000-U724-01

https://www.emka.com/products/1000-u724-01 https://www.emka.com/web/image/product.template/205811/image_1920?unique=0463bdd

with stainless steel nut


    This combination does not exist.

    Inside the sealing Protection class IP 65 DIN EN 45545-2 class E20 (fire protection) Left Right


    Function:

    Push cam back using insert.

    Assembly instruction:

    Only available with pre-assembled cam.

    Akeneo Note:

    90° and 180° stopper

    Internal Reference: 1000-U724-01
    Product Type: Quarter turn
    Program: 1000
    Catalog sheet: 1B-320
    Material of the module : Stainless steel AISI 303
    Number of Possible Locking Points: 1 point
    Fixing type of housing : nut fixing
    Type of actuation: Eastern Europe Ø 13 half-round
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round
    Housing Head Size: 28 x 6 mm
    GH Mass: 18 mm
    Suitable for door thickness from: 1.20 mm
    Suitable for door thicknesses up to: 8 mm
    Locking set: Insert
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Safety quarter turn
