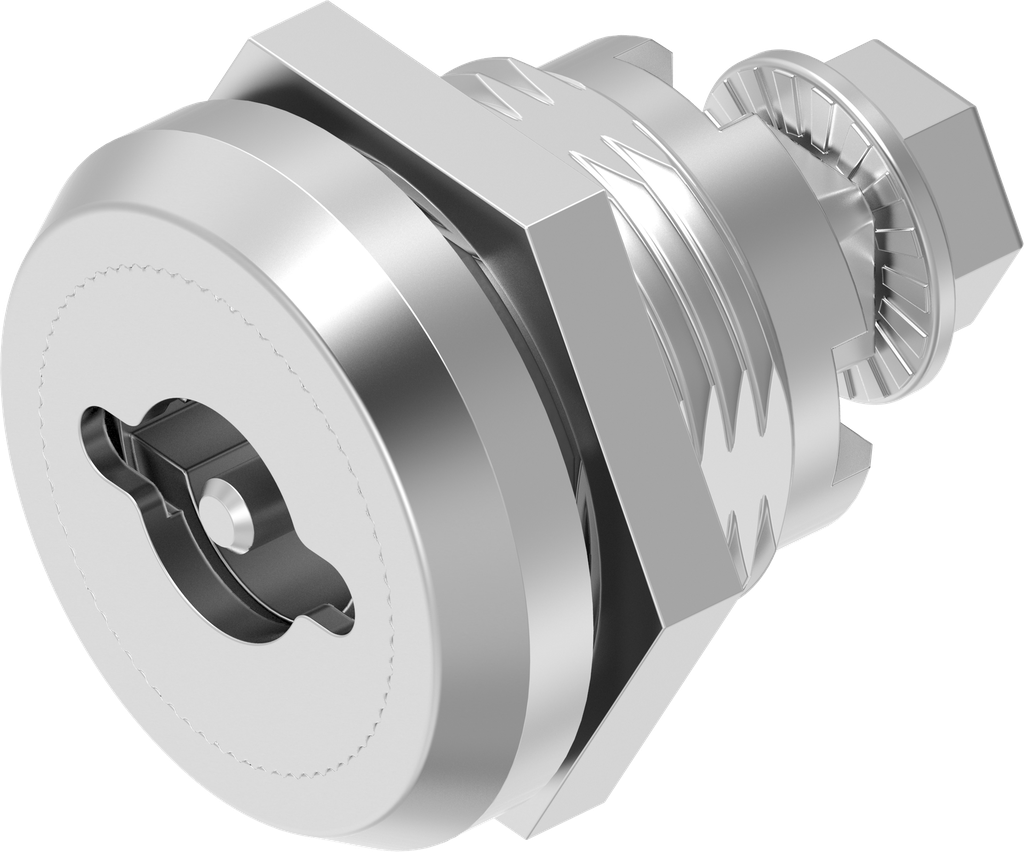

Safety quarter turn double bit 3, left version, Stainless steel AISI 303; 1000-U715-01

https://www.emka.com/products/1000-u715-01 https://www.emka.com/web/image/product.template/60270/image_1920?unique=0463bdd

with stainless steel nut


    This combination does not exist.

    Inside the sealing Protection class IP 65 DIN EN 45545-2 class E20 (fire protection) Left


    Product information:

    The safety quarter turn is of a vibration-proof design.
    Depending on the installation location and operational conditions, specific checks are necessary and/or supplementary measures of fastening required.

    Keyhole for double bit according to key DIN 43668.

    Function:

    Push cam back using insert

    Cam snaps into place
    Double bit key not removable

    Assembly instruction:

    Only available with pre-assembled cam.

    Internal Reference: 1000-U715-01
    Product Type: Quarter turn
    Program: 1000
    Catalog sheet: 1B-320
    Material of the module : Stainless steel AISI 303
    Number of Possible Locking Points: 1 point
    Fixing type of housing : nut fixing
    Type of actuation: Double bit 3
    Mounting Positions : Inside the sealing

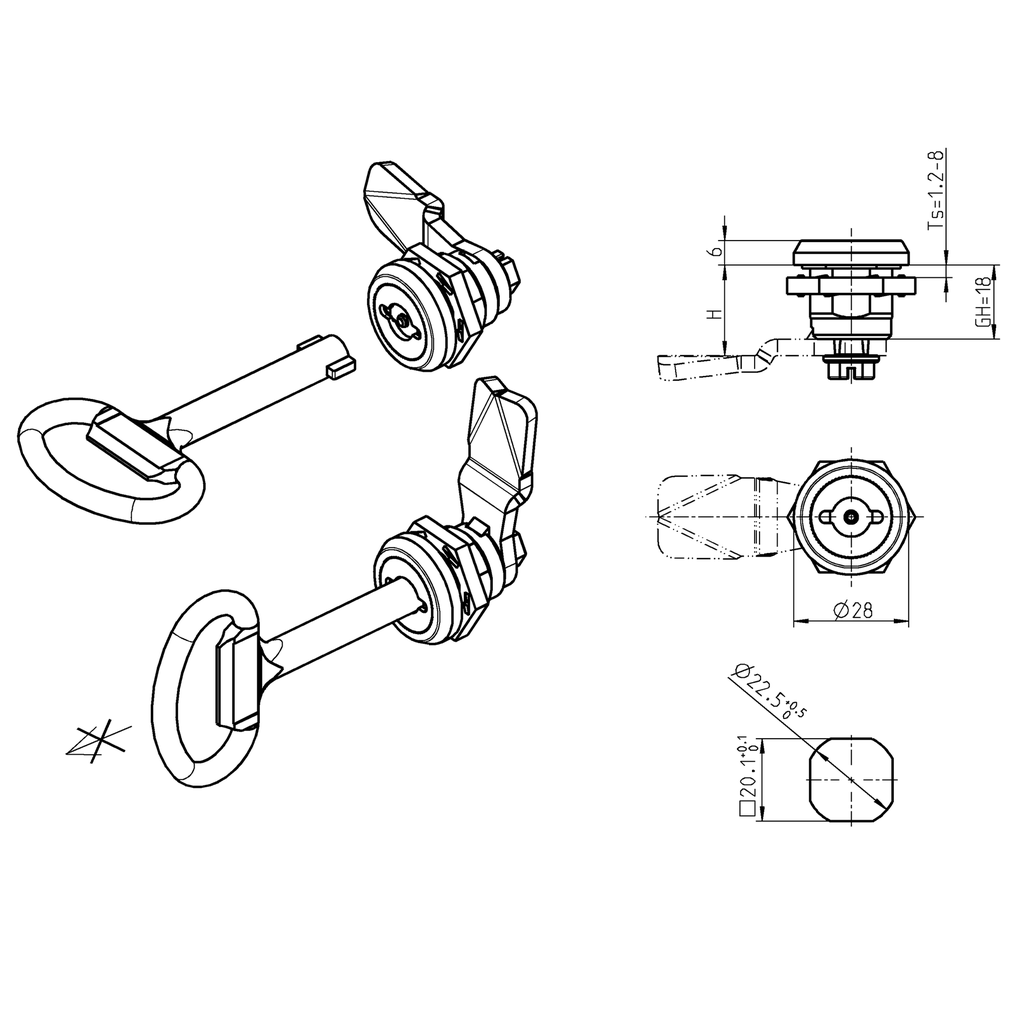

    Housing Head Shape: Round
    Housing Head Size: 28 x 6 mm
    GH Mass: 18 mm
    Suitable for door thickness from: 1.20 mm
    Suitable for door thicknesses up to: 8 mm
    Locking set: Insert
    Door Version : Left
    Locking components: Cam
    Quarter turn types: Safety quarter turn
