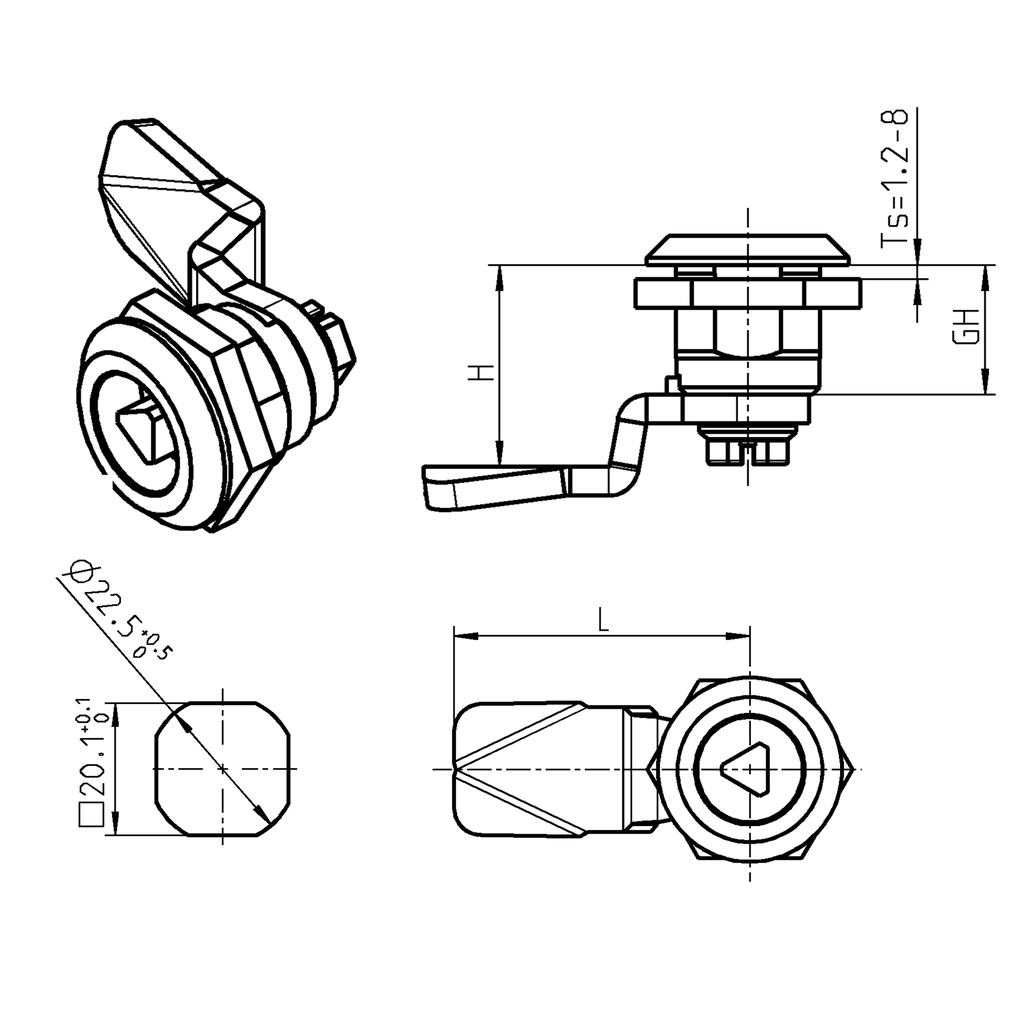

Insert double bit 5, Zinc die matt chromed
3-point cam, Steel zinc-plated
Key features:
This product is a modular component of a UL-certified closure.
Internal Reference:
1000-U7-GBF
Standards:
Protection class IP 65
Barcode:
1000-U00007-0000GBF

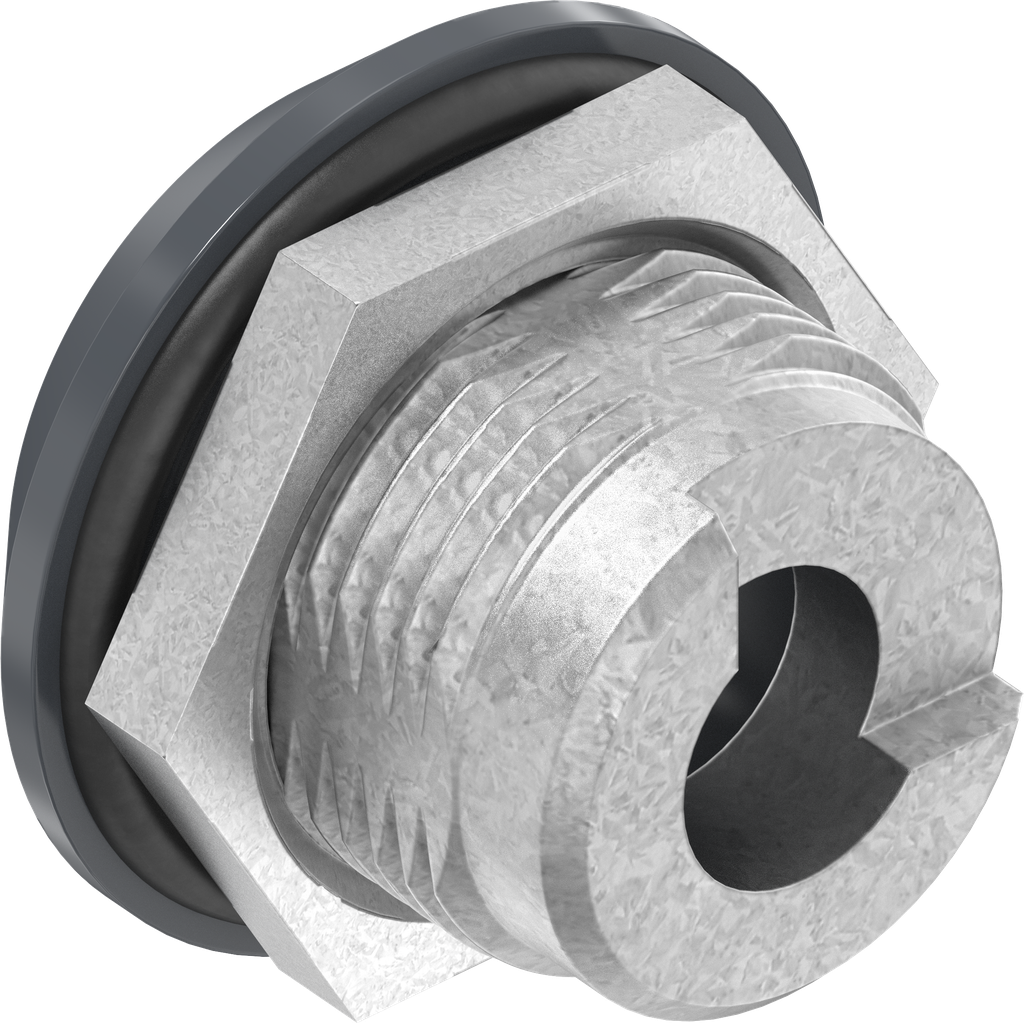

Product Type:
Housing
Program:
1000
Material of the module :
Zinc die

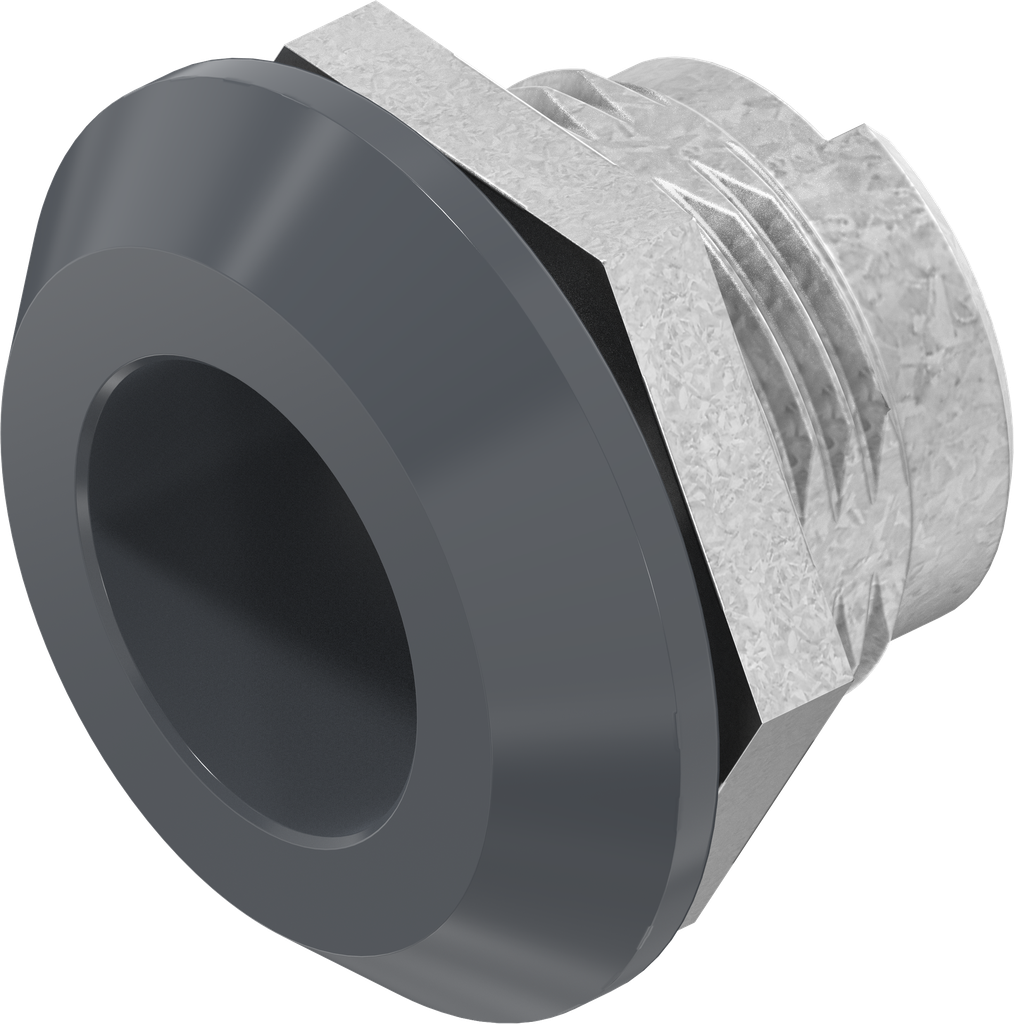

Surface of the module:
graphite grey powder-coated smooth gloss
Number of Possible Locking Points:
1 point, 2 points, 3 point
Fixing type of housing :
nut fixing
Mounting Positions :
Inside the sealing

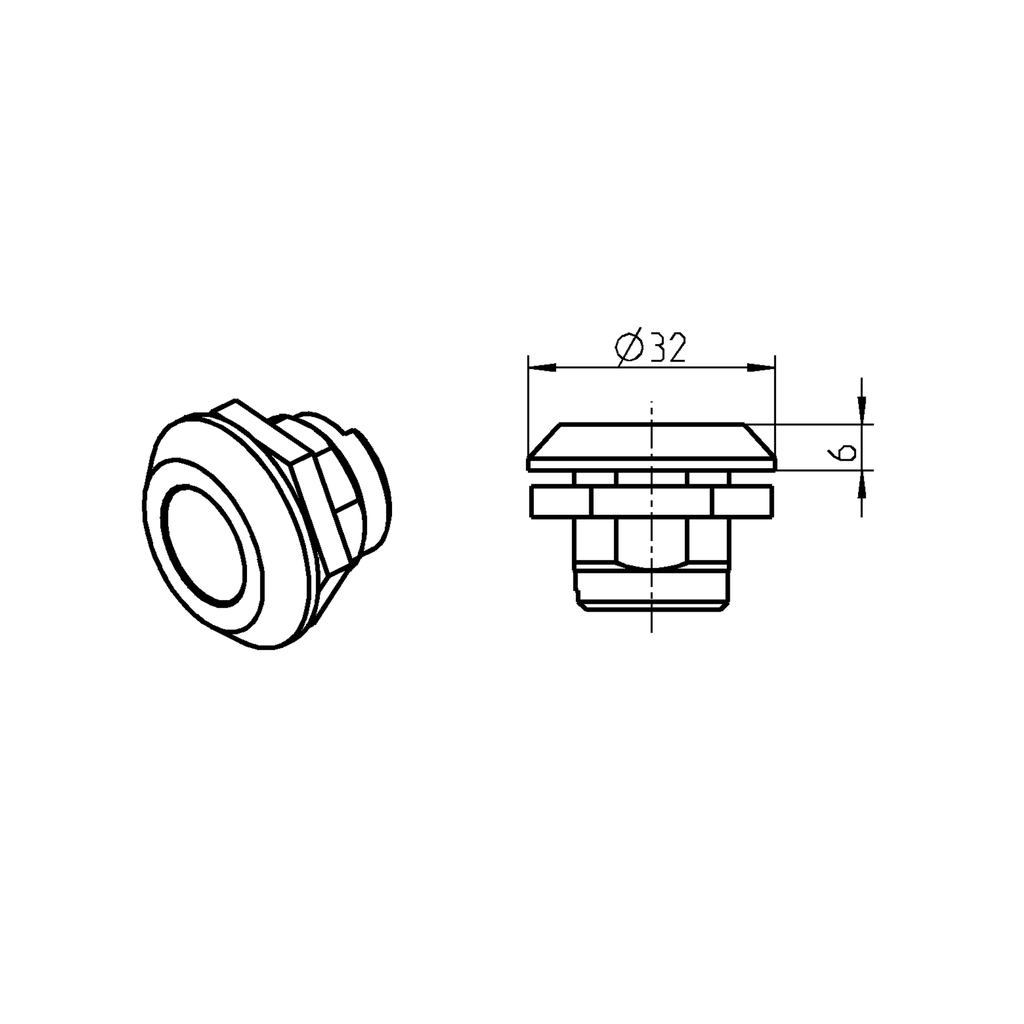

Housing Head Shape:
Round
Housing Head Size:
32 x 6 mm
Foamed gasket:
Yes
GH Mass:
18 mm
Suitable for door thickness from:
1.20 mm
Suitable for door thicknesses up to:
8 mm
Locking set:
Insert
Door Version :
Left,Right
Locking components:
Cam
Quarter turn types:
Quarter turn with simple insert
