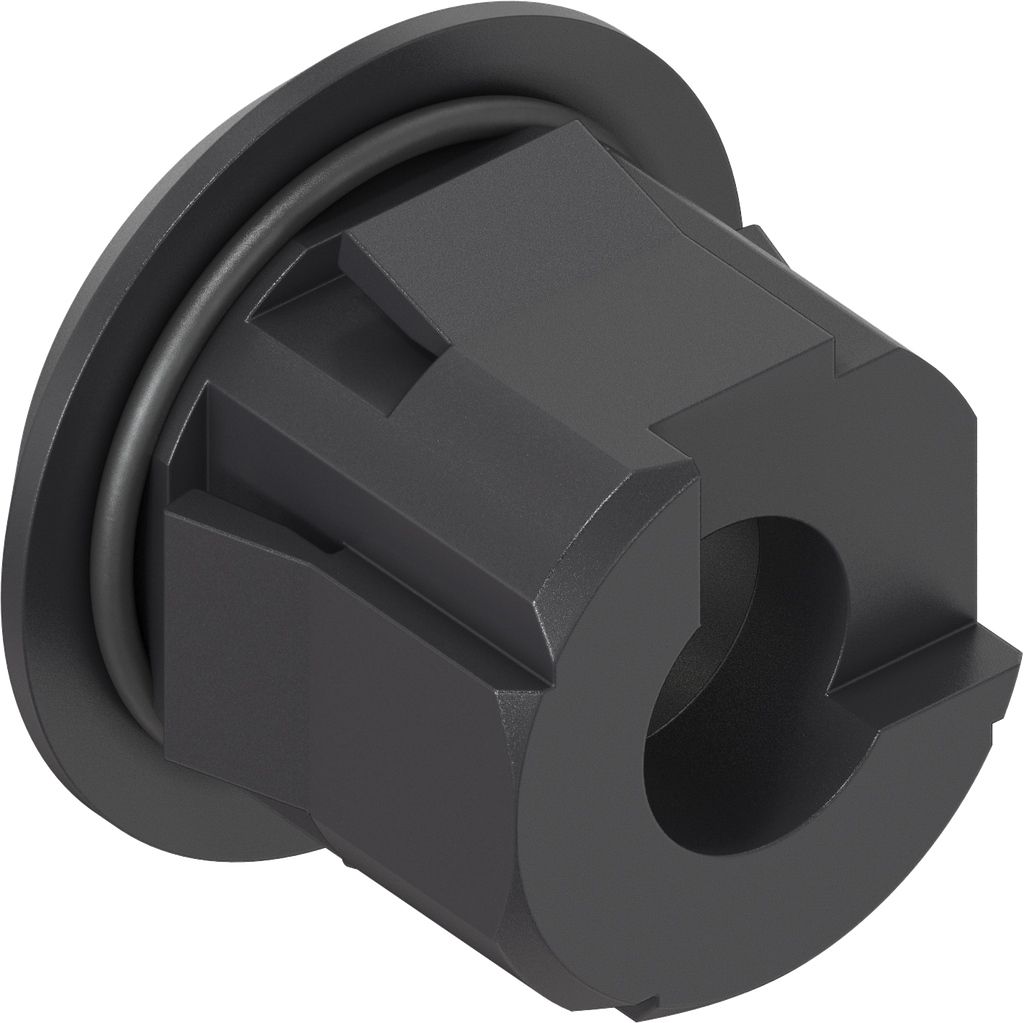

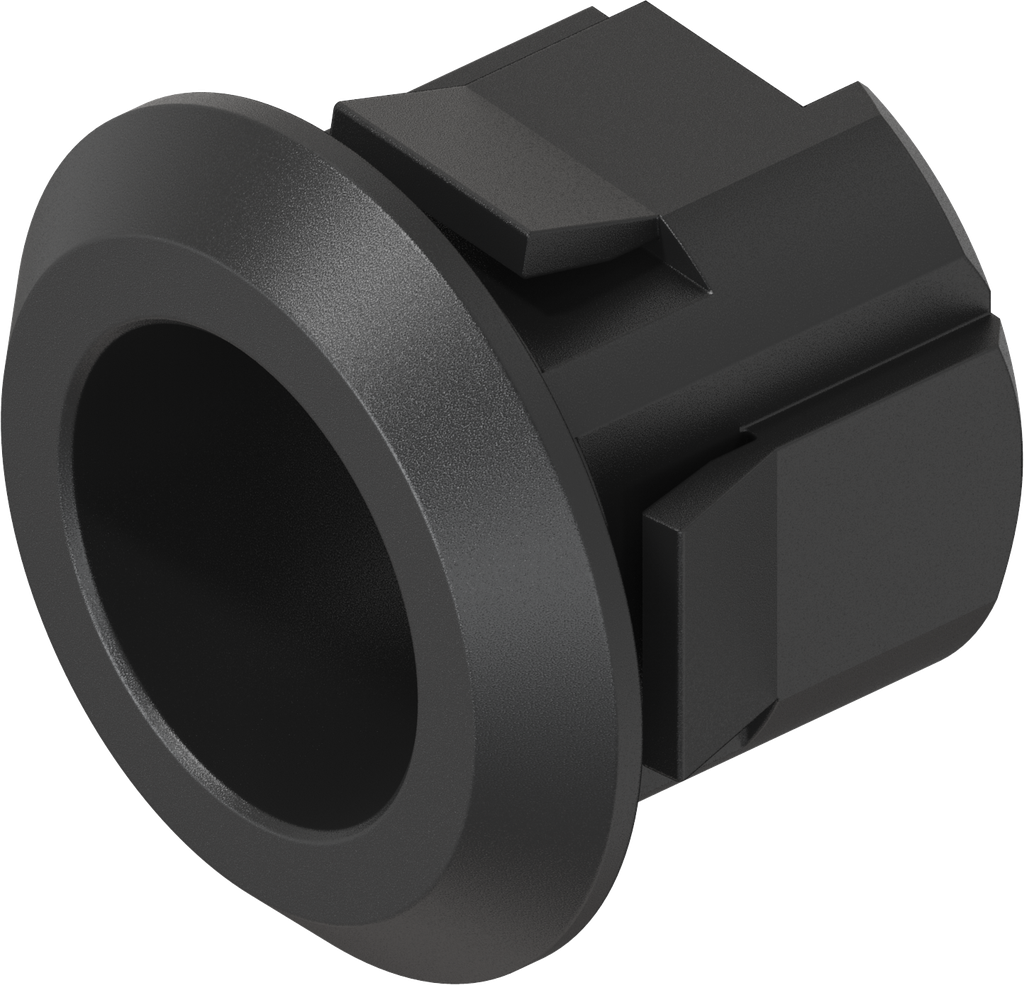

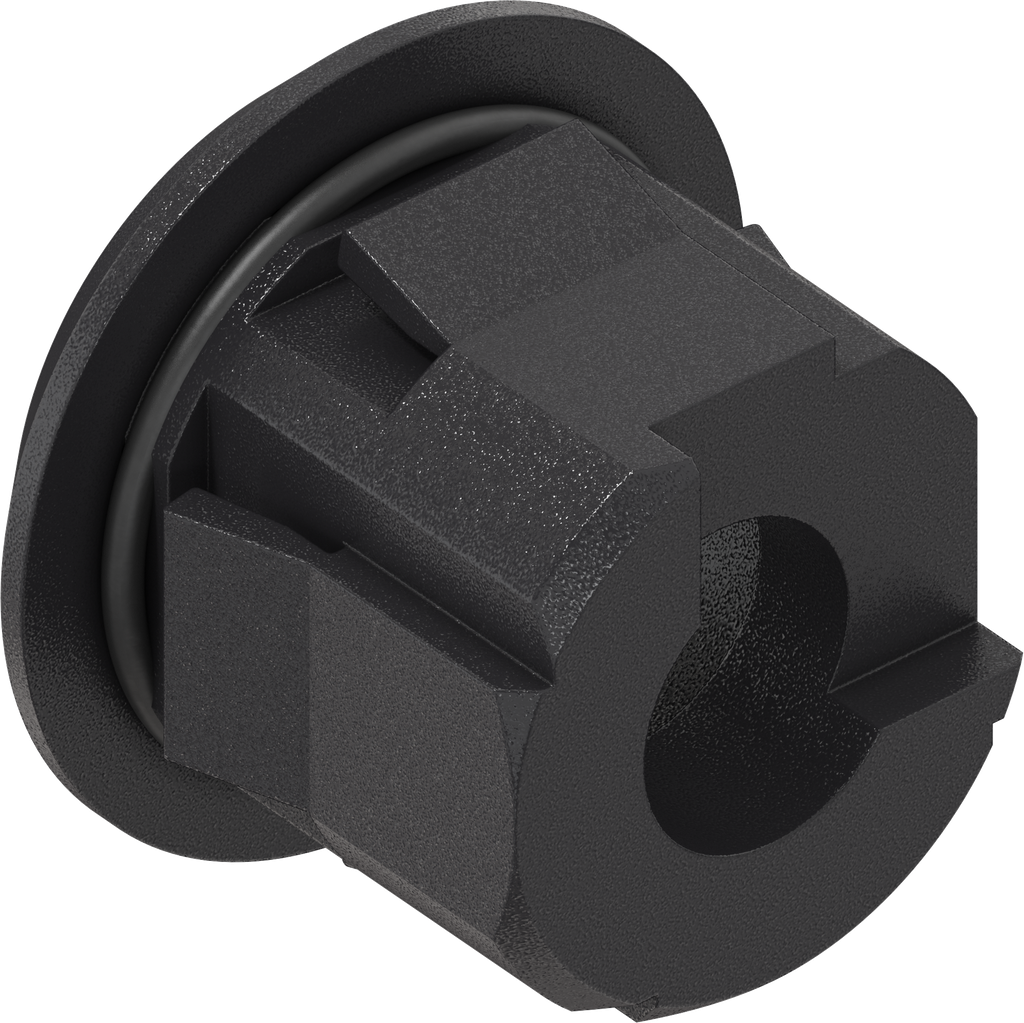

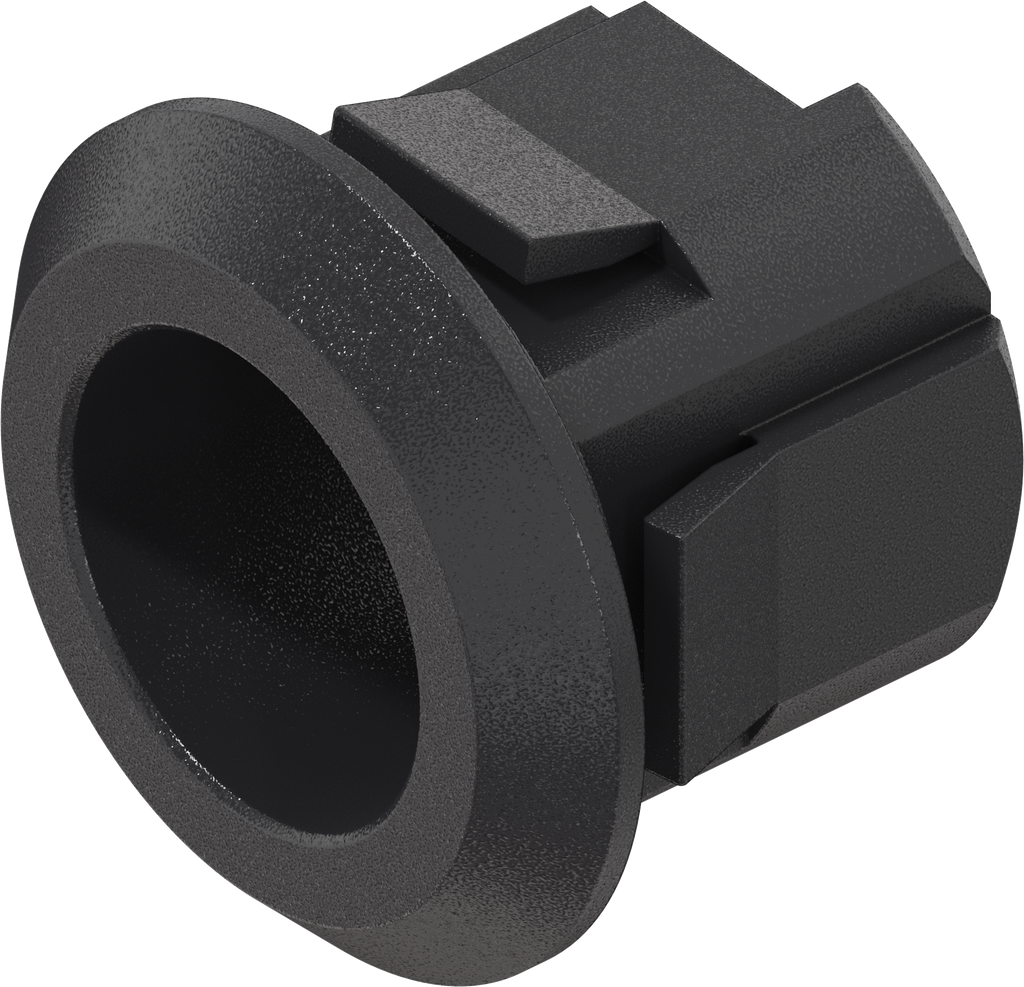

Housing clip-in, Polyamide black; 1000-U696

https://www.emka.com/products/1000-u696 https://www.emka.com/web/image/product.template/60267/image_1920?unique=0463bdd


    This combination does not exist.

    clip-in Inside the sealing Left Right


    Internal Reference: 1000-U696
    Product Type: Housing
    Program: 1000
    Catalog sheet: 1B-160
    Material of the module : Polyamide
    Surface of the module: black
    Number of Possible Locking Points: 1 point
    Fixing type of housing : clip-in
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round
    Housing Head Size: 28 x 4 mm
    GH Mass: 18 mm
    Suitable for door thickness from: 2 mm
    Suitable for door thicknesses up to: 2 mm
    Locking set: Insert
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Quarter turn for assembly without tools
    No Specifications
    View All Products

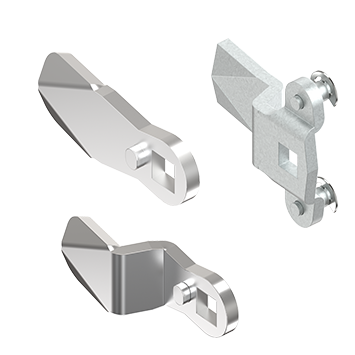

    Cam
