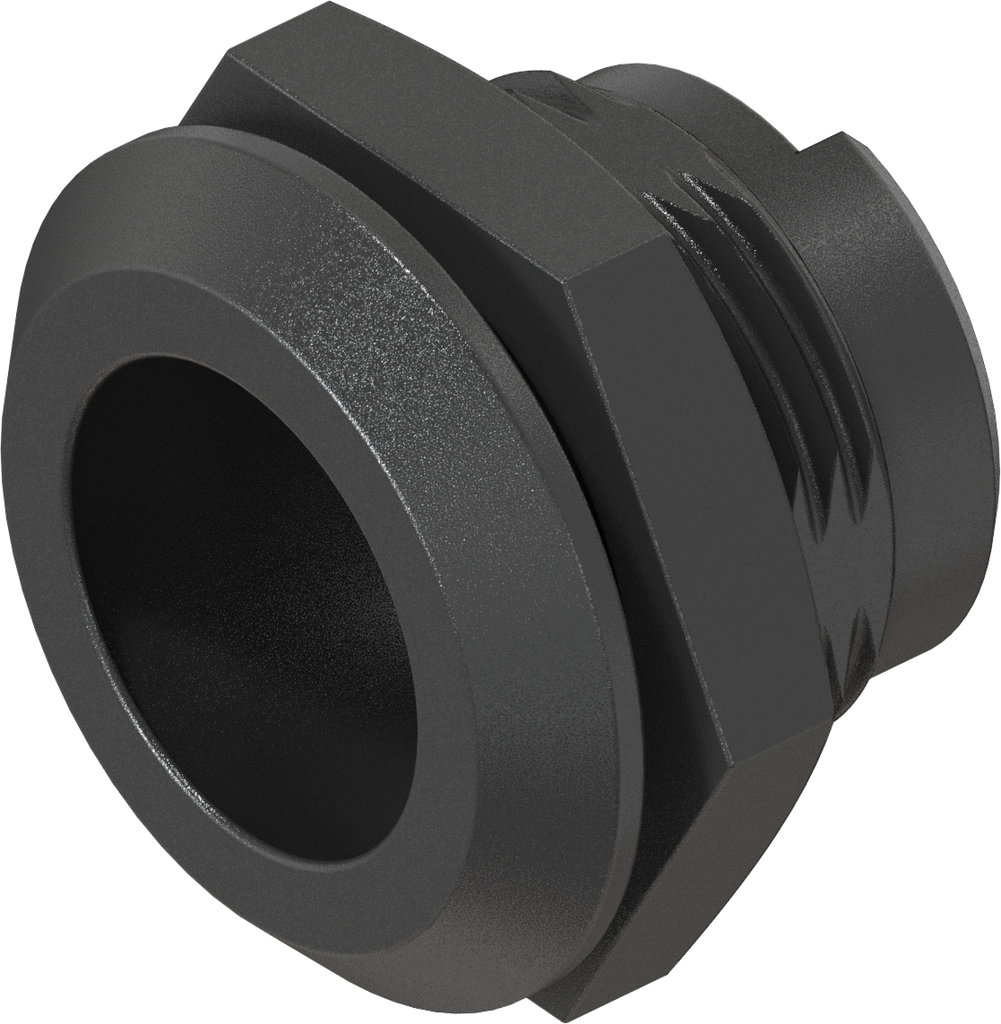

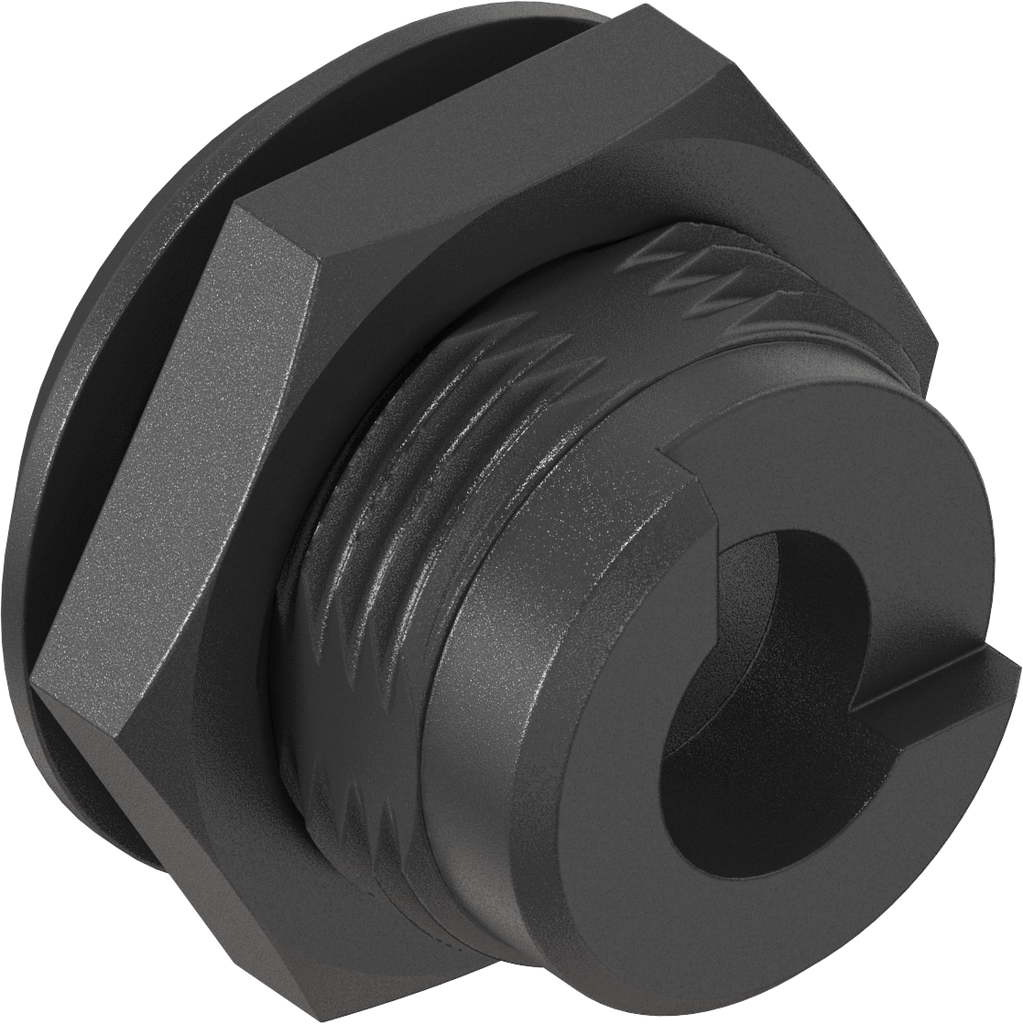

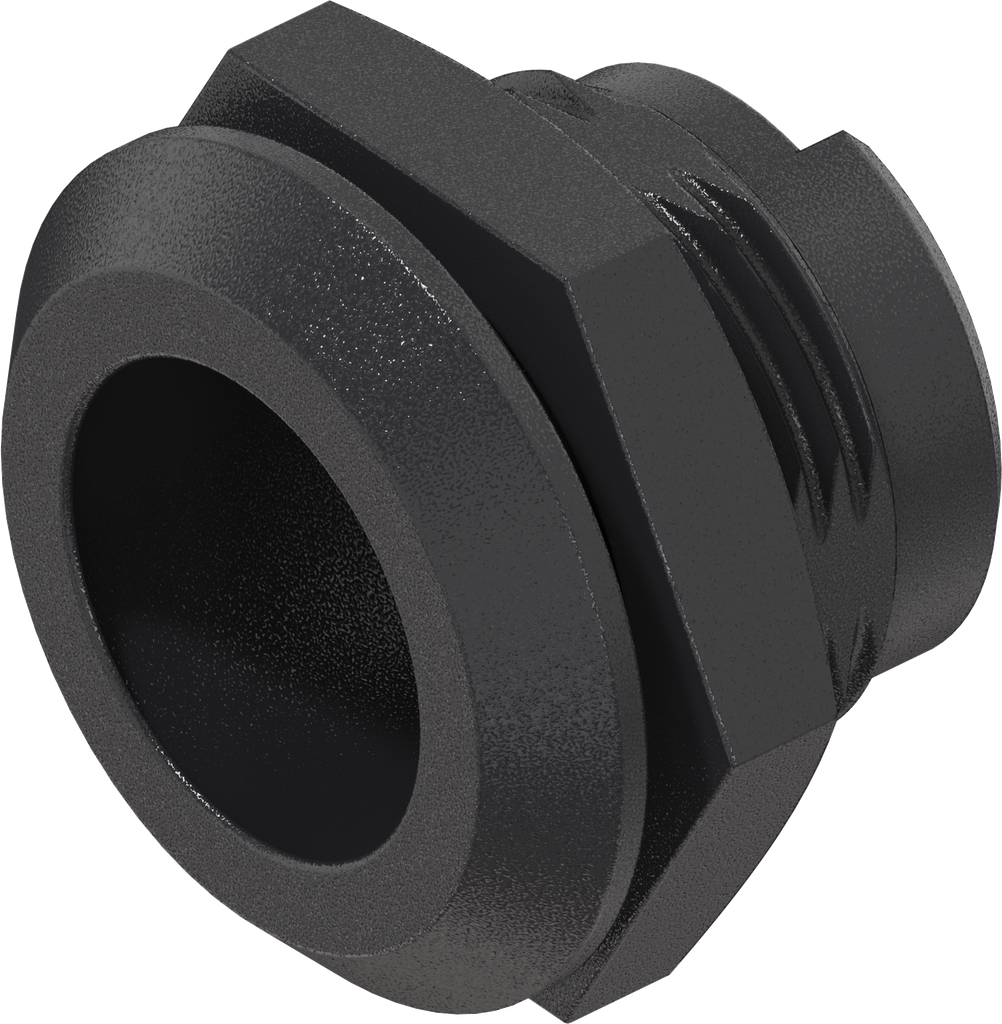

Housing, Polyamide GF black; 1000-U675

https://www.emka.com/products/1000-u675 https://www.emka.com/web/image/product.template/60248/image_1920?unique=000f931

with nut


    This combination does not exist.

    Inside the sealing Left Right


    Internal Reference: 1000-U675
    Product Type: Housing
    Program: 1000
    Catalog sheet: 1B-160
    Material of the module : Polyamide GF
    Surface of the module: black
    Number of Possible Locking Points: 1 point
    Fixing type of housing : nut fixing
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round

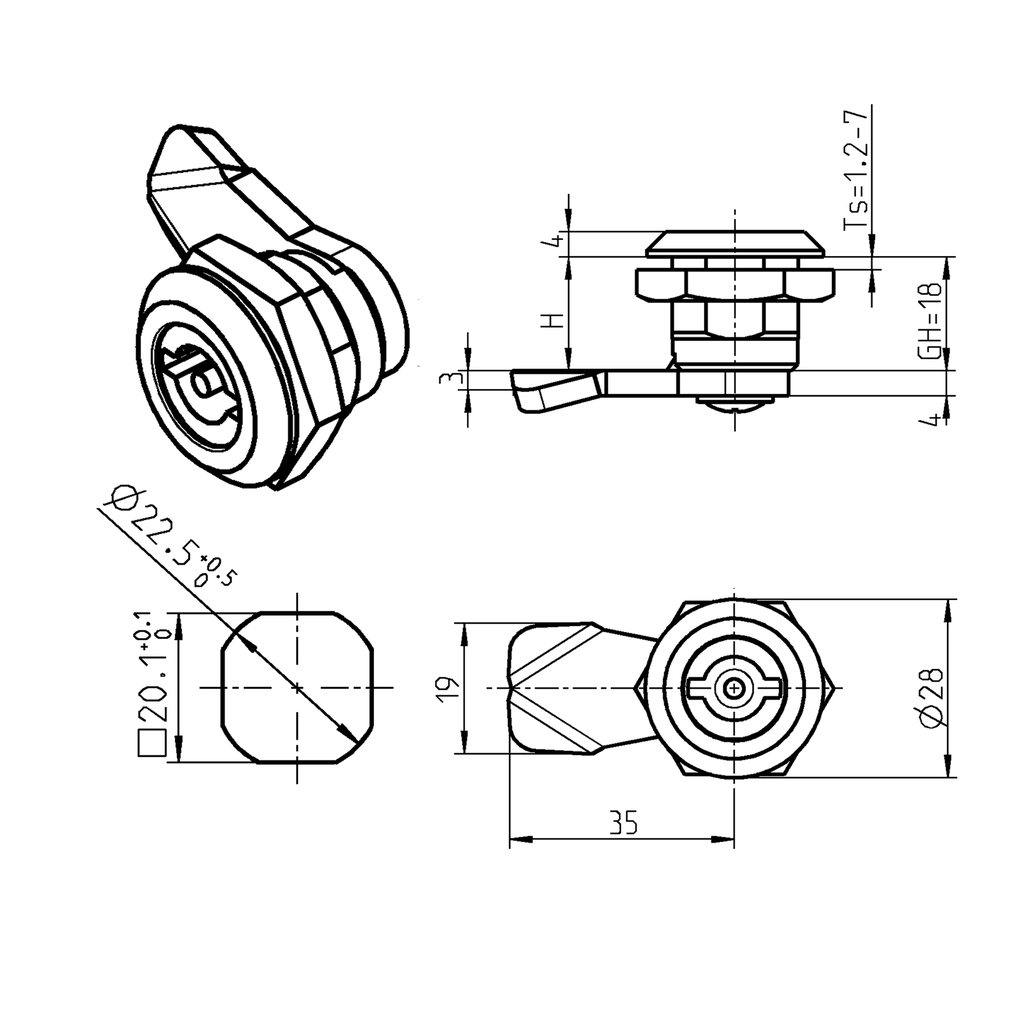

    Housing Head Size: 28 x 4 mm
    GH Mass: 18 mm
    Suitable for door thickness from: 1.20 mm
    Suitable for door thicknesses up to: 8 mm
    Locking set: Insert
    Door Version : Left,Right
    Locking components: Cam

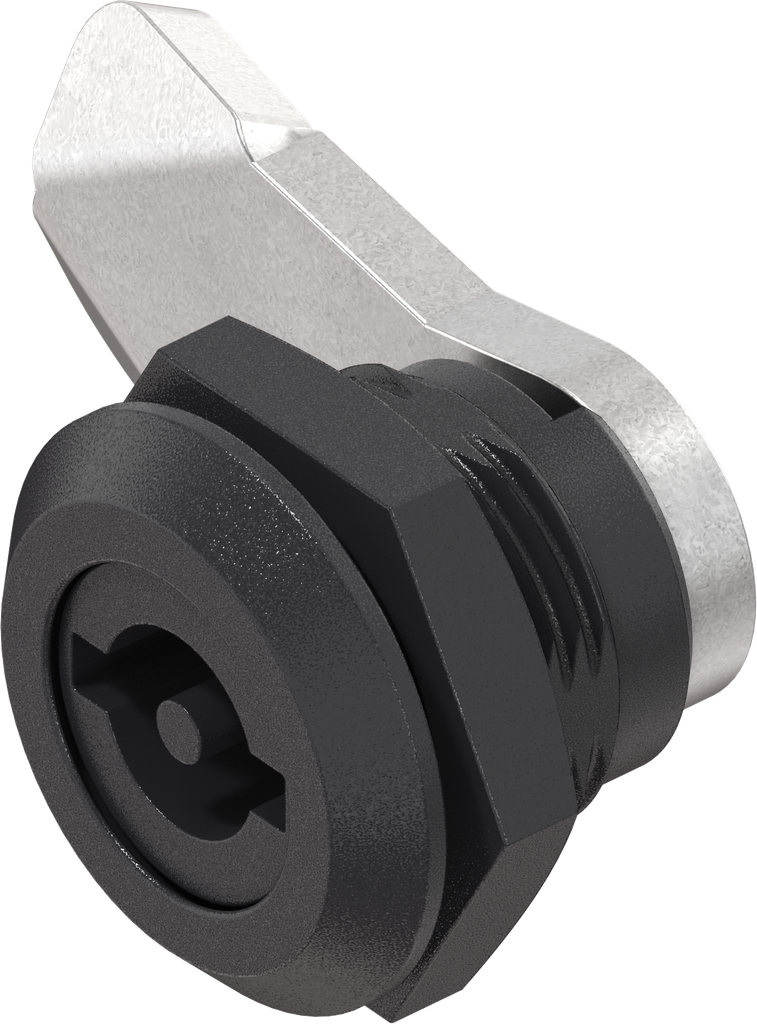

    Quarter turn types: Quarter turn with simple insert
    No Specifications
    View All Products
    Quarter turn accessories
    O-ring and flat seal
    Dust cap - Finger pull
    Cam
    Assembly
    Insert
    Here you can find the product data sheets and CAD files of this product
