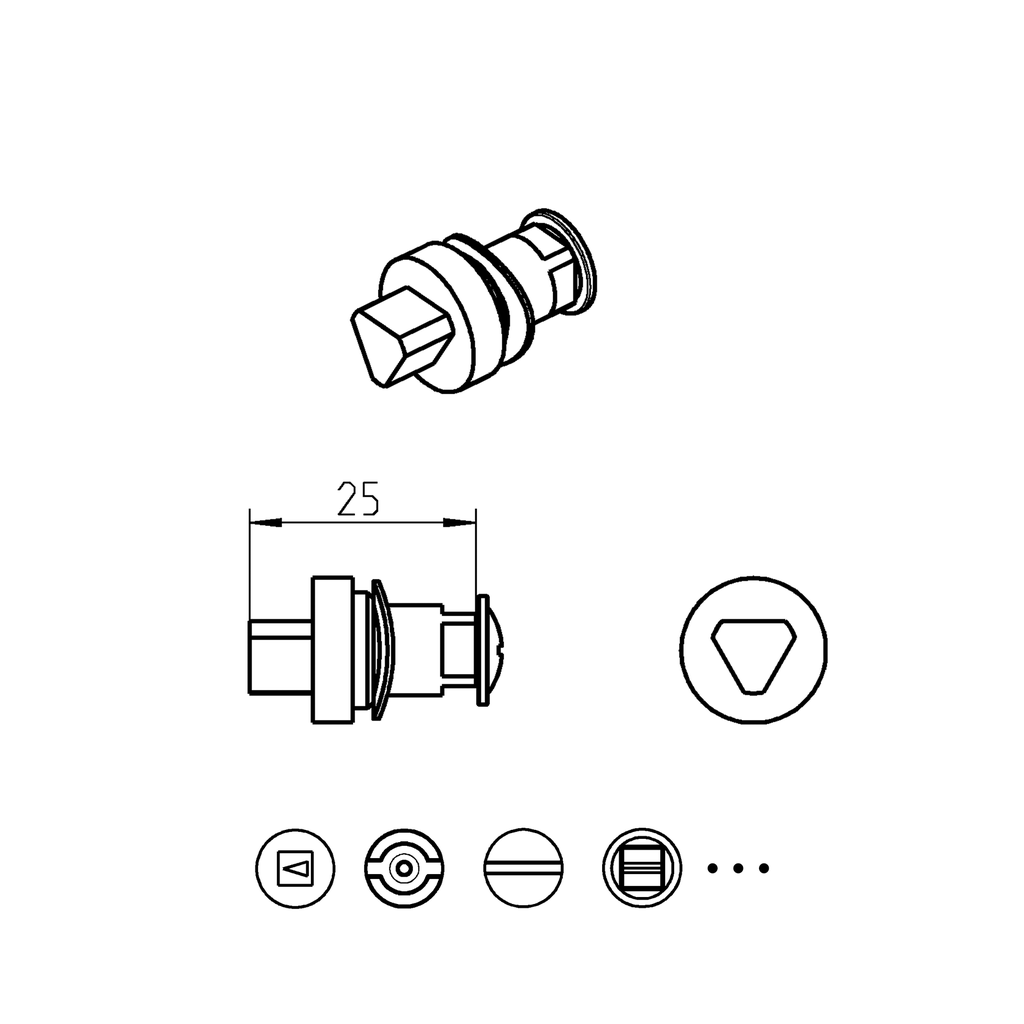

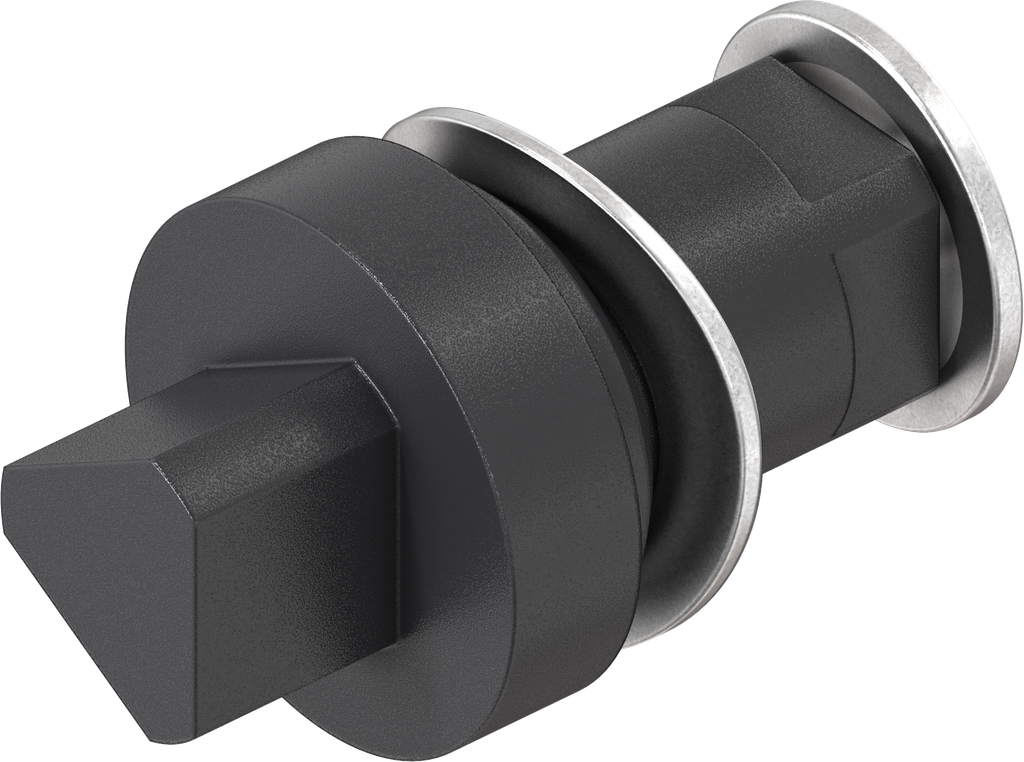

Insert triangular 8, Polyamide black; 1000-U667

https://www.emka.com/products/1000-u667 https://www.emka.com/web/image/product.template/60237/image_1920?unique=9eb43fc


    This combination does not exist.



    Key features:

    This product is a modular component of a UL-certified closure.

    Internal Reference: 1000-U667
    Product Type: Insert
    Program: 1000
    Catalog sheet: 1B-160
    Material of the module : Polyamide
    Surface of the module: black
    Number of Possible Locking Points: 1 point
    Insert for: Insert for housing, classic
    Type of actuation: Triangular 8
    For GH measure: 18 mm
    O-ring position: Hub
    Locking set: Insert
    Screw Fastening: Self-cutting
    No Specifications
    View All Products
    O-ring and flat seal
    Housing
    Keys
    Here you can find the product data sheets and CAD files of this product
