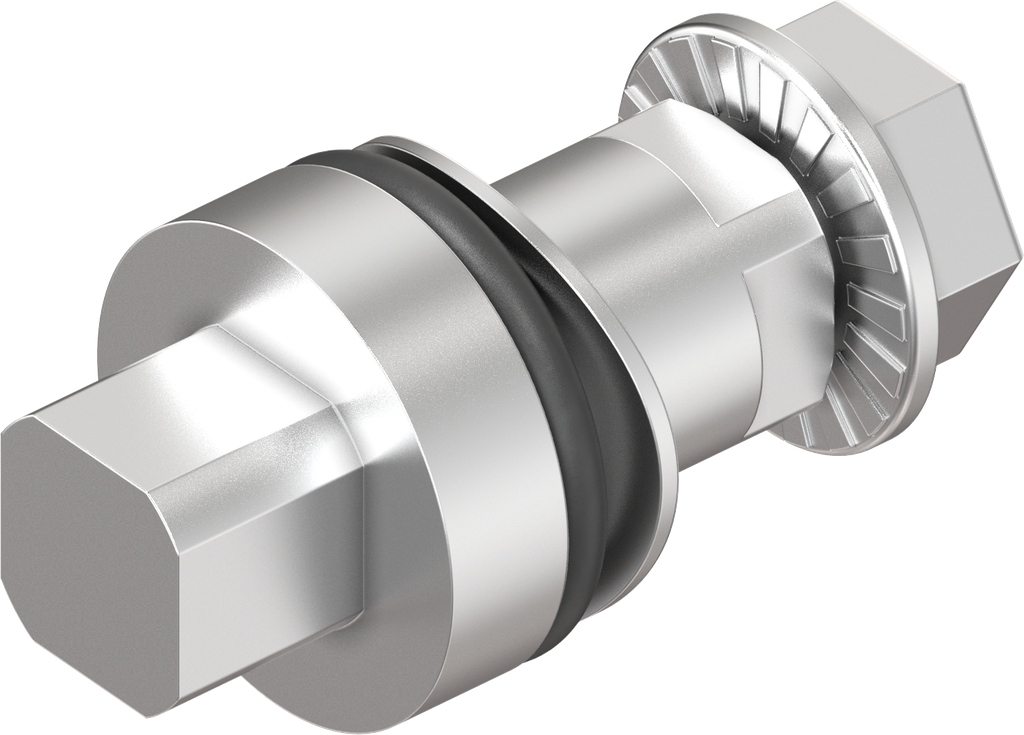

Insert square 8, Stainless steel AISI 316; 1000-U532

https://www.emka.com/products/1000-u532 https://www.emka.com/web/image/product.template/60162/image_1920?unique=ebb45be

with O-ring


    This combination does not exist.

    Protection class IP 65


    Key features:

    This product is a modular component of a UL-certified closure.

    Internal Reference: 1000-U532
    Product Type: Insert
    Program: 1000
    Catalog sheet: 1B-140
    Material of the module : Stainless steel AISI 316
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Insert for: Insert for housing, classic,Insert for housing and for padlock,Insert for housing for flush mounting, classic,Insert for housing for door lock, prominent
    Type of actuation: Square 8
    For GH measure: 18 mm
    O-ring position: Hub
    Locking set: Insert
    Screw Fastening: Metric
    No Specifications
    View All Products
    Housing
    Keys
    Here you can find the product data sheets and CAD files of this product
