Housing, Stainless steel AISI 316
Housing, Stainless steel AISI 316
Insert square 8, Stainless steel AISI 316
Insert square 8, Stainless steel AISI 316

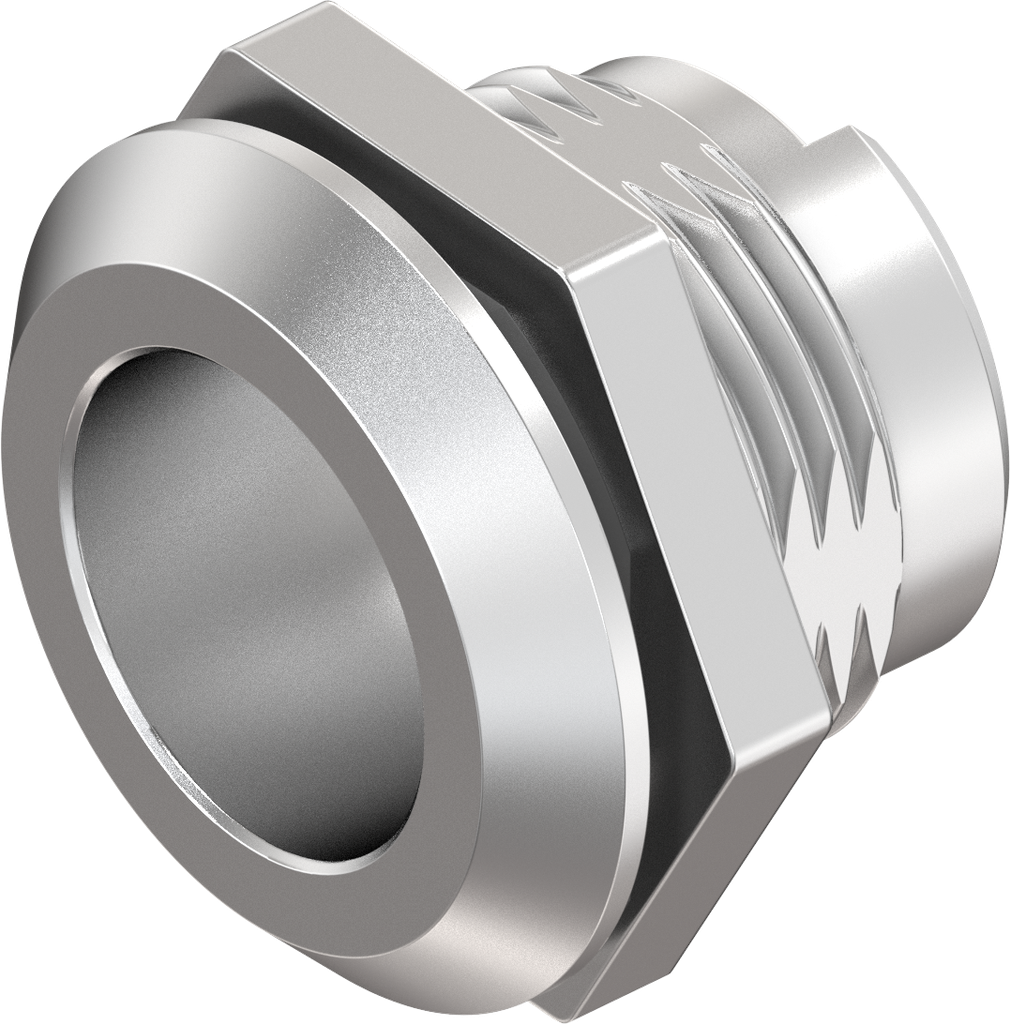

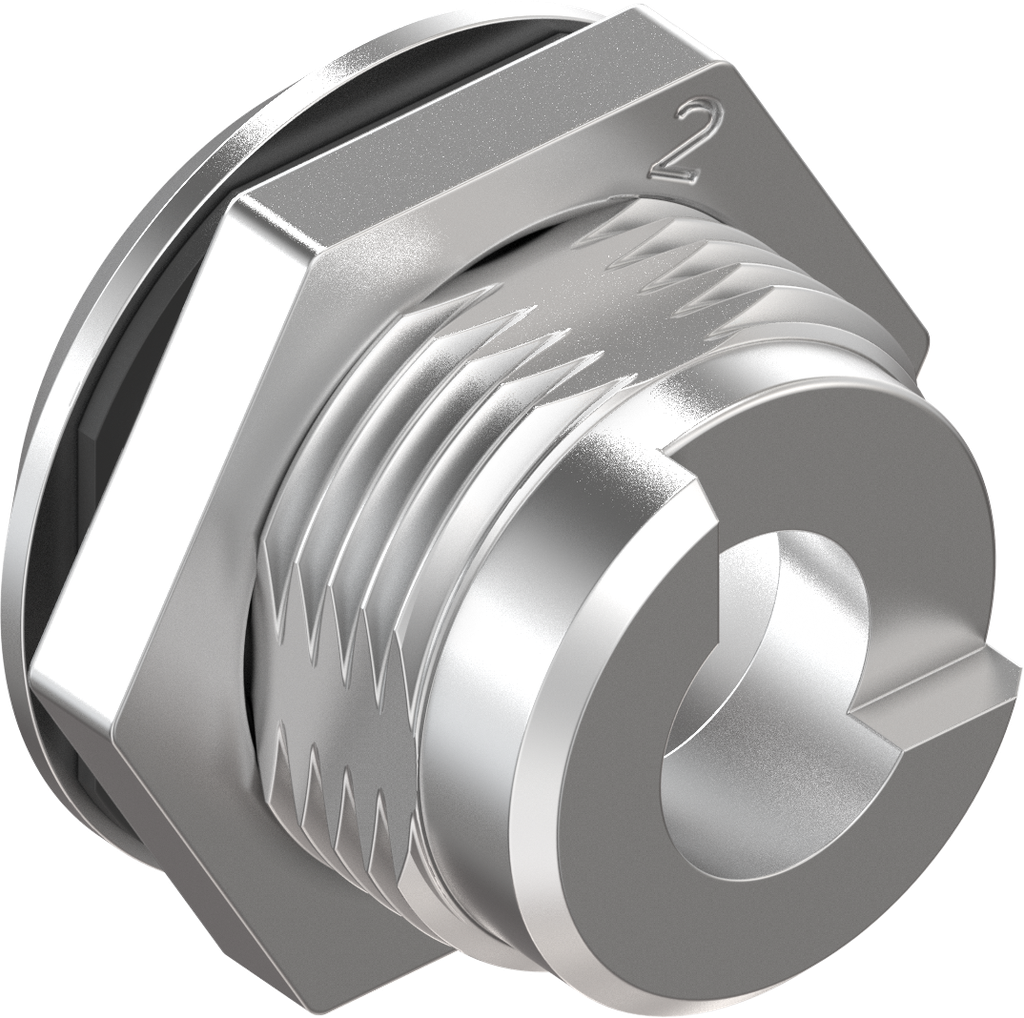

Housing, Stainless steel AISI 316; 1000-U530-S

https://www.emka.com/products/1000-u530-s-housing-stainless-steel-aisi-316-60161 https://www.emka.com/web/image/product.template/60161/image_1920?unique=cea5da7

with nut

    This combination does not exist.

    Inside the sealing Protection class IP 65 Left Right
    Internal Reference: 1000-U530-S
    Standards: Protection class IP 65
    Barcode: 1000-u00530-000000S
    Product Type: Housing
    Program: 8031
    Material of the module : Stainless steel AISI 316
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Fixing type of housing : nut fixing
    Mounting Positions : Inside the sealing

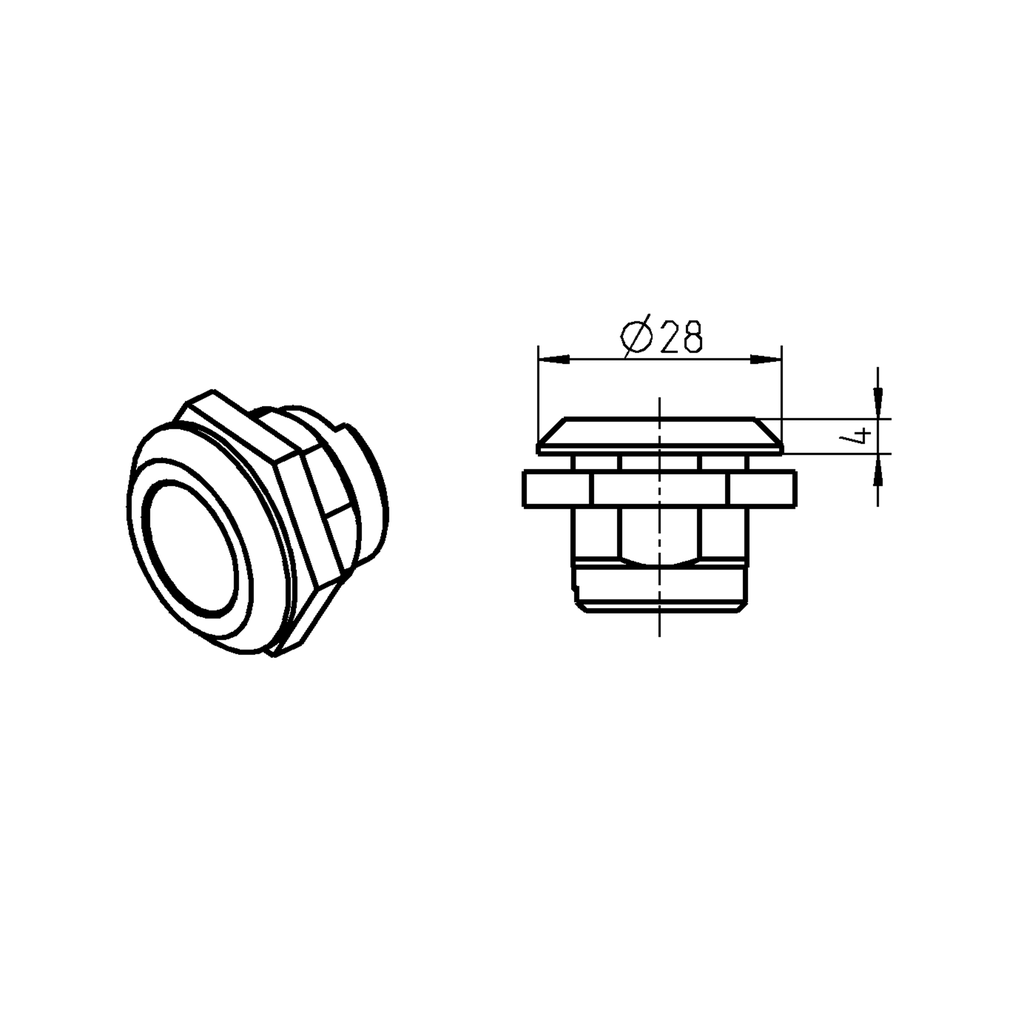

    Housing Head Shape: Round
    Housing Head Size: 28 x 4 mm
    GH Mass: 18 mm
    Suitable for door thickness from: 1.20 mm
    Suitable for door thicknesses up to: 8 mm
    Locking set: Insert
    Door Version : Left,Right
    Locking components: Cam
    Cam Body Style: Housing for insert, classic
    No Specifications
    View All Products
    O-ring and flat seal
    Cam

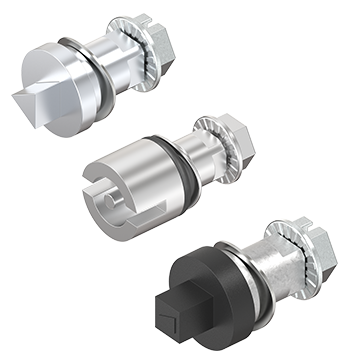

    Insert
    Quarter turn accessories
    Rod control

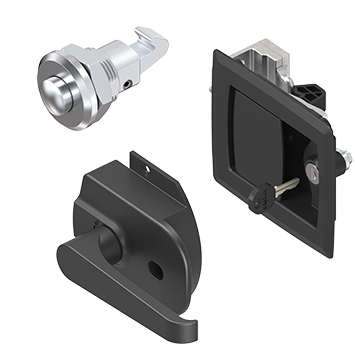

    Other latch
