Housing foamed, Stainless steel AISI 316
Housing foamed, Stainless steel AISI 316
Housing, Stainless steel AISI 316
Housing, Stainless steel AISI 316

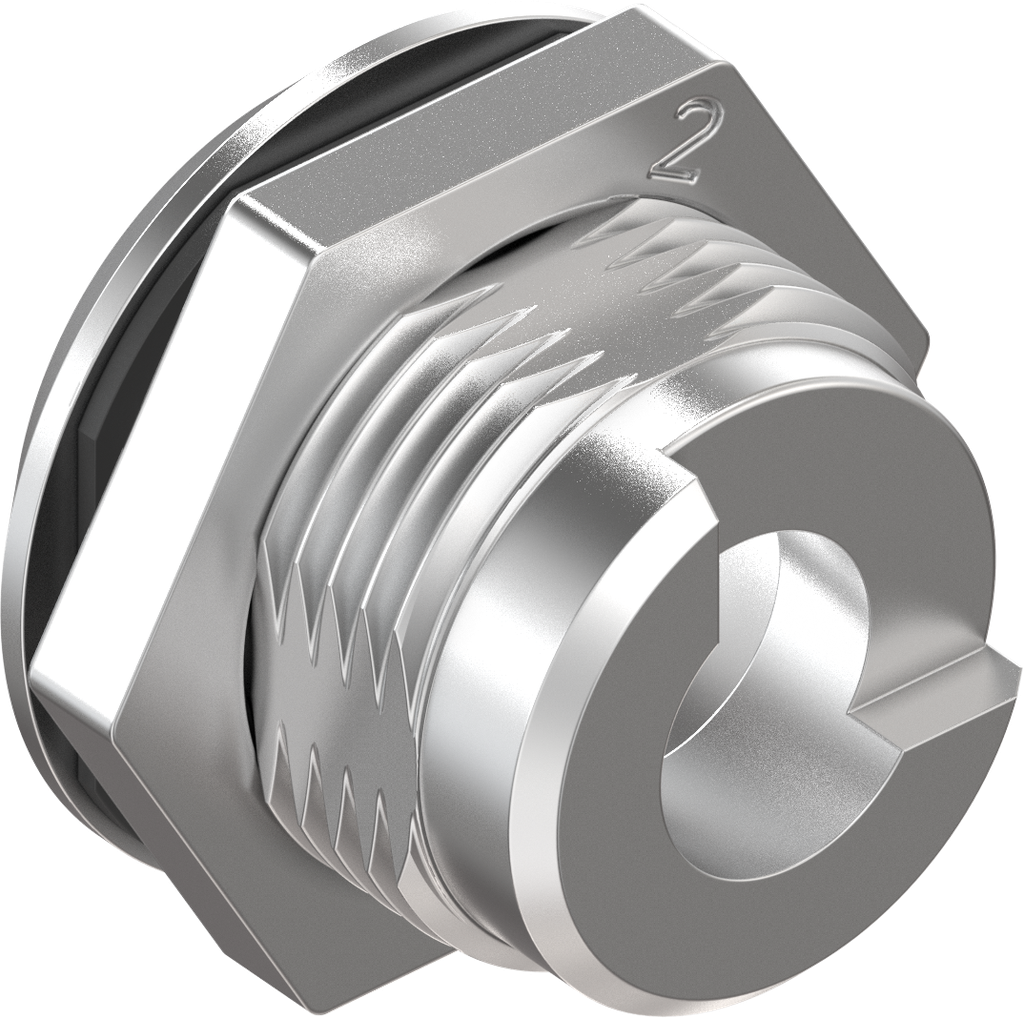

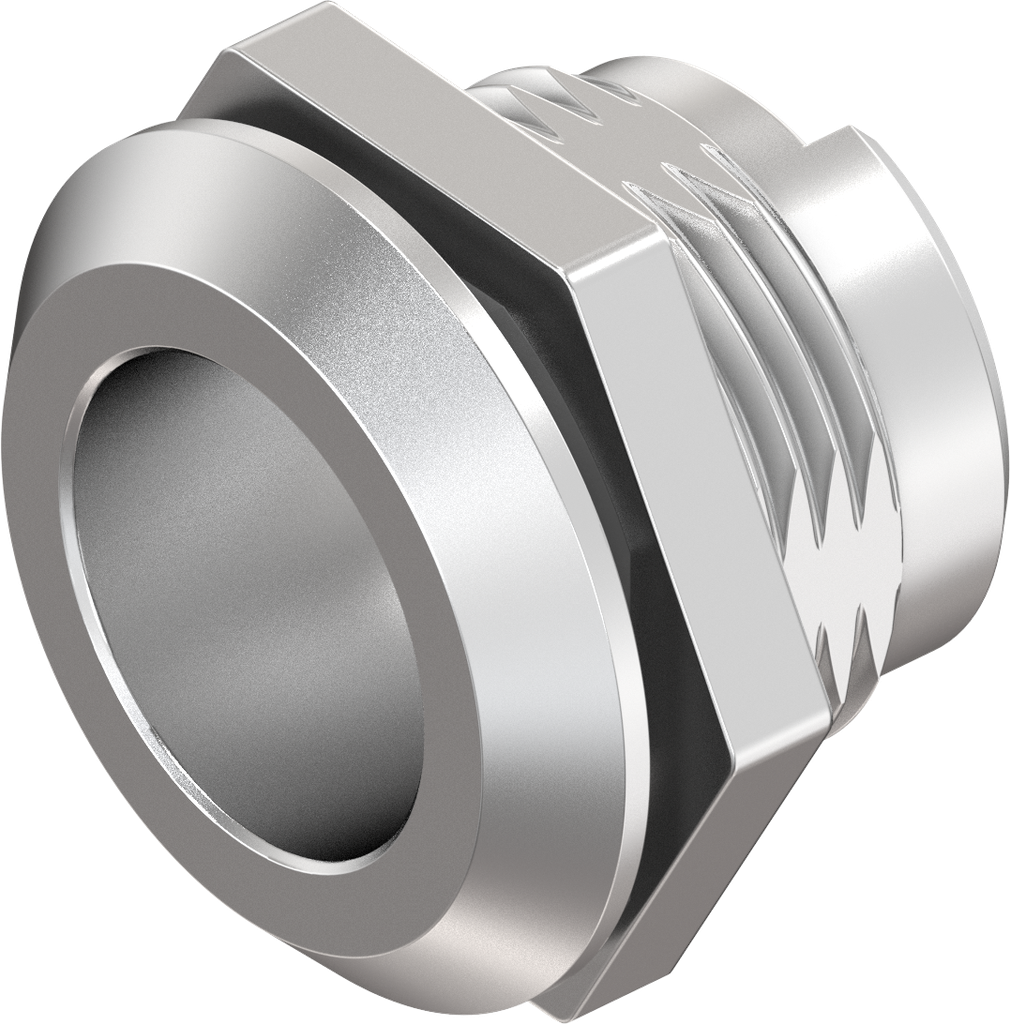

Housing, Stainless steel AISI 316; 1000-U530-N

https://www.emka.com/products/1000-u530-n-housing-stainless-steel-aisi-316-60160 https://www.emka.com/web/image/product.template/60160/image_1920?unique=4f4b8bb

with nut

    This combination does not exist.

    Inside the sealing Left Right

    Key features:

    Dieses Produkt ist modularer Bestandteil eines UL-zertifizierten Verschlusses.
    Internal Reference: 1000-U530-N
    Barcode: 1000-u00530-000000n
    Product Type: Housing
    Program: 1000
    Material of the module : Stainless steel AISI 316
    Fixing type of housing : nut fixing
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round

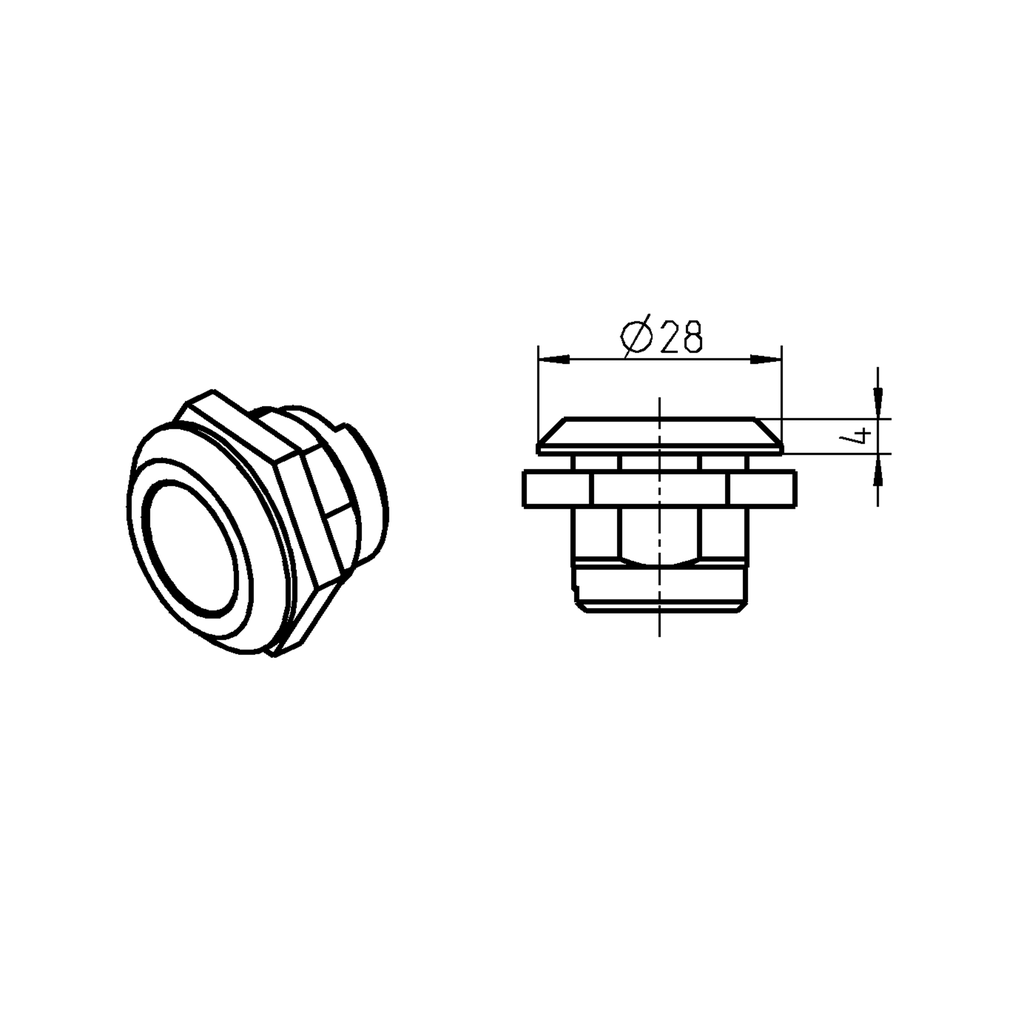

    Housing Head Size: 28 x 4 mm
    GH Mass: 18 mm
    Suitable for door thickness from: 1.20 mm
    Suitable for door thicknesses up to: 8 mm
    Locking set: Insert
    Door Version : Left,Right
    Locking components: Cam
    Cam Body Style: Housing for insert, classic
    No Specifications
    View All Products
    O-ring and flat seal
    Cam
    Insert
    Quarter turn accessories
    Rod control

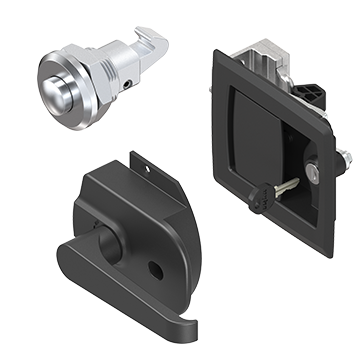

    Other latch
