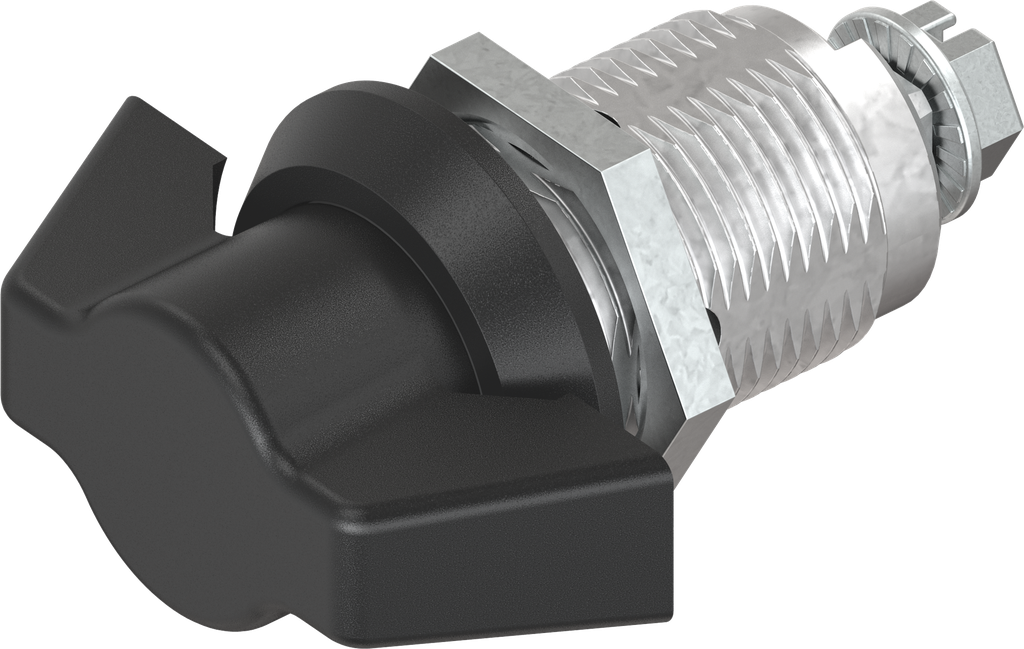

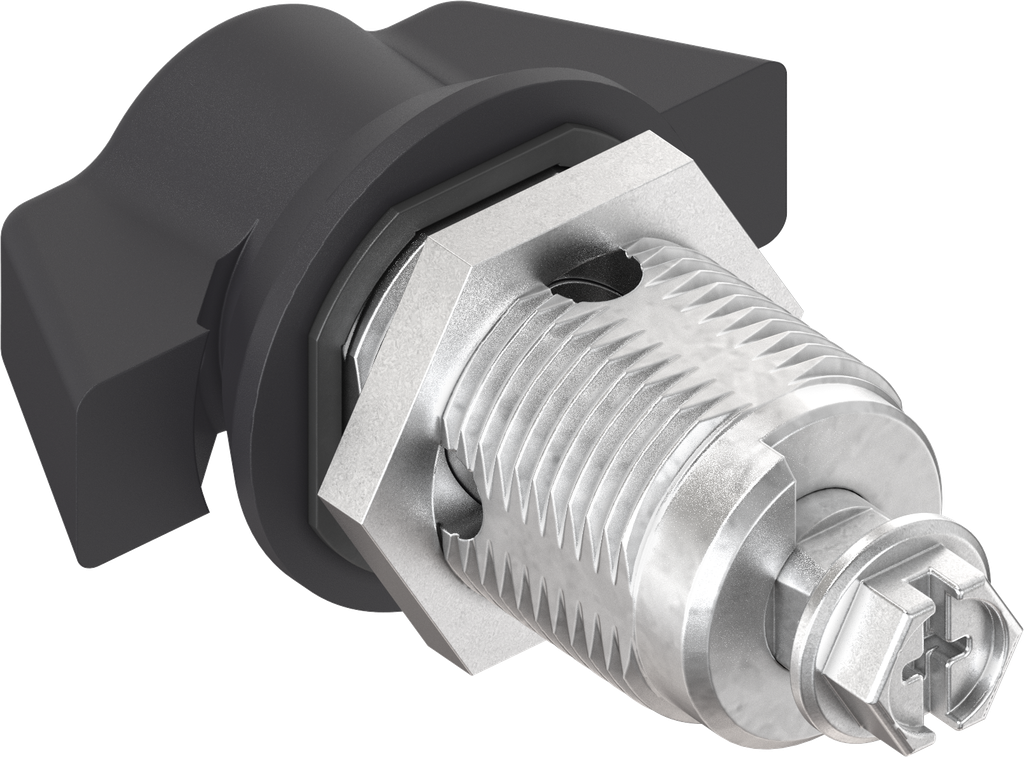

Wing knob quarter turn, non-keyed, Zinc die and polyamide black; 1000-U512

https://www.emka.com/products/1000-u512 https://www.emka.com/web/image/product.template/60153/image_1920?unique=730a522

with nut


    This combination does not exist.

    Protection class IP 65 Left Right


    Product information:

    Key removable in both positions.

    Internal Reference: 1000-U512
    Product Type: Quarter turn
    Program: 1000

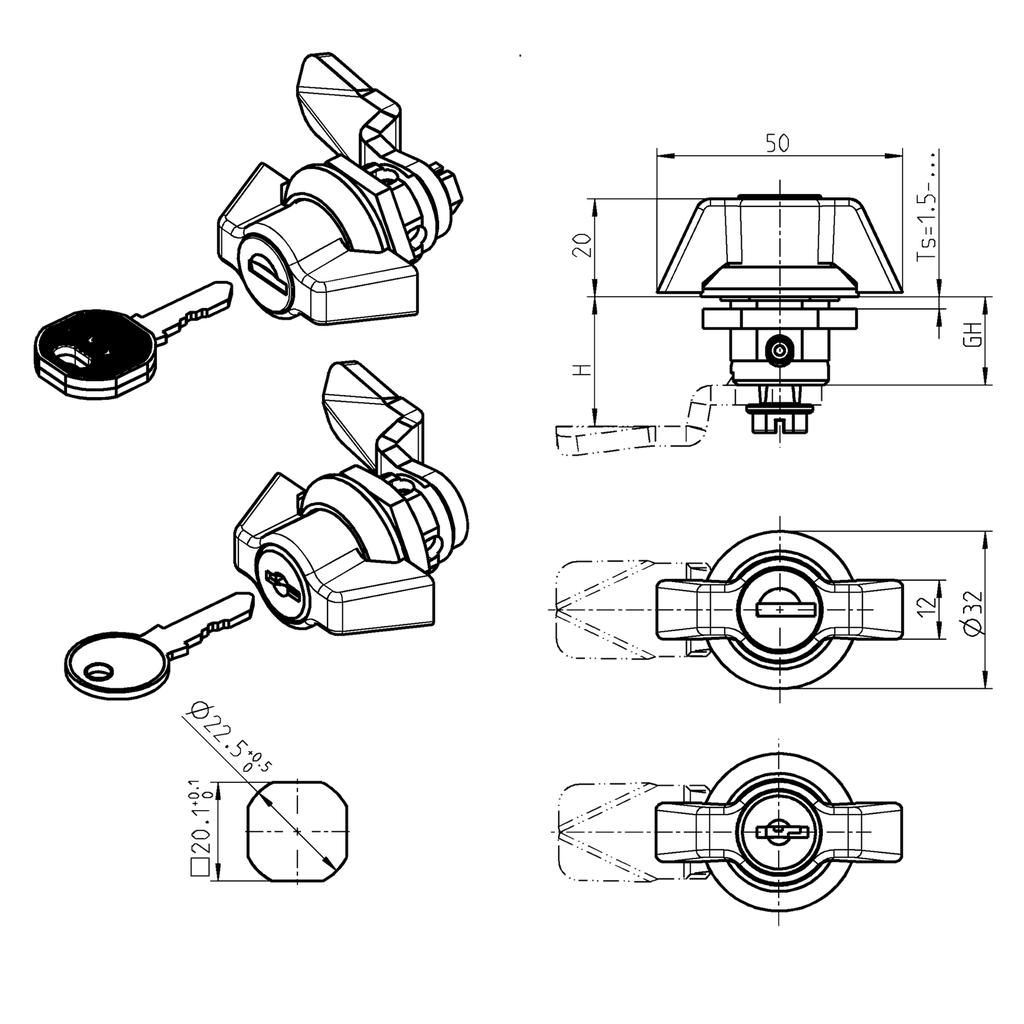

    Catalog sheet: 1B-540
    Material of the module : Zinc die and polyamide
    Surface of the module: black
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Fixing type of housing : nut fixing
    Housing Head Shape: Round
    GH Mass: 30 mm
    Handle Art: Wing knob
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 20 mm
    Locking set: No locking set, blind
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Quarter turn with handle
    No Specifications
