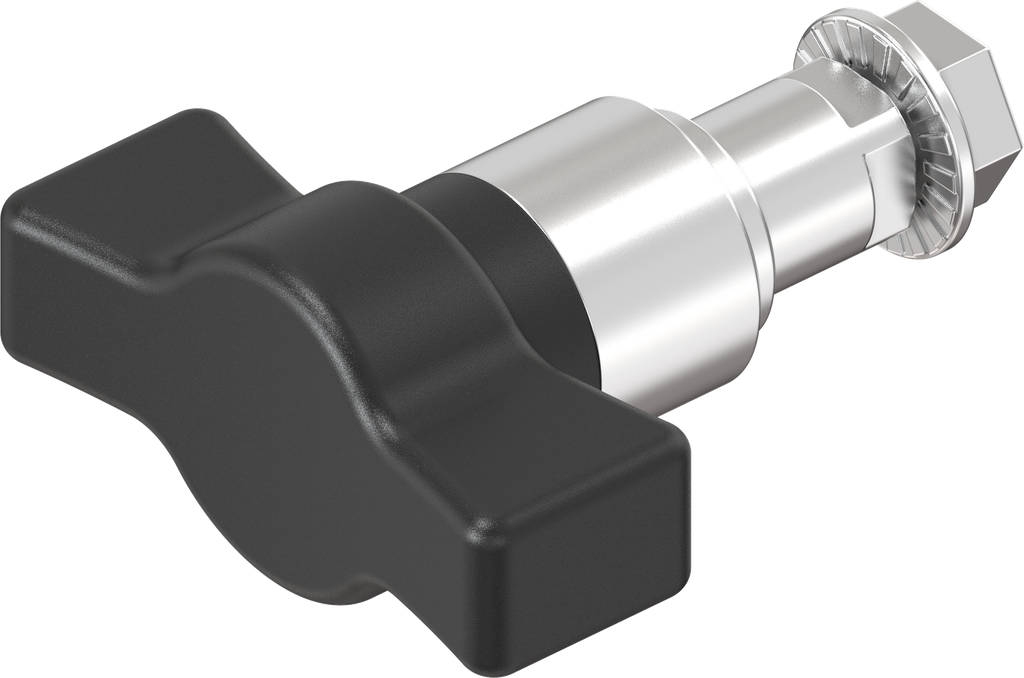

Housing, Zinc die chrome-plated
Wing knob quarter turn, non-keyed, Zinc die and polyamide black
Key features:
Dieses Produkt ist modularer Bestandteil eines UL-zertifizierten Verschlusses.
Internal Reference:
1000-U510-02
Barcode:
1000-U00510-0000002
Product Type:
Insert
Program:
1000
Material of the module :
Polyamide black and stainless steel
Number of Possible Locking Points:
1 point, 2 points, 3 point
Insert for:
Insert for housing, classic,Insert for housing for flush mounting, classic,Insert for housing for door lock, prominent
Type of actuation:
Wing knob insert
For GH measure:
18 mm
O-ring position:
Hub
Locking set:
Insert
