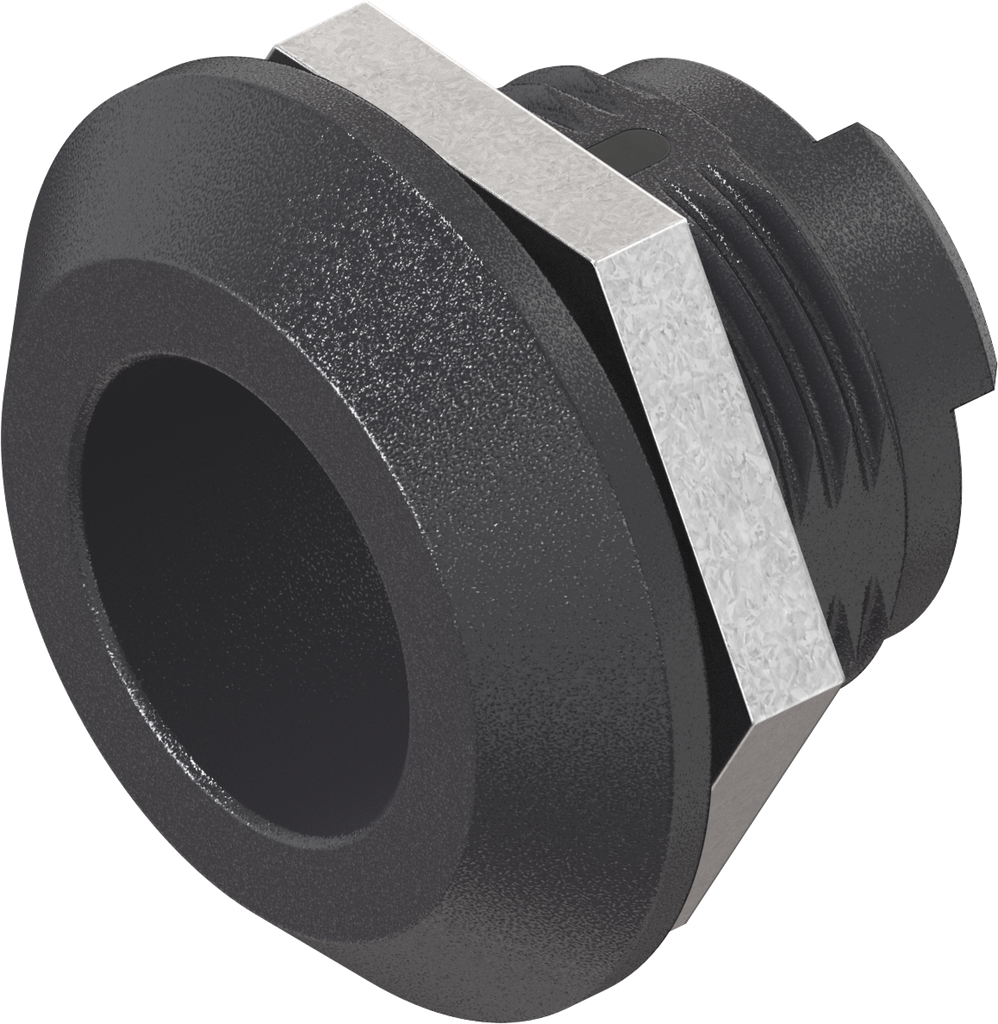

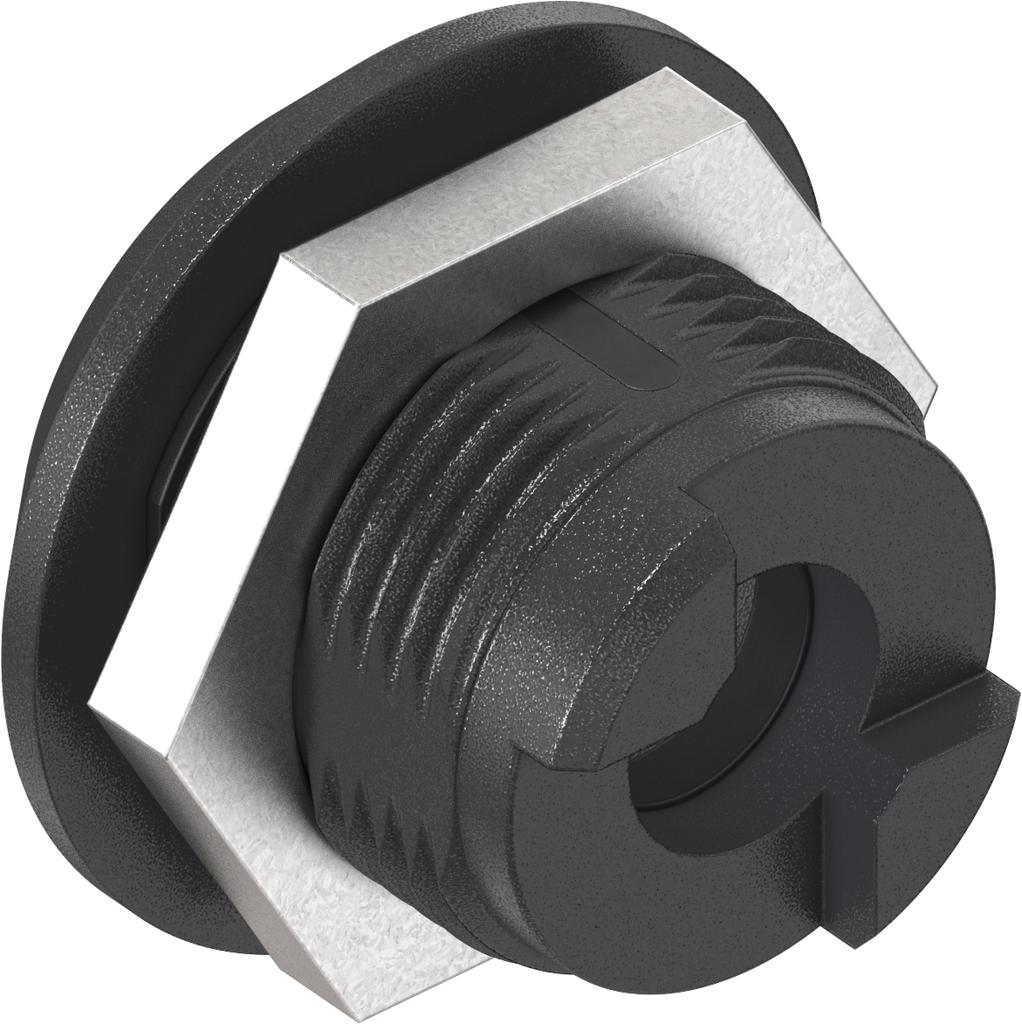

Housing with integrated seal, Polyamide GF black; 1000-U46-D

https://www.emka.com/products/1000-u46-d https://www.emka.com/web/image/product.template/59923/image_1920?unique=730a522

with nut


    This combination does not exist.

    Inside the sealing Protection class IP 65 Left Right


    Product information:

    The TPE seal provides protection against penetration of water, aqueous solution, alcohol, antifreeze, saline solution (15 %), sulphuric acid (98 %), hydrochloric acid and caustic soda. A very good resistance against hydrolysis is provided. In case of prolonged contact with oil and fuel the seal could swell or harden.
    Occasional wetting with these media will not create problems.

    Assembly instruction:

    In case of assembly by the customer the insert must be lubricated (vaseline).

    Internal Reference: 1000-U46-D
    Product Type: Housing
    Program: 1000
    Catalog sheet: 1B-120
    Material of the module : Polyamide GF
    Surface of the module: black
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Article with property rights: Yes
    Fixing type of housing : nut fixing
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round

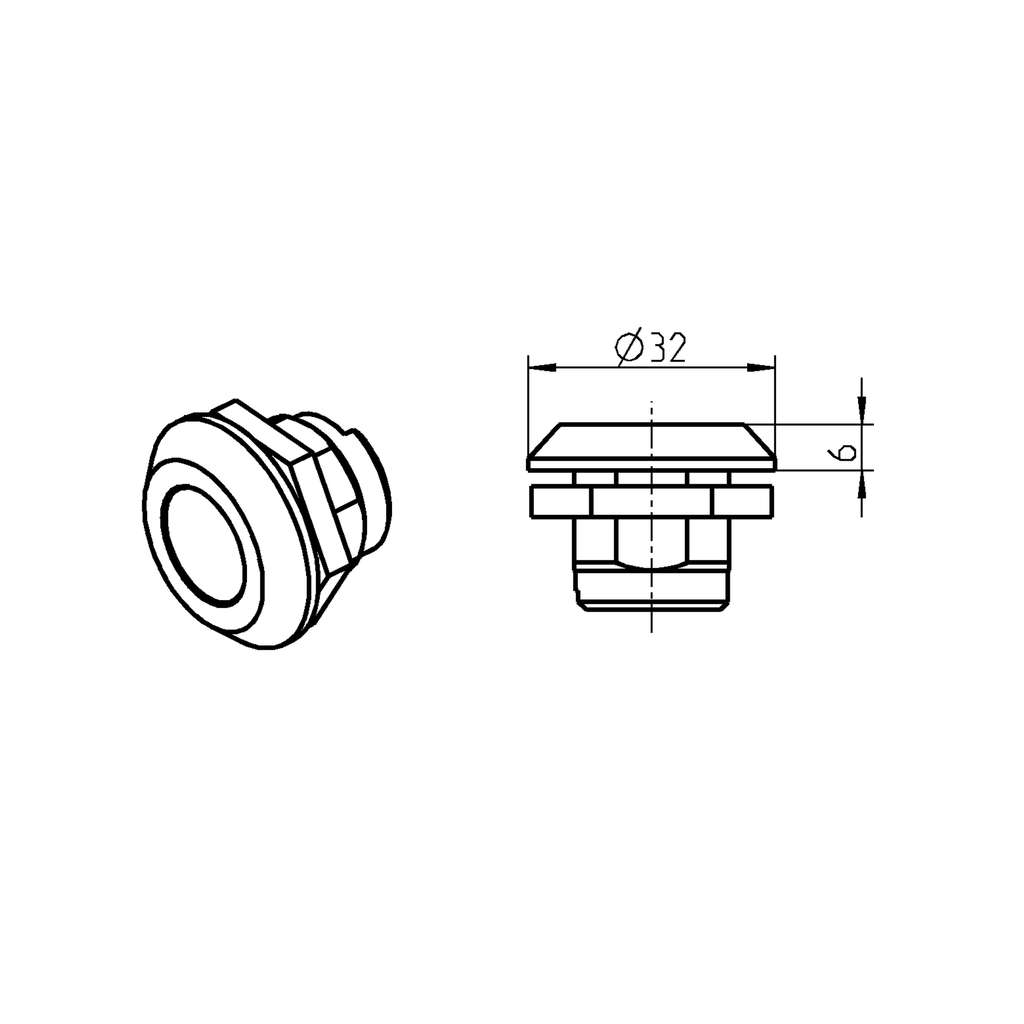

    Housing Head Size: 32 x 6 mm
    GH Mass: 18 mm
    Integrated seal: Yes

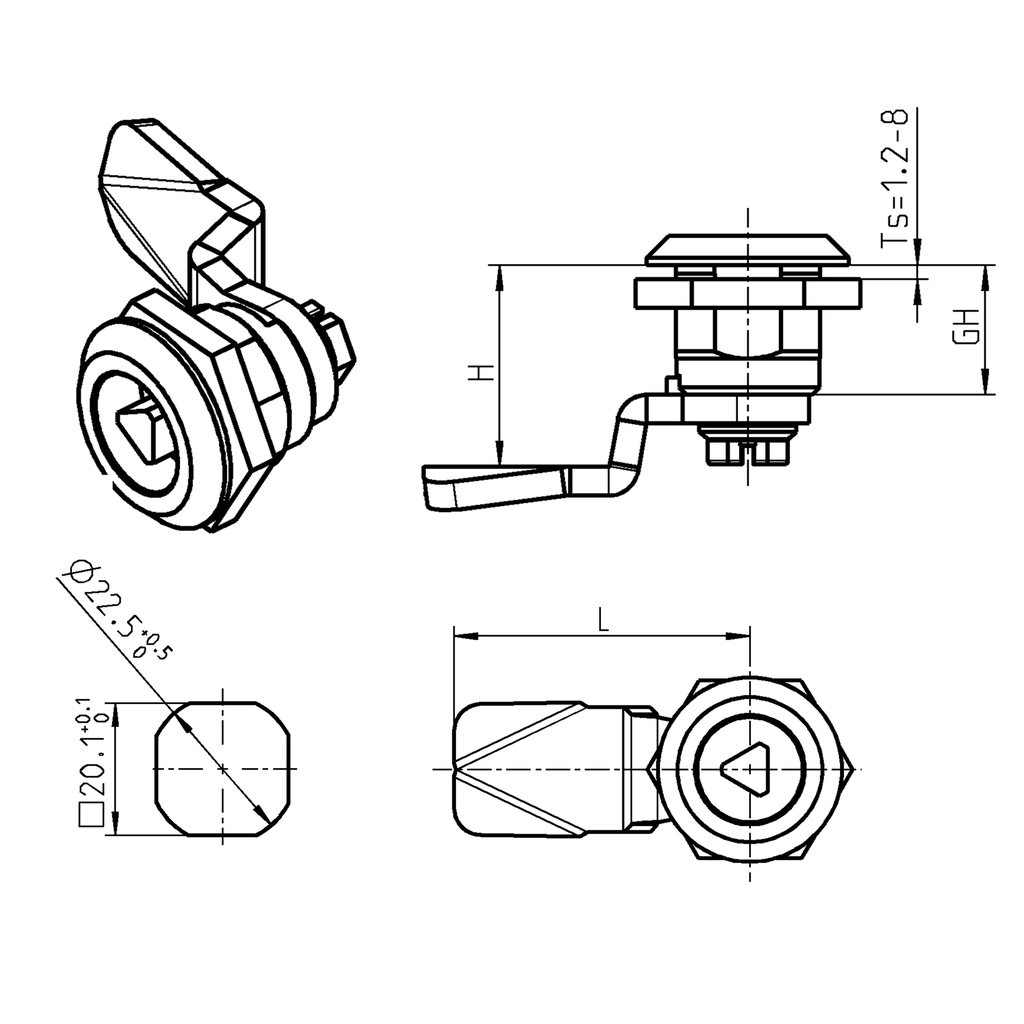

    Suitable for door thickness from: 1.20 mm
    Suitable for door thicknesses up to: 8 mm
    Locking set: Insert
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Quarter turn with simple insert
    No Specifications
