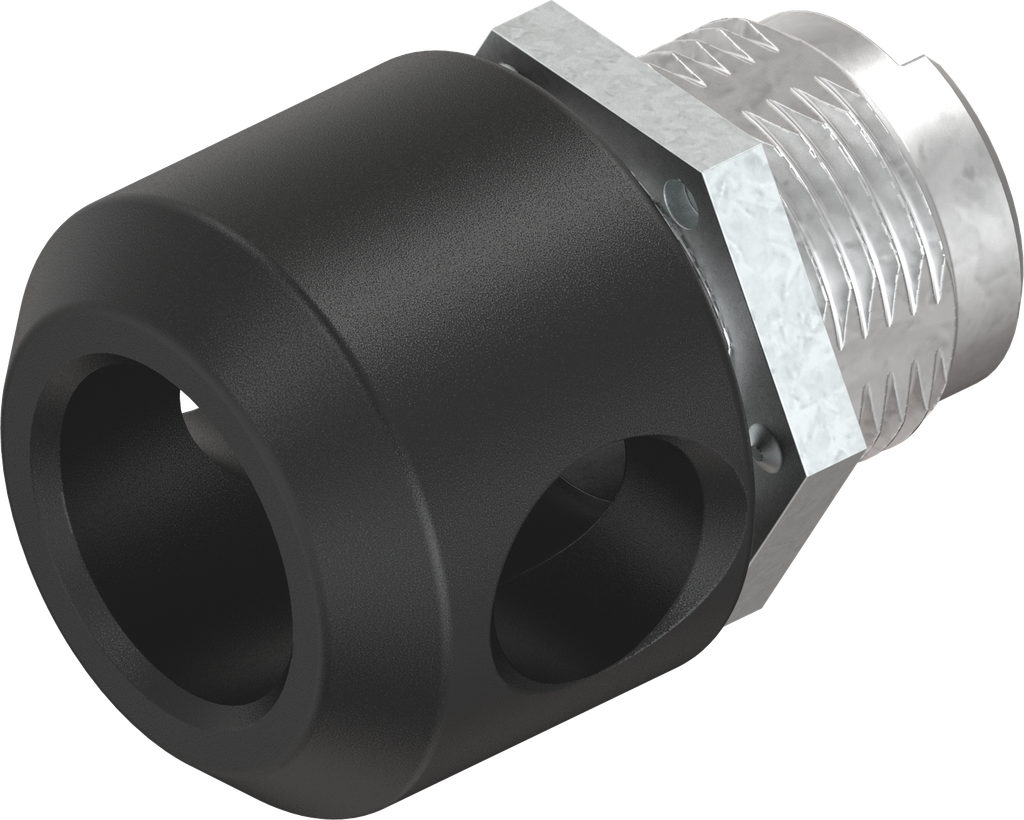

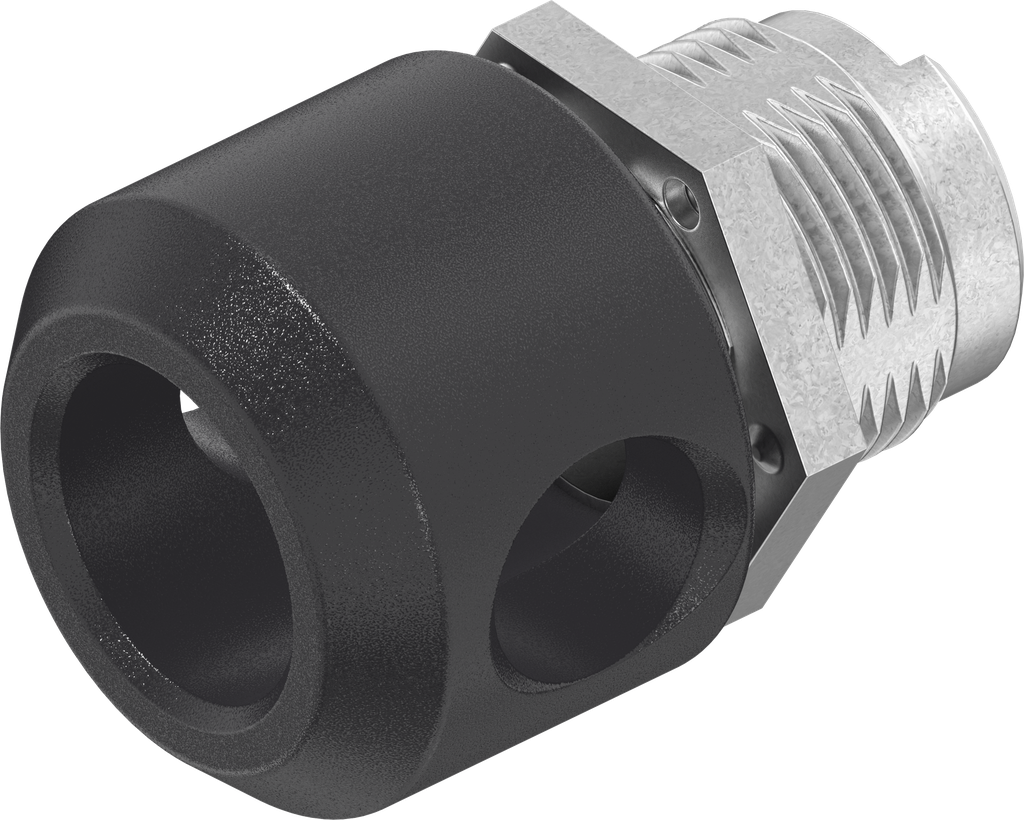

Housing for padlock, Zinc die black powder-coated
Housing for padlock, Zinc die black powder-coated
Housing for padlock, Zinc die black powder-coated
Housing for padlock, Zinc die black powder-coated

Housing for padlock, Zinc die black powder-coated; 1000-U438

https://www.emka.com/products/1000-u438 https://www.emka.com/web/image/product.template/60138/image_1920?unique=454b78d

with earthing nut


    This combination does not exist.

    Inside the sealing Grounding possible Left Right


    Product information:

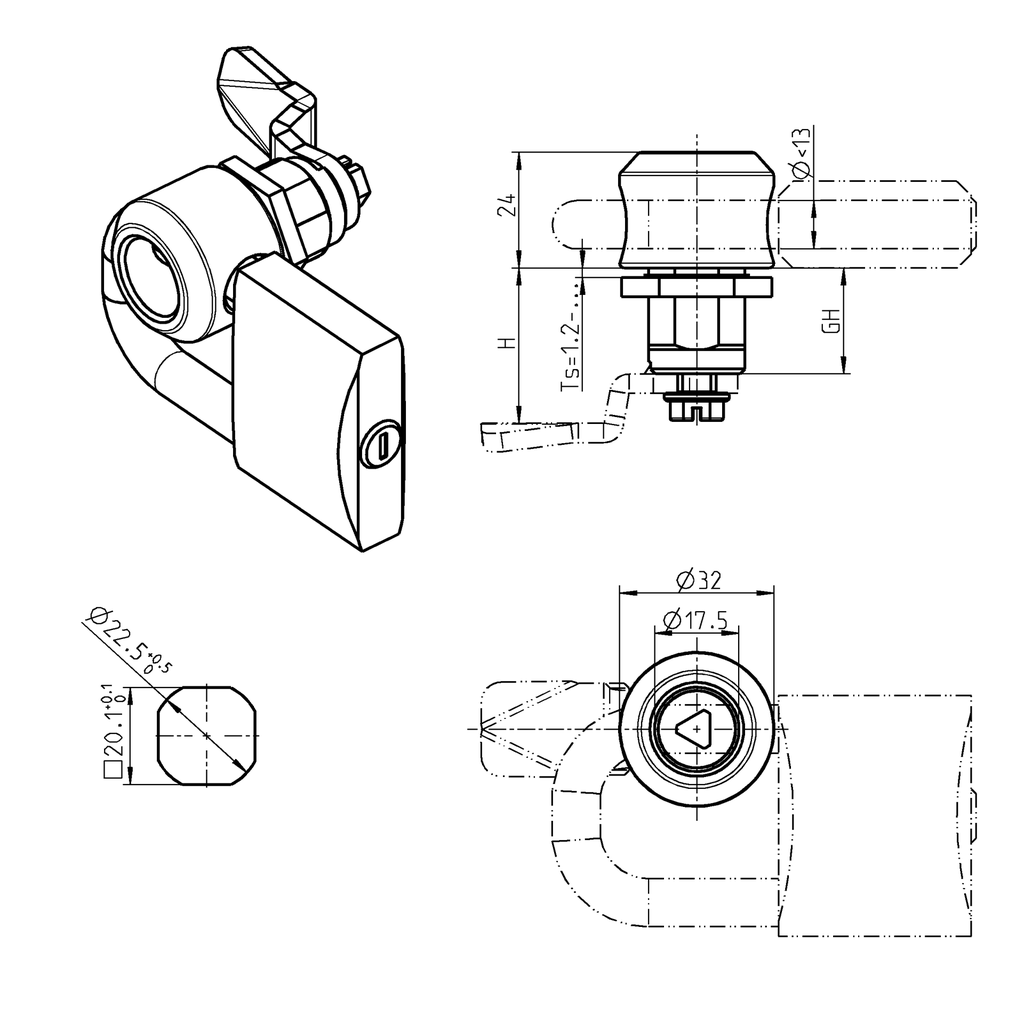

    For shackle ≤ Ø 13

    Key features:

    This product is a modular component of a UL-certified closure.

    Akeneo Note:

    Key for insert must be of a length of at least 70 mm.

    Internal Reference: 1000-U438
    Product Type: Housing
    Program: 1000
    Catalog sheet: 1B-680
    Material of the module : Zinc die
    Surface of the module: black powder-coated
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Fixing type of housing : nut fixing
    Mounting Positions : Inside the sealing
    Grounding possible: Yes
    Housing Head Shape: Round
    Housing Head Size: 32 x 24 mm
    GH Mass: 22 mm
    Suitable for door thickness from: 1.20 mm
    Suitable for door thicknesses up to: 13 mm
    Locking set: Insert,Padlock
    Door Version : Left,Right
    Locking components: Cam
    Padlock Art: Padlock with shackle dimension Ø 13
    Quarter turn types: Quarter turn with simple insert,Quarter turn for padlock
