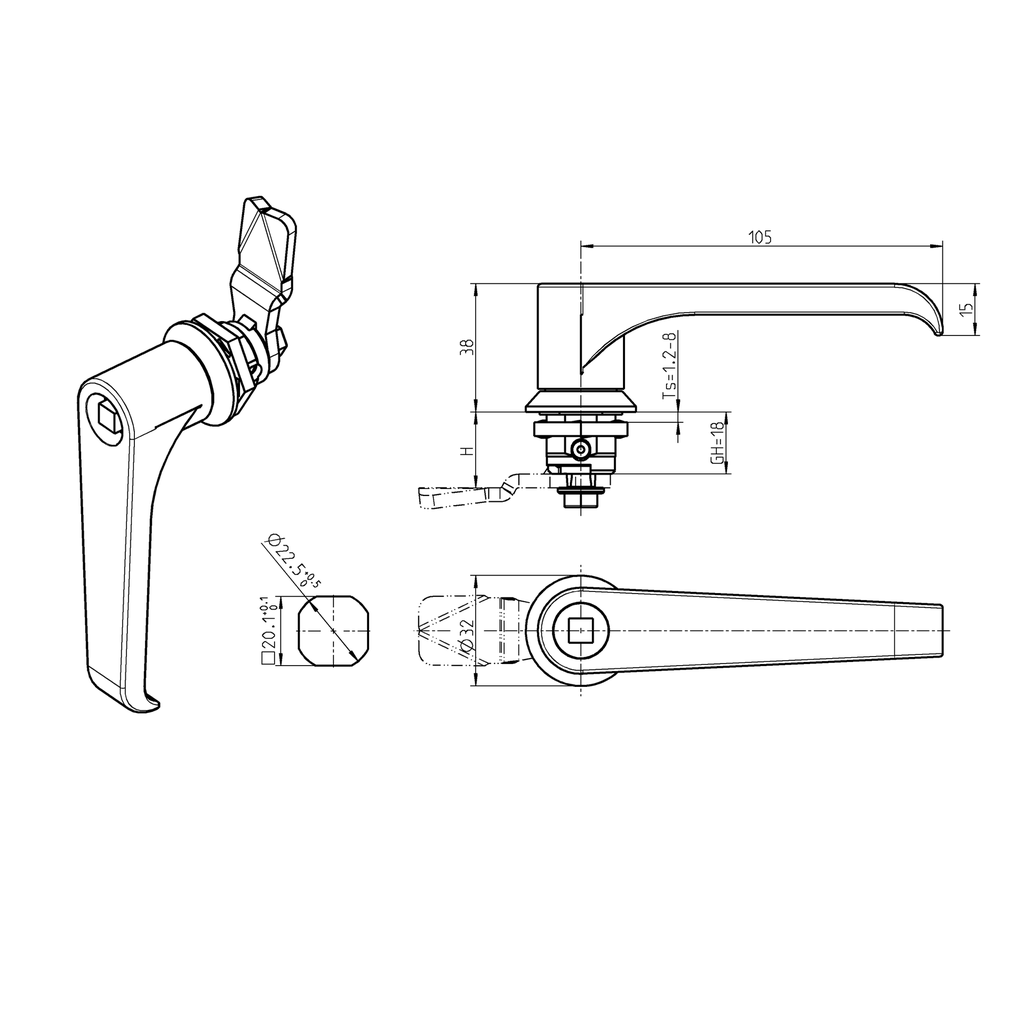

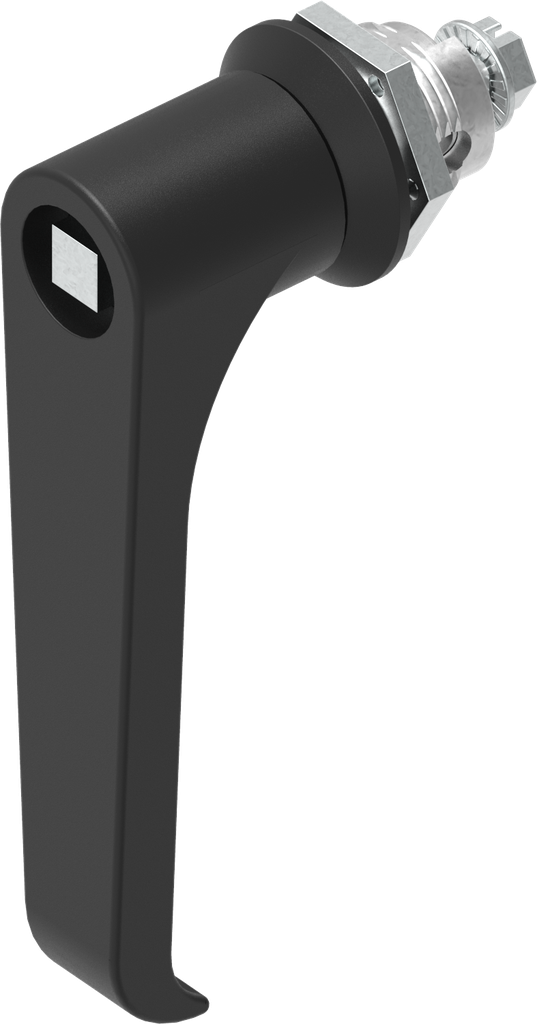

L-handle quarter turn square 8, Zinc die black powder-coated; 1000-U396

https://www.emka.com/products/1000-u396 https://www.emka.com/web/image/product.template/60117/image_1920?unique=730a522

with earthing nut


    This combination does not exist.

    Inside the sealing Grounding possible Protection class IP 65 Left Right


    Product information:

    IP 65 on request!

    Insert with spring-loaded return (two-hand operation)

    Internal Reference: 1000-U396
    Product Type: Quarter turn
    Program: 1000
    Catalog sheet: 1B-620
    Material of the module : Zinc die
    Surface of the module: black powder-coated
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Fixing type of housing : nut fixing
    Type of actuation: Square 8
    Mounting Positions : Inside the sealing
    Grounding possible: Yes
    Housing Head Shape: Round
    Housing Head Size: 32 x 6 mm
    GH Mass: 18 mm
    Handle Art: L-handle
    Suitable for door thickness from: 1.20 mm
    Suitable for door thicknesses up to: 8 mm
    Locking set: Insert
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Quarter turn with simple insert,Quarter turn with handle
