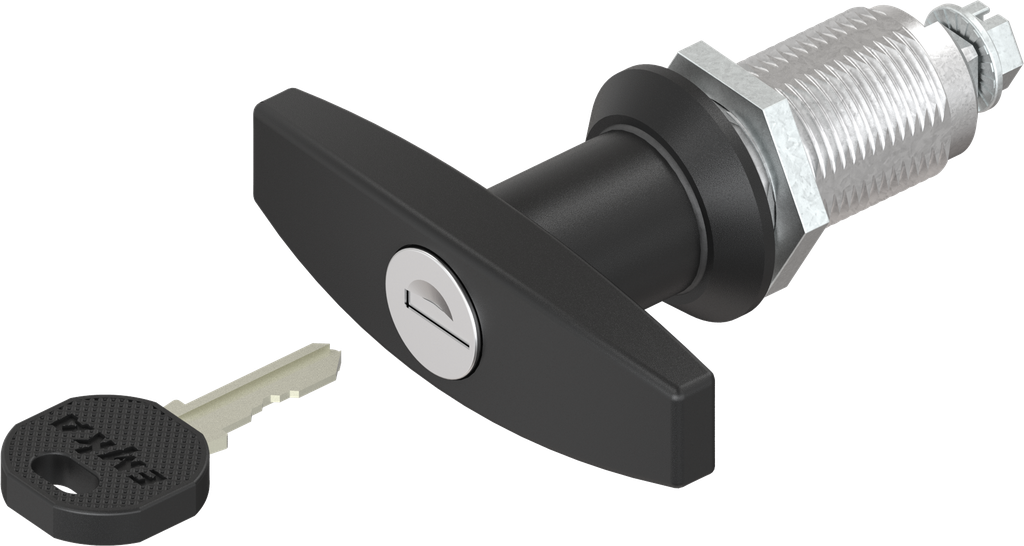

T-handle quarter turn, keyed EK 333, Zinc die black powder-coated
T-handle quarter turn, keyed EK 333, Zinc die black powder-coated
T-handle quarter turn, keyed different, Zinc die black powder-coated
T-handle quarter turn, keyed different, Zinc die black powder-coated

T-handle quarter turn, keyed different, Zinc die black powder-coated; 1000-U382

https://www.emka.com/products/1000-u382 https://www.emka.com/web/image/product.template/205581/image_1920?unique=730a522

with nut


    This combination does not exist.

    Inside the sealing Protection class IP 65 Left Right


    Product information:

    Key removable in both positions.

    Internal Reference: 1000-U382
    Product Type: Quarter turn
    Program: 1000
    Catalog sheet: 1B-560
    Material of the module : Zinc die
    Surface of the module: black powder-coated
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Fixing type of housing : nut fixing
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round
    Housing Head Size: 32 x 6 mm
    GH Mass: 40 mm
    Handle Art: T-handle
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 30 mm
    Round Cylinder Type: EMKA EK, differently keyed
    Locking set: Round cylinder
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Quarter turn with handle,Quarter turn with cylinder
    No Specifications
    View All Products
    Cam
    Quarter turn accessories
    Assembly
    Rod control
    Keys

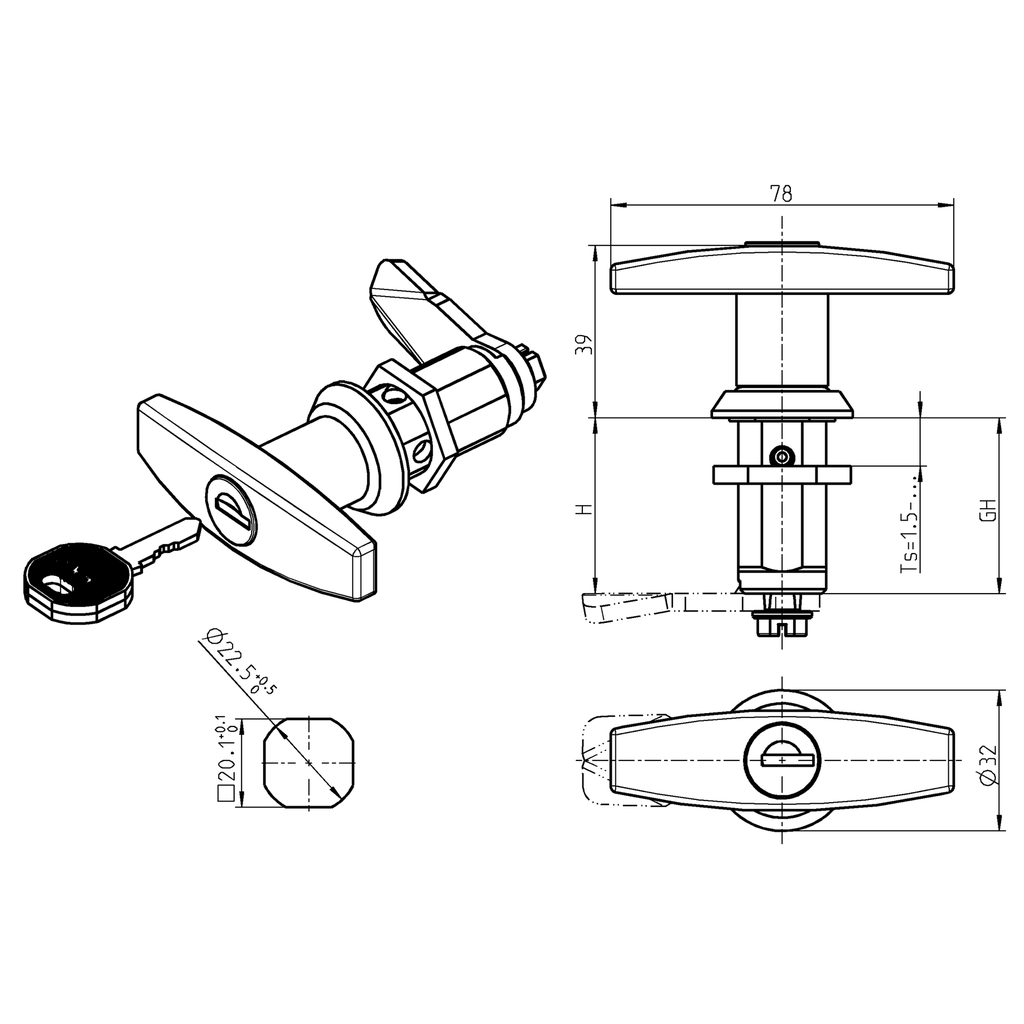

    Here you can find the product data sheets and CAD files of this product
