Clip-in quarter turn, Polyamide GF pebble grey
L-handle quarter turn, non-keyed, Zinc die black powder-coated

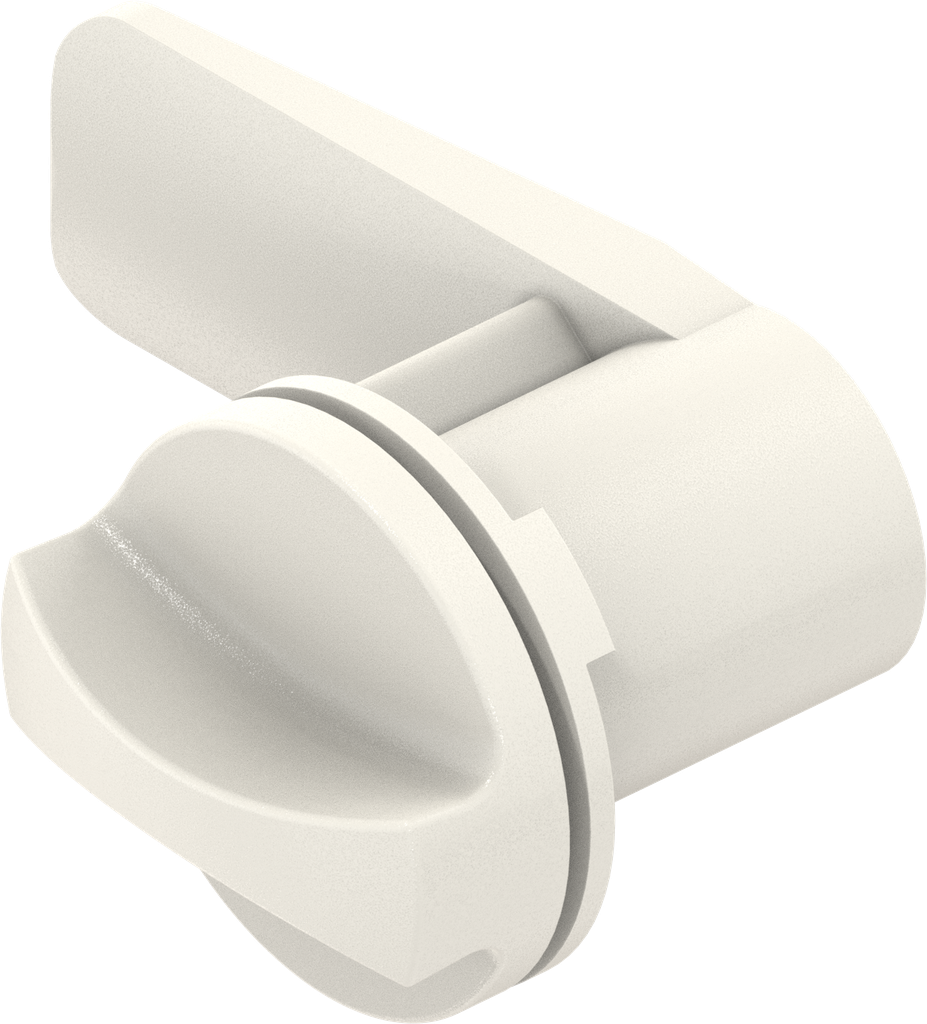

Clip-in quarter turn, Polyamide GF pure white; 1000-U350-HA
No stock item, please ask for availability
Product Benefits:
Eigenschaften:
Besonders montagefreundlich!
Assembly instruction:
Einfache Montage durch steckbare Kunststoffteile.
Internal Reference:
1000-U350-HA
Standards:
Protection class IP 40
Barcode:
1000-U00350-00000ha
Product Type:
Quarter turn
Program:
1000
Material of the module :
Polyamide GF
Surface of the module:
pure white
Number of Possible Locking Points:
1 point
Fixing type of housing :
clip-in
Mounting Positions :
Inside the sealing
Housing Head Shape:
Round
GH Mass:
28 mm
Handle Art:
Wing knob
Suitable for door thickness from:
1 mm
Suitable for door thicknesses up to:
1.25 mm
Locking set:
No locking set, blind
Door Version :
Left,Right
Locking components:
Cam
Quarter turn types:
Quarter turn with handle
