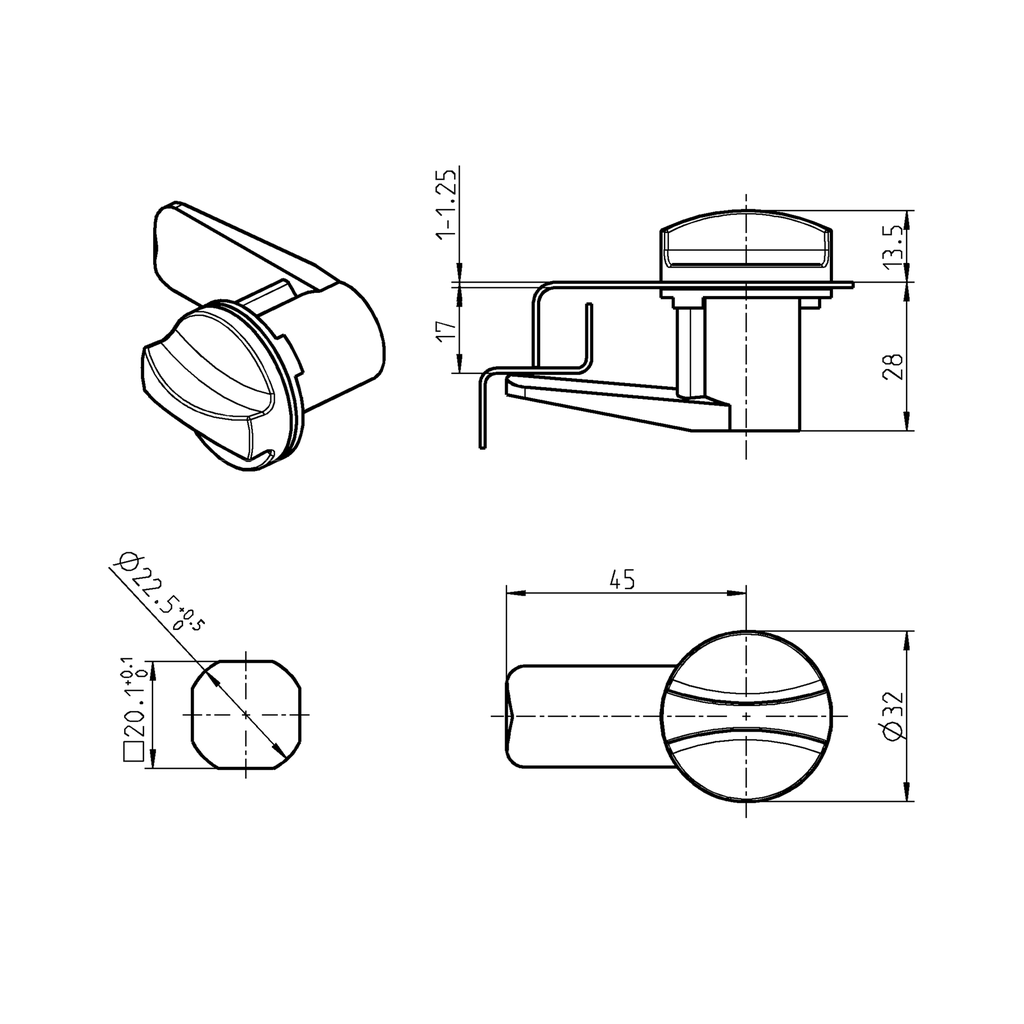

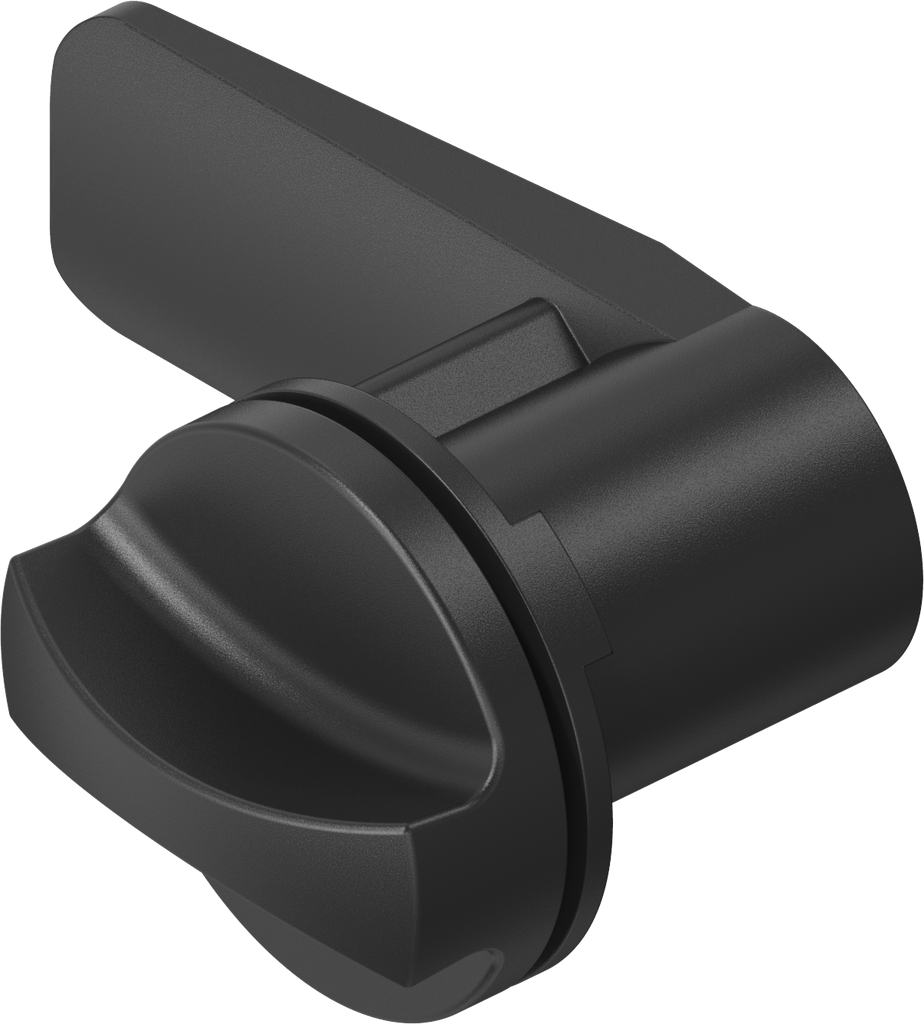

Clip-in quarter turn, Polyamide GF black; 1000-U349

https://www.emka.com/products/1000-u349 https://www.emka.com/web/image/product.template/60098/image_1920?unique=5c8bf09


    This combination does not exist.

    clip-in Inside the sealing Protection class IP 40 Left Right


    Product Benefits:

    Features:
    Simple assembly!

    Assembly instruction:

    Easy to assemble by using clip fix plastic parts.

    Internal Reference: 1000-U349
    Product Type: Quarter turn
    Program: 1000
    Catalog sheet: 1B-760
    Material of the module : Polyamide GF
    Surface of the module: black
    Number of Possible Locking Points: 1 point
    Fixing type of housing : clip-in
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round
    GH Mass: 28 mm
    Handle Art: Wing knob
    Suitable for door thickness from: 1 mm
    Suitable for door thicknesses up to: 1.25 mm
    Locking set: No locking set, blind
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Quarter turn with handle
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
