Insert double bit 3, Zinc die white powder-coated silky gloss

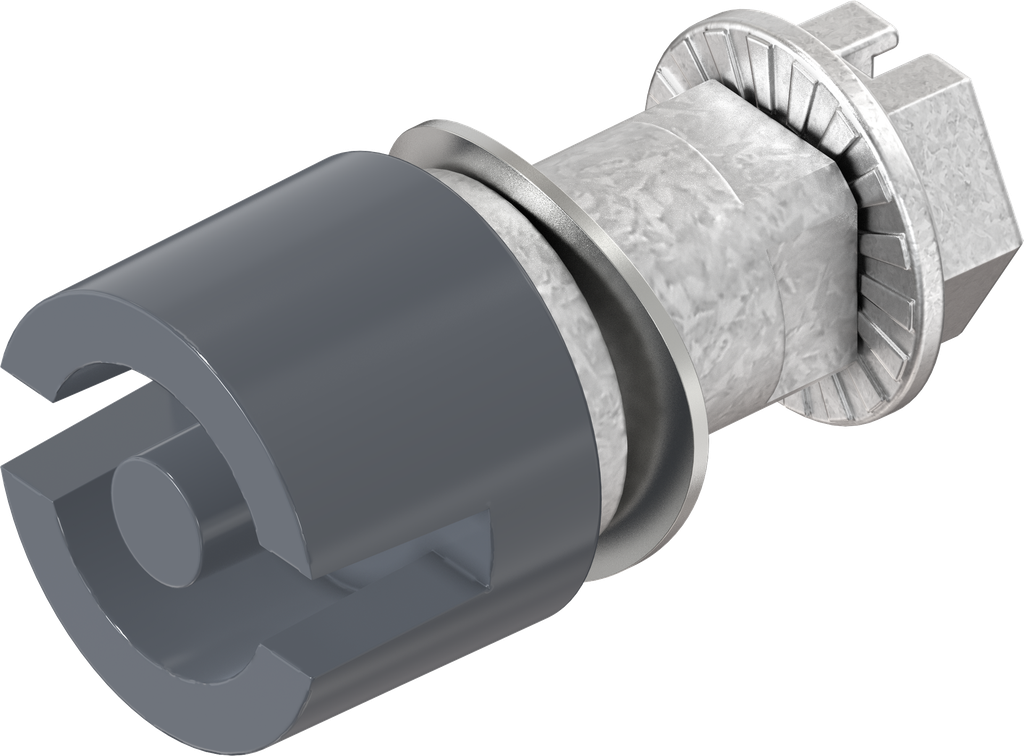

Insert double bit 5, Zinc die pure white powder-coated
Key features:
Dieses Produkt ist modularer Bestandteil eines UL-zertifizierten Verschlusses.
Internal Reference:
1000-U328-BF
Barcode:
1000-U00328-00000BF
Product Type:
Insert
Program:
1000
Material of the module :
Zinc die
Surface of the module:
graphite grey powder-coated smooth gloss
Number of Possible Locking Points:
1 point, 2 points, 3 point
Insert for:

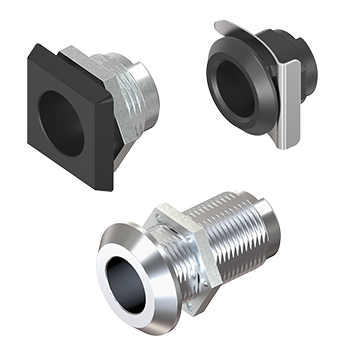

Insert for housing, classic,Insert for housing and for padlock,Insert for housing for flush mounting, classic,Insert for housing for door lock, prominent
Type of actuation:
Double bit 5
For GH measure:
18 mm
O-ring position:
Hub
Locking set:
Insert
Screw Fastening:
Metric
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
