Panel handle quarter turn ROnis E, keyed different, Zinc die and polyamide black
Insert square 7, Zinc die traffic white powder-coated

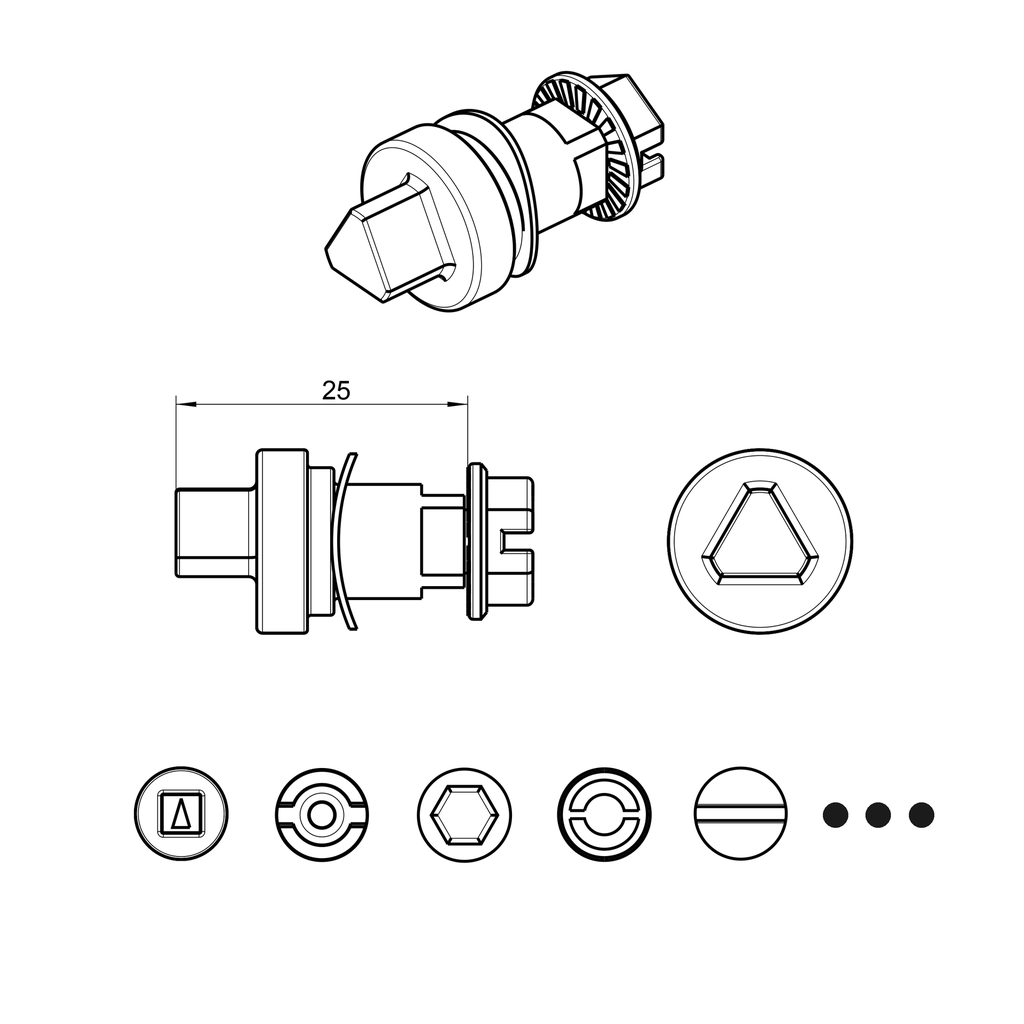

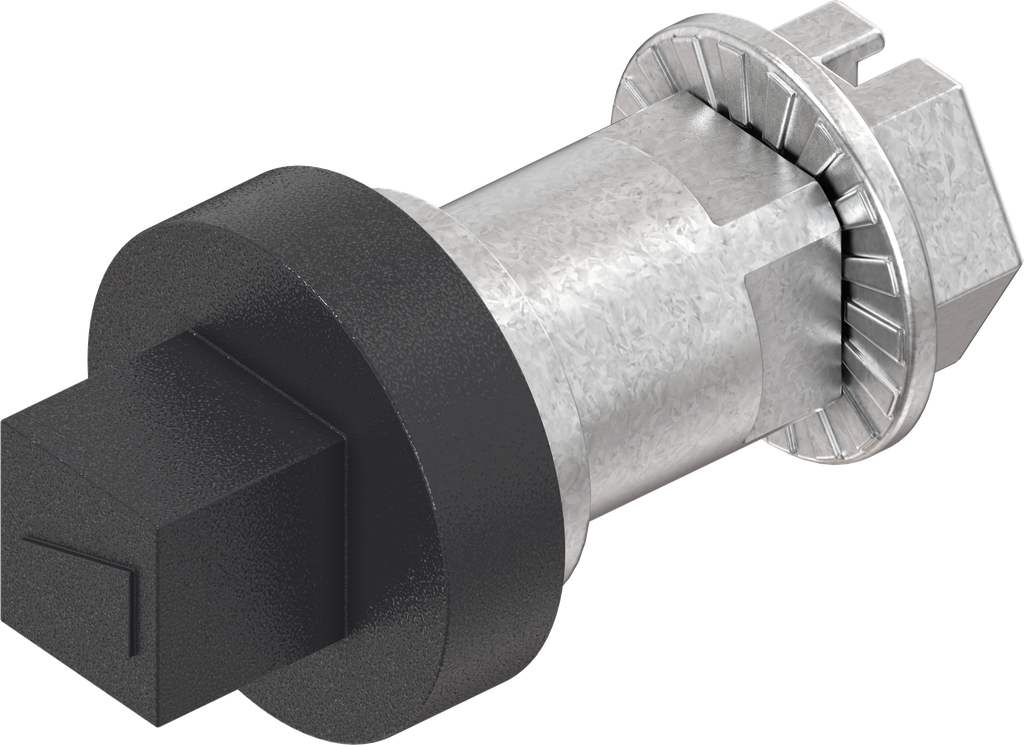

Insert square 7, Zinc die black powder-coated; 1000-U323-02
without spring washer
No stock item, please ask for availability
Key features:
Dieses Produkt ist modularer Bestandteil eines UL-zertifizierten Verschlusses.
Internal Reference:
1000-U323-02
Barcode:
1000-U00323-0000002
Product Type:
Insert
Program:
1000
Material of the module :
Zinc die
Surface of the module:
black powder-coated
Number of Possible Locking Points:
1 point, 2 points, 3 point
Insert for:
Insert for housing, classic,Insert for housing and for padlock,Insert for housing for flush mounting, classic,Insert for housing for door lock, prominent
Type of actuation:
Square 7 with arrow
For GH measure:
18 mm
Locking set:
Insert
Screw Fastening:
Metric
