Wing knob quarter turn, keyed different, Zinc die chrome-plated
Wing knob quarter turn, keyed different, Zinc die chrome-plated
Panel handle quarter turn ROnis E, keyed different, Zinc die and polyamide black
Panel handle quarter turn ROnis E, keyed different, Zinc die and polyamide black

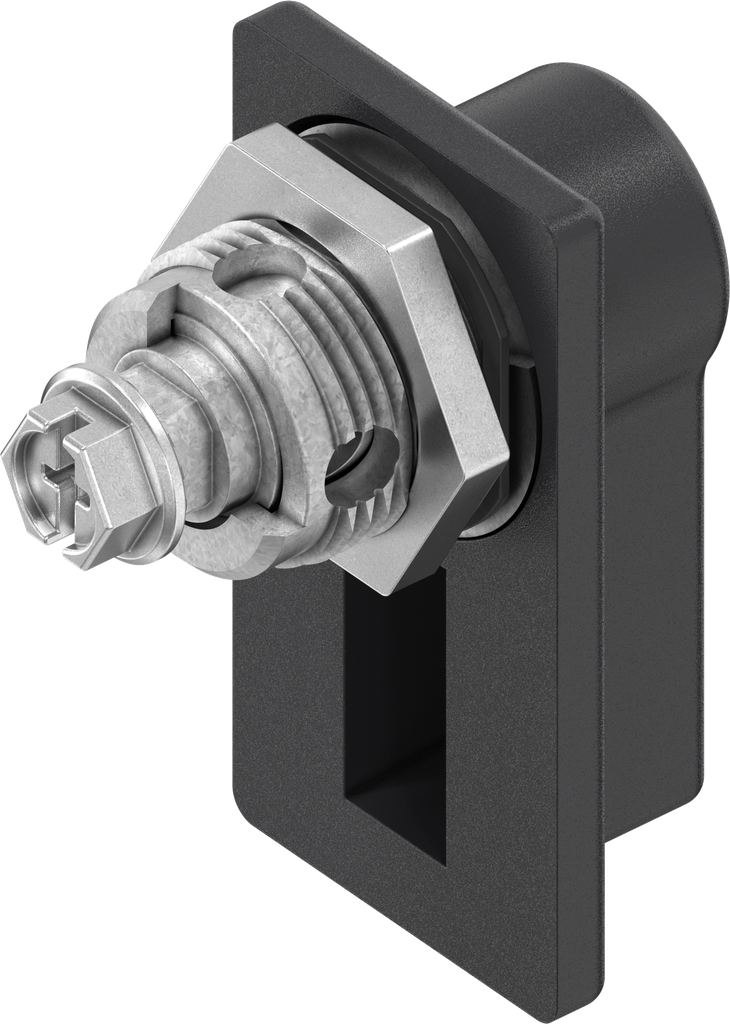

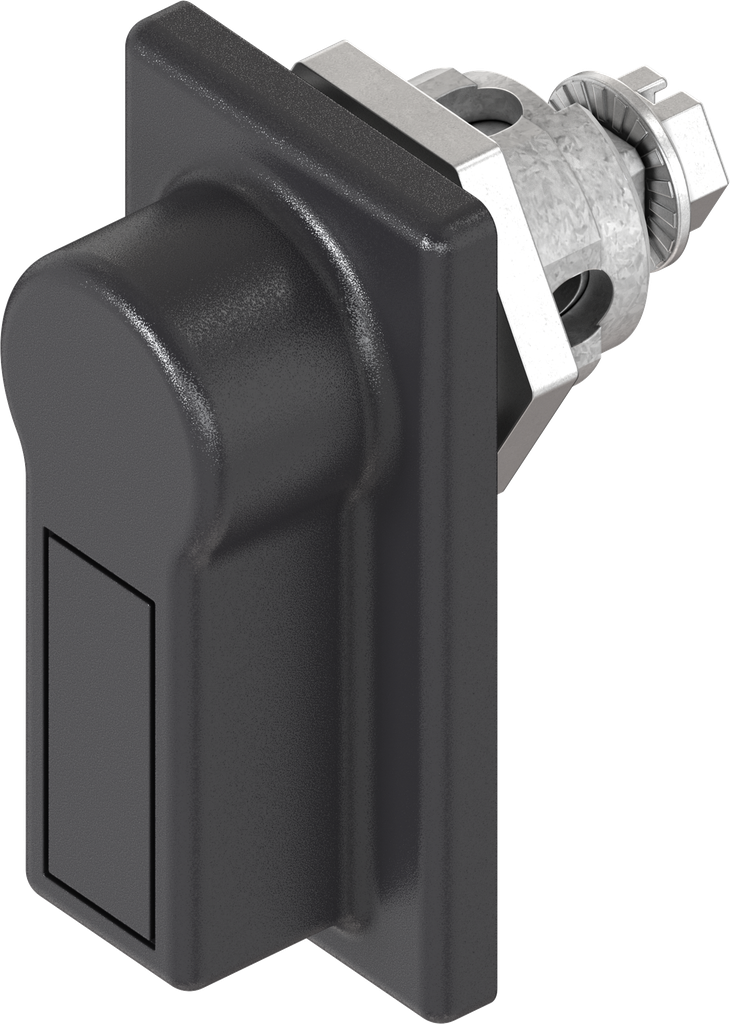

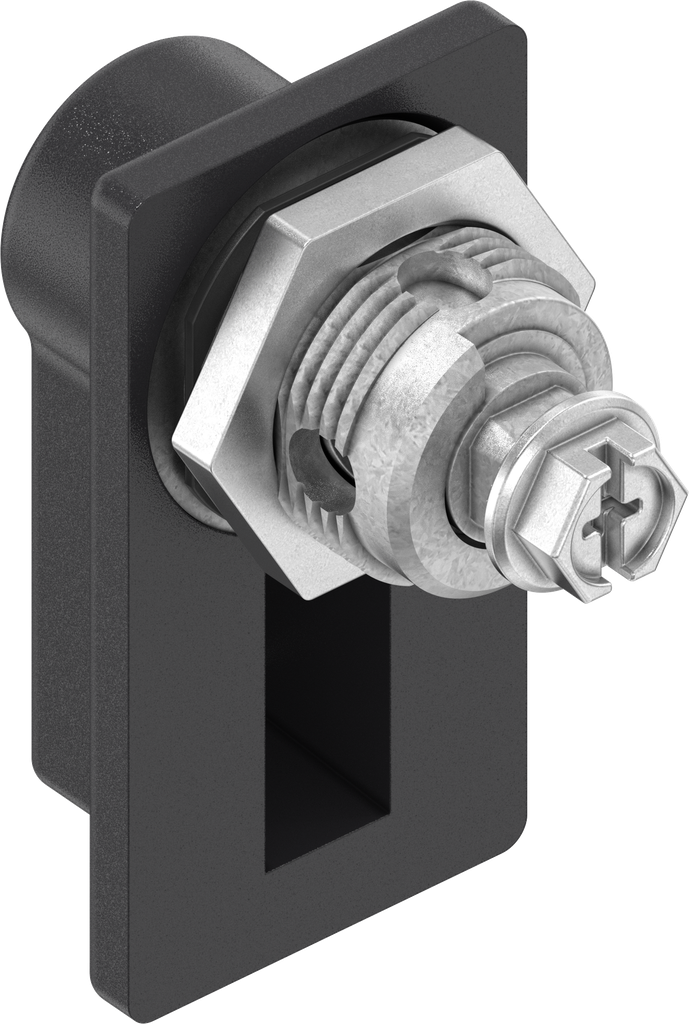

Panel handle quarter turn, non-keyed, Zinc die and polyamide black; 1000-U319

https://www.emka.com/products/1000-u319-panel-handle-quarter-turn-non-keyed-zinc-die-and-polyamide-black-205518 https://www.emka.com/web/image/product.template/205518/image_1920?unique=6a1bbe5

with nut

    This combination does not exist.

    Inside the sealing Grounding possible Protection class IP 65 Left Right
    Internal Reference: 1000-U319
    Standards: Protection class IP 65
    Barcode: 1000-U00319-0000000
    Product Type: Quarter turn
    Program: 1000
    Material of the module : Zinc die and polyamide
    Surface of the module: black
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Mounting Positions : Inside the sealing
    Grounding possible: Yes
    Housing Head Shape: Round
    GH Mass: 18 mm
    Handle Art: Panel handle
    Suitable for door thickness from: 1.20 mm
    Suitable for door thicknesses up to: 8 mm
    Locking set: No locking set, blind
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Quarter turn with handle,Quarter turn with cover
    No Specifications
    View All Products

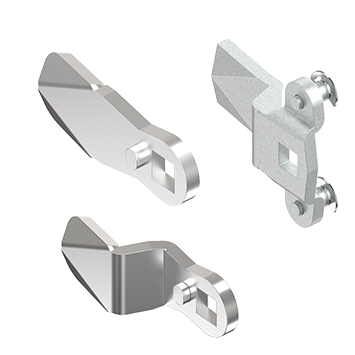

    Cam

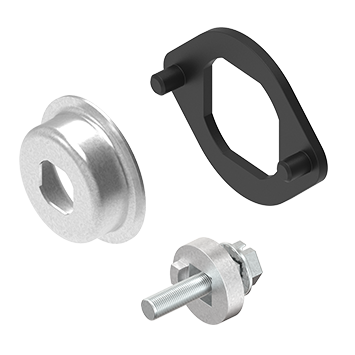

    Quarter turn accessories
