Housing, Zinc die chrome-plated
Safety quarter turn square 6, Brass and zinc die black powder-coated

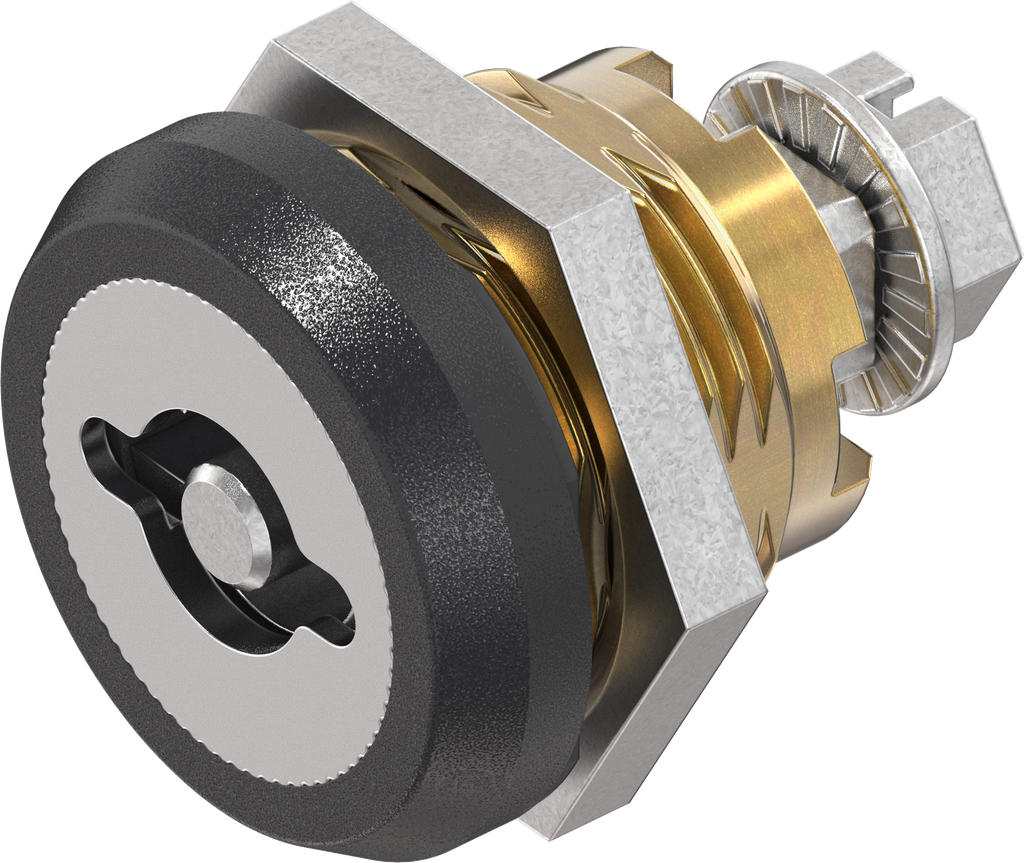

Safety quarter turn double bit 5, left version, Brass and zinc die black powder-coated; 1000-U257-01
with nut
Product information:
Safety quarter turn:The safety quarter turn is of a vibration-proof design.Depending on the installation location and operational conditions,specific checks are necessary and/or supplementary measures of fastening required.Keyhole for double bit according to key DIN 43668.Function:
Push the cam backward using the insert.Assembly instruction:
Only available with pre-assembled cam.
Internal Reference:
1000-U257-01
Standards:
Protection class IP 65
Barcode:
1000-U00257-0000001
Product Type:
Quarter turn
Program:
1000
Material of the module :
Brass and zinc die
Surface of the module:
black powder-coated
Number of Possible Locking Points:
1 point
Fixing type of housing :
nut fixing
Type of actuation:
Double bit 5
Mounting Positions :
Inside the sealing
Housing Head Shape:
Round
Housing Head Size:
28 x 6 mm
GH Mass:
18 mm
Suitable for door thickness from:
1.20 mm
Suitable for door thicknesses up to:
8 mm
Locking set:
Insert
Door Version :
Left
Locking components:
Cam
Quarter turn types:
Safety quarter turn
