3-Point cam, Steel zinc-plated
3-Point cam, Steel zinc-plated

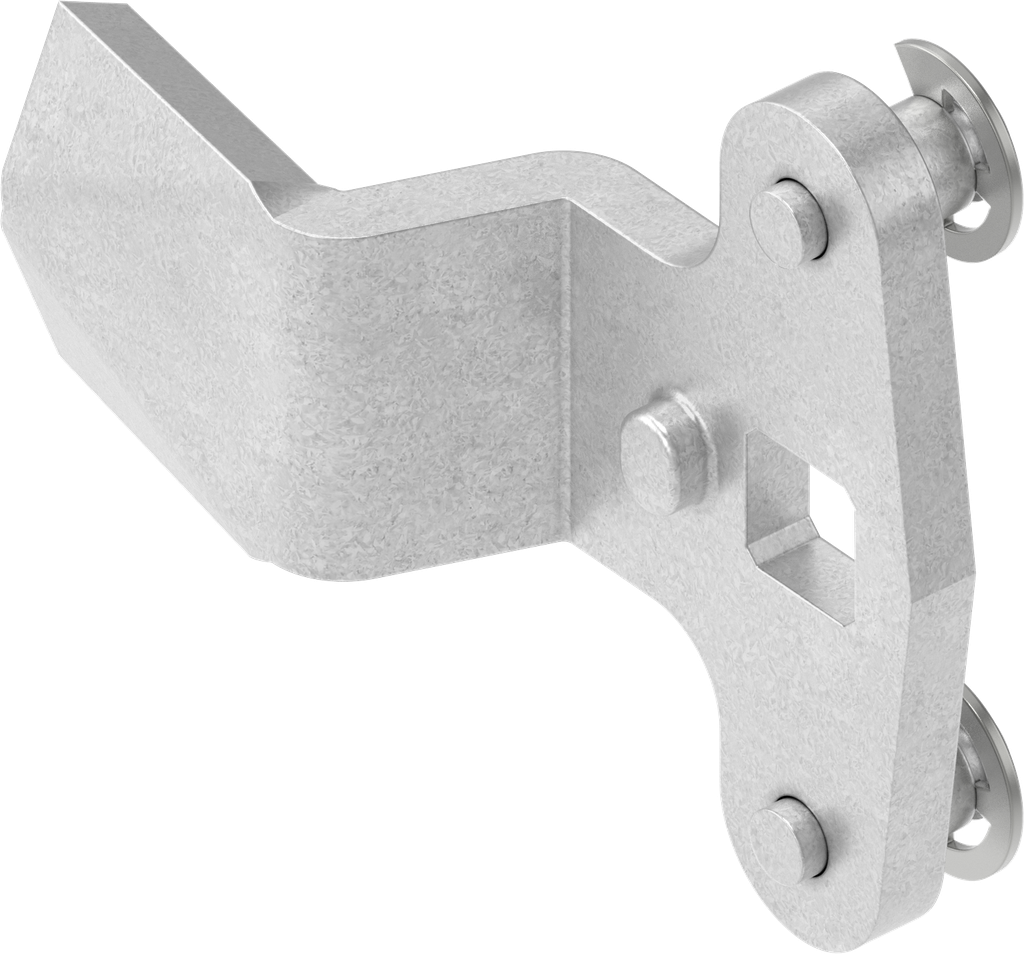

3-Point cam, Steel zinc-plated; 1000-U21

https://www.emka.com/products/1000-u21 https://www.emka.com/web/image/product.template/59899/image_1920?unique=47e3854

Offset h = -12 mm


    This combination does not exist.

    Inside the sealing


    Internal Reference: 1000-U21
    Product Type: Cam
    Program: 1000
    Catalog sheet: 1C-120
    Material of the module : Steel
    Surface of the module: zinc-plated
    Number of Possible Locking Points: 3 point
    Mounting Positions : Inside the sealing
    Stroke of the drive: Stroke 18 mm
    Compression Value : 3 mm
    Offset: negative
    offset of cam: -12 mm
    Dimension L: 45 mm
    Spoon: Yes
    Dimension t: 4 mm
