Insert square 8, Zinc die chrome-plated
Insert triangular 8, Zinc die chrome-plated

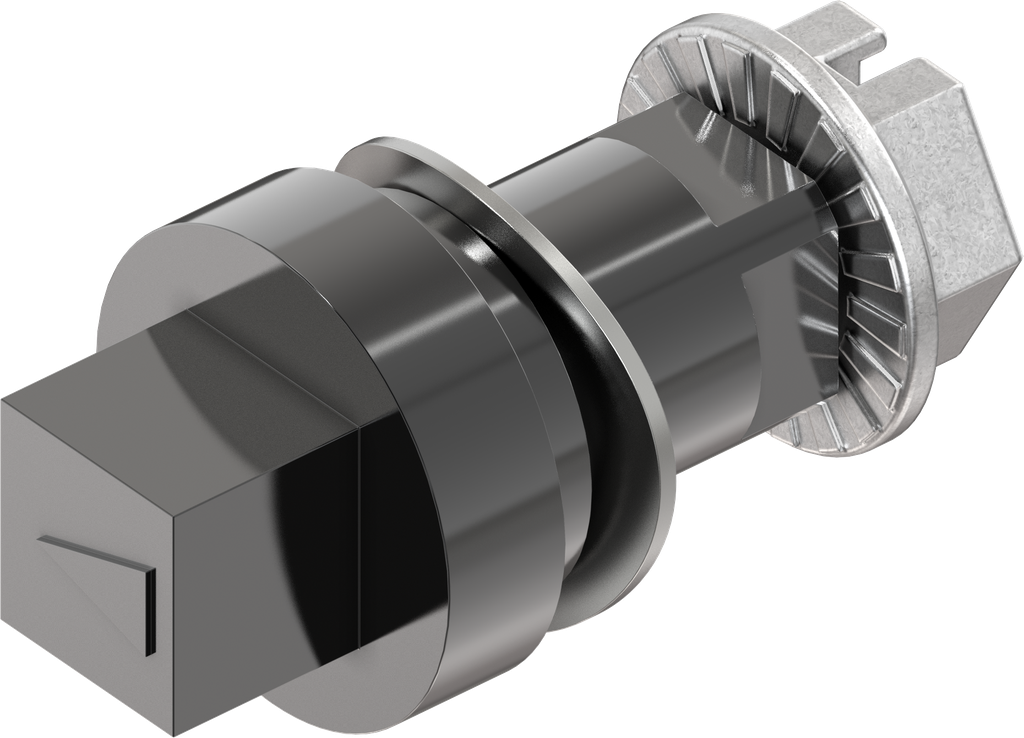

Insert square 8, Zinc die black chrome-plated; 1000-U2-IF
No stock item, please ask for availability
Key features:
This product is a modular component of a UL-certified closure.
Internal Reference:
1000-U2-IF
Barcode:
1000-u00002-00000if
Product Type:
Insert
Program:
1000
Material of the module :
Zinc die
Surface of the module:
black chrome-plated
Number of Possible Locking Points:
1 point, 2 points, 3 point
Insert for:
Insert for housing, classic,Insert for housing and for padlock,Insert for housing for flush mounting, classic,Insert for housing for door lock, prominent
Type of actuation:
Square 8
For GH measure:
18 mm
O-ring position:
Hub
Locking set:
Insert
Screw Fastening:
Metric
