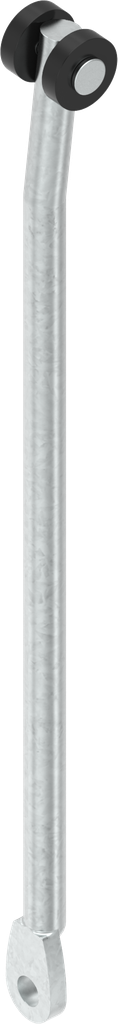

Round rod L = 551 - 600 mm, Steel zinc-plated; 1000-U144-05

https://www.emka.com/products/1000-u144-05 https://www.emka.com/web/image/product.template/205399/image_1920?unique=47e3854


    This combination does not exist.

    Inside the sealing


    Order / Calculation example:

    Order no. for a round rod with eye and a length of 1034 mm = 1000-U144

    Internal Reference: 1000-U144-05
    Product Type: Rod
    Program: 1000
    Material of the module : Steel
    Surface of the module: zinc-plated
    Connecting rod position: Inside the sealing, top or bottom
    Number of Possible Locking Points: 2 points, 3 point
    Mounting Positions : Inside the sealing
    Dimension L up to: 600 mm
    Dimension L, Variable: Yes
    Dimension L from: 551 mm
    Length(L-dimension): 551 - 600 mm
    Round bar inside the seal: Round rod with shoe and eye for cam
    No Specifications
    View All Products
    Cam
    Rod control
    Rod guide
    Here you can find the product data sheets and CAD files of this product
