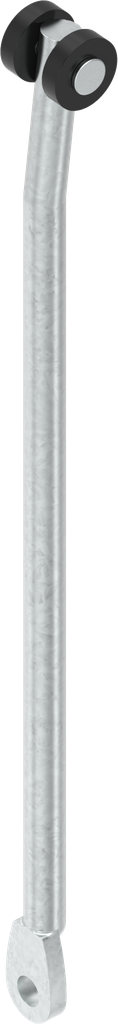

Round rod L = 401 - 450 mm, Steel zinc-plated; 1000-U144-02

https://www.emka.com/products/1000-u144-02 https://www.emka.com/web/image/product.template/205396/image_1920?unique=47e3854


    This combination does not exist.

    Inside the sealing


    Order / Calculation example:

    Order no. for a round rod with eye and a length of 1034 mm = 1000-U144

    Internal Reference: 1000-U144-02
    Product Type: Rod
    Program: 1000
    Material of the module : Steel
    Surface of the module: zinc-plated
    Connecting rod position: Inside the sealing, top or bottom
    Number of Possible Locking Points: 2 points, 3 point
    Mounting Positions : Inside the sealing
    Dimension L up to: 450 mm
    Dimension L, Variable: Yes
    Dimension L from: 401 mm
    Length(L-dimension): 401 - 450 mm
    Round bar inside the seal: Round rod with shoe and eye for cam
