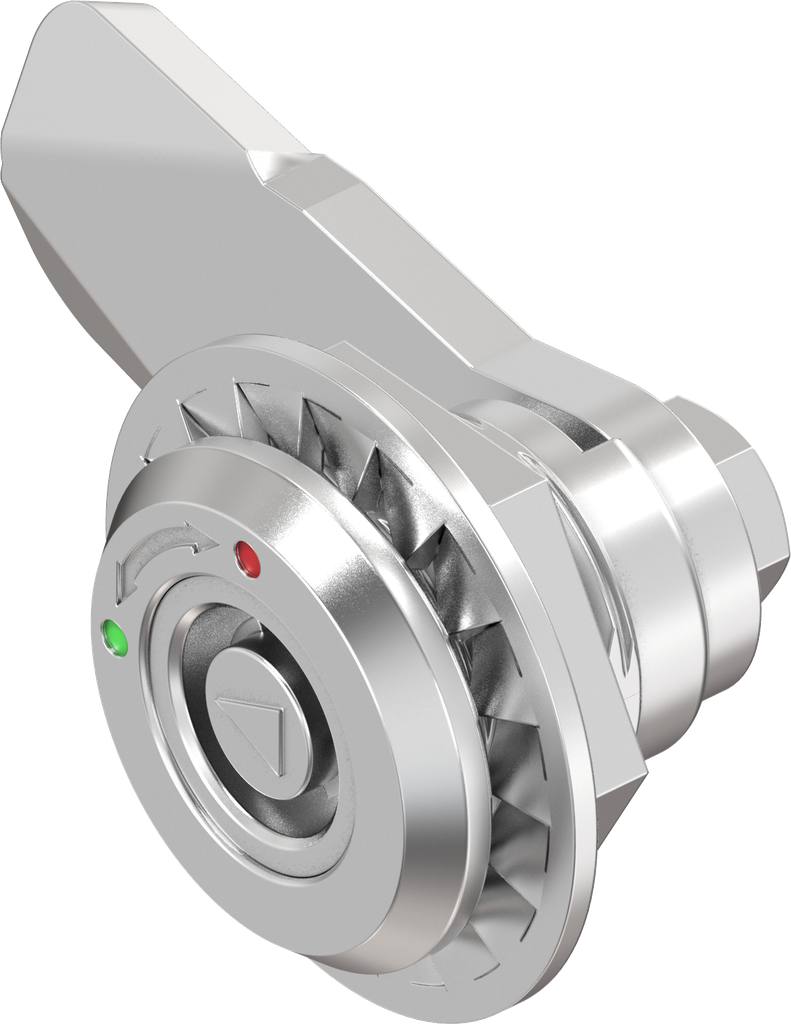

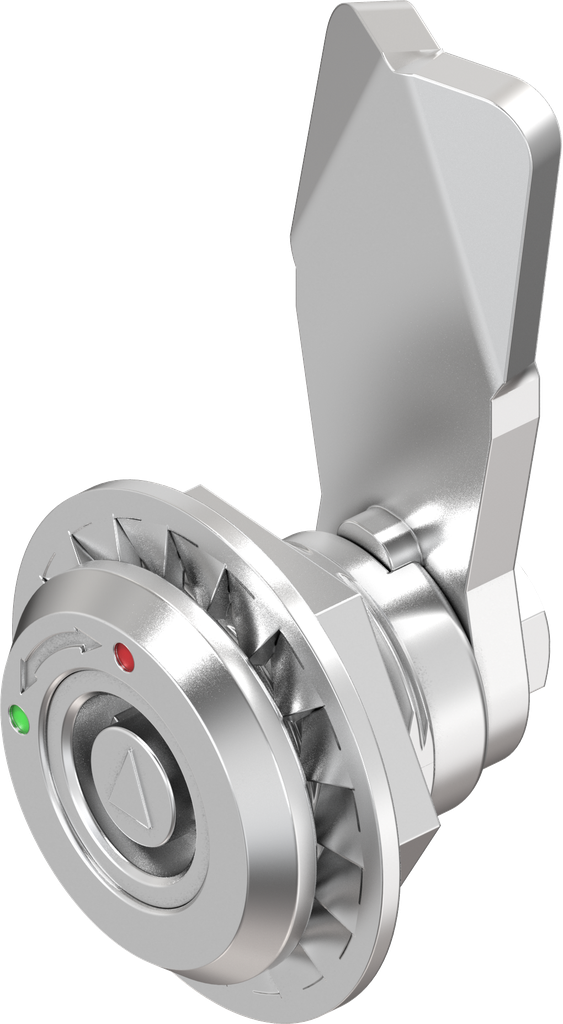

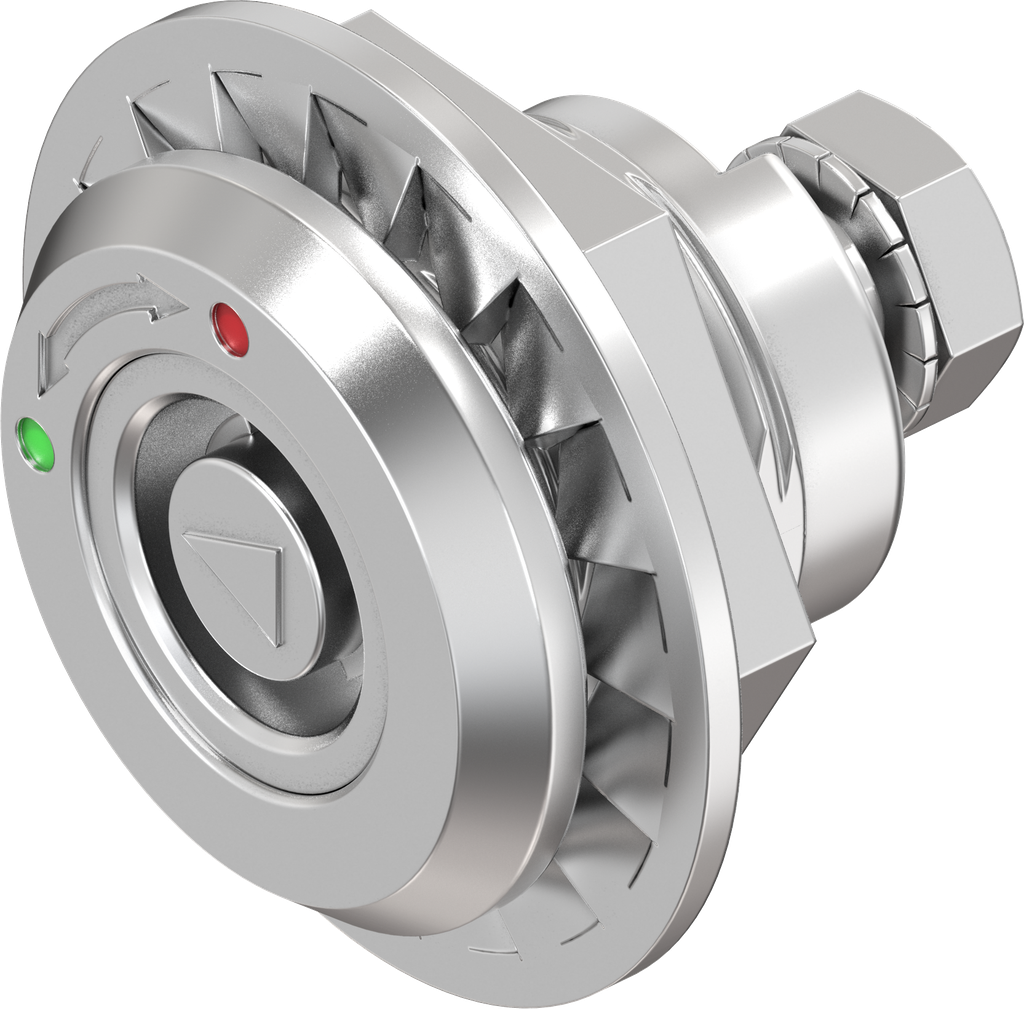

Quarter turn with tube and marking, right version, Stainless steel AISI 303; 1000-SU951-RE

https://www.emka.com/products/1000-su951-re https://www.emka.com/web/image/product.template/205043/image_1920?unique=47e3854

with stainless steel nut


    This combination does not exist.

    Inside the sealing Grounding possible Foamed seal Protection class IP 65 Right


    Internal Reference: 1000-SU951-RE
    Product Type: Quarter turn
    Program: 1000
    Material of the module : Stainless steel AISI 303
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Fixing type of housing : nut fixing
    Type of actuation: Tube with marking
    Mounting Positions : Inside the sealing
    Grounding possible: Yes
    Housing Head Shape: Round
    Housing Head Size: 28 x 4 mm
    Foamed gasket: Yes
    GH Mass: 18 mm
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 5 mm
    Locking set: Insert
    Door Version : Right
    Locking components: Cam
    Quarter turn types: Quarter turn with simple insert
