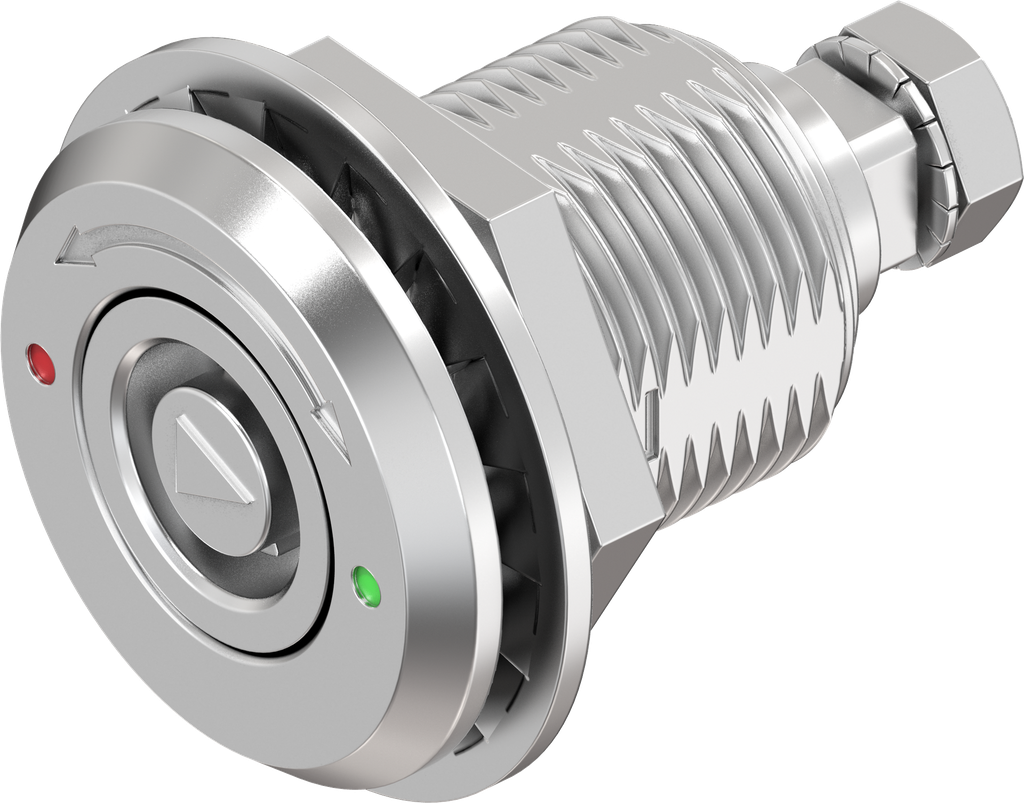

Compression latch with tube and marking, left version, Stainless steel AISI 316; 1000-SU948-LI

https://www.emka.com/products/1000-su948-li https://www.emka.com/web/image/product.template/59867/image_1920?unique=47e3854

with stainless steel nut


    This combination does not exist.

    Inside the sealing Grounding possible Foamed seal Protection class IP 65 DIN EN 61373 (shock and vibration testing) Left


    Product information:

    The compression latch is designed to be vibration-proof as such.
    Depending on the installation location and operational conditions, specific checks are necessary and/or supplementary measures of fastening required.

    Internal Reference: 1000-SU948-LI
    Product Type: Quarter turn
    Program: 1000
    Material of the module : Stainless steel AISI 316
    Number of Possible Locking Points: 1 point
    Fixing type of housing : nut fixing
    Type of actuation: Tube with marking
    Mounting Positions : Inside the sealing
    Grounding possible: Yes
    Housing Head Shape: Round

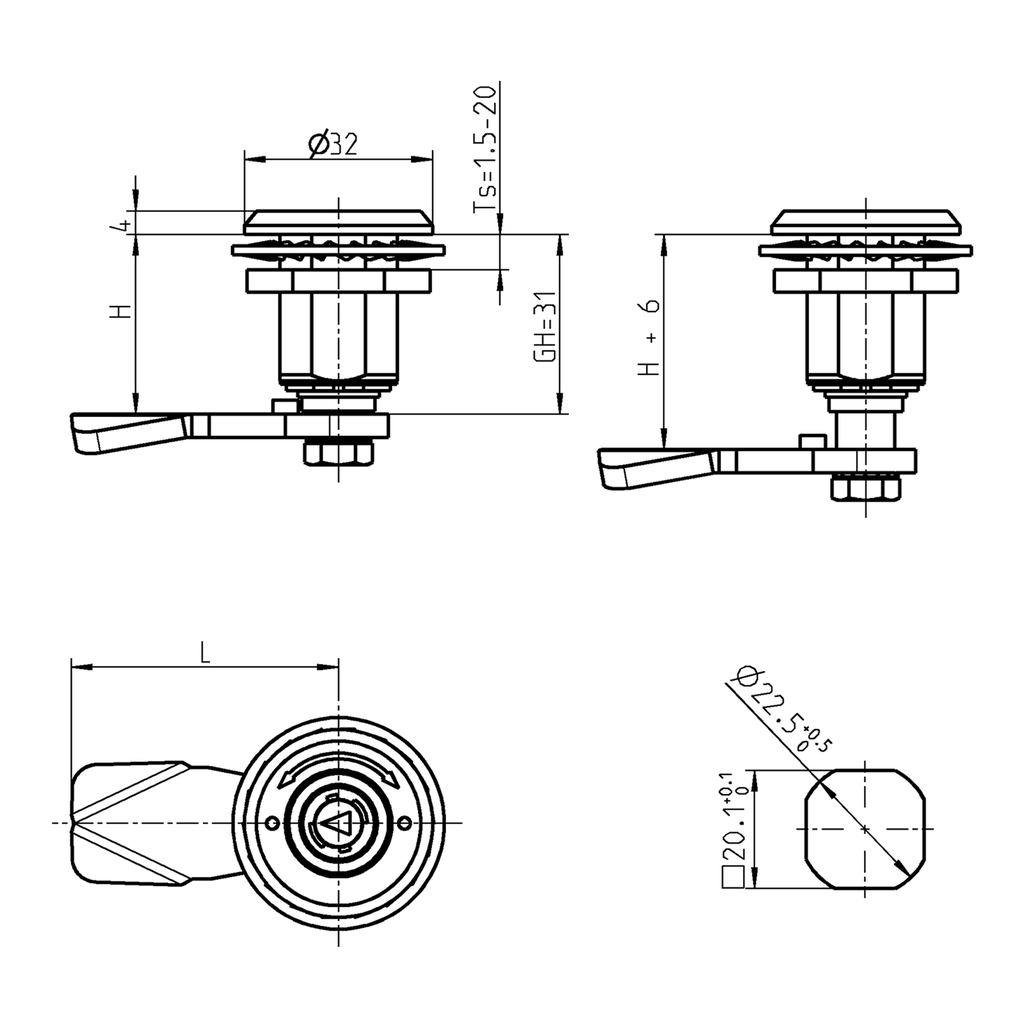

    Housing Head Size: 32 x 4 mm
    Foamed gasket: Yes
    GH Mass: 31 mm
    Compression Value : 6 mm
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 20 mm
    Locking set: Insert
    Door Version : Left
    Locking components: Cam
    Quarter turn types: Compression latch with insert
    No Specifications
