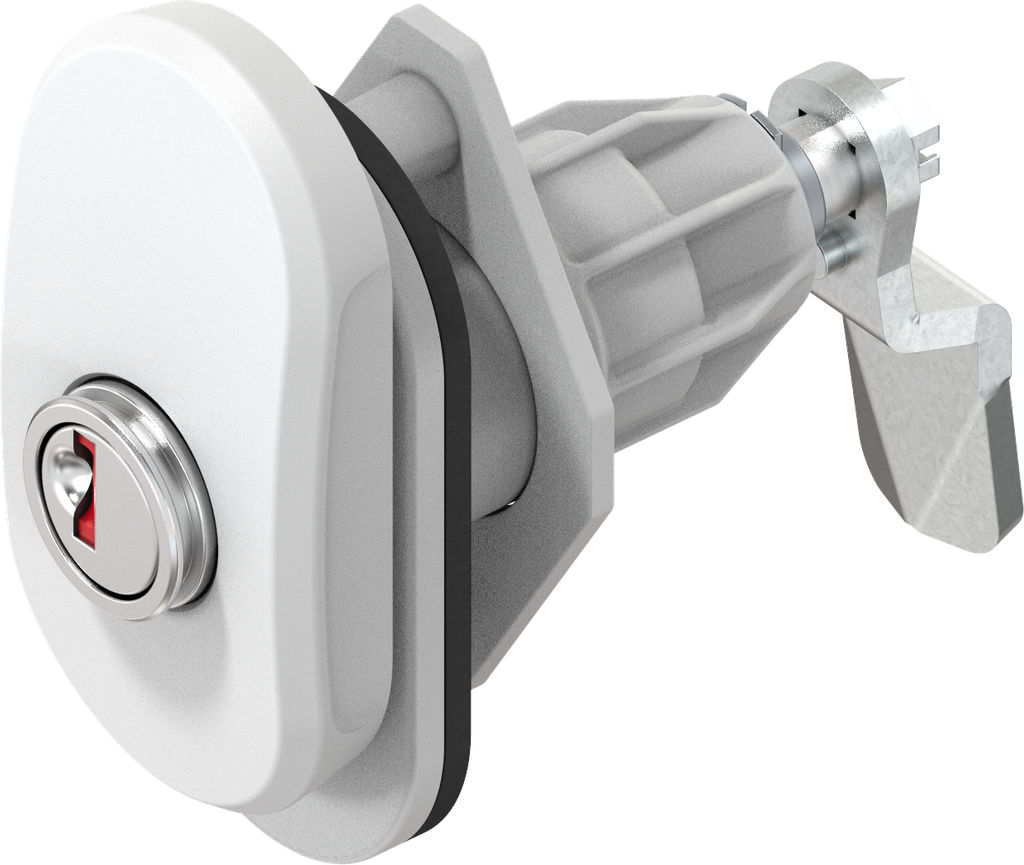

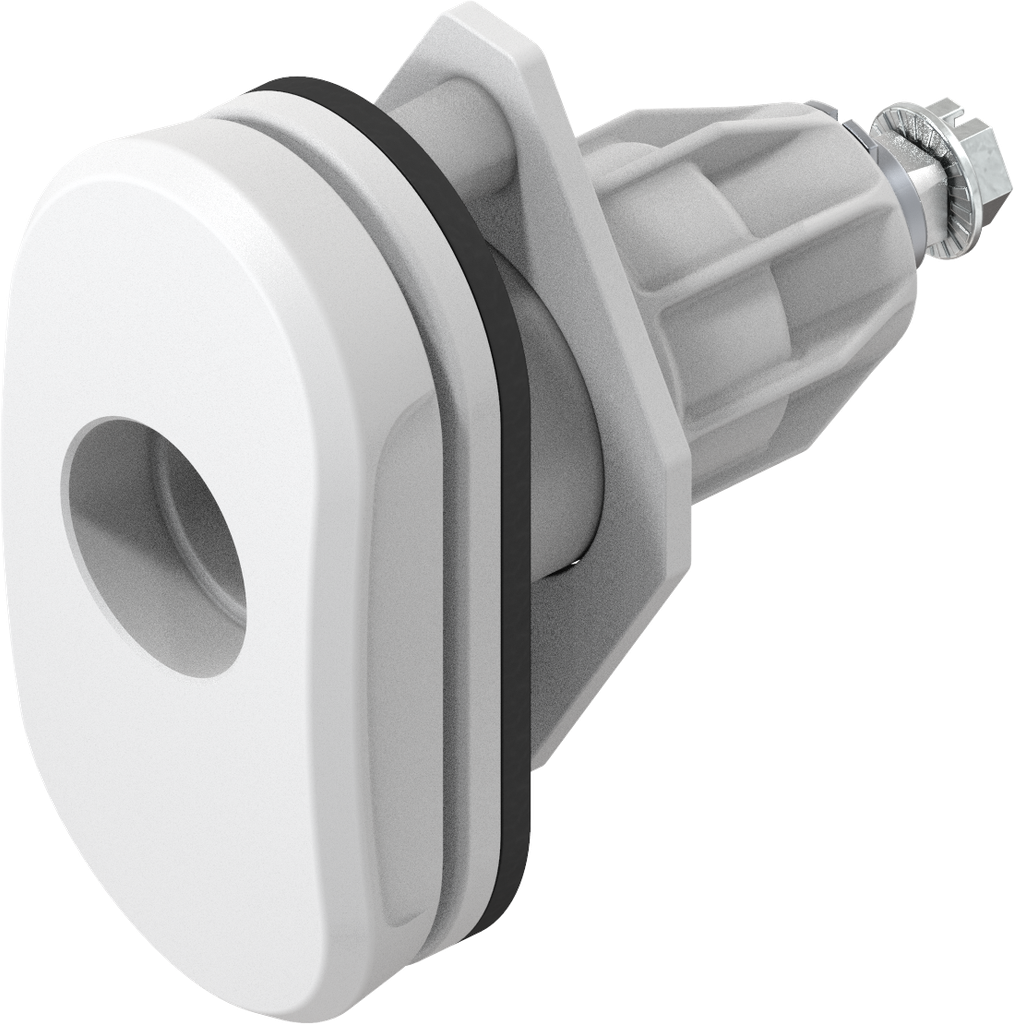

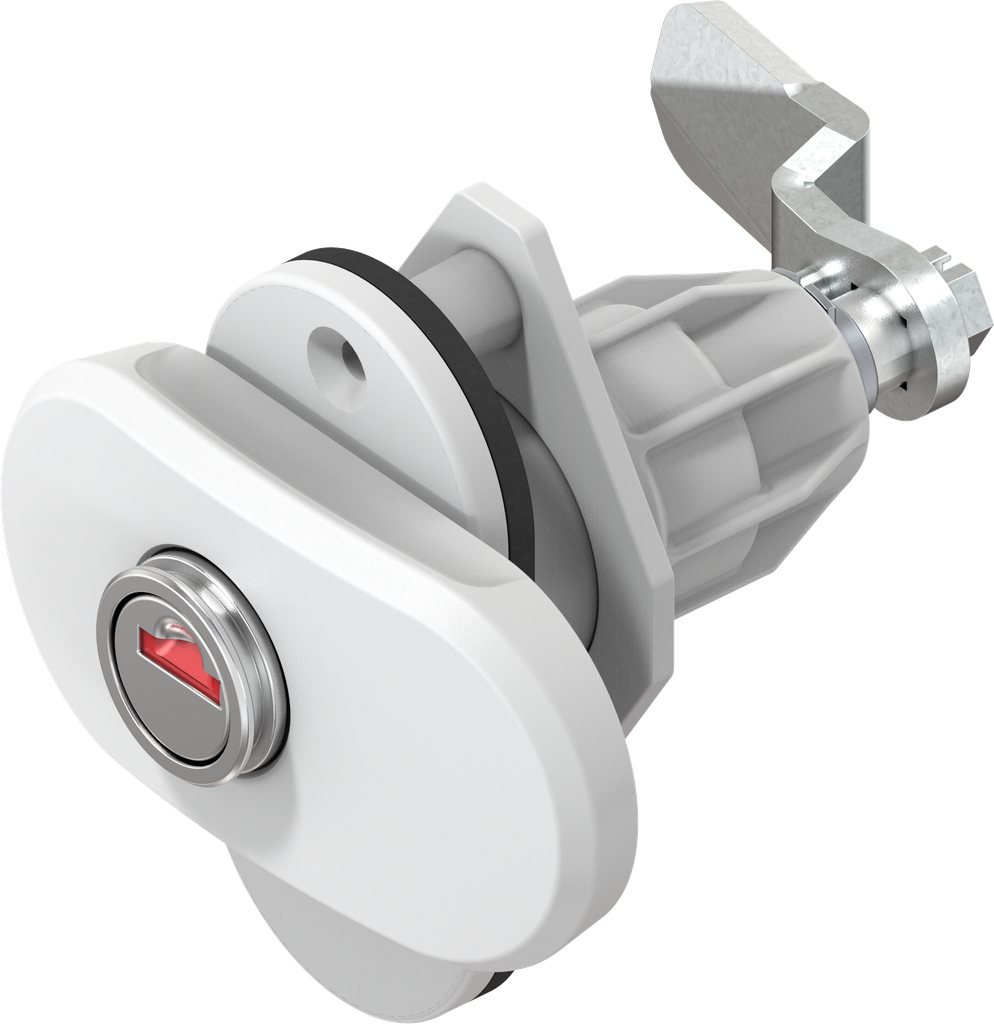

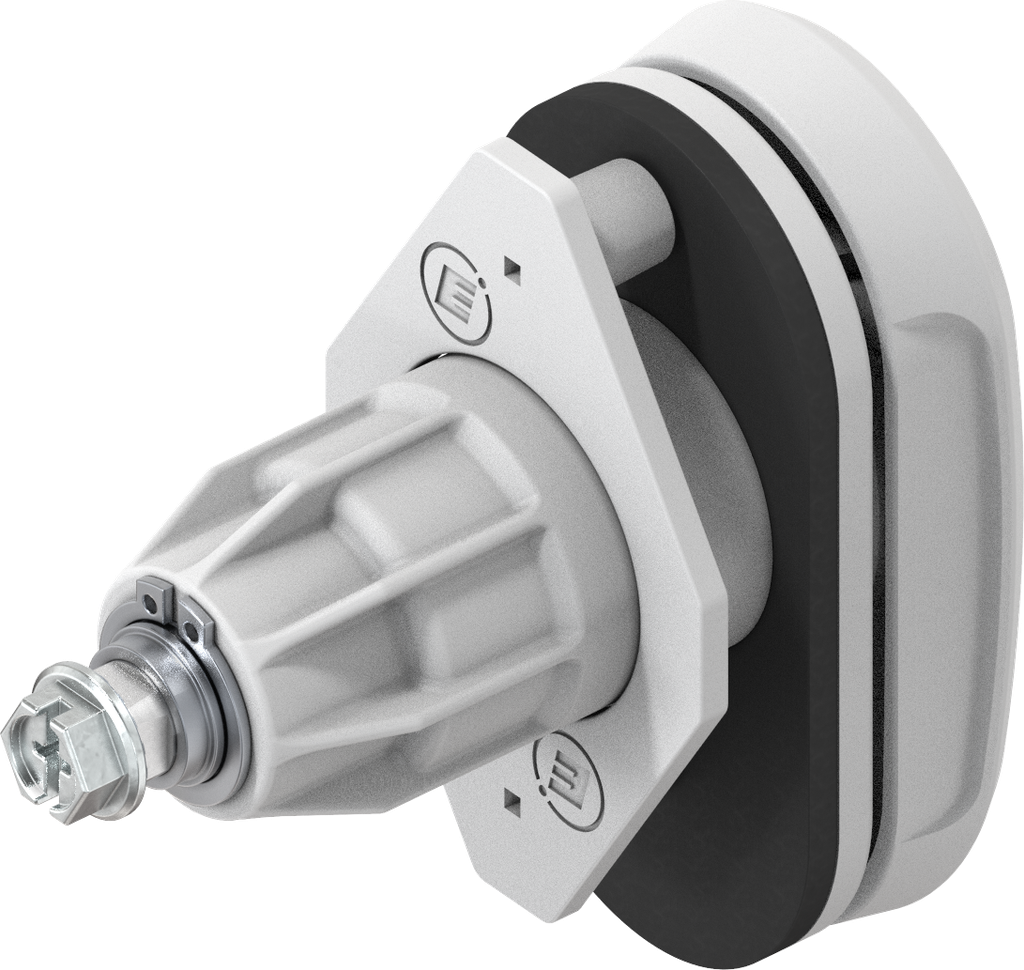

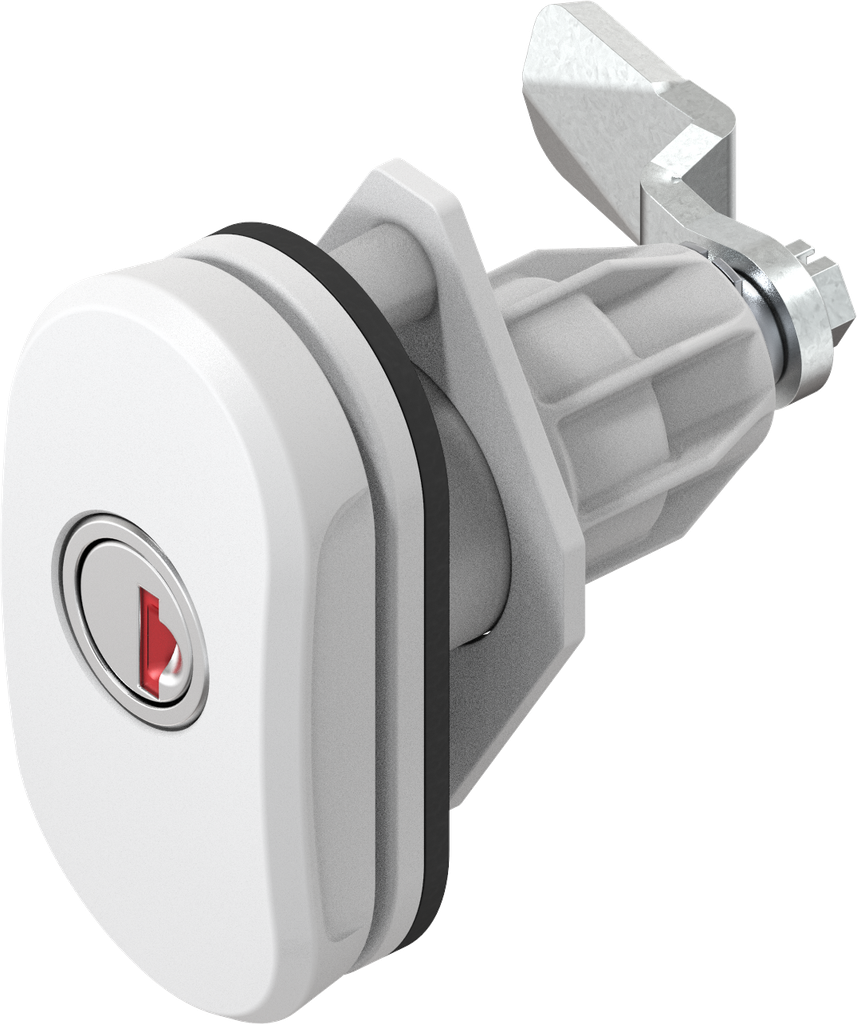

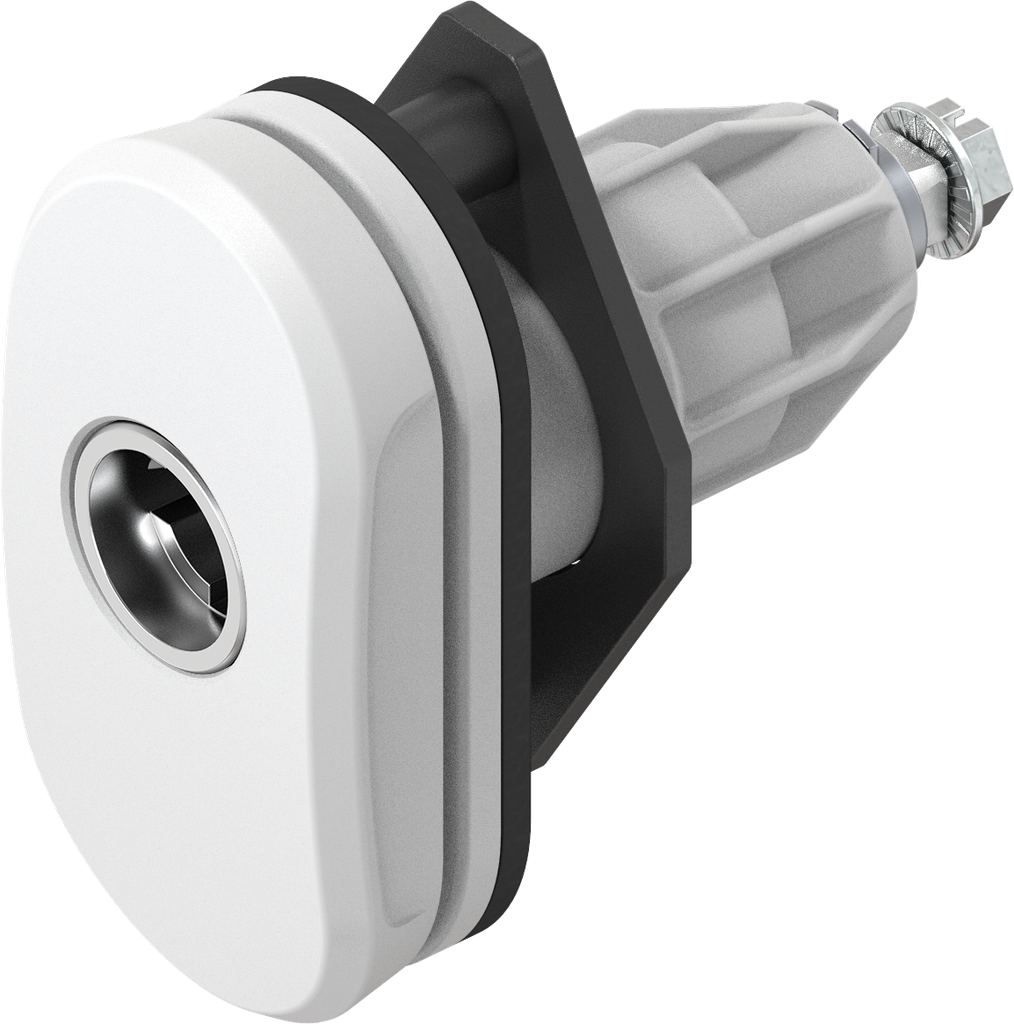

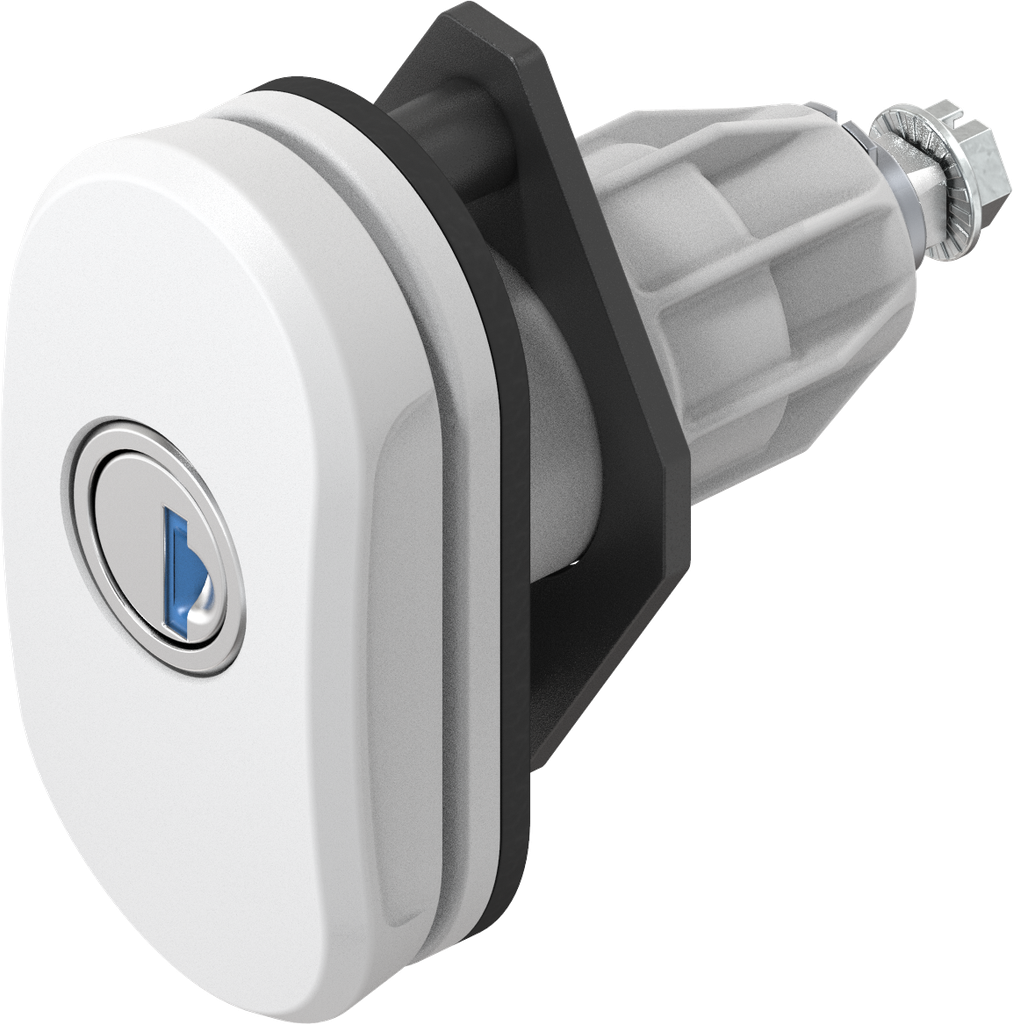

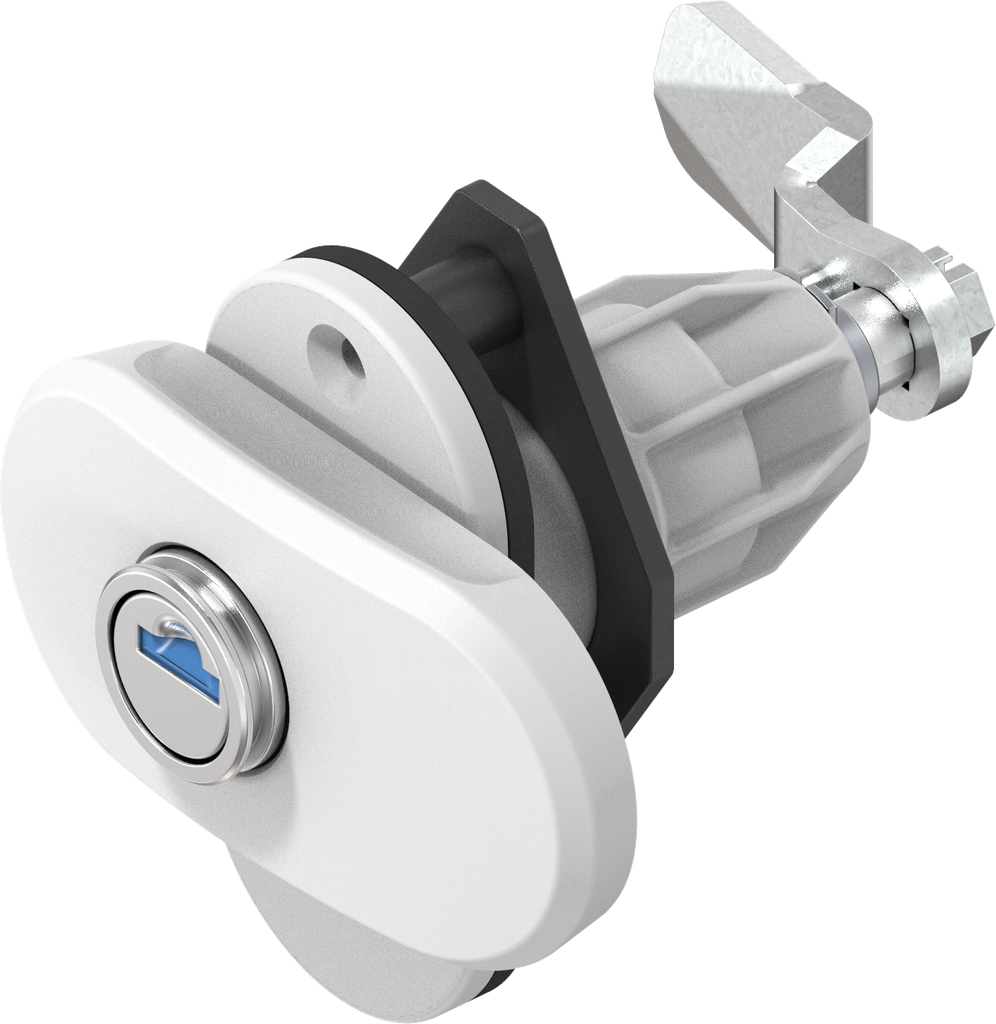

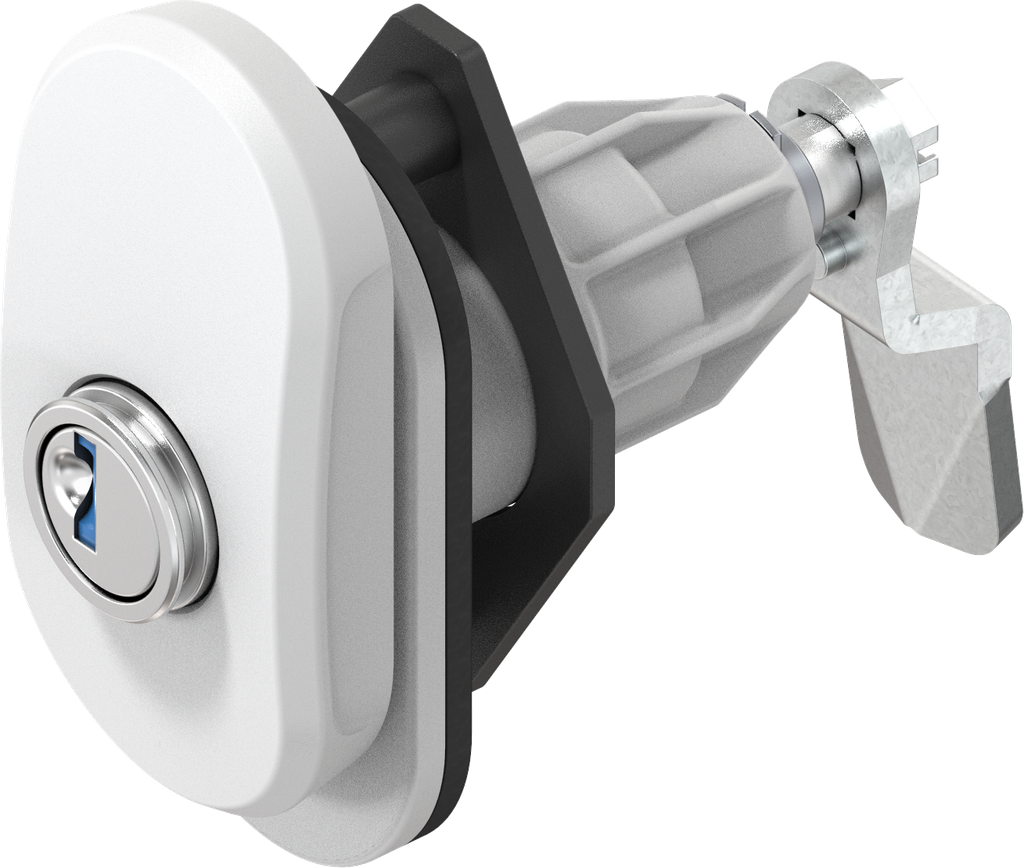

Compression latch "Basic ECO" for clip-in cylinder (system 3), Polyamide GF white; 1000-SU853-01

https://www.emka.com/products/1000-su853-01 https://www.emka.com/web/image/product.template/298341/image_1920?unique=385dc76


    This combination does not exist.

    Inside the sealing Protection class IP 65 DIN EN 61373 (shock and vibration testing) Left Right


    Product information:

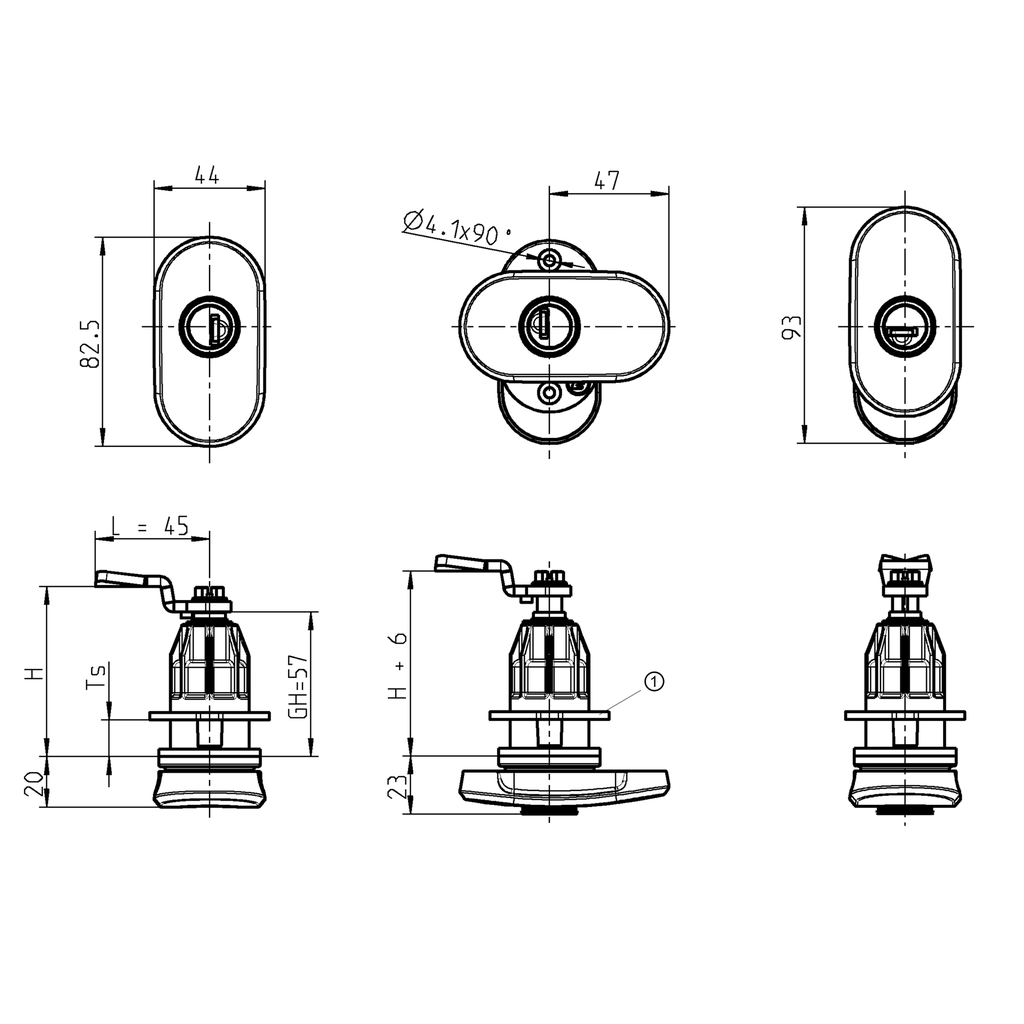

    1 = Fixing plate

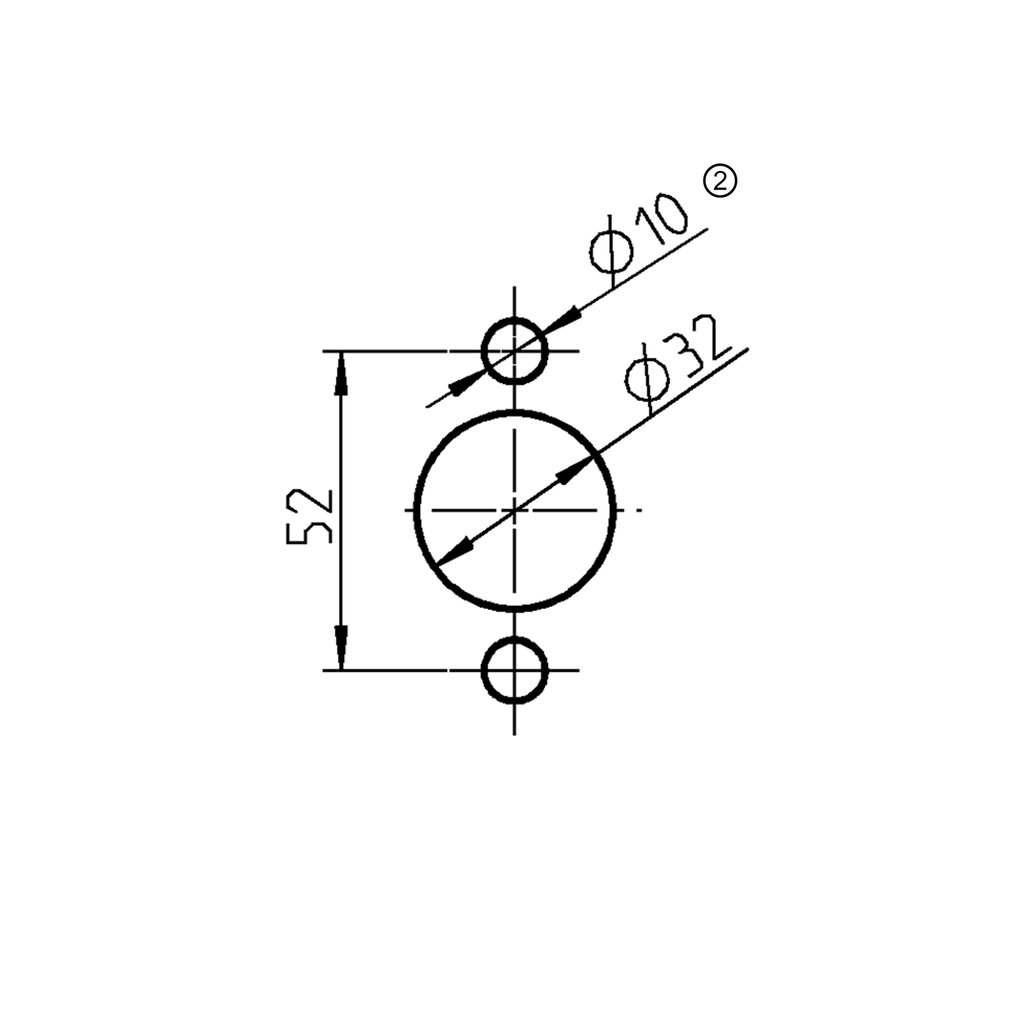

    2 = When the fixing plate is turned over, the cut out bore holes are decreased from Ø 10 to Ø 4.1. The maximum value of the door gauge is reduced by -10 mm.
    UV-stabilised

    Internal Reference: 1000-SU853-01
    Product Type: Quarter turn
    Program: 1000
    Material of the module : Polyamide GF
    Surface of the module: white
    Number of Possible Locking Points: 1 point
    Fixing type of housing : nut fixing
    Mounting Positions : Inside the sealing
    GH Mass: 57 mm
    Handle Art: Wing knob
    Compression Value : 6 mm
    Suitable for door thickness from: 0.80 mm
    Suitable for door thicknesses up to: 40 mm
    Round Cylinder Type: Clip-in cylinder system 3
    Locking set: Round cylinder
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Compression latch with handle
