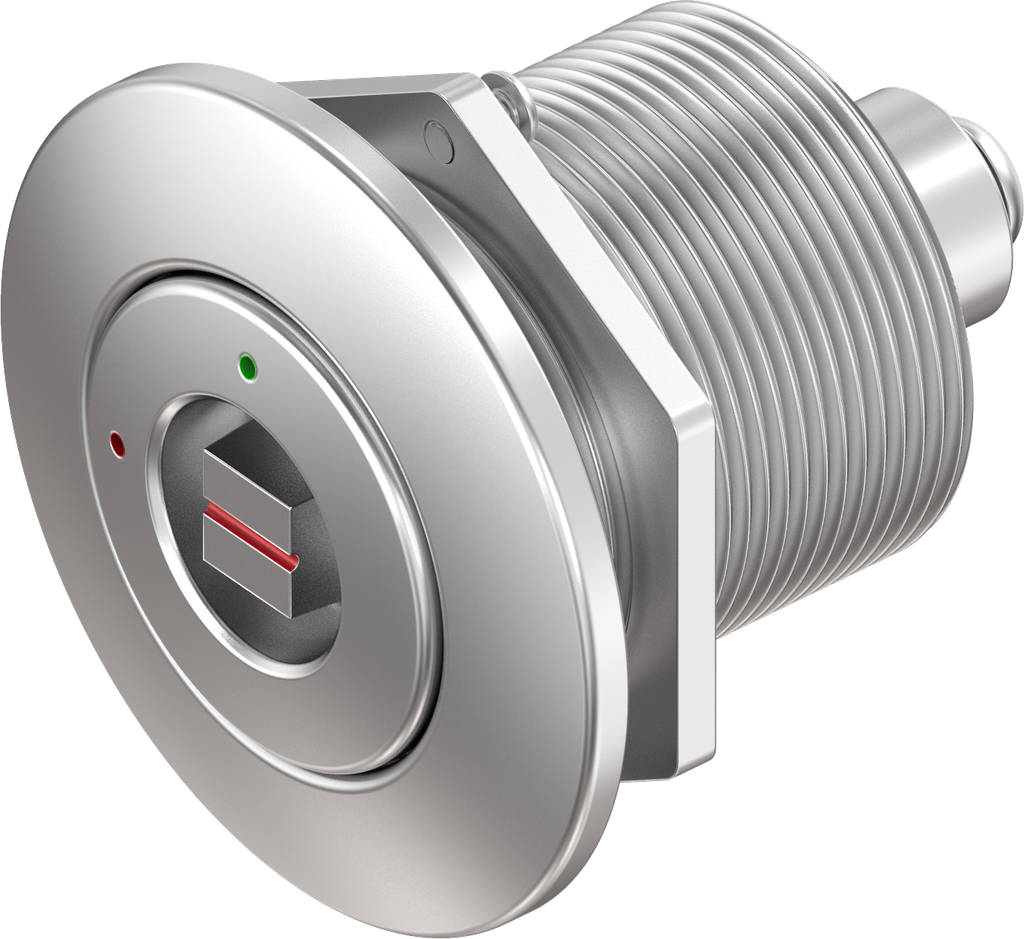

Safety quarter turn version railway with optical opening indicator and marking, right version, Stainless steel AISI 316; 1000-SU610-RE

https://www.emka.com/products/1000-su610-re https://www.emka.com/web/image/product.template/204595/image_1920?unique=47e3854

with nut and additional locking screw


    This combination does not exist.

    Inside the sealing Foamed seal Protection class IP 65 DIN EN 61373 (shock and vibration testing) Right


    Product information:

    The safety quarter turn is of a vibration-proof design. Depending on the installation location and operational conditions, specific checks are necessary and/or supplementary measures of fastening required.

    Function:

    Opening process:
    Plug in fitting key and push in insert. By turning the key by 90°, the cam rotates and the opening indicator will pop out.

    Locking process:
    Plug in the fitting key and press in the opening indicator. By turning the key by 90°, the cam rotates.

    Internal Reference: 1000-SU610-RE
    Product Type: Quarter turn
    Program: 1000
    Material of the module : Stainless steel AISI 316
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Fixing type of housing : nut fixing
    Type of actuation: Square 9 with marking, railway version
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round
    Housing Head Size: 55 x 7 mm
    Foamed gasket: Yes
    GH Mass: 35 mm
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 28 mm
    Locking set: Insert
    Door Version : Right
    Locking components: Cam
    Quarter turn types: Safety quarter turn
