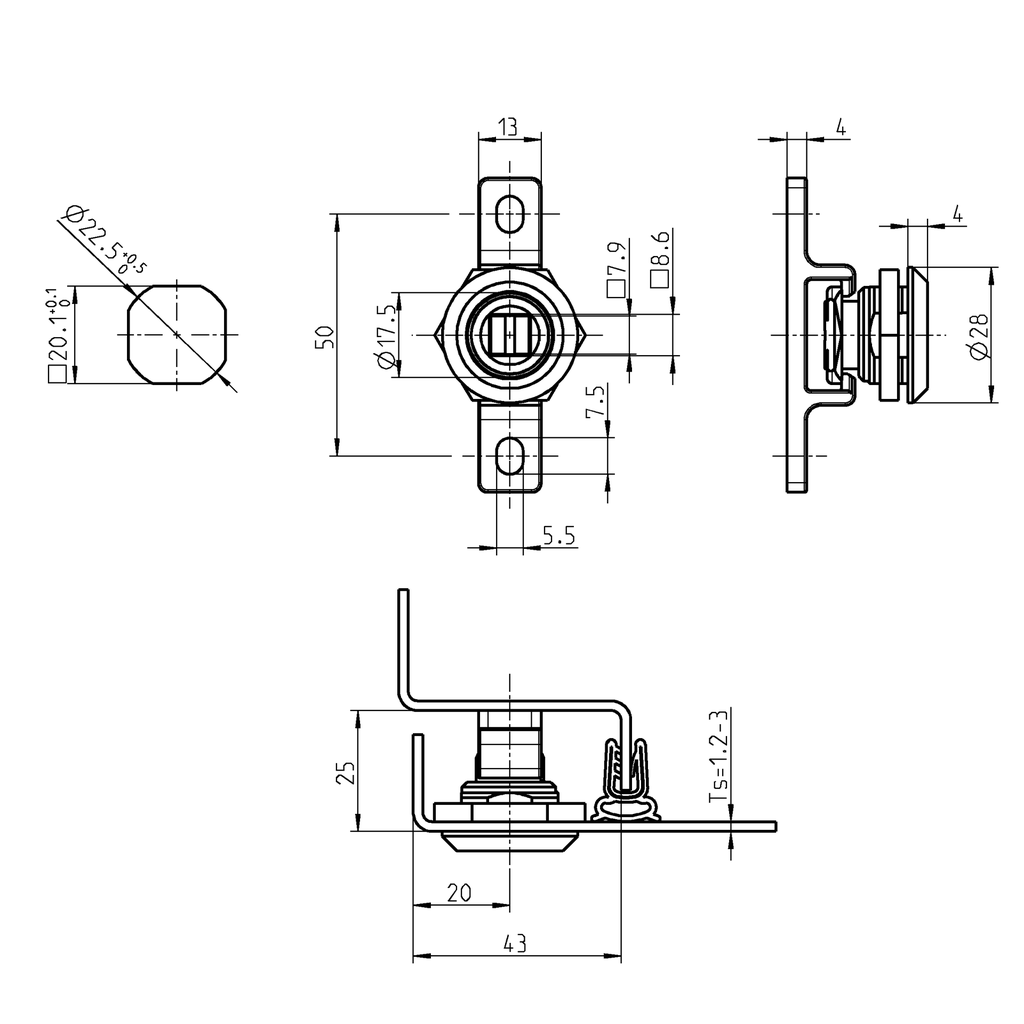

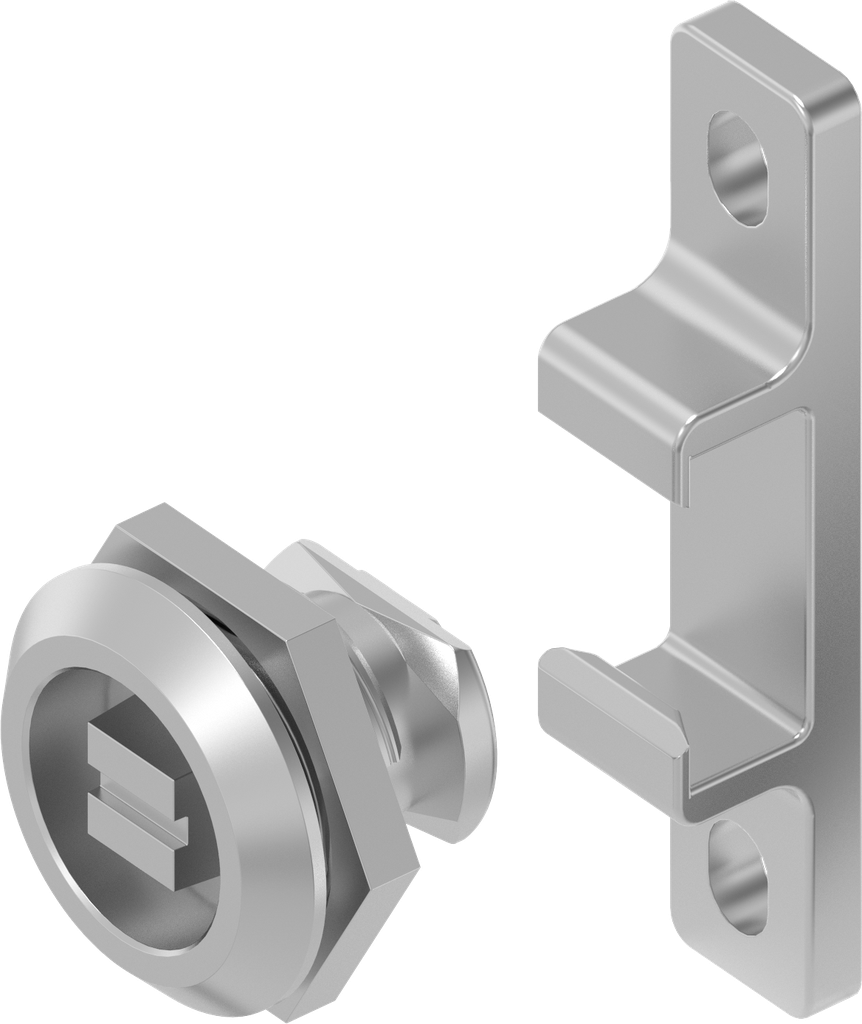

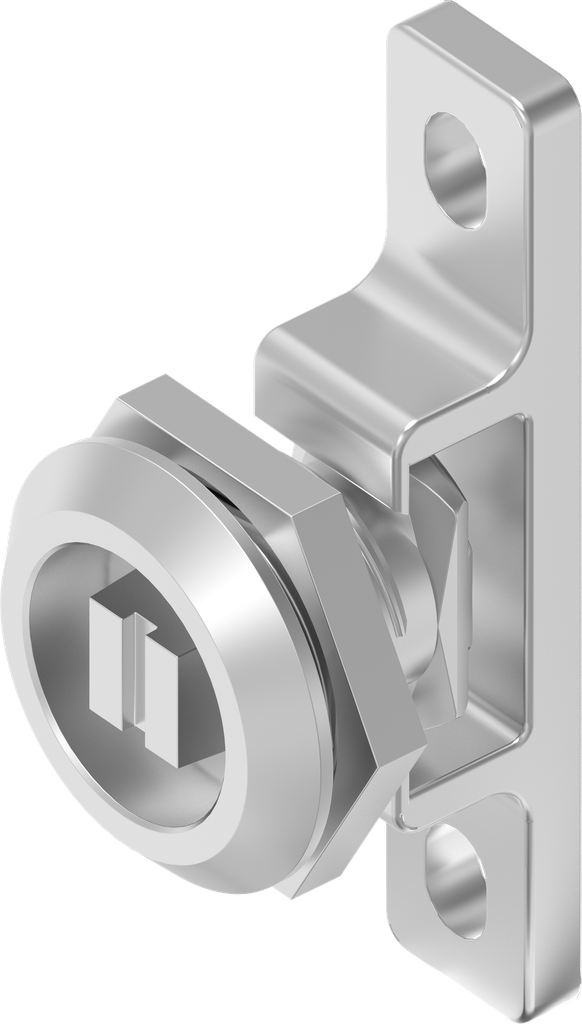

Quarter turn version railway with marking for outside the seal, Stainless steel AISI 303; 1000-SU560

https://www.emka.com/products/1000-su560 https://www.emka.com/web/image/product.template/204536/image_1920?unique=7f8957c

with stainless steel nut


    This combination does not exist.

    Outside the sealing Left Right


    Internal Reference: 1000-SU560
    Product Type: Quarter turn
    Program: 1000
    Material of the module : Stainless steel AISI 303
    Dimension A, Variable: 25 mm
    Number of Possible Locking Points: 1 point
    Fixing type of housing : nut fixing
    Type of actuation: Square 9 with slot 1 x 2, railway version
    Mounting Positions : Outside the sealing
    Housing Head Shape: Round
    Housing Head Size: 28 x 4 mm
    Suitable for door thickness from: 1.20 mm
    Suitable for door thicknesses up to: 3 mm
    Locking set: Insert
    Door Version : Left,Right
    Quarter turn types: Quarter turn with simple insert
